2021+ Kia K5 BIG MOUTH Ram Air
Installation Guide

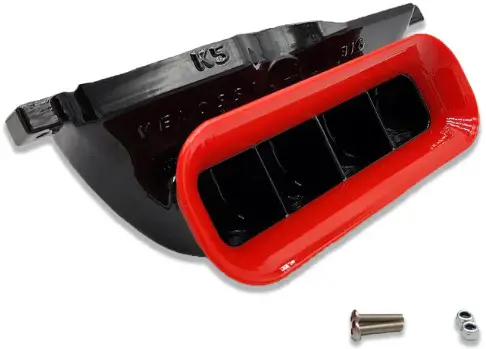

Kit Contents (Full Kit)
Please review this document before attempting installation.
You will need basic hand tools and 2 hours of installation time.
| Kit Contents | Qty |
| M5 x 22mm BHCP | 2 |
| M5 lock nut | 2 |
Stock Components Removal
It is best to google “how to remove bumper” for your particular trim.
Big Mouth Installation
The top shroud is integrated into the bumper and will come off as a single piece with the bumper. Drill two holes in this top shroud using a ¼” drill bit, use the BIG MOUTH itself as a template to locate the holes. Using a sharpie and marking through the holes from underneath is a good way to do this.

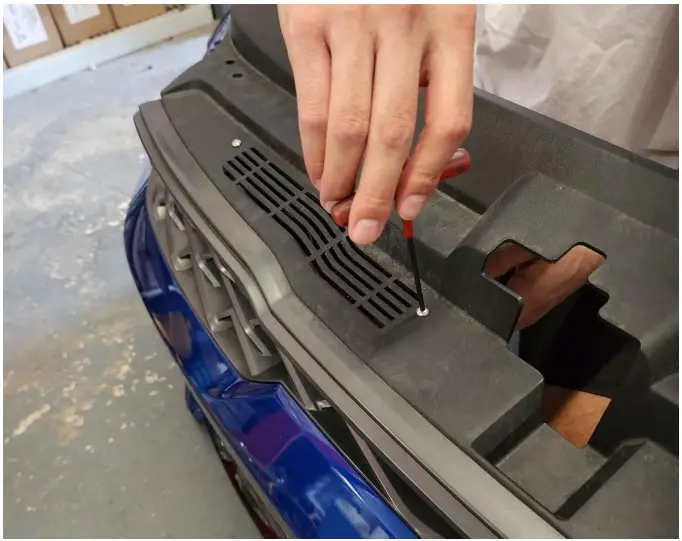

Fasten the BIG MOUTH in place using the supplied M5 hardware. Do not over-torque.

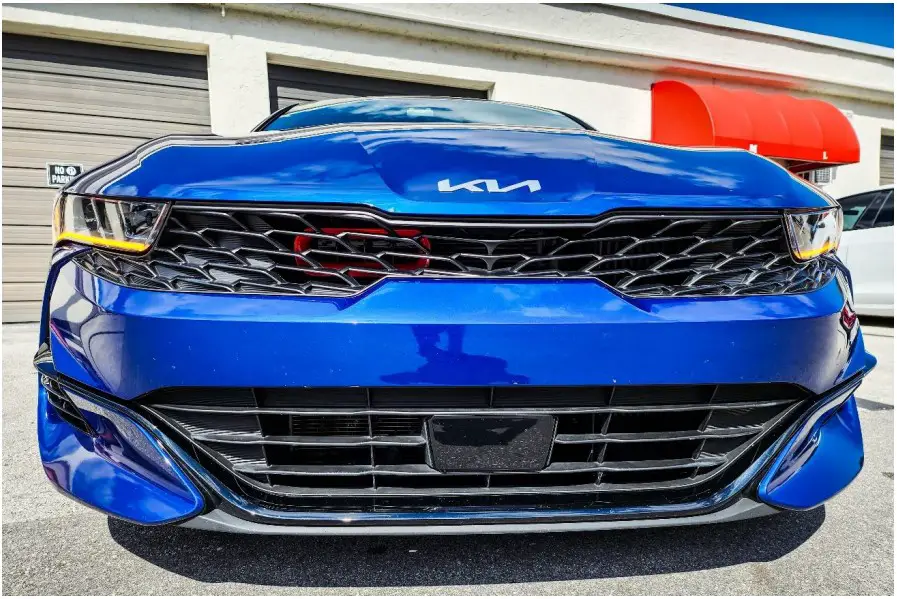

Final Assembly Review
Review the install and make sure nothing is binding or causing any preload on any parts, loosen and retighten if adjustment is necessary.
Re-assemble the bumper the same way it was removed to complete installation.
