2022 Hyundai Kona N BIG MOUTH “LIT KIT” Ram Air
Installation Guide
Please review this document before attempting installation.
You will need basic hand tools and 2 hours of installation time.

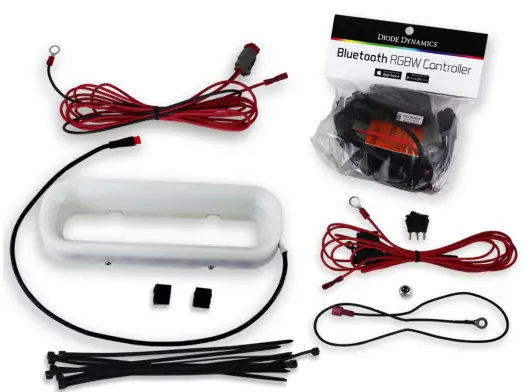

| Kit Contents | Qty |
| Diode Dynamics RGBW Controller | 1 |
| Positive Cable w/ In-Line Fuse | 1 |
| Power Cable w/ Pigtail Connector | 1 |
| Switch | 1 |
| Switch Ground Cable w/ Pigtail Connector | 1 |
| 8″ Zip Ties | 5 |
| M6 x 12mm Cap Screw | 1 |
| M6 Lock Nut | 1 |

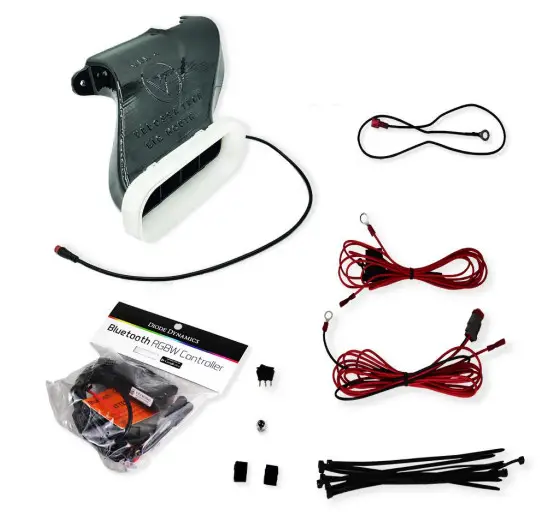

| Assembled LIT KIT BIG MOUTH | 1 |
Kit Contents (LIT Flare Only)
Please review the table below and make sure you have received the kit contents.
| Kit Contents | Qty |
| Diode Dynamics RGBW Controller | 1 |
| Positive Cable w/ In-Line Fuse | 1 |
| Power Cable w/ Pigtail Connector | 1 |
| Switch Ground Cable w/Crimped Connector | 1 |
| Switch | 1 |
| Cable Clips | 8 |
| 8″ Zip Ties | 2 |
Stock Components Removal
It is best to google “how to remove bumper” for your particular trim, after the bumper is removed, you will see the following.
Install the LIT BIG MOUTH Flare
SKIP THIS SLIDE IF YOU PURCHASED A FULL LIT KIT

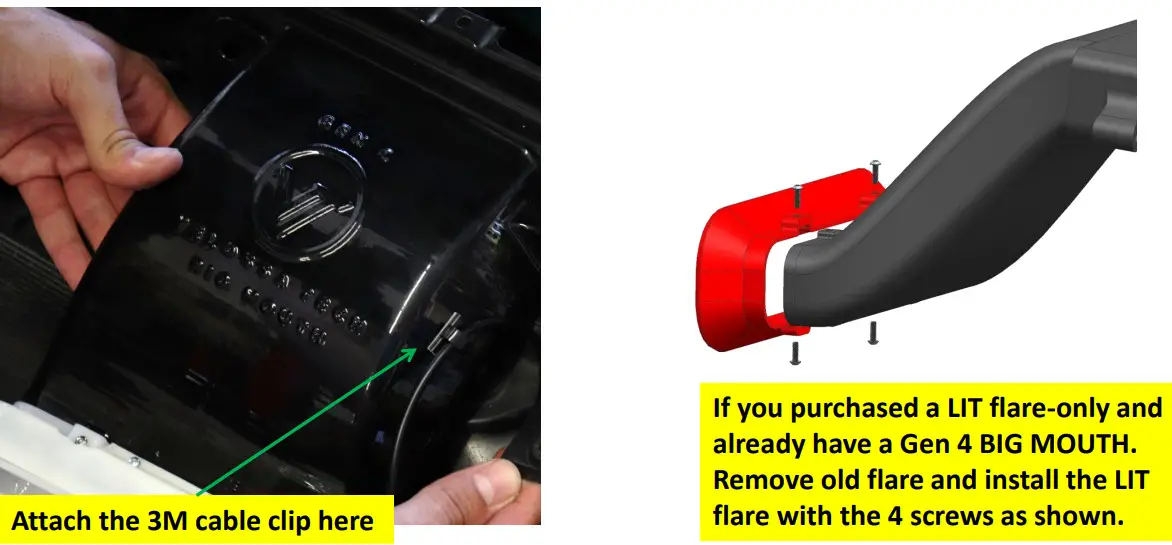

Attach the supplied cable clip to your BIG MOUTH as shown. Fasten the cable and provide enough slack to not strain the cable.
BIG MOUTH Installation

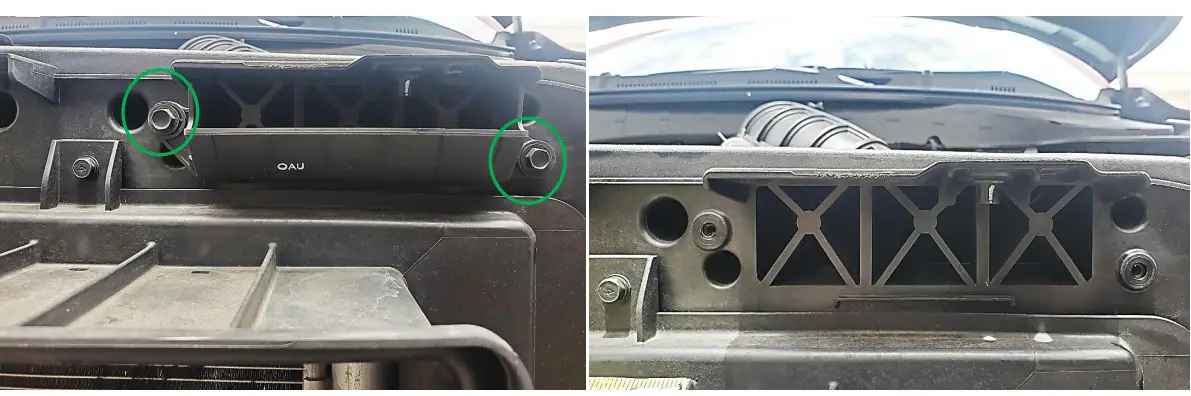

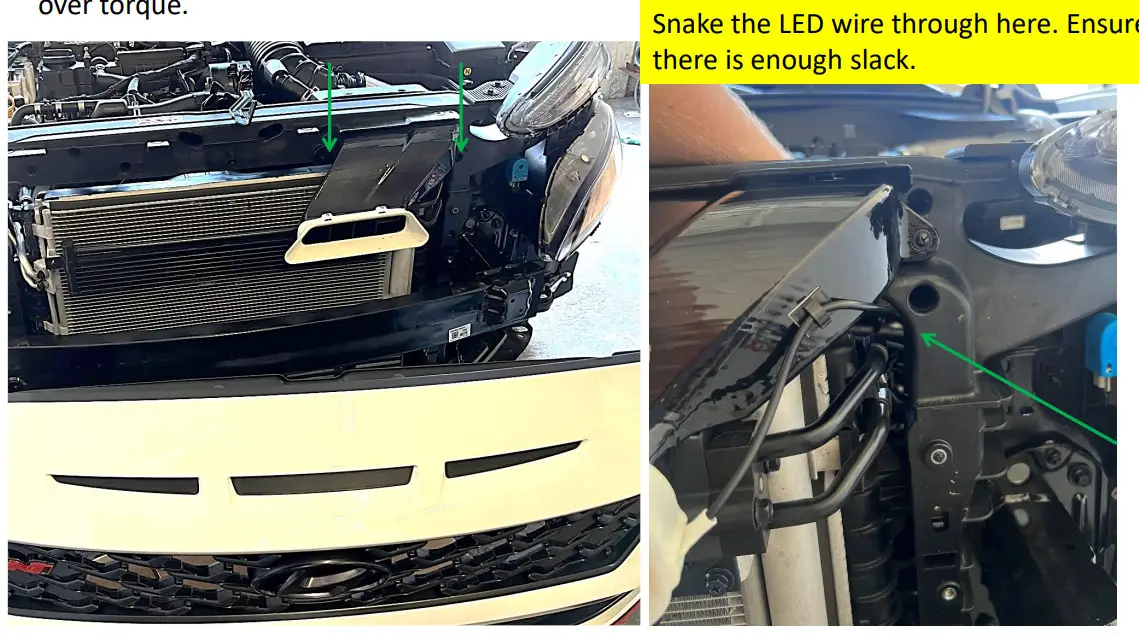

Remove the OEM plastic flap, keep these screws. Re-use the screws to fasten the BIG MOUTH to the radiator support.
Fasten the BIG MOUTH as shown, use the OEM screws. Start the threads by hand, do not over torque.
Mount the controller on any flat location using the double sided tape. Clean the surface with a clean cloth prior, and press firmly in place as shown.

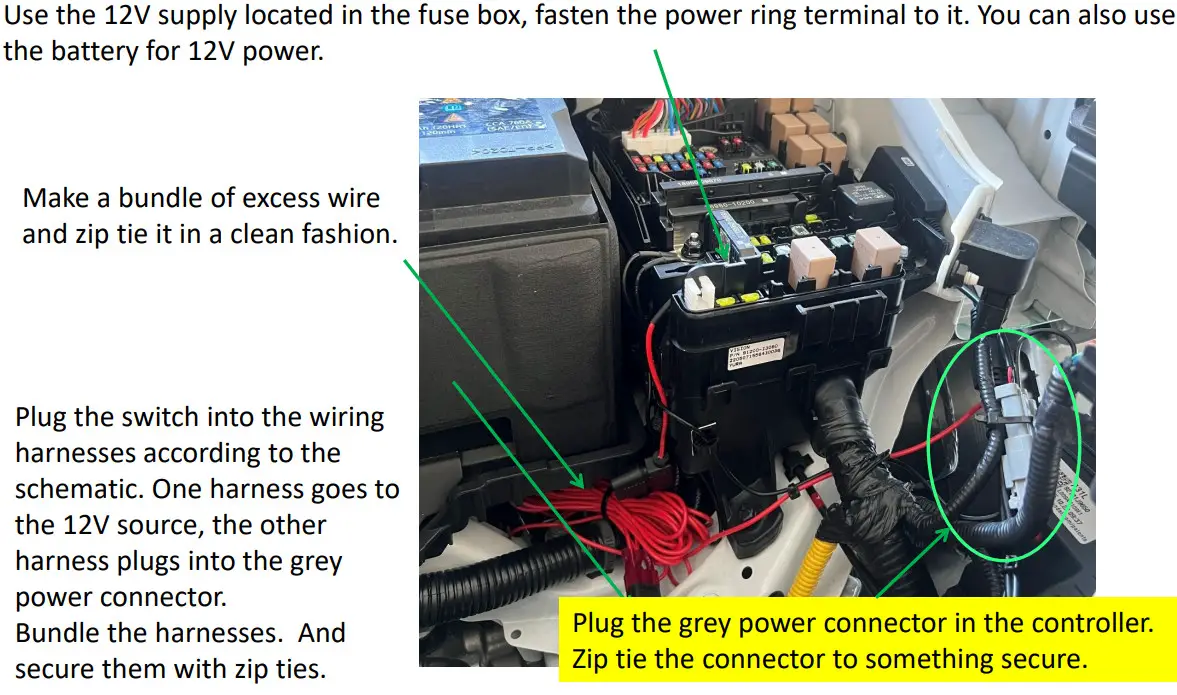

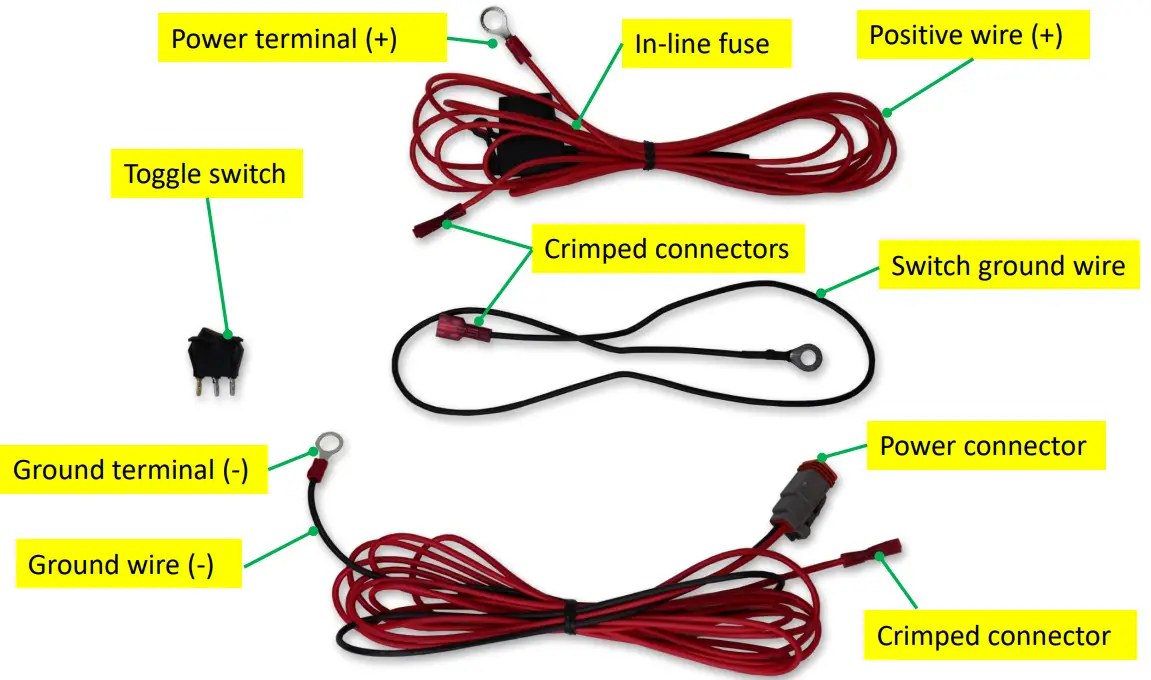

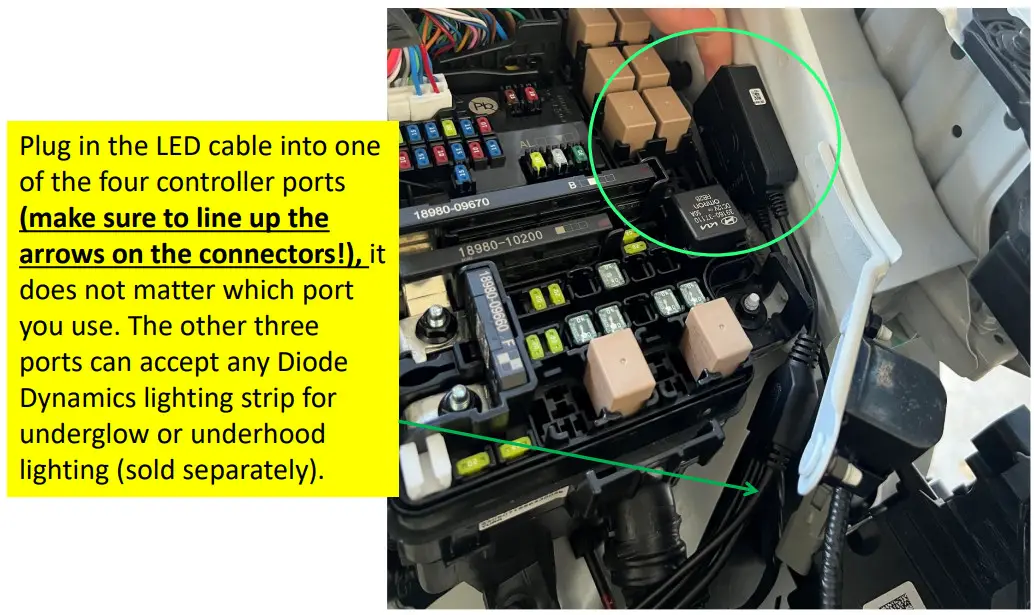

Wiring Harness

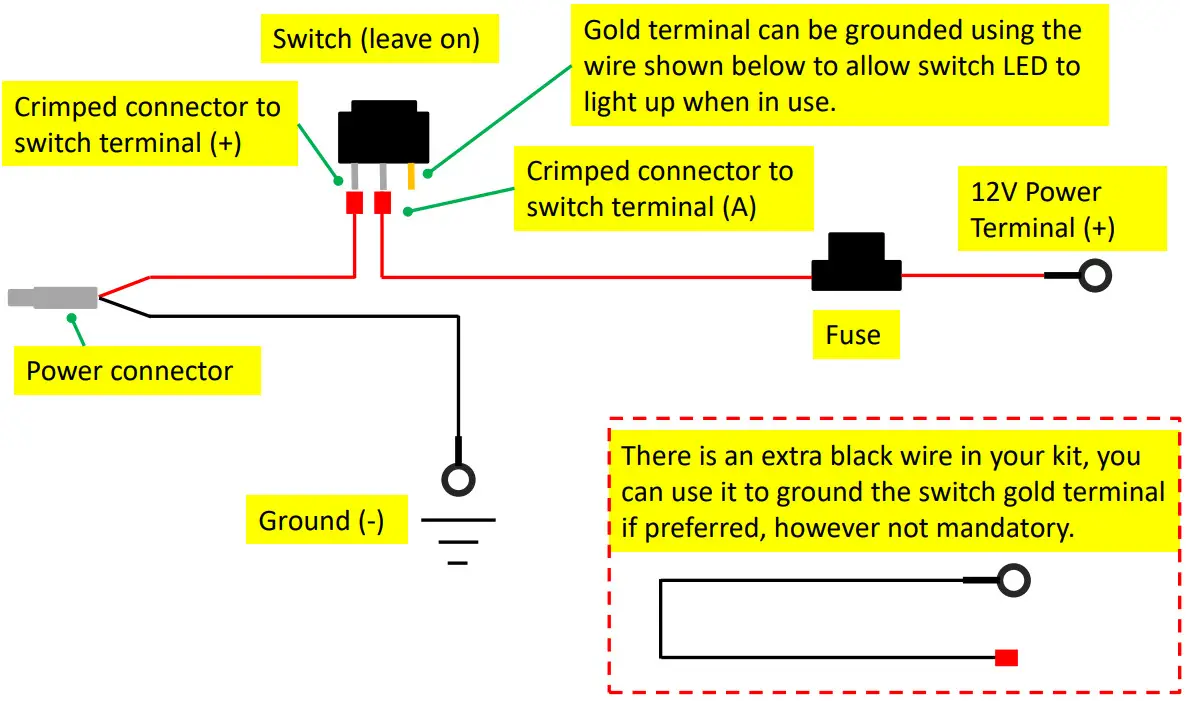

Wiring Harness Schematic
Big Mouth Wiring
Big Mouth Wiring

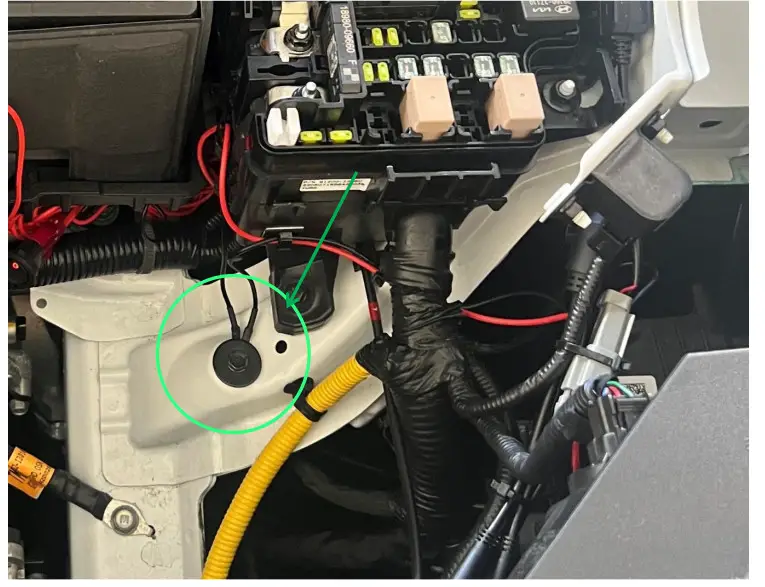

Ground is important for the controller, it must be a solid connection. Find a ground point that goes into the metal chassis. There are two ground wires, one is for the controller (important) and one is for the little red LED on the power switch which you may or may not use.

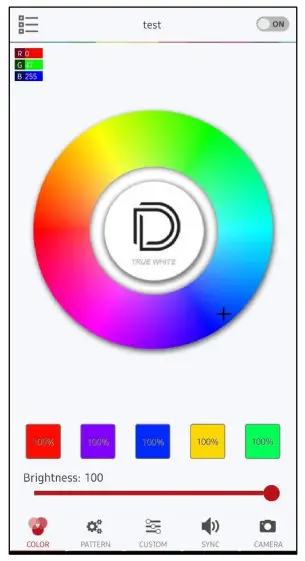

Phone App
Download the Diode Dynamics app and connect via Bluetooth.
How to connect to the app:
- After installing the app from the app store, open the app on your device.
- Cycle the power to the Bluetooth controller by unplugging it and plugging it back in or flick the power switch and wait a few seconds, then turn it back on.
- Wait for the app to detect the controller, it will pop up on the app screen as a Bluetooth controller. If necessary, cycle the power once more to refresh the controller.
- Once the controller shows up on the app, click it and connect. You have 30 seconds to select the controller once it shows up on the app. After 30 second you will need to refresh again to detect the controller again.
- Note that if you mounted your controller behind a lot of metal components, this may degrade the signal and range.
Finalize
Re-install the bumper the same way it was removed and ENJOY!
