VELOSSA TECH 2022+ Hyundai Kona N BIG MOUTH Ram Air
Kit Contents (Full Kit)
- Please review this document before attempting installation.
- You will need basic hand tools and 2 hours of installation time.
Kit Contents

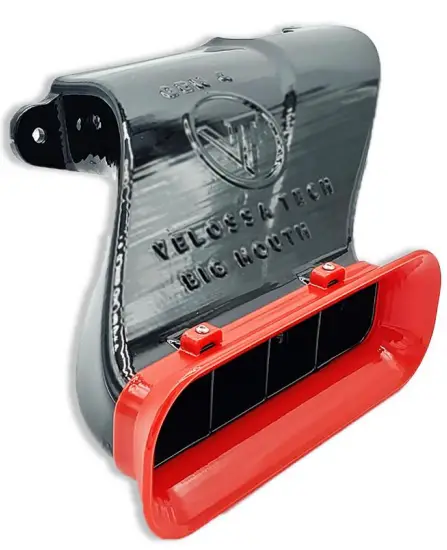

Big Mouth Ram Air assembled
Stock Components Removal
It is best to google “how to remove bumper” for your particular trim, after the bumper is removed, you will see the following.
BIG MOUTH Installation

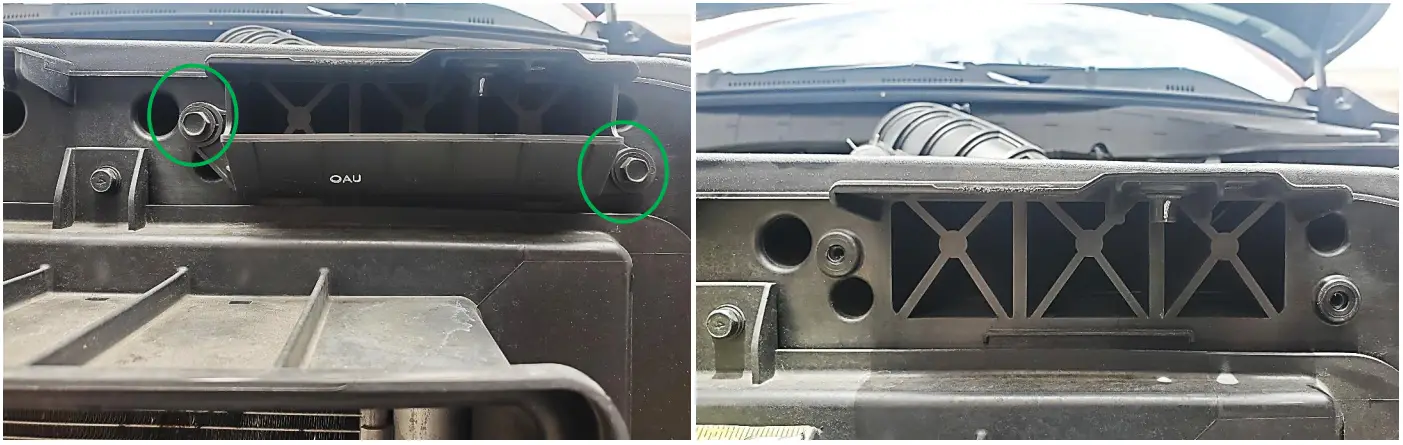

- Remove the OEM plastic flap, keep these screws. Re-use the screws to fasten the BIG MOUTH to the radiator support.

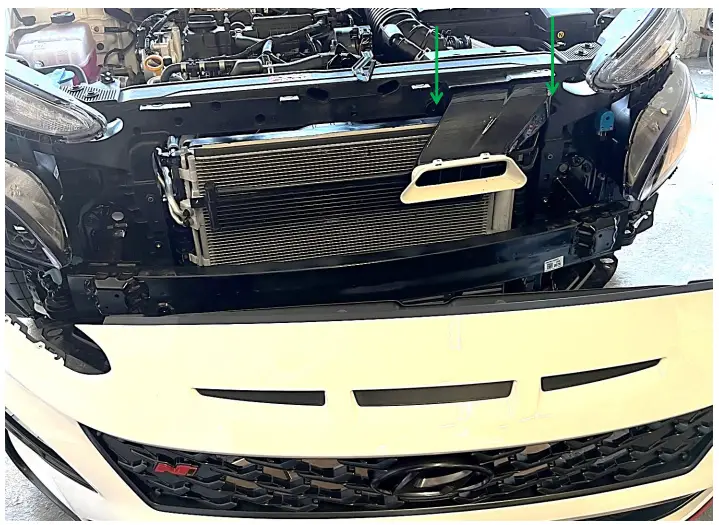

- Fasten the BIG MOUTH as shown, use the OEM screws. Start the threads by hand, do not over torque.
Big Mouth Adjustment
Before fastening the bumper back on the car permanently, inspect the levelness of the BIG MOUTH and adjust if needed. Enjoy
