IKEA MATALSKARE Forced Air Oven User Guide

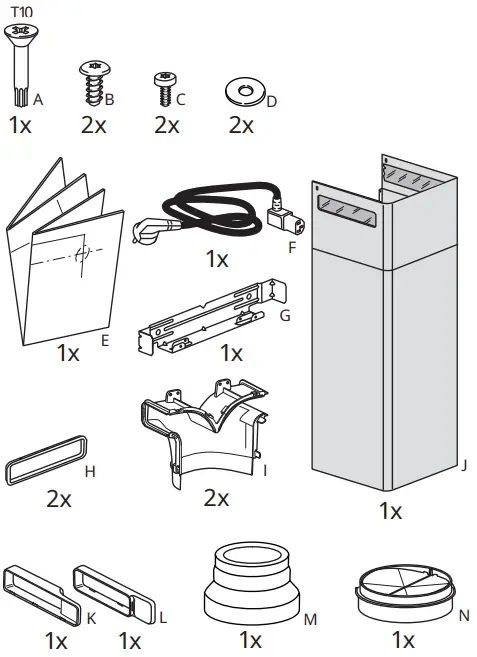

Parts List

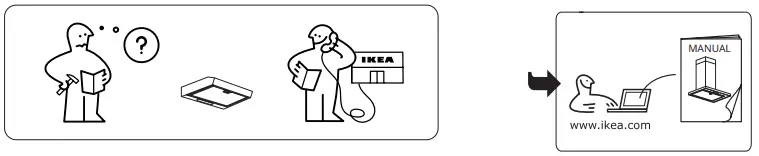

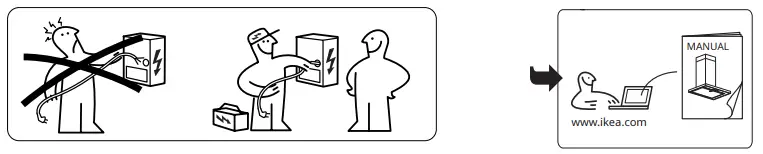

Safety Instruction

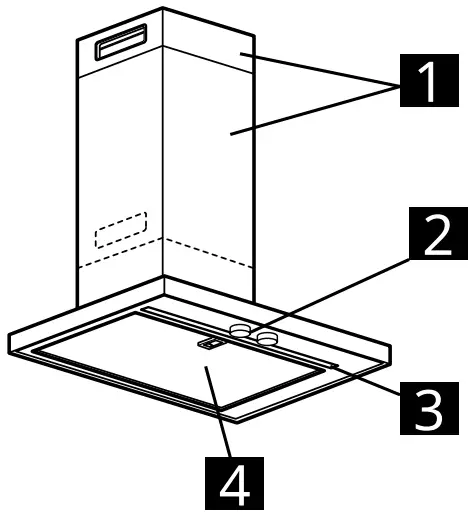

Description of the appliance
- Chimney
- Control Panel
- Lamp
- Grease filter
Control Panel
 | Lighting ON/OFF knob |
 | Suction speed selection knob |
 | Switch-off |
 | Low suction speed |
 | Average suction speed |
 | High suction speed |
 | Maximum suction speed |
Technical Data
| Type of appliance | Wall-mounted Hood | ||
| Dimensions | Width | mm | 598 |
| Depth | mm | 458 | |
| Min. height | mm | 633 | |
| Max. height | mm | 1088 | |
| Total power | W | 217 | |
| Light info | Type | LED | |
| Number & Power | W | 1x7w | |
| Connection | LED Strip | ||
| Minimum installation height – gas cooker | mm | 650 | |
| Minimum installation height – electric cooker | mm | 500 | |
| Product weight | Kg | 12.9 | |
| Product information in accordance with EU Regulation no. 65/2014 | |||
| Name of Supplier | IKEA | ||
| Model identification code | MATÄLSKARE 10368804 MATÄLSKARE 00392197 | ||
| Annual energy consumption – AEC | Kwh/year | 40.6 | |
| Energy efficiency class | A | ||
| Fluid dynamic efficiency FDE | % | 29.3 | |
| Fluid dynamic efficiency class | A | ||
| Luminous efficiency LE | lux/W | 29.0 | |
| Luminous efficiency class | lux | A | |
| Grease filtering efficiency – GFE | % | 86.0 | |
| Grease filtering efficiency class | B | ||
| Minimum air flow (normal power) | m3/h | 206.0 | |
| Maximum air flow (normal power) | m3/h | 510.0 | |
| Airflow setting in boost mode | m3/h | NA | |
| A-weighted sound power level of noise emissions at minimum speed | Db(A) re 1pW | 46.0 | |
| A-weighted sound power level of noise emissions at maximum speed | Db(A) re 1pW | 65.0 | |
| A-weighted sound power level of noise emissions in boost mode | Db(A) re 1pW | NA | |
| Power consumption in off mode-P0 | W | NA | |
| Power consumption in standby mode-Ps | W | NA | |
| Product information in accordance with EU Regulation no. 66/2014 | |||
| Factor of increase over time – f | 0.9 | ||
| Energy efficiency index – EEI | 51.7 | ||
| Airflow measured at best efficiency point – QBEP | m3/h | 278.0 | |
| Air pressure measured at best efficiency point – PBEP | Pa | 410.0 | |
| Maximum airflow – Qmax | m3/h | 510.0 | |
| Electric power consumption at best efficiency point – WBEP | W | 108.0 | |
| Rated power of lighting system – WL | W | 7.0 | |
| Average illuminance of the lighting system on the cooking surface – E middle | lux | 203.0 | |
SUPPORT
To download the full version visit: www.ikea.com
