REDARC GoBlock Anderson Fastcharge Plug Installation
INSTALLATION
- Use when there is an accessible Vehicle Earth Point located in the vicinity of the GoBlock.
It is important to make a good, low resistance, electrical connection that will not degrade over time.

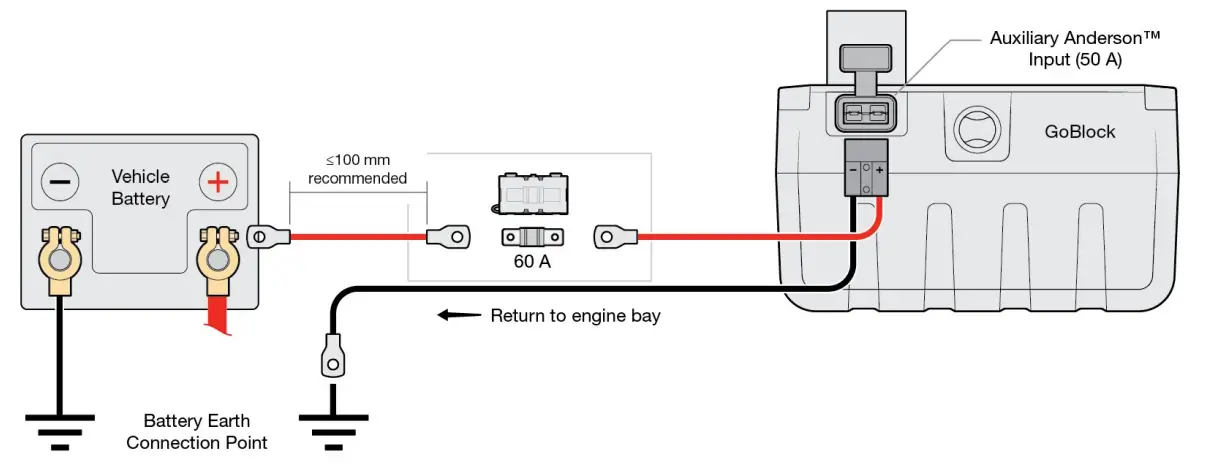

- Use when there is no accessible Vehicle Earth point located in the vicinity of the GoBlock.
PARTS LIST
- 1 x 50 A Anderson TM Plug
- 1 x Red cable*
- 1 x Black cable*
- 2 x Lugs to suit vehicle battery terminals
- 1 x Midi Fuse (60 A)
- 1 x Fuse Holder
- Crimp lugs as required
See Cable Sizing table for required cable length/gauge

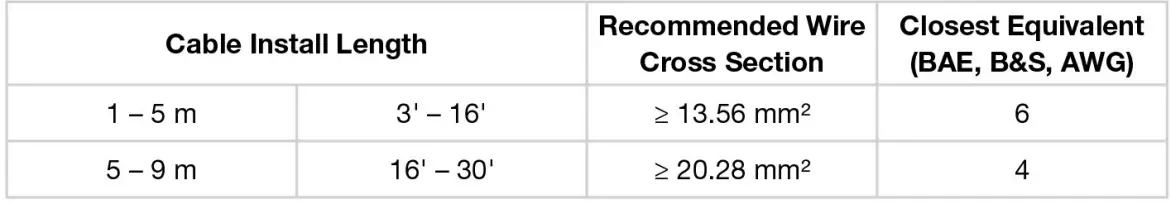

CABLE SIZING
Purchase cable length and gauge to suit your individual installation. Cable length refers to the total cable length of the install (positive + negative cable length).
Always choose a wire cross sectional area equal to or greater than what is specified below.
