SENECA VPN BOX 2 Server Connectivity Module
PRELIMINARY WARNINGS
The word WARNING preceded by the symbol indicates conditions or actions that put the user’s safety at risk. The word ATTENTION preceded by the symbol indicates conditions or actions that might damage the instrument or the connected equipment. The warranty shall become null and void in the event of improper use or tampering with the module or devices supplied by the manufacturer as necessary for its correct operation, and if the instructions contained in this manual are not followed.
WARNING: The full content of this manual must be read before any operation. The module must only be used by qualified electricians. Specific documentation is available via QR-CODE shown on page 1.
The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to electrostatic discharges. Take appropriate measures during any operation.
Electrical and electronic waste disposal (applicable in the European Union and other countries with recycling). The symbol on the product or its packaging shows the product must be surrendered to a collection centre authorized to recycle electrical and electronic waste
CONTACT INFORMATION
- Technical support [email protected]
- Product information [email protected]
This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised. The content of this document corresponds to the described products and technologies. Stated data may be modified or supplemented for technical and/or sales purposes

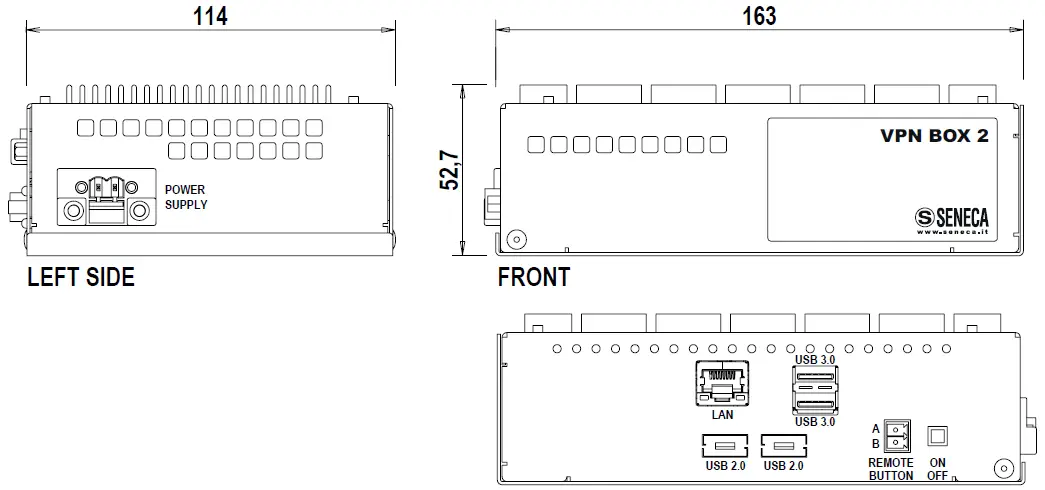

MODULE LAYOUT
TECHNICAL SPECIFICATIONS
|
CERTIFICATIONS |
|
| POWER SUPPLY | 9 ÷ 36Vdc; 30 ÷ 40W max. |
| ENVIRONMENTAL CONDITIONS | Storage temperature: -20°C ÷ 70°C Operating temperature: 0°C ÷ 50°C |
| IP ADDRESS OF FACTORY | The default IP address is configured in DHCP |
| PROCESSOR | Intel® Pentium™ N4200 1.ProcessorClock: 1GHz |
| CORE NUMBER | Core: 4 |
| COOLING | Fanless |
| MEMORY | 8GB DDR3L dual-channel |
| HARD DISK | SSD da 64GB |
| CASE | Compact Fanless |
| I/O INTERFACE | 1x VGA, 1x HDMI, 1x RJ45 (reserved), 1x RJ45 GbE LAN, 2x USB 3.0, 2x USB 2.0, ON/OFF button, 1x PWR LED, 1x HD ACT. LED |
Programming tools, app, manuals, templates, examples, etc. for the product can be downloaded free of charged at www.seneca.it in the product section.
ELECTRICAL CONNECTIONS

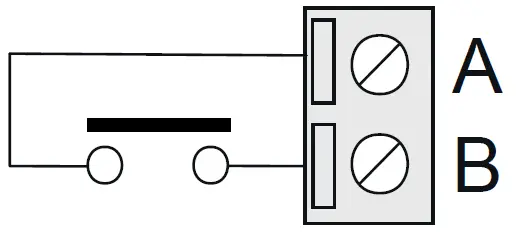

REMOTE BUTTON
By means of the removable two-pole terminal, located on the back of the device, it is possible to install an external push-button for switching the device on and off, which can be controlled remotely also.
SENECA s.r.l.; Via Austria, 26 – 35127 – PADOVA – ITALY; Tel. +39.049.8705359 – Fax +39.049.8706287
