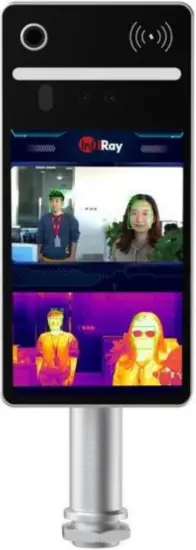

Thermal Imaging Fever Screening Terminal
IRS-AC822-H
Product Features
Accurate Thermal Temperature Measurement
Thermal imaging and temperature screening with resolution of 256×192 Skin temperature screening from 0.3m to 2m（measurement deviation within ±0.5℃）
AI Face Recognition Support face recognition with mask, face recognition accuracy＞92% Support 1:1/1:N face comparison, face image capacity
High Face Recognition Speed 0.2s per face plus forehead temperature measurement Support multiple persons temperature screening at the same time
Custom Voice Broadcast Support multiple languages and custom voice uploading Support normal temperature broadcast and abnormal temperature broadcast
Support Multiple Interfaces and Peripheral Support identification of CPU card, IC card and HID card Support lock control output and face unlock
Rapid Deployment Support cloud deployment and private server deployment With encapsulation level IP66
Application Fields
Security Inspection Management High-speed rail station, airports, bus station, subway station
Face Access Management Schools and enterprise and public institution
Attendance and Sign-in Company conference, school training, exhibition and forum
In and Out Management Communities, office buildings, villas, etc.
Technical Specifications
| Technical Index | Thermal Imaging Fever Screening Terminal | |
| Thermal | Sensor Type | uncooled IRFPA |
| Resolution | 256×192 | |
| Temperature Measurement Distance | 0.3~2m | |
| Temperature Measurement Accuracy | ±0.5℃ | |
| Visible | Sensor Specification | Dual 2MP, low illumination sensor |
| WDR | ≥120dB | |
| FOV | 65°×40° | |
| Focal Length | 4.3mm | |
| Function | Face Inspection | AI face inspection trace, more than 30 faces per frame |
| Liveness Inspection | Anti-spoofing: pictures, video, face ornaments, 3D model | |
| Properties | Mask, gender, age, glasses, facial expressions, beard, hat | |
| Face Database | 50,000 | |
| Attendance Record | 50,000 | |
| Card Reading | Support CPU card/IC card /HID card | |
| Unlock Type | Support face, card, QR code, Bluetooth | |
| Interface | Alarm Input | 2-channel alarm in, 1 channel alarm out |
| RS485 | 1 channel RS485 | |
| Unlock Button | Yes | |
| Power | DC 12V | |
| Network Interface | One self-adaptive RJ45 10M / 100M Ethernet port | |
| One 2.4G Wi-Fi module | ||
| USB | One USB 2.0 | |
| Wiegand | Double | |
| Device Parameters | Working Temperature | Terminal working temperature: -20 ℃~+ 60 ℃; The recommended working temperature for infrared thermography: 20℃~ 35℃, indoor, windless, no direct sunshine |
| Encapsulation | IP66 | |
| Dimensions | 126mm×264mm×18.5mm | |
| Display | 8 inch, 1280×800 | |
| Power Consumption | Less than 20W, 12V power supply | |
| Mounting Type | Wall-mounted, desktop, turnstiles | |
Drawings

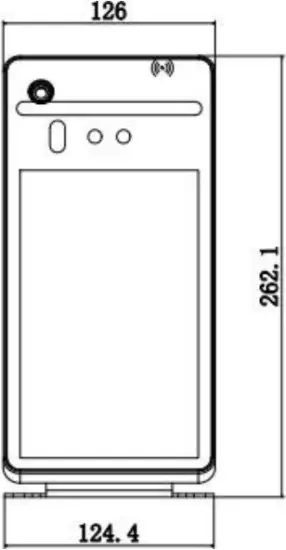

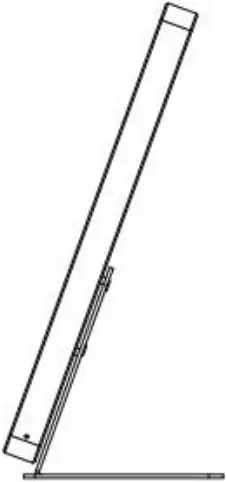

Desktop Type

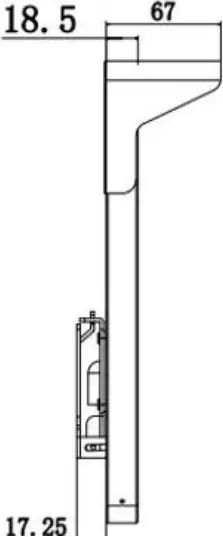

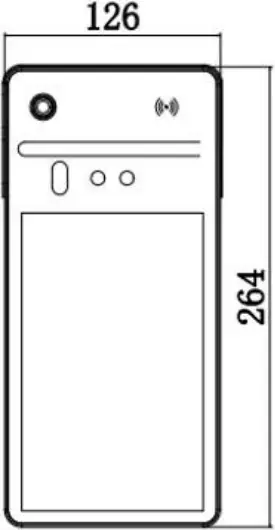

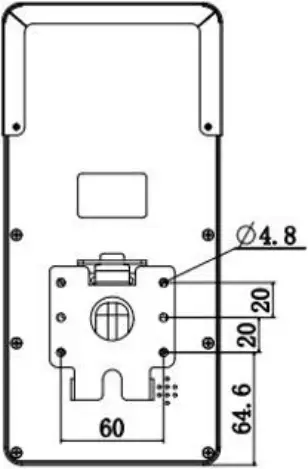

Wall-mounted

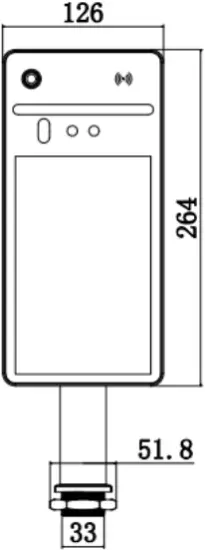

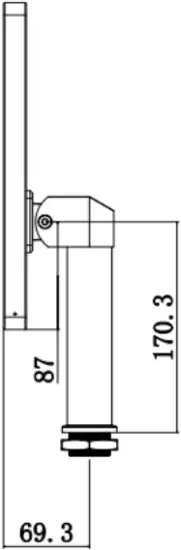

Column Type
Accessory List
No. | Accessory Name | Picture |

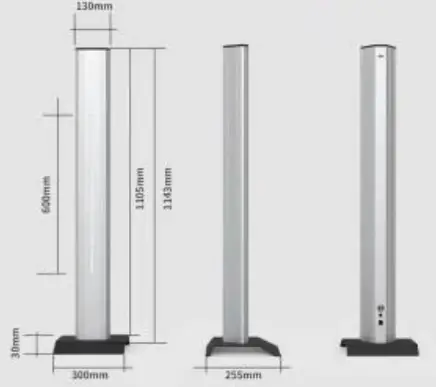

1 | The floor stand for column type |  |

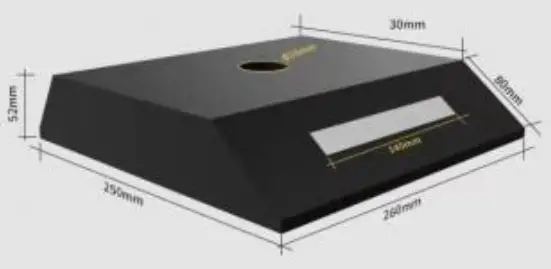

2 | The desktop stand for column type |  |

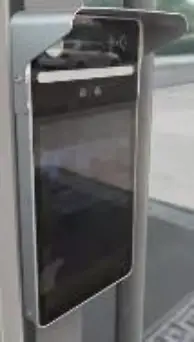

3 | The sunshield |  |
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules.
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
©2021 IRay Technology Co.,Ltd. All rights reserved.
This datasheet is subject to change without prior notice. Please contact us to get the latest datasheet.
V 1.0.3
