2 AF-6/AF-6R Special Effects Fan User Manual – English

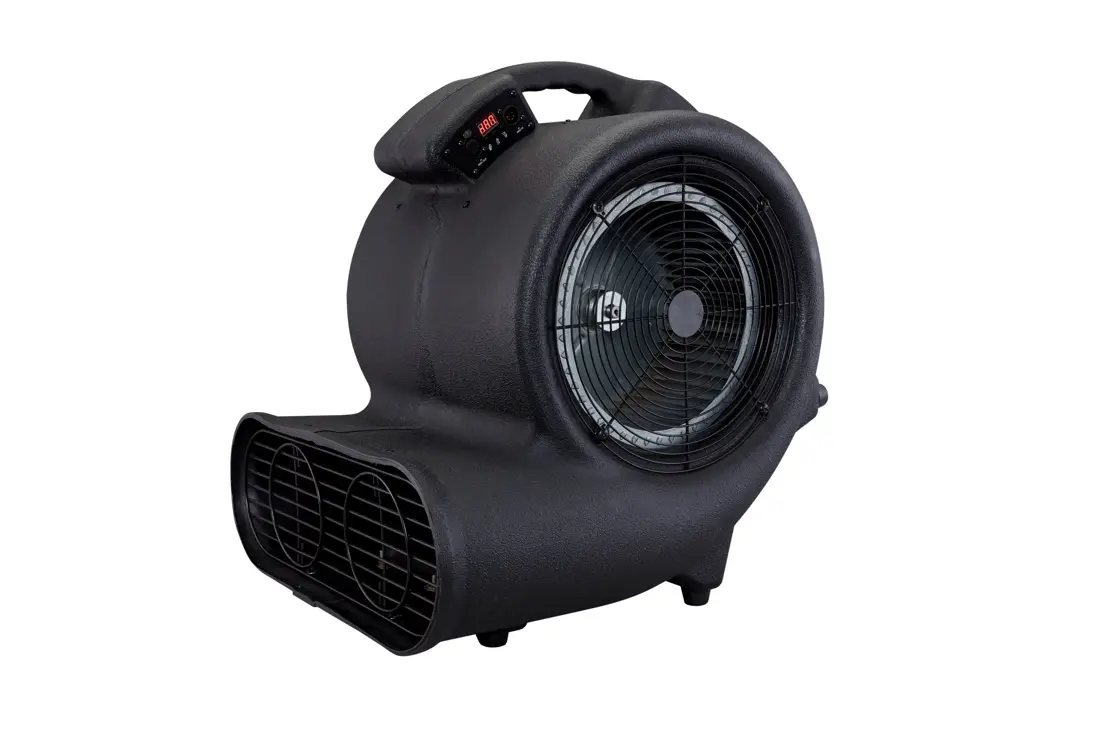

AF-6R Special Effects Fan

AF-6/AF-6R Special Effects Fan User Manual – English

1. Introduction

Please read all the user manual before operating the machine,
and place the manual where the user can refer to it at all time.
The manual includes how to install and operate the machine under
safe condition and explain all the labels printed on the machine.
If you encounter any problem, contact your local Antari dealer for
assistant immediately.

2. Safety Information

DANGER If the danger is not avoided, it will
cause death or serious injury

WARNING If the warning is not heeded, it can
cause death or serious injury.

CAUTION If the precaution is not taken, it may
cause minor or moderate injury.

DANGER

Must connect the machine to the correct rated voltage or it
might lead to an electrical shock or a burn and may cause serious
consequences.
Must connect the machine to a protected circuit and ensure it
is properly grounded to avoid the risk of electrocution. For
grounding instruction, please refer to Appendix I on page 19.
Do not operate the machine with a bundled power cord, it could
lead to a fire hazard.
Do not use the fan in an environment full of flammable gas,
susceptible to water or powder. Keep away from any fire and heat
sources.
When operating the machine, do not point at people, animals, or
fire.

WARNING

Please operate the machine on a flat, level hard and well
ventilated surface area, reserve at least 50cm space around the
machine and make sure there is no flammable gas or material
nearby.
Do not disassemble, repair or modify the machine, it may cause
damages, malfunction, risk of electrical shock or result in
fire.
The machine can only be operated by adults or professionals, is
not intended for use by person with reduced physical sensory,
mental capabilities, or lack of experience and knowledge including
children.
Do not leave the machine running unattended, make sure all
powers are off when leaving. Children should be supervised to
ensure that they do not play with the machine.
Do not use the machine upside down or tilt it, it might cause
damages or malfunction.
Never allow any object or part of your body to enter path of
the fan blades to prevent any injury or damages
Do not spray the fan with any liquid including cleaner and
insecticide to avoid injury or damages.

CAUTION

Keep the machine dry at all time. The machine is not
waterproof, do not expose the machine to water, rain, or moisture
environment.
Please make sure the power outlet is not damaged or loose
before plug in the power cord. If the power cord is damaged, it
must be replaced by Antari or its local dealers, otherwise the
warranty will be void.
The machine is for indoor use only. Do not operate the machine
in any area with unstable voltage.
If you experience strange sound or malfunction, turn off the
power and unplug the power cord immediately and contact your local
Antari dealer for assistant.
Do not contact any moving part.
Only use accessories recommended or sold by Antari.
Please make sure the power is off when not using the machine
and unplug the power cord if not intend to use for a long period of
time.
To disconnect, turn all controls to the off position, then
remove plug from outlet. Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
Ensure that curtain, clothing, cables or other items cannot be
suck into the fan.
Do not operate the machine with a damaged cord or plug, or
after the machine malfunctions or is dropped or

Product Usage Instructions

Before operating the machine, read the user manual carefully
and ensure that you understand all safety instructions.
Place the machine on a flat, level hard and well ventilated
surface area, reserve at least 50cm space around the machine and
make sure there is no flammable gas or material nearby.
Connect the machine to the correct rated voltage and a
protected circuit. Ensure it is properly grounded to avoid the risk
of electrocution. Refer to Appendix I on page 19 for grounding
instruction.
Do not operate the machine with a bundled power cord and make
sure the power outlet is not damaged or loose before plugging in
the power cord.
Turn on the power and operate the machine as per your
requirement. Do not point the fan at people, animals or fire.
Do not use the machine upside down or tilt it, it might cause
damages or malfunction.
Do not leave the machine running unattended and make sure all
powers are off when leaving.
Children should be supervised to ensure that they do not play
with the machine.
Ensure that curtain, clothing, cables or other items cannot be
sucked into the fan. Never allow any object or part of your body to
enter the path of the fan blades to prevent any injury or
damages.
Do not spray the fan with any liquid including cleaner and
insecticide to avoid injury or damages.
Make sure the power is off when not using the machine and
unplug the power cord if not intended to use for a long period of
time. To disconnect, turn all controls to the off position, then
remove plug from outlet. Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
If you experience strange sound or malfunction, turn off the
power and unplug the power cord immediately and contact your local
Antari dealer for assistance.

View Fullscreen

AF-6/AF-6R Special Effects Fan User Manual – English –
© 2023 Antari Lighting and Effects Ltd.

1. Introduction ………………………………………………………………………………………………………………………………. 1 2. Safety Information ……………………………………………………………………………………………………………………… 1 3. Package Contents & Inspection ……………………………………………………………………………………………………. 2 4. Machine Details …………………………………………………………………………………………………………………………. 3 5. Technical Label Information………………………………………………………………………………………………………… 3 6. Setting and Manual Operation ……………………………………………………………………………………………………… 3 7. Control Settings …………………………………………………………………………………………………………………………. 3 8. Machine Status ………………………………………………………………………………………………………………………….. 5 9. DMX Connection ………………………………………………………………………………………………………………………. 5 10. RDM Function …………………………………………………………………………………………………………………………… 6 11. SC-2 Cable Remote (Optional)…………………………………………………………………………………………………….. 7 12. WTR-20 Wireless Remote (Optional) …………………………………………………………………………………………… 7 13. Service and Maintenance …………………………………………………………………………………………………………….. 8 14. Technical Specifications ……………………………………………………………………………………………………………… 9 15. Warranty Disclaimer …………………………………………………………………………………………………………………… 9 16. Machine Dimension……………………………………………………………………………………………………………………. 9 1. ……………………………………………………………………………………………………………………………………….. 10 2. …………………………………………………………………………………………………………………………. 10 3. ……………………………………………………………………………………………………………………….11 4. ………………………………………………………………………………………………………………………………… 12 5. …………………………………………………………………………………………………………………………. 12 6. ………………………………………………………………………………………………………………. 12 7. ………………………………………………………………………………………………………………………………… 12 8. …………………………………………………………………………………………………………………………. 14 9. DMX ………………………………………………………………………………………………………………………………. 14 10. RDM ………………………………………………………………………………………………………………………………. 15 11. SC-2 () …………………………………………………………………………………………………………… 16 12. WTR-20 () ……………………………………………………………………………………………………… 16 13. …………………………………………………………………………………………………………………………….. 17 14. ………………………………………………………………………………………………………………………………… 17 15. ………………………………………………………………………………………………………………………………… 18 16. …………………………………………………………………………………………………………………………….. 18 Appendix I – Grounding Instruction …………………………………………………………………………………………………… 19

User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at all time. The manual includes how to install and operate the machine under safe condition and explain all the labels printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER If the danger is not avoided, it will cause death or serious injury
WARNING If the warning is not heeded, it can cause death or serious injury.
CAUTION If the precaution is not taken, it may cause minor or moderate injury.
DANGER Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences. Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 19. Do not operate the machine with a bundled power cord, it could lead to a fire hazard. Do not use the fan in an environment full of flammable gas, susceptible to water or powder. Keep away from
any fire and heat sources. When operating the machine, do not point at people, animals, or fire.
WARNING
Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space around the machine and make sure there is no flammable gas or material nearby.
Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock or result in fire.
The machine can only be operated by adults or professionals, is not intended for use by person with reduced physical sensory, mental capabilities, or lack of experience and knowledge including children.
Do not leave the machine running unattended, make sure all powers are off when leaving. Children should be supervised to ensure that they do not play with the machine. Do not use the machine upside down or tilt it, it might cause damages or malfunction. Never allow any object or part of your body to enter path of the fan blades to prevent any injury or damages Do not spray the fan with any liquid including cleaner and insecticide to avoid injury or damages.
CAUTION
Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or
1

moisture environment. Please make sure the power outlet is not damaged or loose before plug in the power cord. If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void. The machine is for indoor use only. Do not operate the machine in any area with unstable voltage. If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant. Do not contact any moving part. Only use accessories recommended or sold by Antari. Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time. To disconnect, turn all controls to the off position, then remove plug from outlet. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Unplug from outlet before servicing or cleaning. Ensure that curtain, clothing, cables or other items cannot be suck into the fan. Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. After a period of operation, abnormal noise and uneven air volume may appear because of dust blocking airflow. It will disappear after cleaning the air inlet and outlet.

Before operating the machine, please read all warning labels on the machine, description as below:

WARNING! 1. Disconnect power before changing fuse. 2. No user serviceable part inside. 3. Keep hands off. Do not put anything into the fan 4. Operate with fan only with adult supervision
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct model and all parts are included. If any part appears to be damaged or missing during transportation, please contact your local dealer and return with original package for inspection.

3.1 Package Contents

AF-6 1 x AF-6 Special Effects Fan 1 x Neutrik powerCON Cable Connector 1 x User Manual or Scan QR Code on the Machine

AF-6R 1 x AF-6R Special Effects Fan 1 x WTR-20 Wireless Remote 1 x Neutrik powerCON Cable Connector 1 x User Manual or Scan QR Code on the Machine

3.2 Optional Accessories

SC-2 WTR-20

Item Code

Description Cable Remote Wireless Remote (W-2 Transmitter and W-2 Receiver)

4. Machine Details

01. Fan Outlet 02. Power Switch 03. AC Input Connector 04. XLR 5-Pin DMX 05. LCD Screen

06. Wireless Connector 07. XLR 4-Pin Cable Remote Connector 08. Fan Inlet 09. Handle 10. Stand

5. Technical Label Information

Please read the technical label information on the back of the machine before operating it.

1. Model Name 2. Input Voltage 3. Frequency 4. Rated Power

5. Breaker/Fuse 6. QR CODE for User Manual 7. Serial No.

6. Setting and Manual Operation

Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open space around the machine, and make sure there is no flammable gas or material nearby;
Step 2. Plug the machine to the power outlet. Please read the technical label on the back of the machine and make sure the power outlet has the correct rated voltage for the machine;
Step 3. Turn on the power, when the LCD displays “Ready”, now the machine is ready for operation; Step 4. To start, press [VOLUME] button and you can adjust the fan speed by pressing [UP/DOWN], and to stop,
please press [STOP] button; Step 5. To turn off the power, please make sure the machine is not operating. If you will not use the machine a
long period of time, please unplug the power cord.

7. Control Settings

AF-6/AF-6R Special Effects Fan can be operated in the following modes. The machine can only accept 1 type of signal at a time. When using different control modes at the same time, the machine will work according to built-in control priority:

Manual
3

Timer DMX512 Wireless Cable Remote
7.1 Control Panel Description

AF-6/AF-6R Special Effect Fan can be operated with the onboard digital control interface.

Button

Operating Method

Action

Press

Scroll through setting menu

TIMER

Press

Activate Timer function

VOLUME

Press

Activate Volume function

UP/DOWN STOP

Press Press

Increase/Decrease Value
Deactivate Timer/Volume function & Confirm/Leave Setting Menu

7.2 Menu Options Description

Menu Manual DMX Setting

Item Interval Set 5s Duration Set 5s Timer Out XXX% Volume Out XXX% DMX512 Add: XXX Wireless On/Off
W. Remote Pair/Upair
Quick Start Off/On

Description Set interval time at timer mode from 5 to 999 seconds
Set duration time at timer mode from 5 to 999 seconds
Set fan speed at timer mode from 1 to 100%
Set fan speed at Volume mode from 1 to 100%
DMX-512 Address: 1-512
Wireless Remote: On / Off Wireless TransmitterPair / Unpaired Use UP and DOWN buttons to select Pair and Unpair radio wireless remote Turn On or Off Quick Start mode When it is turned on, once power up AF-6 fan, it will run last

KeySound Set On/Off
Backlite AlwaysOn/AutoOff
Default Proceed? UID 1ED8 06020001 Run Time 0000000H

setting. Use UP and DOWN buttons to switch, and press STOP/ENTER button to memorize settings. Keypad SoundOn / Off Turn On or Off the beep sound of pushing buttons Use UP and DOWN buttons to switch, and press STOP/ENTER button to memorize settings Screen Backlite: Always On /Auto Off Use UP and DOWN buttons to switch, and press STOP/ENTER button to memorize settings Reset to factory settings Press STOP button to reset AF-6 to Factory settings
To view RDM’s UID (Unique Identifier)
To view total how many minutes or hours this AF-6 has been running

8. Machine Status

Screen AF-6 v1.0 AC-120V 60Hz AF-6 Ready Remote Out XXX% Volume Out XXX% Interval XXX min Duration XXX min DMX-512 Add: XXX Wrong Voltage! AC Power Failure

Description Software Version Input Voltage Machine is ready to Operate Cable remote operating (only shows when SC-2 is connected) Running at volume mode Running at timer mode, Interval time Running at timer mode, Duration time Current DMX 512 channel Wrong input voltage AC Power Failure

9. DMX Connection
9.1 DMX Connector Pin Assignment
The machine has a XLR 5-Pin for DMX connection. The diagram below indicates pin assignment information.

** There is a protection cap on DMX IN, please remove it with your finger before operation.

Function

Ground

Data-

Data+

9.2 DMX Setting
Channel
1

Mode Fan Speed

DMX Value Range 0 5 6 255

Function Off
Fan 1 100%

10. RDM Function

The AF-6/AF-6R Special Effect Fan is RDM enabled, allowing control system to configure, monitor and manage.

GET Allowed SET Allowed

Category

RDM Parameter ID’s (Slot 21-22)

Value Required

Network Management

DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE

0x0001 O 0x0002 O 0x0003 O

QUEUED_MESSAGE

0x0020

RDM Information

RDM SUPPORTED_PARAMETERS

0x0050 O

PARAMETER_DESCRIPTION

0x0051 O

DEVICE_INFO

0x0060 O

PRODUCT_DETAIL_ID_LIST

0x0070

Product Information DEVICE_MODEL_DESCRIPTION

0x0080

MANUFACTURER_LABEL

0x0081

DEVICE_LABEL

0x0082

SOFTWARE_VERSION_LABEL

0x00C0 O

DMX_PERSONALITY

0x00E0

DMX_PERSONALITY_DESCRIPTION 0x00E1

DMX_START_ADDRESS

DMX512 Setup

DMX512 SLOT_INFO

0x00F0 O (0x0120)

SLOT_DESCRIPTION

(0x0121)

DEFAULT_SLOT_VALUE

(0x0122)

Sensors

SENSOR_DEFINITION

SENSOR_VALUE

DEVICE_HOURS

Control

IDENTIFY_DEVICE

0x0200
0x0201 0x0400 O 0x1000 O

11. SC-2 Cable Remote (Optional)

SC-2 Cable Remote is an optional accessory for AF-6/AF-6R Special Effects Fan, please see instruction below; 1. Plug the timer cable remote to the connector on the back of the machine; 2. Press the RED switch to turn on the power of the remote (Red Indicator Light is on) and press the RED switch
again to turn off the power (Red Indicator Light is off); 3. Turn the rotary knob to active the machine and adjust output volume. Note: ** You must turn on the power of the remote in order to use it. ** If you encounter any problem, please contact your local Antari dealer for assistant.

12. WTR-20 Wireless Remote (Optional)

WTR-20 Wireless Remote is an optional accessory for AF-6 Special Effects Fan, it included a W-2 wireless transmitter and a W-2 wireless receiver. If you already purchased the wireless model, it’s ready to use. If you purchase the WTR-20 Wireless Remote afterwards, please follow the instruction below. If you encounter any problem, please contact your local Antari dealer for assistant.
12.1 W-2 Wireless Transmitter & Receiver
Battery27A 12V Effective RangeThe effective range is approximately 50m,
depends on actual condition, it may vary. W-2 wireless transmitter has 4 buttons, each function as follow:

Button [A] [B] [C] [D]

Function Start Stop
Increase Fan Speed Decrease Fan Speed

W-2 Wireless Transmitter

12.2 W-2 Wireless Receiver Installation

W-2 Wireless Receiver

If you purchased the WTR-20 Wireless Remote afterwards, please follow the instructions below to install the receiver. If you encounter any problem, please contact your local Antari dealer for assistant.

Graph 1

Graph 2

Graph 3

1. Please see graph 1, remove the cover from the pointed place; 2. You will see a white cable like graph 2, pull it out and connect to the W-2 wireless receiver; 3. Screw it back to the machine like graph 3 and follow the instruction on 12.3 for pairing.

12.3 Pair & Unpair
Each receiver can pair up to 5 transmitters, please follow the steps below to pair or unpair; Step 1. Press [MENU] button and select [Setting], find Screw the menu until [W.Remote] shows on display;

Step 2.
Step 3. Step 4.

Press [UP] button to select [Pair] then press [STOP] button, and press any button on W-2 transmitter to pair it; Please repeat Step 2 to pair multiple transmitters; To unpair, repeat Step 1 and press [DOWN].

13. Service and Maintenance

DANGER! Disconnect the power cord before starting maintenance operation!

Always keep the machine clean. Can use an air compressor, a vacuum or a soft brush to remove the dust on the machine. Can use a slightly damp cloth to clean the casing. Before store the machine, please make sure the machine is completely cool down to avoid moisture inside the
machine causing malfunction. It is recommended to run the machine at least once a month in order to maintain its best performance and
output condition. Excessive dust will reduce the performance and cause overheat.
Fuse Specification 120V=T2.0A 250V 240V=T1.0A 250V

14. Technical Specifications

Rated Voltage
Rated Power Ambient Temp. Range Air Flow Fan Speed Noise Level Control Methods Interface DMX Channel Included Accessories Optional Accessories Dimension Weight

AF-6/AF-6R US Model : AC 100-120V, 50/60Hz 2.5A EU Model : AC 220-240V, 50/60Hz 1.5A 250W 0°C 40°C (32°F 104°F) 2583 CFM (AC 120V/60Hz)2550 CFM (AC 240V/60Hz) 1550 rpm (AC 120V/60Hz)1530 rpm (AC 240V/60Hz) 81.5 dB (Max. Output) ManualTimerDMX512Wireless (Optional)Cable Remote (Optional) XLR 5-Pin (DMX)Neutrik powerCon (Power) 1 Channel N/A SC-2 Cable RemoteWTR-20 Wireless Remote L 461 W 596 H 629 mm (L 18.20 W 23.50 H 24.80 inch) 22.30 kg (49.10 lbs.)

15. Warranty Disclaimer
We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in connection with the use, sale, or repair of any merchandise purchased from us.
16. Machine Dimension

1.
Antari
2.

19 I

()

Antari

WARNING! !
1. Disconnect power before changing fuse. 2. No user serviceable part inside. 3. Keep hands off. Do not put anything into the fan. 4. Operate with fan only with adult supervision
3.

3.1

AF-6 1 x AF-6 1 x Neutrik powerCon 1 x QR Code
3.2
SC-2 WTR-20

AF-6R 1 x AF-6R 1 x WTR-20 1 x Neutrik powerCon 1 x QR Code
(W-2 /W-2 )

01. 02. 03. 04. XLR 5-Pin DMX 05.

06. 07. XLR 4-Pin 08. 09. 10.

1. 2. 3. 4.

5. / 6. QR CODE 7.

1.
2.
3. 4.
5.

50 ;
; “Ready”; [VOLUME][UP/DOWN] [STOP];

AF-6/AF-6R
12

; DMX512
7.1

AF-6/AF-6R
