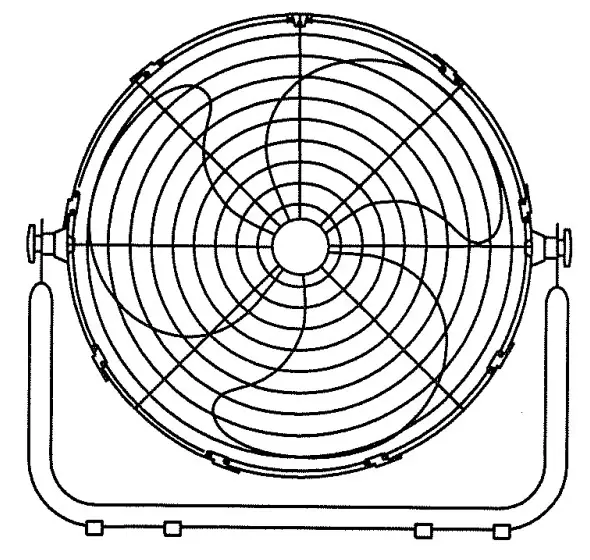

876924 Ground Powerful Fan
Instruction Manual
Thank you very much for selecting our Tornado Fan. Please read the user manual carefully before use for safety and product reliability. Please keep this manual handy for reference.
FEATURE AND APPLICATION
- 12 (300mm) /16″ (400mn) /18″ (450m) /20″ (500mm) available
- 3-speed control
- High performance motor with built-in thermal fuse
- Well-balanced aluminum blade or rolled steel (with powder coating) blade
- U-tube base or triangular base
- Adjustable tilt angle
- Wall mount kits available (optional)
- Suitable for domestic, commercial, and industrial ventilation, cooling, and indoor air circulation applications.

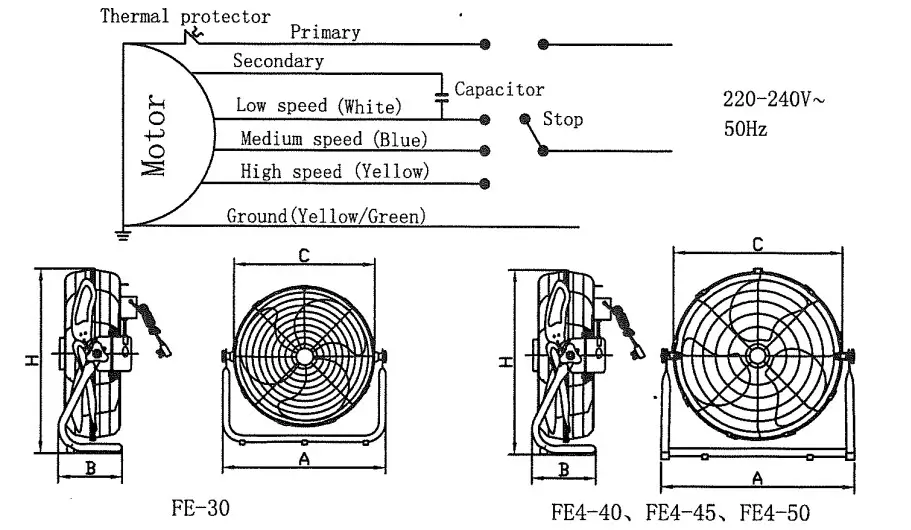

WIRING DRAWING
Specification and Dimensions
| Model | Speed 1 | Speed 2 | Speed 3 | Dimensions Mill | ||||||||||||
| Power | Speed | Noise | Air volume | Power | Speed | Noise | Air volume , | Power | Speed | Noise | Air vo lume | |||||
| W | rpm | dB | dim i n | Vi | rpm | dB | ma/min | W | rpm | dB | ma/min | A | B | C | H | |
| FE-30 | 25 | 800 | 1. | 27 | 30 | 1150 | 58 | 33 | 45 | 1360 | , 60 | 41 72 | 390 520 | 200 205 | 360 460 | 405 • 490 |
| FE4-40 | 50 | 800 | 58 | 48 | 55 | 1150 | 60 | 58 | 70 | 1360 | 62 | |||||
| FE4-45 | 55 | 800 | 63 | 57 | 60 | 1150 | 66 | 69 | 75 | 1360 | 69 | 84 | 530 | 195 | 495 | 530 |
| FE4-50 | 70 | 800 | 65 | 65 | 85 | 1150 | 68 | 78 | 110 | 1360 | 71 | 96 | 620 | 215 | 560 | 565 |
Specifications are subject to alter without prior notice due to continuous product improvement

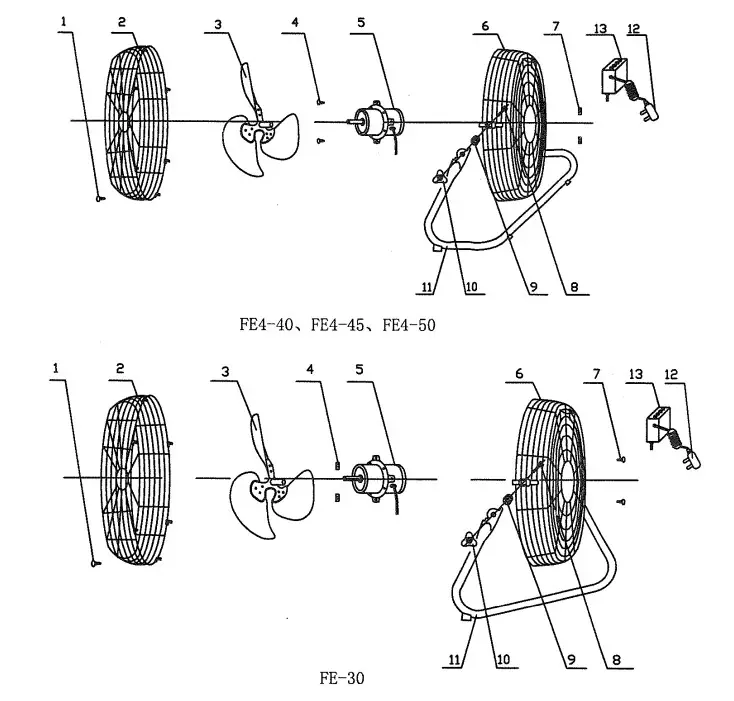

Assembly scheme
| 1, Screws | 2, Front guard | 3, Blade |
| 4, Screws | 5, Motor | 6, Rear guard |
| 7, Nuts | 8, Square neck bolt | 9, Rubber washers |
| 10, Adjustment nuts | 11. Base tube | 12, Power cord & plug |
| 13, Switch box |
OPERATING INSTRUCTION
- The fan must be used according to the voltage/frequency specified on the nameplate.
- Don’t use the fan in the highly humid or corrosive surroundings.
- Adjustable speed by pressing switch button:0 =off/ 1 = low speed /2 =medium speed/ 3 = high speed.
- Adjustable fan tilting angle :
(1) Loosen the adjusting nuts on 2 sides of the fan guards and set the body to the desired blowing angle.
(2) Ensure the adjustment nuts are tightened after the blowing angle is fixed. - Be careful when the fan is used near the opened window, curtain portiere, or foliage.
- WARN ING: ” INDOOR USE ONLY!”
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
CAUTIONS
- Don’t touch the fan blades with your hand or any objects when the fan is operating.
- Don’t lug the power cord by force to avoid the power cord being pulled out and causing an accident.
- Don’t replace the power cord by yourself. To ensure safety, the power cord must be replaced by a qualified technician.
- To clean the fan, (1) cut off the power, (2) remove the guards and fan blades, (3) wash the dirt away with a soft cloth soaked with soap water and wipe with a dry cloth. Don’t use gasoline or any corrosive liquid etching the plastic and paint surface. (Note: the fan blades should’ t be pressed/bent and the angle of blades shouldn’t be changed.).
- Those who are not qualified electricians should not disassemble, repair or rebuild the fan.
