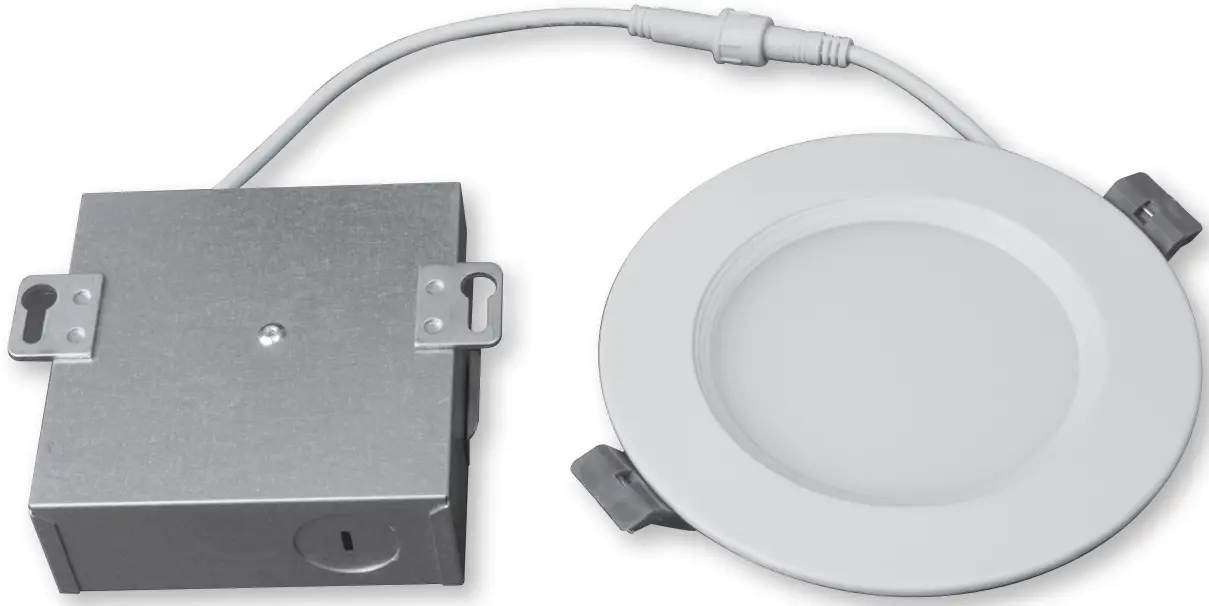

GMlighting RSD Downlight 120V Regressed Slim Downlight User Manual
PRODUCT OVERVIEW

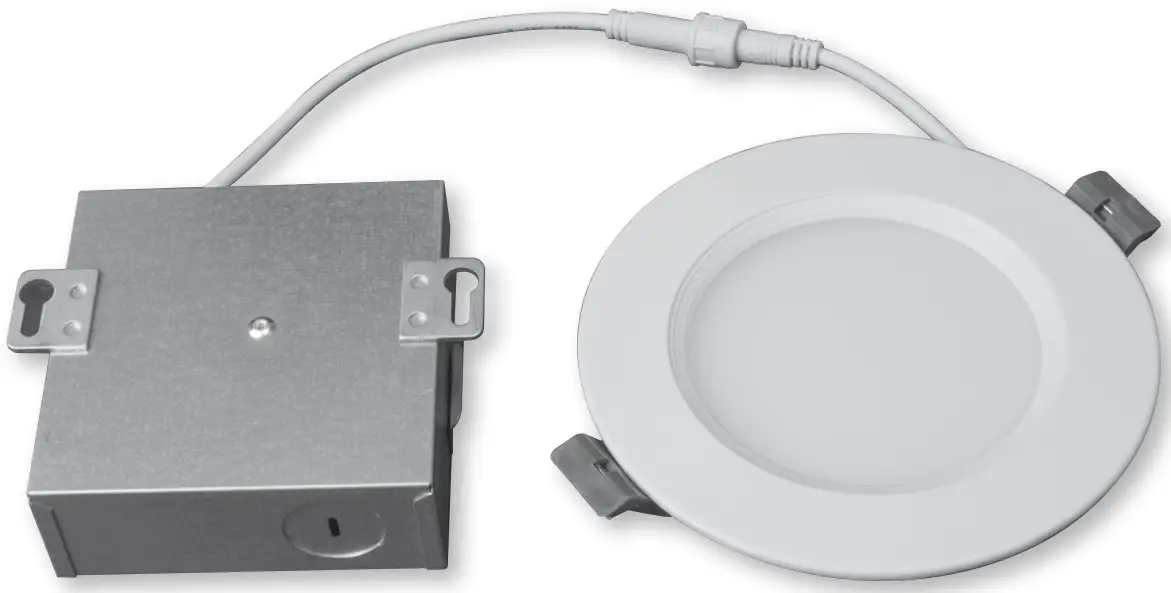

Easy to install with an included junction box that is connected via a modular jack, these 3”, 4” and 6” slim mount, regressed down lights feature superior optics along with Energy Star rating in a streamlined, shallow mount design.
FEATURES
- 20V
- Selectable: 2700K, 3000K, 4000K
- Wet location
- IC rating for insulated ceilings
- Edge-Lit technology for diode free illumination
- Dimmable (Triac)
SPECIFICATIONS
ELECTRICAL
- 120V
- 9.0W, 12W, 15W
OPTICS
- 90+ CRI
- 120° beam angle
LABEL
- ETL
- Title 24 – JA8
- Energy Star
WARRANTY
- 5 years

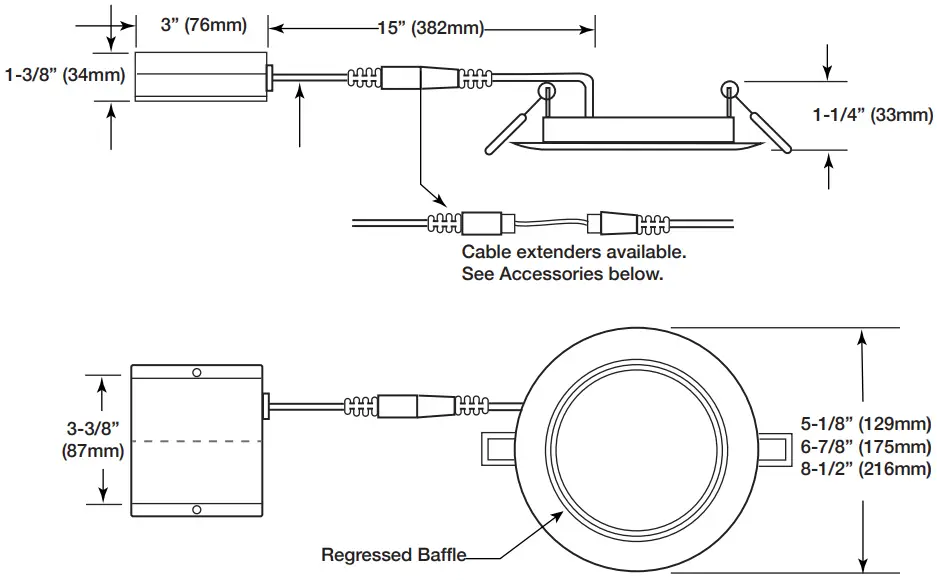

CUT-OUT DIMENSIONS
RSD-4: 4-1/4” DIA.
RSD-6-: 6-1/8” DIA.
RSD-8: 7-3/4” DIA.
ORDERING INFORMATION
| Model | – | Diameter | Color Temp. | Finish | Wattage | Lumens | ||
| RSD | 4 (5-1/8” dia.) | TUN | WH (WHITE) | 9W | 300, 325, 355 | |||
| 6 (6-7/8” dia.) | 12W | 500, 525, 550 | ||||||
| 8 (8-1/2” dia.) | 15W | 700, 725, 750 | ||||||
CONNECTORS AND ACCESSORIES
| Catalog No. | Description |
| RSD-5FT-EXT | 5’ EXTENSION CORD FOR RSD SERIES DOWNLIGHTS |
| RSD-10FT-EXT | 10’ EXTENSION CORD FOR RSD SERIES DOWNLIGHTS |
| RSD-20FT-EXT | 20’ EXTENSION CORD FOR RSD SERIES DOWNLIGHTS |
| UNV-NCP | NEW CONSTRUCTION PLATE FOR ALL RSD SERIES DOWNLIGHTS |
