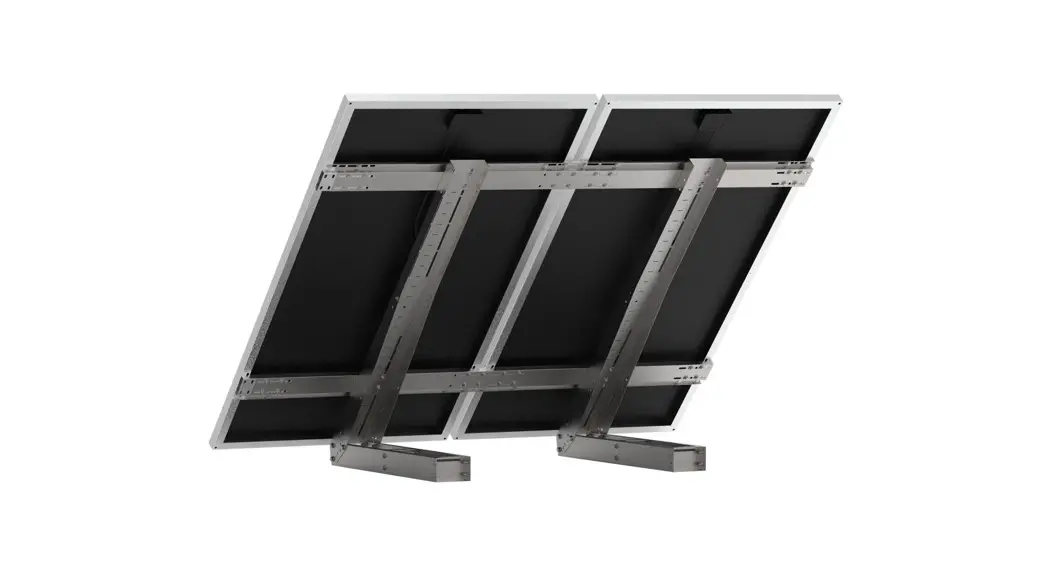

Unifix 800 EGF Multi Solar Panels Mounting Bracket
Instruction Manual

Multi solar panels mounting bracket
Dear customer, thank you for purchasing one of our Unitech products. Please read all the instructions carefully and thoroughly before using the product.

DESCRIPTION

The Unifix 800 EGF Unifix brackets have been specially designed to fix your Unisun photovoltaic panels or equivalent (see compatible panels part)
Easy to install, Unifix 800 EGF can be fixed on a horizontal or flat surface (e.g. wall, concrete floor, wood frame) or can be weighted to the ground (e.g. turf)
They can be :

• fixed on a concrete floor thanks to its 8 m8-studs (not included)
• weighted using a ballast box for unifix 800 EGF (option).
• weighted using the brackets for concrete slabs (option).

With their galvanized steel structure and corrosion-resistant stainless-steel screws, they are perfectly suited for outdoor use.

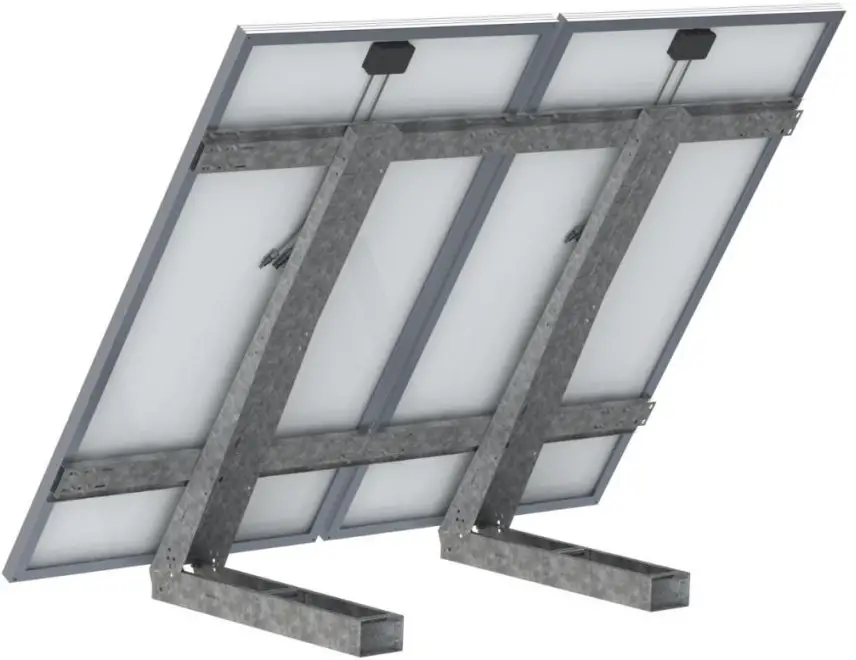

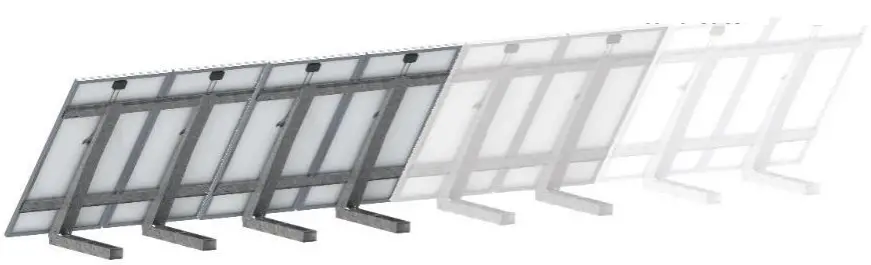

Equipped with a multi-position tilting system, Unifix brackets enable optimization of your panel’s performance depending on the chosen orientation :

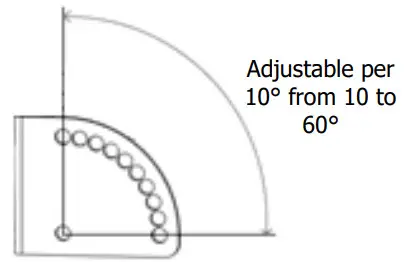

• only unifix 800 EGF: the adjustment angle is from 10 to 60 degrees.
• with the ballast box option: the adjustment angle is from 30 to 60 degrees.
• with brackets for concrete slabs option: the adjustment angle is from 20 to 60 degrees

Thanks to its innovative design, UNIFIX 800 EGF brackets can be used to create a multi-solar panel installation.

COMPATIBLE PANELS

With the design based on the use of Oblong drilling,
Unifix allows the fixing of different panels of the market.

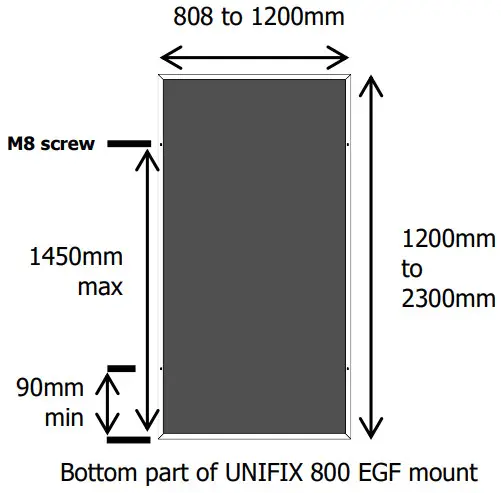

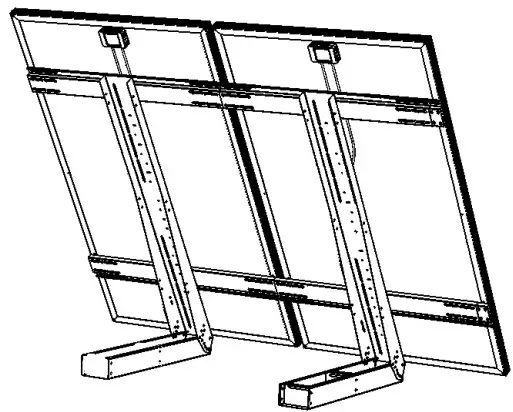

Unifix 800 EGF accepts 1, 2 or 3 panels depending on the models, with the spacing and dimensions of panels indicated below:

• width from 808 to 1200 mm
• length from 1200 o 2300 mm

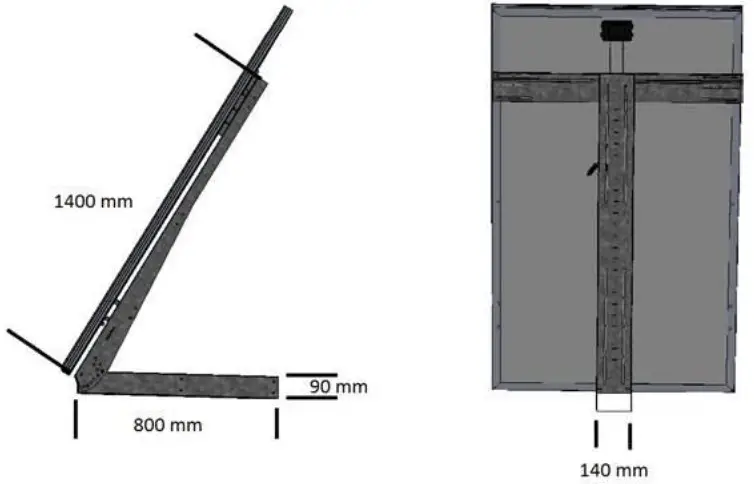

DIMENSIONS

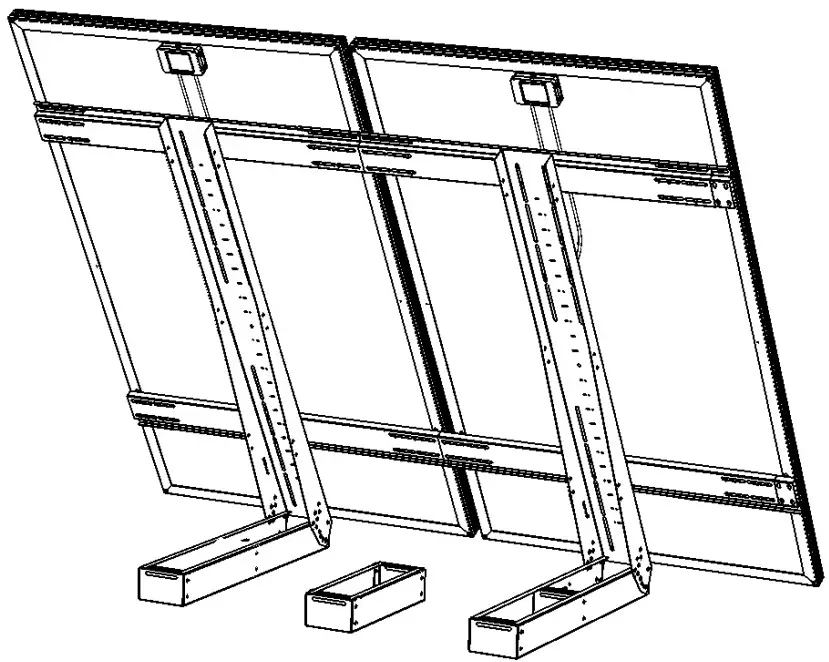

BALLASTING WITH A BOX TO FILL OR WITH CONCRETE SLABS (OPTION)

The ballasting must be adapted to its environment of use (country, windy area,…) and its inclination. UNITECH cannot be responsible in case of improper use.

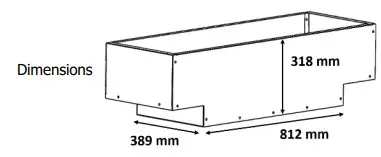

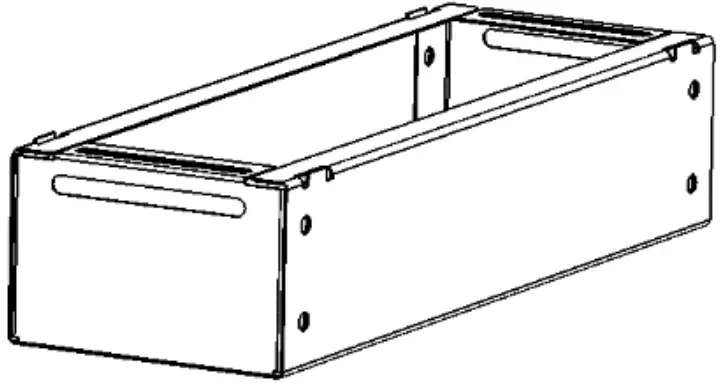

UNITECH ballast box is suitable for UNIFIX 800 EGF and for the ballasting of 2 solar panels, whose inclination angle is from 30 to 60 degrees. Its capacity is 130 liters,or,13 m 3. The ballast box is made to be filled with 1800Kg/m 3 dry sand, or 240 Kg.

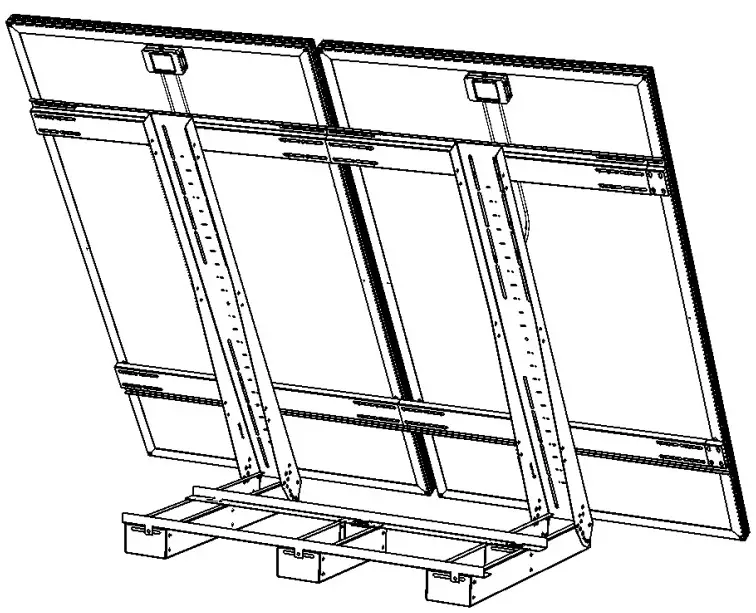

UNITECH concrete slab brackets are made to carry 40 cm x 40 cm concrete slabs. UNITECH concrete slab brackets can carry 24 standard concrete slabs weighing  12,5Kg, meaning a total ballast weight of 300Kg.
The inclination angle can vary from 20 to 60 degrees according to the number of slabs used.

RECOMMENDATIONS

• Mount Unifix brackets only on surfaces with a sufficient load carrying capacity.
• Take into account the additional weight with a panel


  Brackets	Panel
  Unifix 800 EGF = 23 kg	2 x Unisun 300.12M = 2 x 18 kg

• Fastening: to prevent the accumulation of large quantities of snow behind the sensor, install appropriate barrier grids.
•  The position of the solar panel influences your electrical production. Choose the most optimal inclination and orientation to suit your environment. Avoid shaded areas or  objects that can be a source of shadow (eg trees)

SAFETY INSTRUCTIONS

• Take the appropriate measures to prevent accidents during your mounting steps.
• If the brackets and the mounting tools are exposed to sunlight for a long period, there is a  risk of getting burnt. Make sure to protect yourself accordingly.
• When finished, check and make sure that all of your brackets and panels are fixed properly.

UNFIX 800 EGF MOUNTING

Recommended tightening torque
Nb. Mean coefficient of friction µ=0.20 / Clamping at 50% of yield point

Mount the legs

	M8x20 X16
	D8 X16
	M8 X16
	N°169 X2
	N°181 X4

For a user with a ballast box

Other use

UNFIX 800 EGF MOUNTING (CONTINUATION)

	M10x25 X12
	D10 X12
	M10 X12
	X2
	N°168 X2

Equipped with a multi-position tilting system, Unifix brackets allow for optimization of your panel’s performance depending on the chosen orientation.

Electrical performance according to inclination and panel orientation
	0°	30°	60°	90°
Est	93%	90%	78%	55%
Sud-Est	93%	96%	88%	66%
Sud	93%	100%	91%	68%
Sud Ouest	93%	96%	88%	66%
Ouest	93%	96%	78%	55%

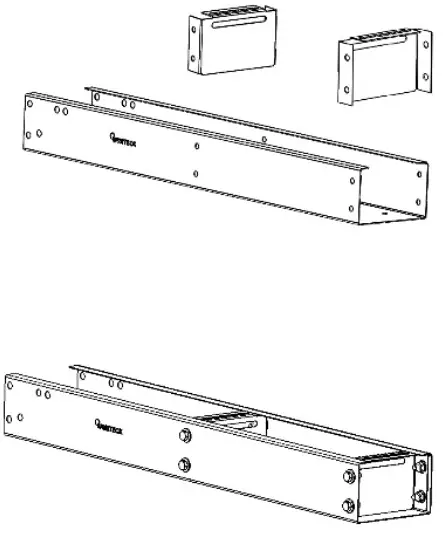

Take pieces n°170 and 171, position them and pre-tighten the screws. The final tightening will be done at the end of the assembly.

M8 X8	D8 X8	M8X8	N°170 X2	N°174X4

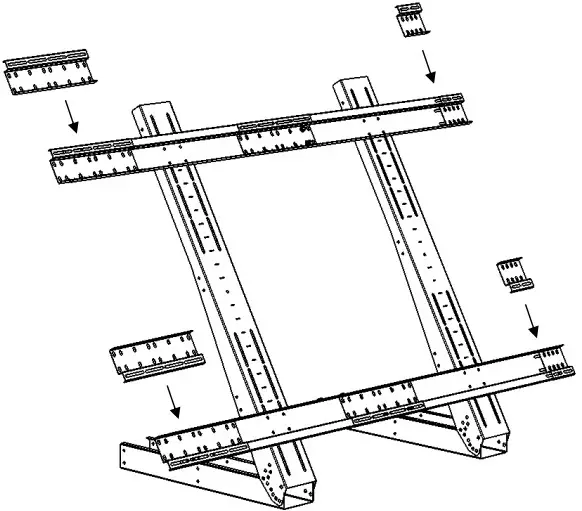

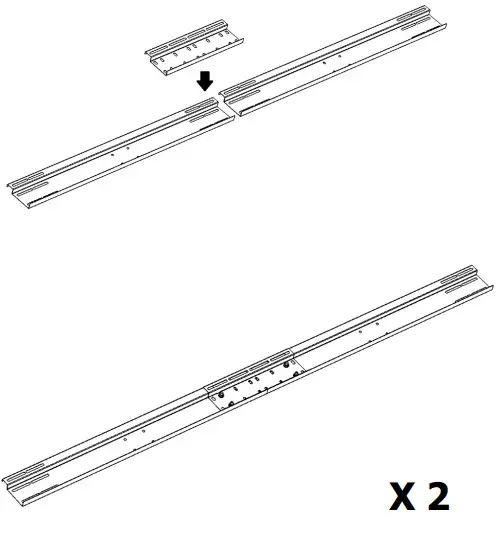

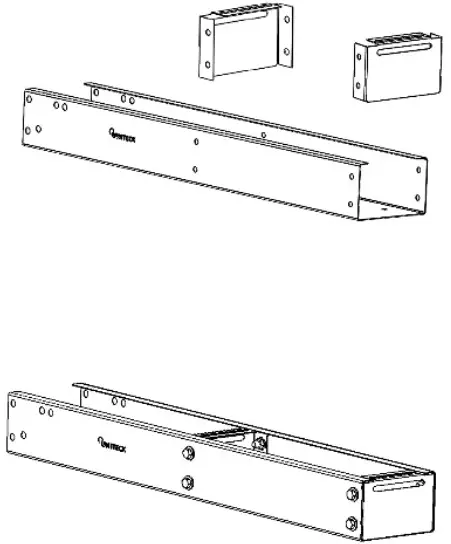

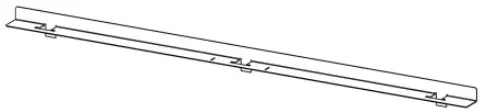

Fix the rails previously prepared on the legs. Do not tighten them completely.

M8 X16	D8 X16	M8 X16

• Unifix 800 EGF brackets suit all types of panels.

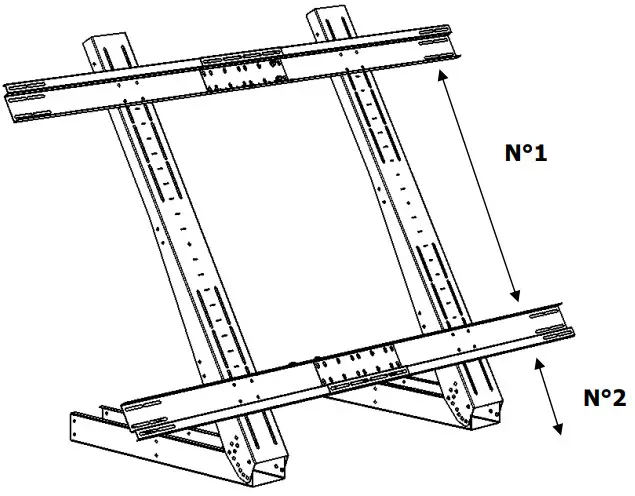

• To adjust N°1 distance, first measure the distance between the central fixing axes of your panel.
• If you use UNIFIX 800 EGF brackets in a meadow or a lawn, distance N°2 must be adapted so that any plant cover the solar panel on its lower part.

Add the end plates to adjust the width according to your solar panels. Do not tighten the screws completely.

M8X4	D8 X4	M8 X4	N°183 X2	N°170 X2

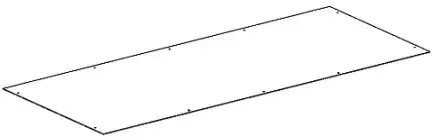

• Fix the solar panels. If necessary, adapt the angle iron according to the solar panels size.

M8 X8	D8 X8	M8 X8

•  Finish to fix the brackets with the remaining screws.

M8 X36	D8 X36	M8 X36

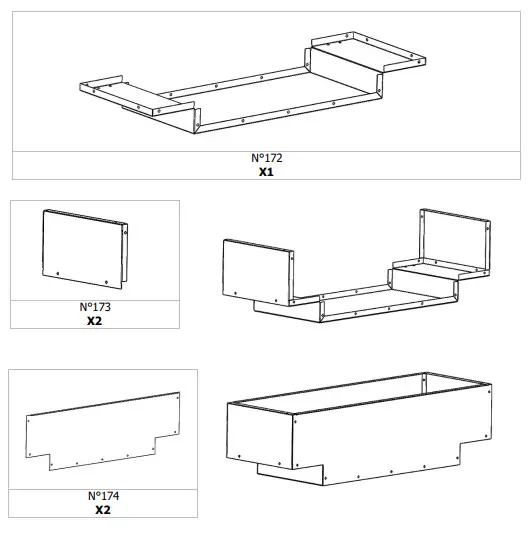

BALLAST BOX MOUNTING (OPTION)

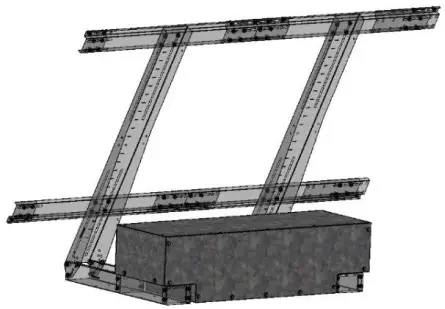

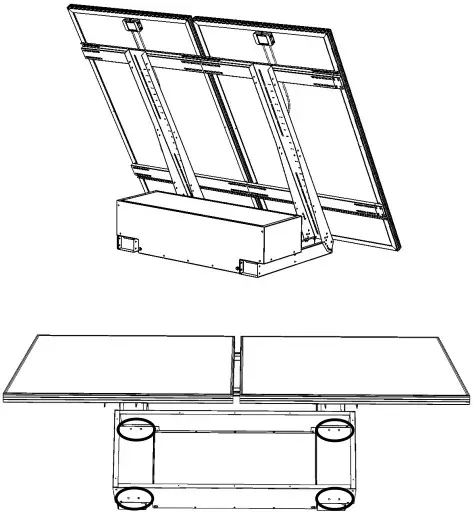

• Mount the ballast box with the provided screws. Pre-tighten them for assembly. The final tightening will be done at the end of the assembly.

M8 X8	D8 X8	M8 X8

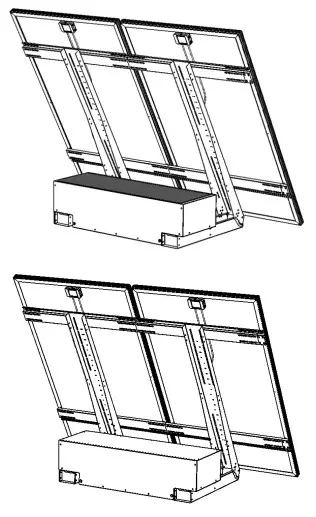

• Position the ballast box on UNIFIX 800 EGF brackets legs, and fasten it.

M8 X8	D8 X8	M8 X8

• Add the dry sand.

X10	N°175 X1

BRACKETS WITH CONCRETE SLABS MOUNTING (OPTION)

	M8x20 X8
	D8 X8
	M8 X8
	N°184 X1
	N°181 X2

• Fasten the 2 angle irons that will carry the 40 x 40 cm concrete slabs.

	M8x20 X6
	D8 X6
	M8 X6
	N°185 X2

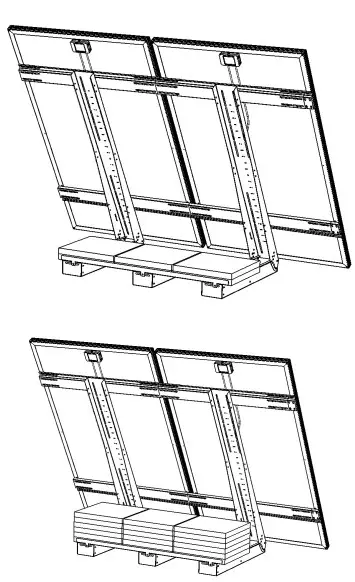

Finalize the ballast adding concrete slabs until needed.
REMINDER: Respect the size of concrete slabs and the maximal weight allowed (cf. p.19)
