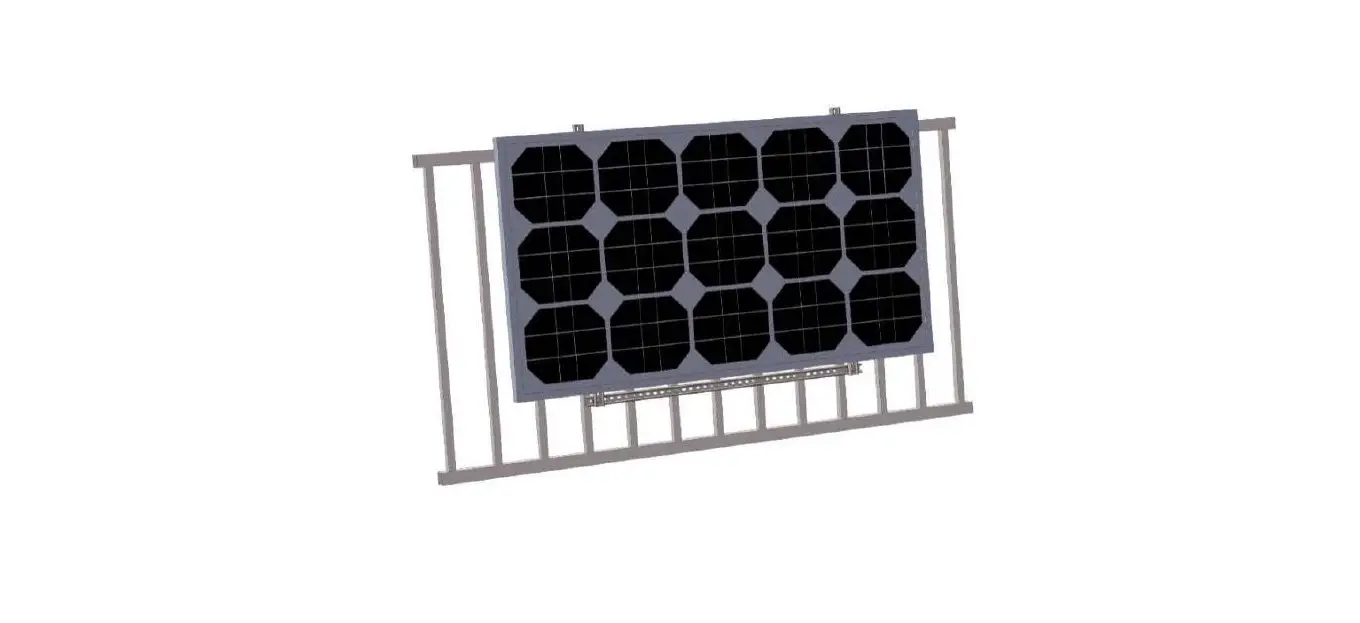

5410006 Aluminum PV Balcony Bracket Vertical
Product Information:
Product Name: BALCONY SOLAR PANEL MOUNTING SYSTEM
Model: Art.-Nr. 5410006
Mount Type: Alu PV balcony mount (vertical)
Product Usage Instructions:
- Prepare for assembly by gathering the necessary tools: M8 and
M10 Allen key or a cordless screwdriver. - Using an M10*25 bolt, connect the alu rails with the rail
connector. - Mount the solar panel to the assembled rail using the end
clamps and M8*30 bolts. - Before installation, measure the height of the balcony railing
to ensure proper fit. - If using a micro-inverter, follow the specific instructions
provided by the manufacturer. - For further information or support, contact SolarV GmbH at
[email protected] or visit their website at www.solarv.de.
BALCONY SOLAR PANEL EN MOUNTING SYSTEM
Alu PV balcony mount (vertical)
Art.-Nr. :5410006
25 30 46.60 60
90 6 0
25 60
BALCONY SOLAR PANEL MOUNTING SYSTEM
Dimension(mm)
Alu-rail
41
5.4 30
900 40
900
X2
J-Bracket
273
69.80
250
Ø8.5
X3
Rail connector
200
200
Ø10
X1
X4
End clamp
40 35
Ø8 X2
M8*25 Hexagonal Bolt
Hose clamp
X4
M8*90 Hexagonal Bolt
Ø8
X4
Ø8
X3
Copyright© 2022 SolarV GmbH All rights reserved.
Prepare for assembly
Tools (not incl.) Copyright© 2022 SolarV GmbH All rights reserved.
M8 M10 Allen key
or
Cordless screwdriver
Assembly instructions
1 Use M10*25 bolt to connect the alu rails with rail connector
Copyright© 2022 SolarV GmbH All rights reserved.
2 Mount the solar panel to the assembled rail with the end clamps and M8*30 bolts
Tips: Please measure the height of the balcony railing before
Copyright© 2022 SolarV GmbH All rights reserved.
Measure height
3 Mount the J-brackts onto the solar panel with the M8*25 bolts Copyright© 2022 SolarV GmbH All rights reserved.
4 Hang the solar panel on the balcony railing with the M8*90 bolts to secure the J-brackets Copyright© 2022 SolarV GmbH All rights reserved.
5 Mount the assembled rail onto the balcony with hose clamps Copyright© 2022 SolarV GmbH All rights reserved.
6 Tighten all screws and bolts to secure the system Copyright© 2022 SolarV GmbH All rights reserved.
7 micro-inverter and balcony rail
1 2
3
1
2
3
Copyright© 2022 SolarV GmbH All rights reserved.
SolarV GmbH [email protected] www.solarv.de
