Installation Instructions
- Please read and follow warm tips before installation!
- & Power off electrical before installation. Use a voltage detector to make sure. Verify the circuit breaker is turned off & lock it in case someone tries to turn it on.
- & If you’re NOT experimenting in installing electrical wiring, then hire a professional electrician. Your safety is more important than saving a few dollars.
- .& Avoid water at all times when working with electricity. Never touch or install any electrical equipment or circuits with wet hands.

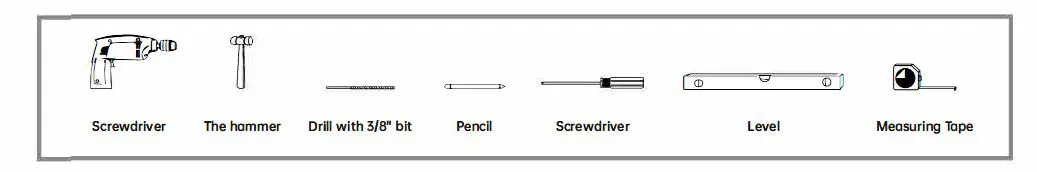

- & Tools you will need a voltage tester, wire cutters, wire and cable strippers, needle nose pliers, continuity tester, and wire closure.
- & Wear Safety Glasses and Protective Clothing to protect you from sparks
Installation manual

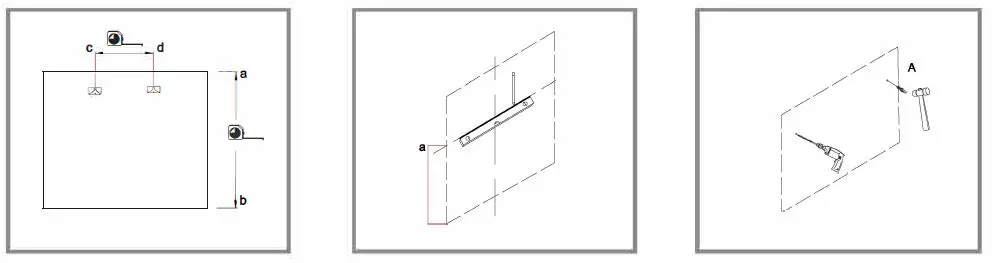

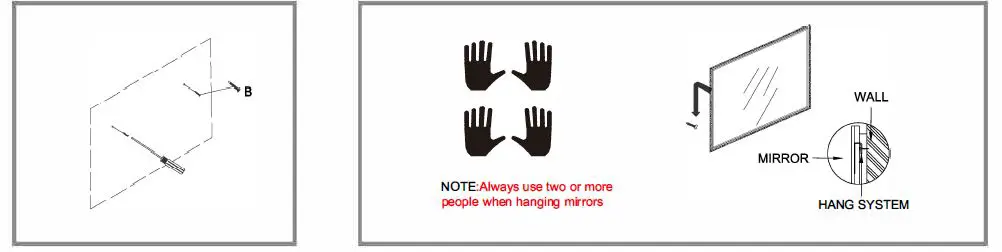

- Step 02: Mark the punching position on the wall with a pencil. use a level gauge makes sure the hole at the same level.
- Check the wall.Make sure that the wall is bearing walls that can support the Mirror’s weight. Measure the width and height of the mirror back holes/hocks distance with a tape measure.
- use impact drill punch holes in the marked center (6-SMM drill bit),the drilling depth is about SCM.Use a hammer to drive the expansion screw into the drilled hole.
- Use screwdriver screw the screw into the expansion screw, tighten. And then leave a distance of about SMM from the wall.
- Use screwdriver screw the screw into the expansion screw, tighten. And then leave a distance of about SMM from the wall.

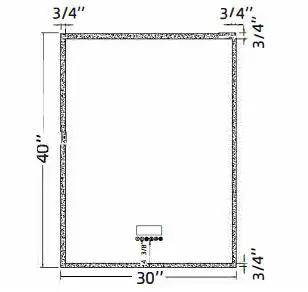

Front View

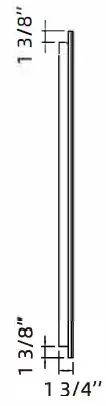

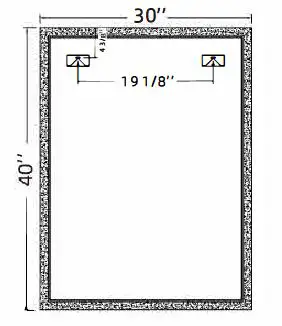

Back View
FEATURES
- SMM Copper-free mirror.
- PVC film backed.
- Mounting type: Vertically.
- Energy Efficient and Long Lasting LED Lighting.
- 1Year Limited Warranty on Electronic Components.
LIGHTING
- LED (Light-Emitting Diode).
- Defogger.
- Bluetooth
- Color Temperature: 2800 & 6000K.
- Power Source: Input: 11 0volts, 50/60HZ.
- IP44 rated.
- Brightness Lumen: 3520; Power Consumption :72Watts ;
- Energy saving LED lifetime approx 50,000 hours.
- UL certificated for electric power supply, defogger, and LED strips.
Standard size
- 24″x40″
- 30″x40″
- 36″x40″
- 48″x40″
Operating instructions
A.Turn on/off lighting & CCT adjusting
Short press button
to start the light working. Then short touch button@(<l s) to switch the color Temperature 2800Kor 6000K. B.Defogger
Press button
the defogger sign will light up on the display and start working.
C.Bluetooth Speaker
- Press button
will turn on the Bluetooth Speaker function; turn on the Bluetooth function on your device and search for “Ancerre design ” to connect. When connected successfully, the Bluetooth sign will light up on the display screen and the mirror will work as a speaker. - Press button® to pause /restart the speaker when you need to; short touch button
for few seconds till the volume number starts flashing, press(Dand
to increase or decrease the number. - Press(Dand
to
choose the next/last songs during playing music
.D.Reset the Time Year & Date - . Hold button
for few seconds to engage the time program mold until the minute number starts flashing. Press 0 or @ button to increase or decrease the number to the correct hour; then short press button to set minutes and once it worked, touch buttonto set the correct year as it is . - . After the year settled down, repeat the step to reset the month and date accordingly.
Care & Maintenance
NOTE11: Use warm soapy water and a soft, damp, lint-free cloth to clean the mirror. Wipe dry with another clean cloth . Glass cleaner can be used on the mirror surface when required . Avoid scourers, abrasives, and chemical cleaners as they can damage the glass and the frame.
In hard water areas, limescale may deposit on the glass . Regular cleaning will minimize this problem. If this build-up becomes increasingly difficult to remove, apply a small amount of white vinegar on the area .
will turn on the Bluetooth Speaker function; turn on the Bluetooth function on your device and search for “Ancerre design ” to connect. When connected successfully, the Bluetooth sign will light up on the display screen and the mirror will work as a speaker.
for few seconds till the volume number starts flashing, press(Dand
to increase or decrease the number.
to
choose the next/last songs during playing music
for few seconds to engage the time program mold until the minute number starts flashing. Press 0 or @ button to increase or decrease the number to the correct hour; then short press button- & Do not attempt to cut the glass.
- & Do not hit the glass with hard or sharp articles.
