ARPELLA LEDAM Series Luci Frameless Rectangular LED Mirror
Please read these instructions carefully before installation. Installation should be carried out by a qualified electrician.
Keep the plastic corner protectores on until installation is fully completed. Do NOT strike mirror glass with hard or pointed items.It is recommended that the product is cleaned with a soft, drynon abrasive cloth. Do NOT use cleaning agents or abrasive materials on any type of finished surface.
Do NOT allow moisture to come into contact with the electrical components.
| Electrical information of LED Mirror | ||||||
| It.em Code | Product Size(inch) | Input ¼lltage
110V
110V
110V
110V
110V | Electric Power of Mirror(Watt) | Lumens | Colour temperature (Kelvin) | Life expectancy of LED Strip(Hour) |
| LEDAM2436 | 24’W x36”H | 48W | 2100 | 6000K | 50,000 | |
| LEDAM3436 | 34’Wx36”H | 81.5W | 2500 | 6000K | 50,000 | |
| LEDAM4836 | 48’W x36”H | 90W | 3100 | 6000K | 50,000 | |
| LEDAM6036 | 60’Wx36”H | 93W | 3580 | 6000K | 50,000 | |
| LEDAM7036 | 70’Wx36”H | 126W | 4000 | 6000K | 50,000 | |
Touch Switch Application
- ON/OFF LED Light
- When the LED Light is OFFuse single finger to Short
- Touch the Switch Button, the LED Light wil be turned ON,
- When the LED Light is ON, Short Touch the Switch
- Button, the LED light will be OFE
- Dimmable function.
Simply press and hold the touch button to adjust lighting to your desired level - The Switch is with memory function.
When the LED light is turned on again, the Brightness of the LED light will be at the same status as it was turned off.

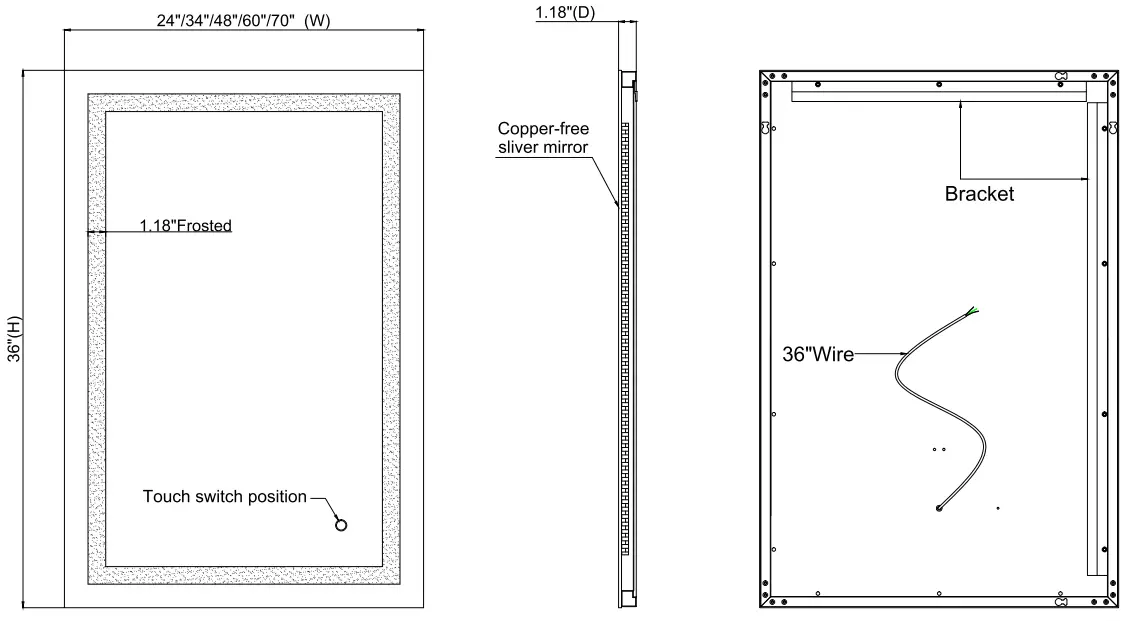

DIMENSION
INSTALLATION PROCEDURE

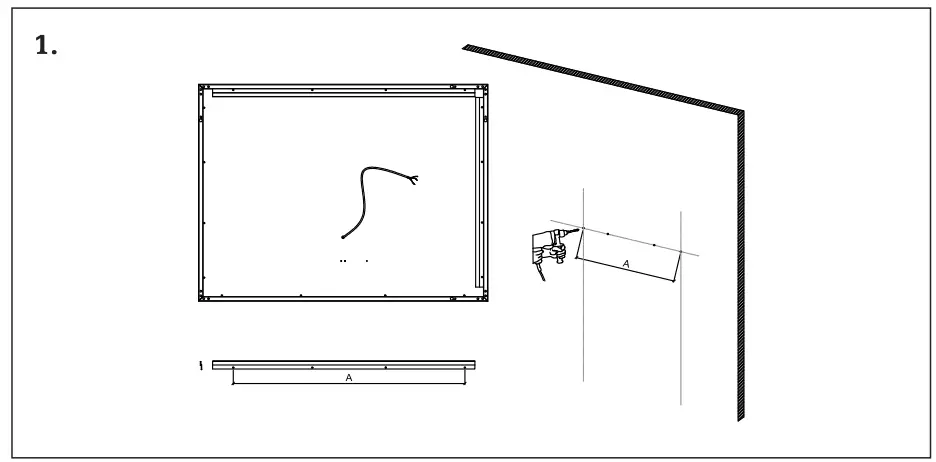

- Before your installation, make sure the location of the mirror is suitable, ensuring that the domestic main power supply is within reach of the electrical entry point of the mirror Mounting bracket must be attached to wall stud. Measure the distance A and drill holes in the marked positions by using a suitable tool.

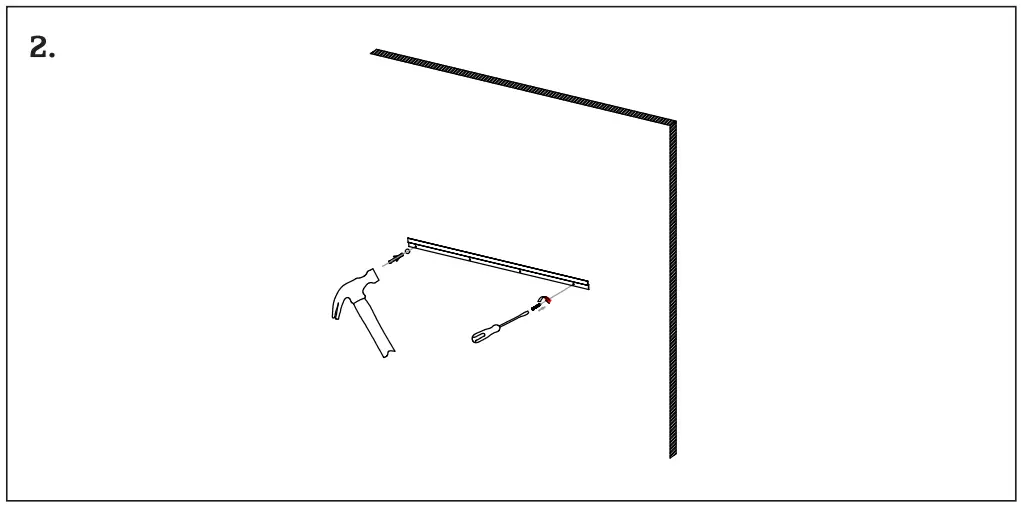

- Insert the wall plugs on the surface of the wall. After that, fasten the supplied screws in to wall plugs. Attach the mounting bracket to the wall.
- You must have a Junction box in the wall.
Carefuly connect the Hard Wire to the mirror fixture wires. Please ensure the main electrical supply has been powered off to complete installaiorn.

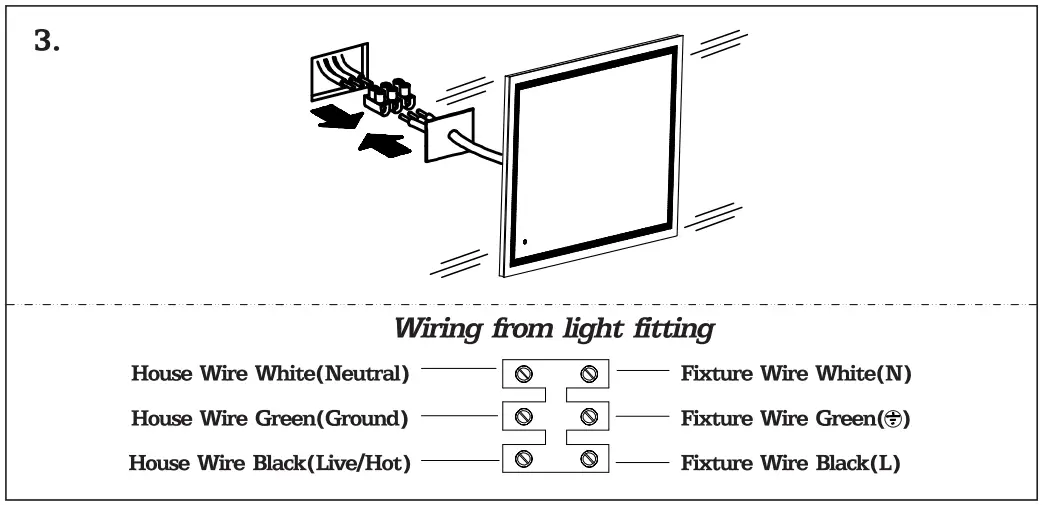

Wiring from light fitting:- House Wire Black(Live/Hot) to Fixture Wire Black
- House Wire White (Neutral) to Fixture Wire White
- House Wire Green (Ground) to Fixture Wire Green
- The input voltage required is 110V

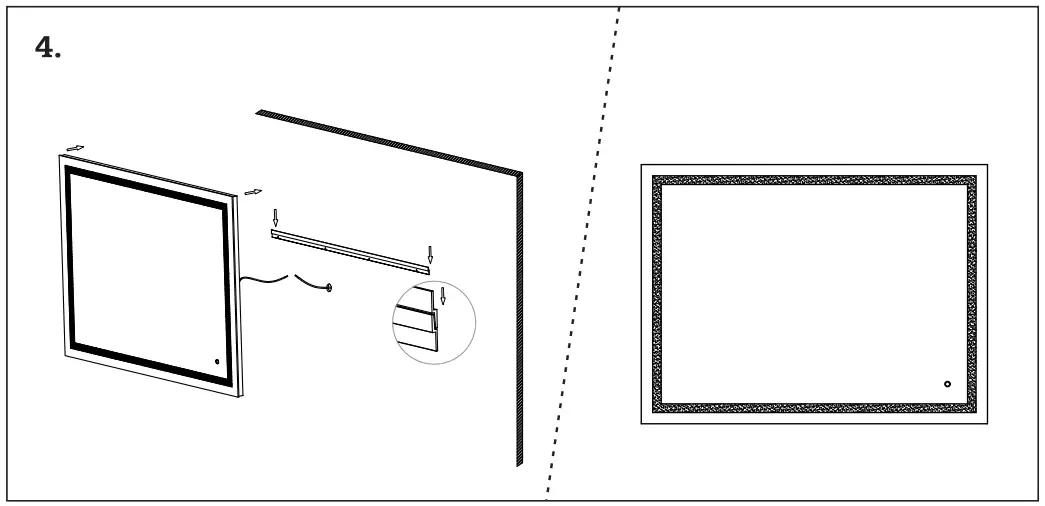

- Hang the mirror on the bracket, peel off protective film and clean the mirror with a soft, drynon abrasive cloth. After that, turn on the domestic electrical main power supply for the mirror light.
