10591642 Mia Black LED Mirror Instruction Manual

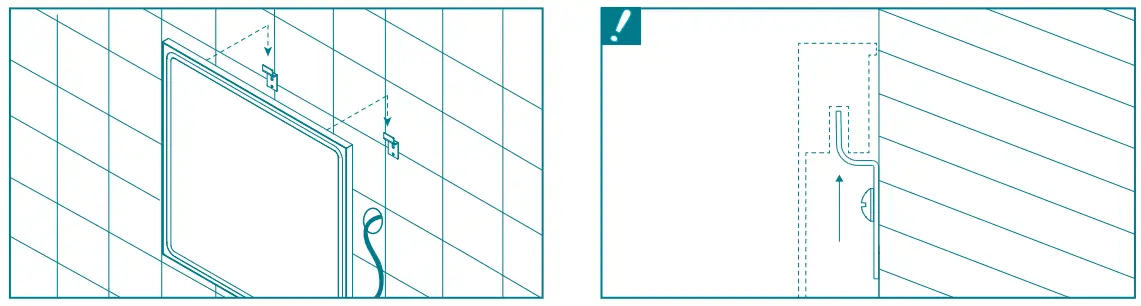

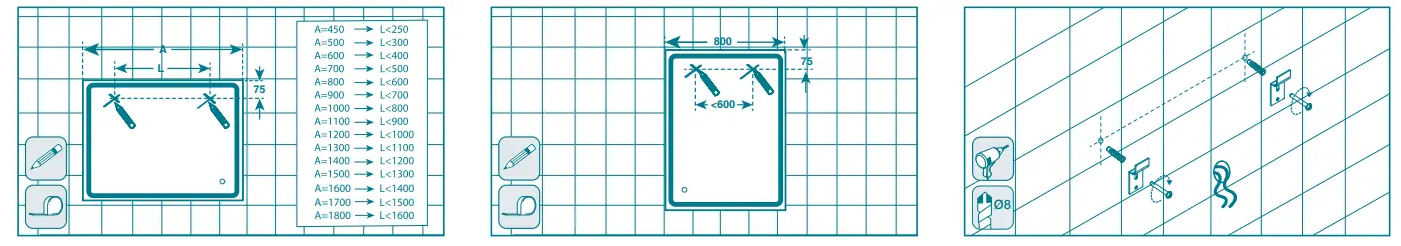

Assembly

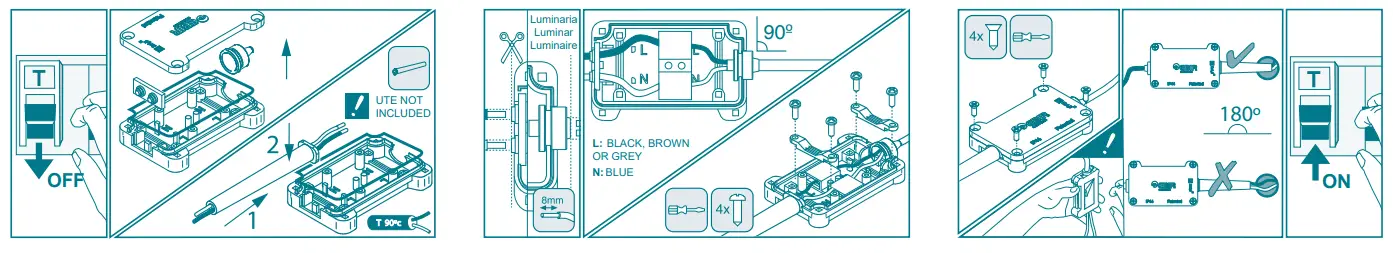

Conexion

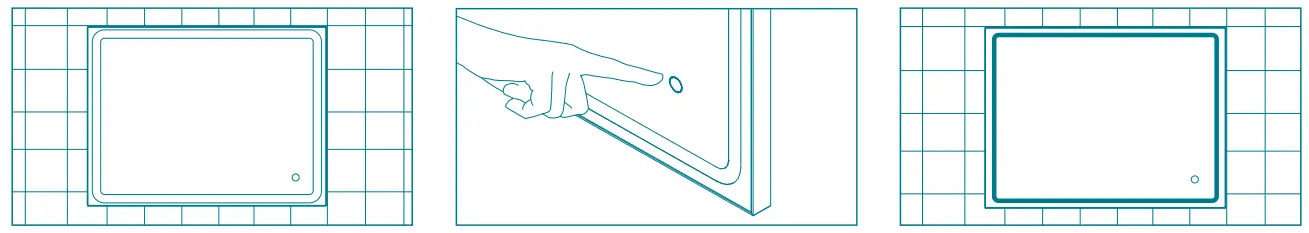

Functionality
Electronic devices are recyclable waste. At the end of its useful life, discard the product in accordance with the applicable regulations.
- The electrical connections must only be carried out by specialised personnel and functioning must be according to the manufacturer’s instructions.
- Do not use any damaged or broken light fittings.
- Always keep connections and wires away from hot areas.
- The flexible outer cable or cord of this luminaire cannot be replaced; if it is damaged the whole light has to be destroyed.

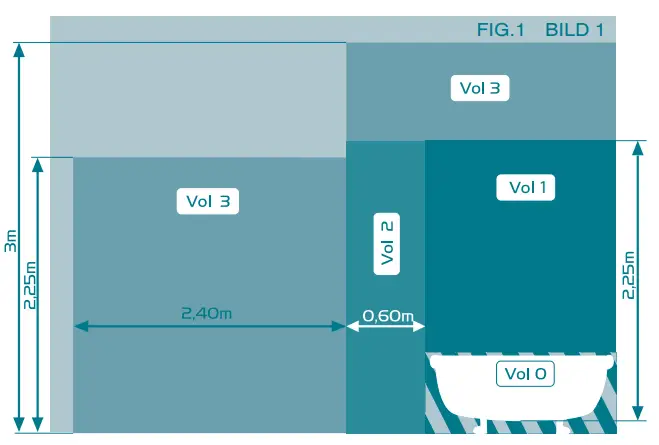

- The luminaire should not be installed in any position other than the one shown in the assembly instructions nor outside the protection vol.0-1 (See Figurel).
- The light fitting cannot be modified or forced under any circumstances, as any modification could jeopardise safety and make this dangerous.
- The light source of this luminaire is not replaceable. When the light source reaches the end of its life the full light fitting must be replaced.
- The light sources used in this product are LED light-emitting-diodes, which are not replaceable.
- Do not submerge in water.
- 0ur products are subject to technical changes and optimizations without prior notice.
Illustrative areas are in accordance with IEC 60364-7-701:09 Standard and NFC 15-100.
Area dimensions may differ according to current legislation in each country.
PROTECTION VOLUMES

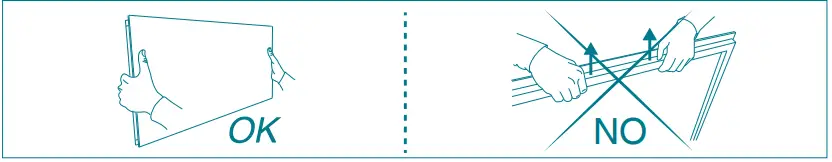

GOOD PRACTICES

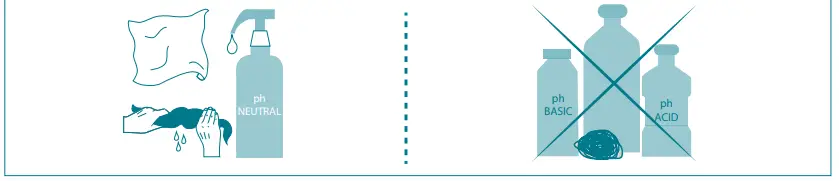

CLEANING
TECHNICAL ASSISTANCE
CIF: B96356886
[email protected]
www.focco.com/warranty
www.focco.com
ILLUMINATED MIRROR
INSTRUCTIONS
focco
