102421 Miral Bathroom Mirror 60 Satin Incl LED
Instruction Manual
Miral Bathroom Mirror 60 Satin Incl.LED
102421
102421 Miral Bathroom Mirror 60 Satin Incl LED
102421
3.2×4.8W LED
incl. LED Board: QL70011101 220-240V~50Hz
This product contains a light source of energy efficiency class F
https://eprel.ec.europa.eu/qr/776821

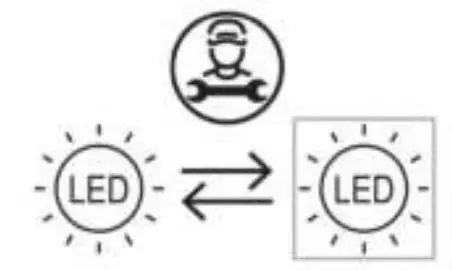

Replaceable (LED only) light source by a professional.

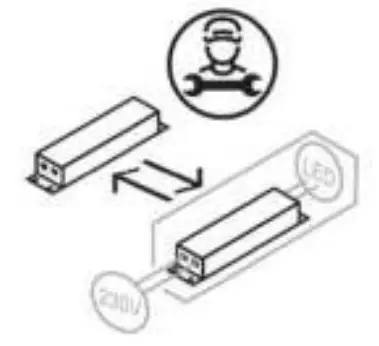

Replaceable control gear by a professional.
SAFETY INSTRUCTION
Please study the instruction manual and below information carefully before installing or using this product.
Please keep this user manual for further reference
- The luminaires may only be installed by authorized and qualified technicians according the valid regulations for electrical installation.
- Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come into contact with any areas of the terminal connections or voltage control parts.
- The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance or repair work is undertaken.
- Exterior lighting must not be installed during rain.
- Take account of the minimal separation distance from other objects and the room required around the fitting.
- If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
- Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
- Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
- Take account of all available technical information.
- Meaning of symbols:
 | For indoor use only, where direct contact with water is impossible |
 | This icon indicates the level of water-proof and dust-proof |
 | Protection Class I: the fitting must be earthed |
 | Protection Class II: the fitting is doubled insulated and does not require earthing |
 | Protection Class III: the fitting is low voltage |
 | Minimum distance from lighted objects (meters) |
 | The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceed; different items require different kind of light sources with different bulb icons |
 | The armature is designed to work only with the indicated voltage. Different items require different working voltage. |
 | The luminaire can be used in combination with a dimmer |
 | The reference light angle and light space of the luminaire |
 | This luminaire cannot be disposed together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area for electrical waste |

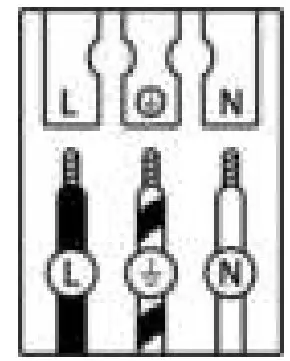

Take note of the symbols when connecting wires:
| L | Live conductor |
 | Earth conductor |
| N | Neutral conductor |
FittinQ B.V.
Smaragdweg 52, 5527 LB Hapert, The Netherlands
www.qazqa.nl
