KASK operating manual
Ski helmet device 770011-SISTEMA BLUETOOTH PIUMA R Brand:KASK

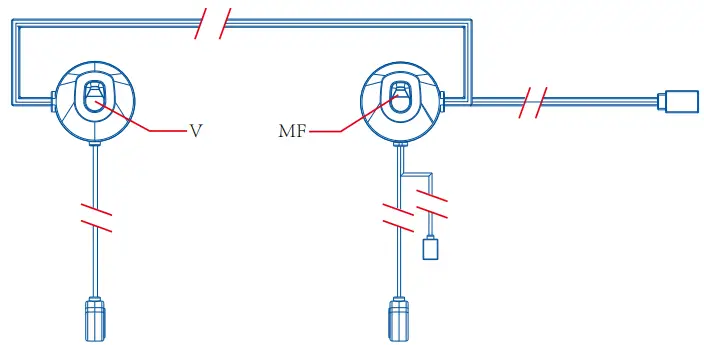

770011 Sistema Bluetooth Piuma R Ski Helmet Device
Button | operate | State before operation | action | Voice prompt | Indicator light |
| Trun on | Trun on | Off state | Press the “MF” button for 3 seconds | Power ON | The blue indicator flash 3 times |
| Trun off | On state | Press the “MF” button for 5 seconds | Power OFF | The red indicator is on for 1s | |
| Enter pairing mode | Off state | Press the “MF” button for 3 seconds turn on，it will enter to paring mode | Pairing | The blue indicator and red LED quickly flash | |
| Multi function button | Answer a call | Call is incoming | Press the “MF” button while the call is incoming | ||
| Reject thecall | Call is incoming | Press the “MF” button for 2 seconds | |||
| Last number redial | Standby state | Double click “MF”button | |||
| End the call | During the call | Press the “MF”button | Beep | ||
| Voice calling | Standby state | Press and hold the “MF” button for 3 seconds | Beep | ||
| Music play / pause | Standby state | Press the “MF”button | |||
| Volume Up | Calling/playing | Press the“V”button is for volume up. | |||
| Volume Down | Calling/playing | Press and hold the“V” button is for volume down. | |||
| Battery Indicator | Connected | On state | connected | The blue indicator and flashes once every 6S | |
| Disconnected | On state | disconnected | The blue indicator flashes twice every 6S | ||
| Charge | On state/Off state | The red indicator light on | |||
| Charging complete | Off state | The blue light is on |
¹Bluetooth device name “KASK SNOW HELMET”
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.
