Arbella
INSTALLATION INSTRUCTIONS
LEDWSM2430/LEDWSM2436/LEDWSM3436/LEDWSM4836/LEDWSM6036/LEDWSM7036
Please Read Before Installation
Please read these instructions carefully before starting the installation and keep them in a safe place for future reference.
It is recommended to use a qualified electrician for all electrical wiring procedures.
Please turn off all power to the site prior to installation.
Check the contents of the package carefully before installation and disposal of packaging.
The mirror must be wired directly to a dimmable wall switch to operate the dimming feature on the mirror.
The mechanical switch located on the bottom of the mirror must remain on when operating the mirror with the wall switch.
The defogging feature will deactivate when the mirror is dimmed.

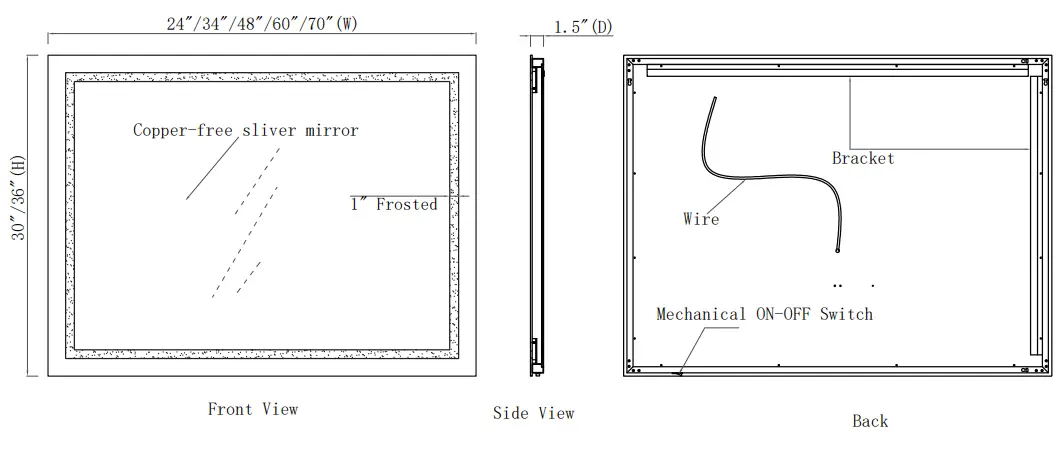

Electrical information of LED Mirror | ||||||
| Item Code | Product Size(inch) | Input Voltage | Electric Power of 1Viirror(Watt) | Lumens | Color temperature (Kelvin) | Life expectancy of LED Strip(Hour) |
| LEDWSM2430 | 24 Wx30 H | 110V | 50W | 2060 | 5000K | 50,000 |
| LEDWSM2436 | 24 Wx36 H | 110V | 60W | 2370 | 5000K | 50,000 |
| LEDWSM3436 | 34 Wx36 H | 110V | 90W | 2880 | 5000K | 50,000 |
| LEDWSM4836 | 48 Wx36 H | 110V | 129W | 3590 | 5000K | 50,000 |
| LEDWSM6036 | 60 Wx36 H | 110V | 166W | 4200 | 5000K | 50,000 |
| LEDWSM7036 | 70 Wx36 H | 110V | 190W | 4700 | 5000K | 50,000 |
IMPORTANT SAFETY INSTRUCTION
When using electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this product.
DANGER – To reduce the risk of electric shock:
- Always suspend power to the mirror before servicing the item if service is needed.
- Close supervision is necessary when this mirror is used by, or near children, invalids, or disabled persons.
- Use this furnishing only for its intended use as described in these instructions.
Do not use attachments not recommended by Arbella. - Never operate this furnishing if it has a damaged cord or plug, if it is not working properly during testing, if it has been dropped or damaged, or exposed to water.
- Keep the cord away from heated surfaces.
- Never drop or insert any object into any opening in the electrical box.
- This product is not intended for use outdoors.
- To disconnect, turn all controls to the off position, then suspend power to the mirror.
″WARNING: Risk of Electric Shock – Connect this furnishing to a properly grounded outlet only. See Grounding Instructions.

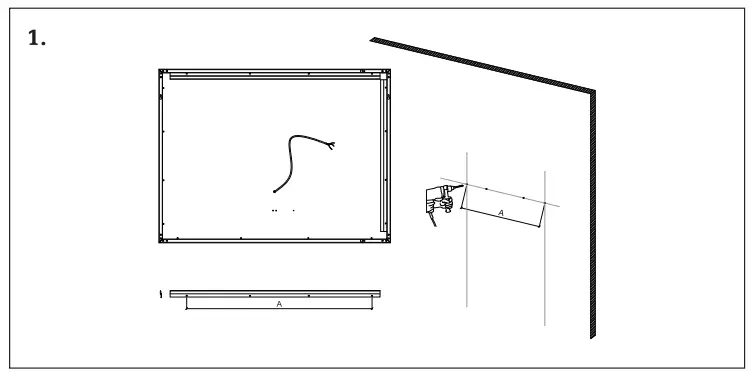

- Before your installation, make sure the location of the mirror is suitable, ensuring that the domestic main power supply is within reach of the electrical entry point of the mirror. The mounting bracket must be attached to the wall stud. Measure the distance A and drill holes in the marked positions by using a suitable tool.

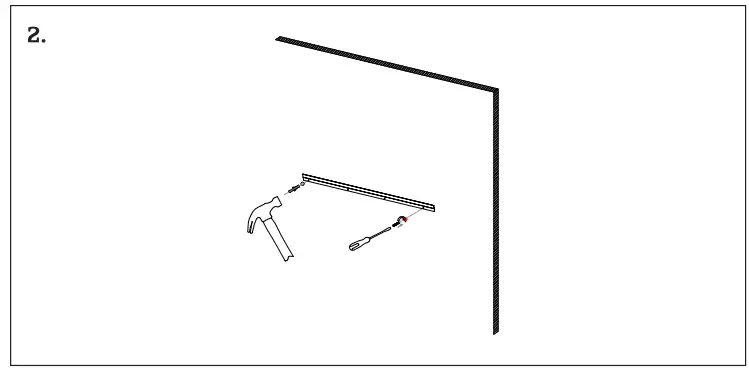

- Insert the wall plugs on the surface of the wall. After that, fasten the supplied screws into wall plugs. Attach the mounting bracket to the wall.

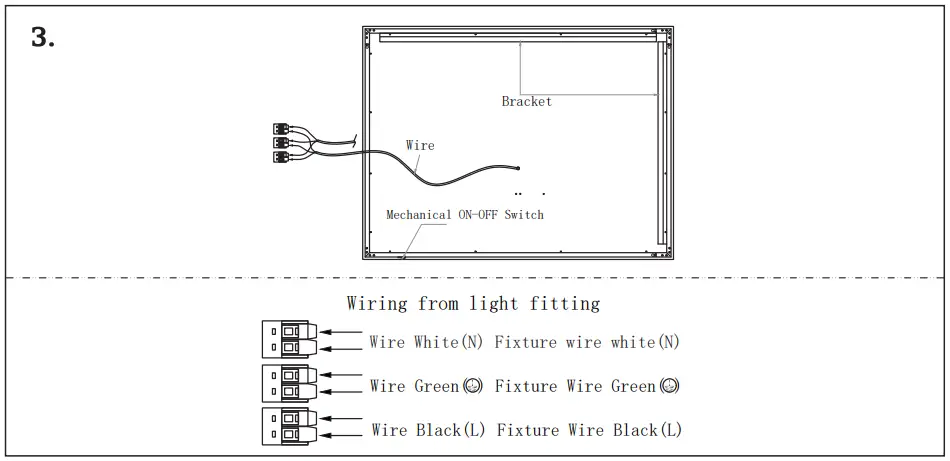

- You must have a Junction box in the wall Carefully connect the Hard Wire to the mirror fixture wires. Please ensure the main electrical supply has been powered off to complete installation. Wiring from light fitting: House Wire Black(Live/Hot) to Fixture Wire Black House Wire White (Neutral) to Fixture Wire White House Wire Green (Ground) to Fixture Wire Green The input voltage required is 110V.

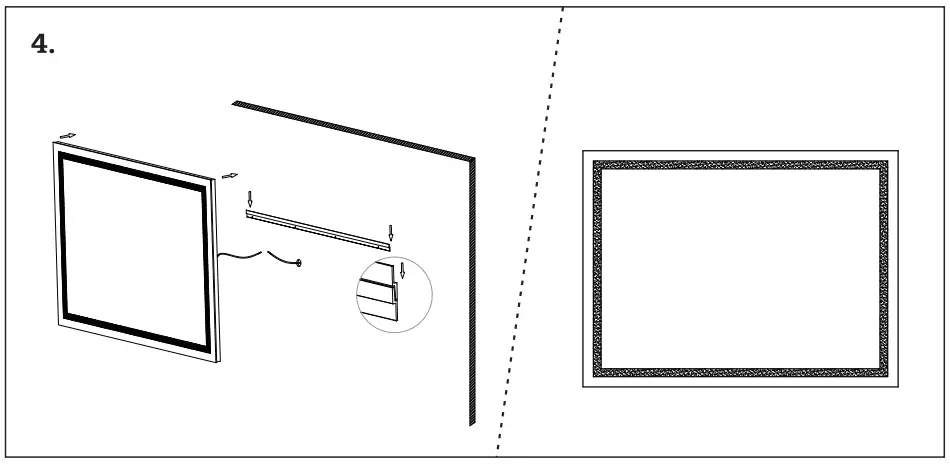

- Hang the mirror on the bracket, peel off the protective film and clean the mirror with a soft, dry nonabrasive cloth After that, turn on the domestic electrical main power supply for the mirror light.
