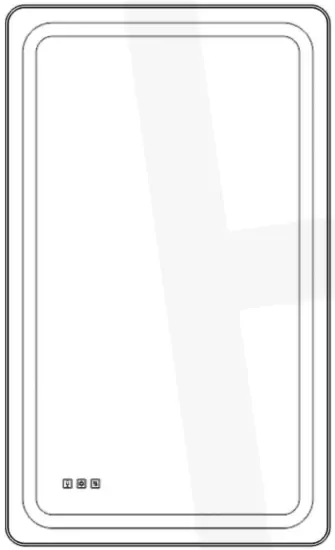

HR-M3224 32 in. W x 24 in. H Small Rectangular Metal Vanity Mirror
Instruction Manual

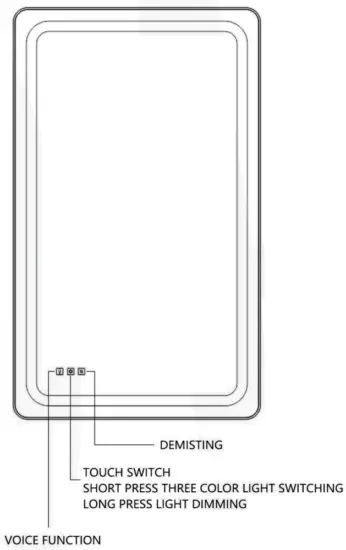

PHONETIC FUNCTION
PHONETIC FUNCTION
WAKE UP: HI HOROW
WAKE UP REPLY: HI, WHAT CAN I HELP YOU
HI, I AM HERE
COMMAND WORD:
- ON THE LIGHT
- OFF THE LIGHT
- WHITE
- YELLOW
- NATURAL
- MORE DARK
- MORE LIGHT
- MAX LIGHT
- MINIMUM LIGHT
- ANTIFOGGING
- OFF ANTIFOGGING
COMMAND REPLY: GET IT
EXIT COMMAND: GOODBYE SEE YOU
EXIT REPLY: SEE YOU LATER
MODULATION:
VOLUME UP/MORE UP
VOLUME DOWN/MORE DOWN
MAX VOLUME
MIN VOLUME
MEDIUM VOLUME
Product Description
| Dimension | Watts | Color Temperature |
| 20 ” x 28 “ | 24W | 3000k – 4500k – 6000k |
| 24 ” x 32 “ | 36W | |
| 28 ” x 36 “ | 36W | |
| 24 ” x 40 “ | 48W |
Important Notification:
- Please make sure all parts are intact before installation. When the product is taken out, it would be better to put them on a smooth surface to prevent scratches.
- It might be sharp at the edges and corners as the frame is made of aluminum, please protect yourself from being scratched during installation.
- Standing on a safe platform when working at heights.
- Be sure there are no hidden cables or pipes on the wall before drilling.
- Wearing appropriate goggles when drilling.
- Be careful when using power tools near water.
- The main power must be turned off before the electrical installation.
- The product is for indoor use only.
- The electrical components must keep away from moisture.
- This product is manufactured to IP44 grade standard.
Wall Types:
- The fixtures provided are usually used for solid walls.
- If mounted on a tile, please use a ceramic drill and insert a wall plug under the tile.
Included accessories:
| Typ | Drow | Number | Nome |
| 1 |  | 2PCS | Self-tapping screw |
| 2 |  | 2PCS | Expansion tube |
| 3 |  | 1PC | Aluminum strip |

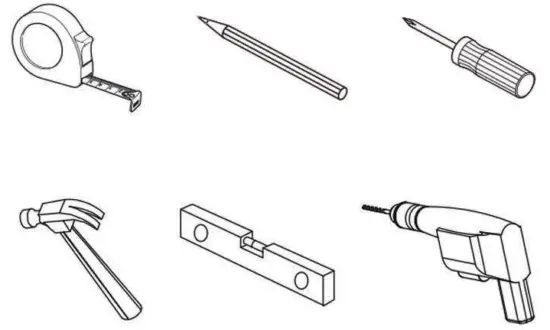

Tool requirements:

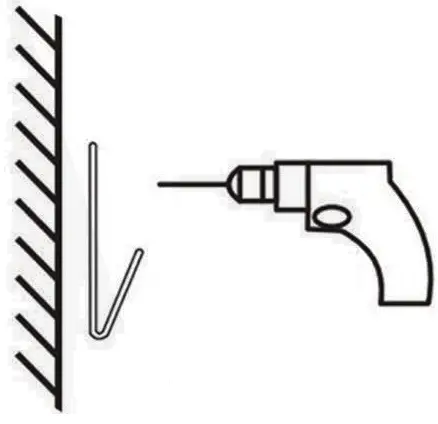

| Step 1 Drill holes on the wall according to the hole position of the aluminum strip. | Step2 1. Expand the expansion tube into the wall. 2. Aligning hole position of the aluminum strip to drill hole. 3. Twist the screw into the hole and fix the aluminum strip. |
 |  |

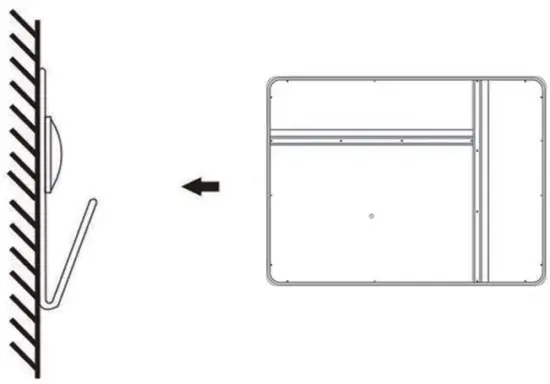

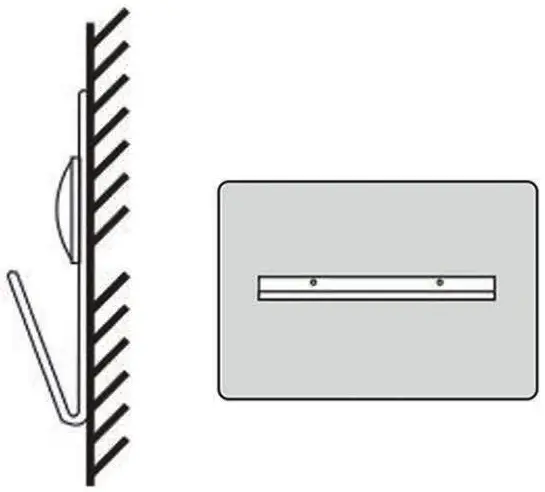

| Step3 After completion, the final wall hangs an aluminum strip. | Step4 Align the aluminum strip on the wall and hang up the mirror. |
 |  |
