WH Mirror
Instruction Manual

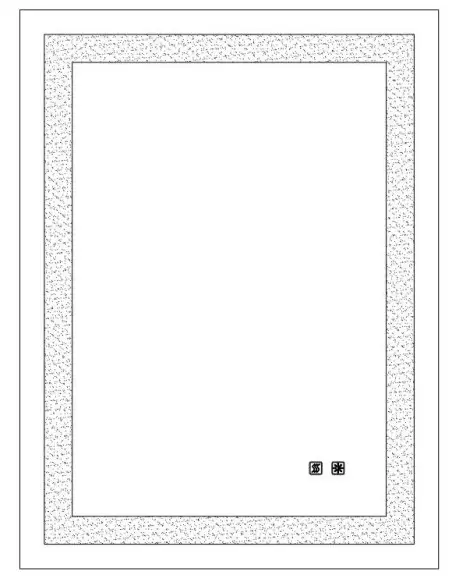

Product Features
-Extra thick LED light
-Touch switch dimming function
-Touch switch with memory
-Anti-fog pad
For easy and safe installation, please refer to the following:
Read all instructions thoroughly before installing the enclosed product. Read and take note of all safety, care and maintenance information.
PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE DURING PRODUCT OPERATION AND MAINTENANCE.
Important Tips
WARNING AND SAFETY INSTRUCTIONS
Before assembling your LED Lighted Mirror fixture, please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructions for future use.
WARNING Risk of Fire and Electric Shock
- All fittings must be installed in accordance with current IEE wiring regulations. If in doubt, consult a qualified electrician.
- Switch off the electrical supply at the main circuit board BEFORE installation and maintenance.
- Suitable for indoor use only. This product should be positioned well away from curtains and fabrics. Never cover the mirror.
- Regularly check the cord, the transformer and all other parts for damage, if any part is damaged the product should not be used.
INSTALLATION SAFETY
- Inspect the product immediately upon receipt for the transit damage or missing parts. Handle the product with care and protect against knocks to all sides and edges of the glass.
- Ensure there are no hidden pipes or cables in the wall before drilling.
- Wear suitable eye protection when drilling. Take care if drilling on tiled surfaces in case the drill slips.
CAUTION
The light source of this product is non-changeable light diodes (LED). Do not disassemble the product, as the light diodes can cause damage to the eyes.
NOTE: The important safeguards and instructions that appear in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors that can’t be built into any product. These factors must be supplied by the person(s) caring for and operating the
fixture. Do not install this fixture in hazardous locations.
Accessories and Installation Steps
CHECK PRODUCT LIST AFTER OPENING THE PACKAGE

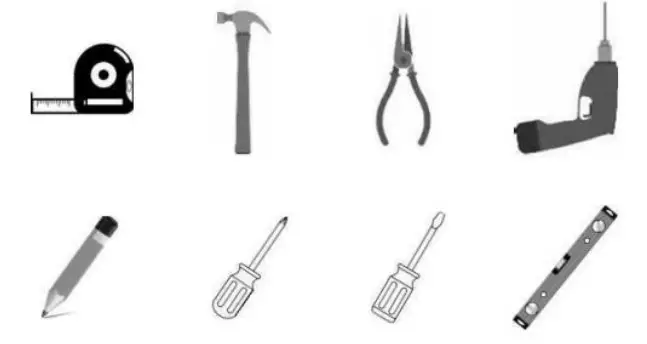

TOOLS YOU MAY NEED
- LED Lighted Mirror — 1 pcs
- Screws for wall — 5 pcs
- Plastic Anchor –5 pcs
- Mounting bar –1 pcs
- Installation Manual — 1 pcs
Installation Steps:

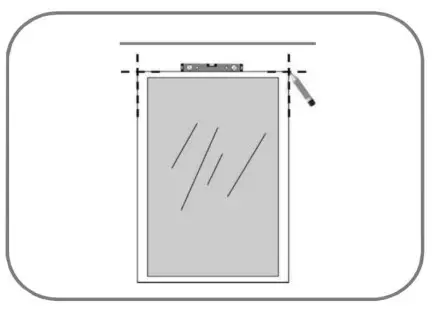

Level and mark the location.

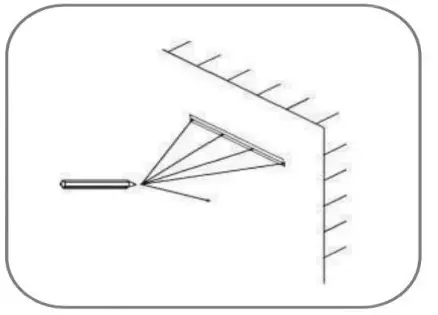

Place the mounting bar against the wall and make some marks on the wall.
* All diagrams are for reference only. All model dimensions and proportions position will vary.

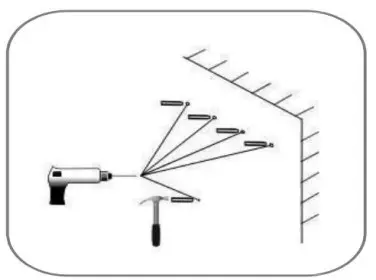

Drill the holes and place the suitable plastic anchors.

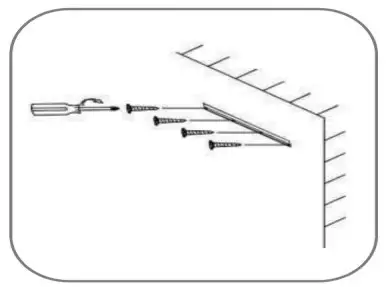

Screw the mounting bar onto the wall with the screws .

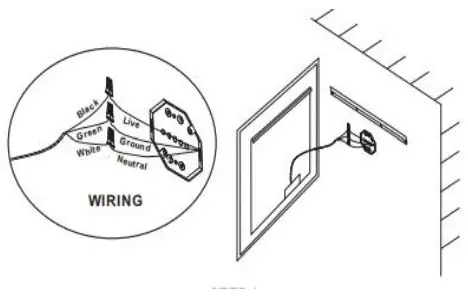

Connect the wires of mirror with the main power by the wire connectors.
BLACK WIRE — POWER SUPPLY L (LIVE)
WHITE WIRE — POWER SUPPLY N (NEUTRAL)
GREEN WIRE — POWER SUPPLY E (EARTH)
WARNING: This mirror must be earthed.

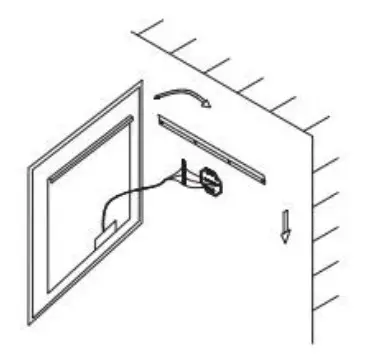

Hang the mirror onto the Z bar until they are completely stuck.
Operation Instruction
ON/OFF and Dimmer
- Short-touch the button to turn on/off the mirror.
- Long touching the button to adjust the brightness (Dimming).
Anti-fog Function
- Mirror begins to be warm and defog after pressing the defogger button.
- Press again to quit the anti-fog function.
