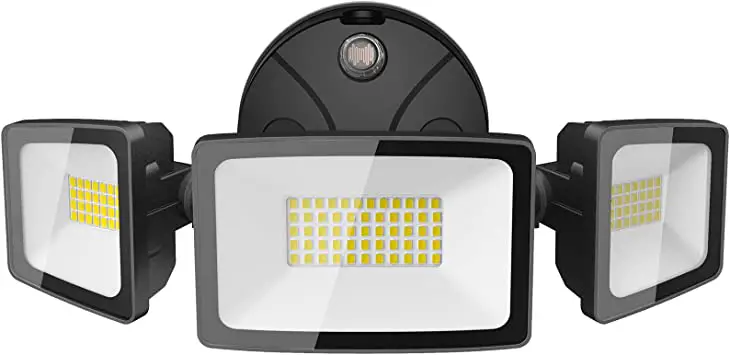

ONFORU BDB55D-3 LED Dusk to Dawn Wall Light

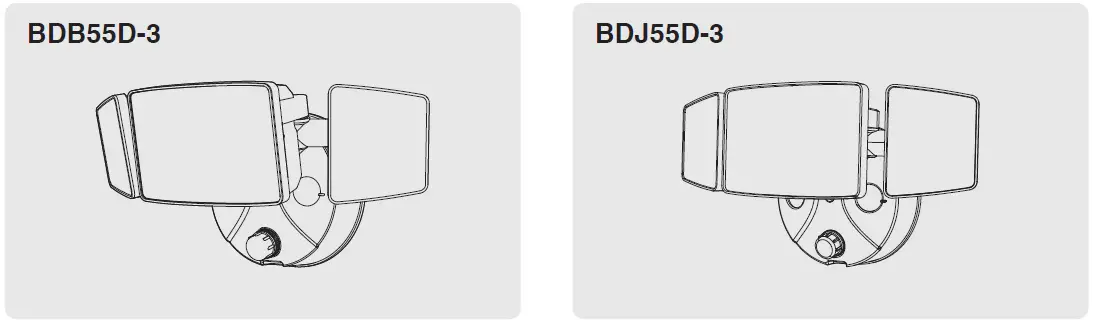

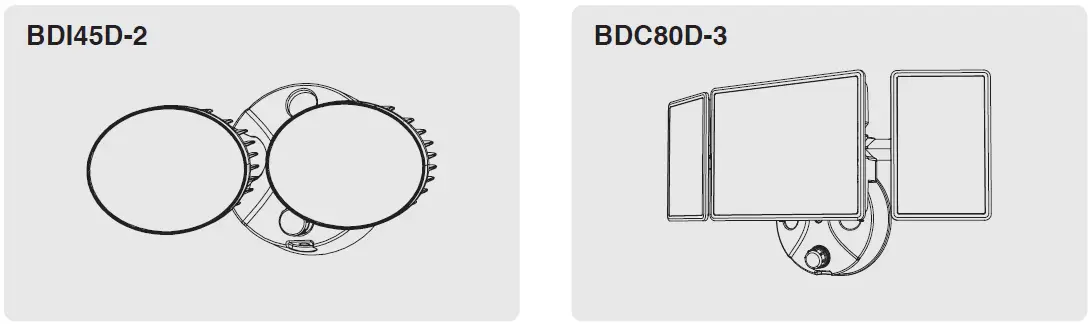

COMPONENTS AND STRUCTURE

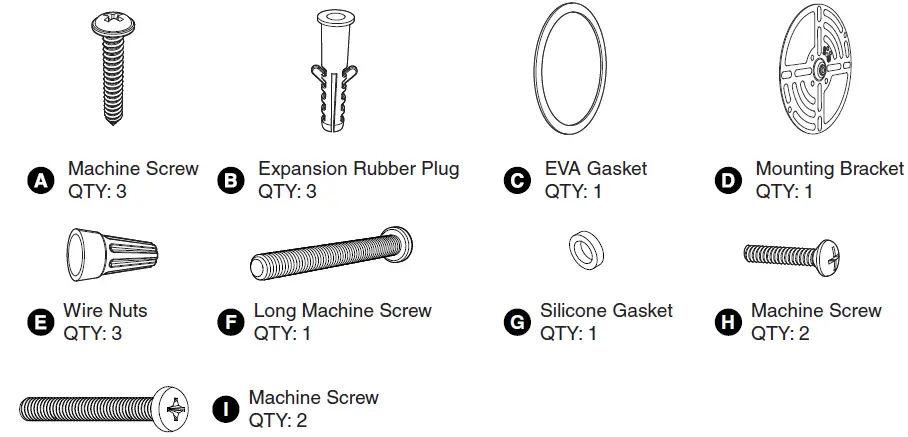

PARTS LIST
SPECIFICATIONS
| LED WALL LAMP | ||||||
| Model | BDB55D-3 | BDJ55D-3 | BDI45D-2 | BDC80D-3 | BDD100D-3 | BDL40D-3 |
| Input Current | 0.5A | 0.5A | 0.38A | 0.58A | 0.83A | 0.35A |
| Rated Power | 55W | 55W | 45W | 70W | 100W | 40W |
| Luminous Flux | 5500lm | 5500lm | 4000lm | 6200lm | 9000lm | 4000lm |
| Input Voltage | 100-120V～60Hz | |||||
| CCT | 6500K | |||||
| CRI | ≥80 | |||||
| Power Factor | ≥0.9 | |||||
| L70B50 lifetime | 30000hours L70B50 @25° | |||||
| Beam Angle | 120° | |||||
| ta | -20-40°C/-4°F-104°F | |||||
| Luminaire Location | SUITABLE FOR WET LOCATIONS | |||||
| DIMENSIONS | ||||
| Model | BDB55D-3 | BDJ55D-3 | BDI45D-2 | |

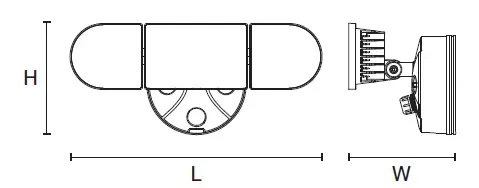

| Dimensions(LxHxW） | 272x123x121mm/ 10.71×4.84×4.76 in | 270x152x109 mm/ 10.63×5.98×4.29 in | 256x140x145 mm/ 10.08×5.5×5.7 in | |
| Weight | 0.9kg/1.98 lb | 0.83kg/1.83 lb | 0.9kg/1.98 lb | |
| Max Projected Area | 0.0214m²/0.23ft² | 0.0214m²/0.23ft² | 0.286m²/0.307ft² | |
| Max. Lighting Coverage | 90m²/968ft² | 90m²/968ft² | 70m²/753ft² | |
| Model | BDC80D-3 | BDD100D-3 | BDL40D-3 | |
| Dimensions(LxHxW） | 365x195x118 mm/14.4×7.67×4.64in | 455x182x120 mm/17.9×7.16×4.72 in | 279x136x118 mm/10.98×5.35×4.64 in | |
| Weight | 1.2 kg/2.64 lb | 1.45 kg/3.2 lb | 0.68 kg/1.5 lb | |
| Max Projected Area | 0.044m²/0.47ft² | 0.049m²/0.52ft² | 0.022m²/0.23ft² | |
| Max. Lighting Coverage | 115m²/1237ft² | 160m²/1722ft² | 60m²/645ft² | |
| Note: The testing standard of the product’s luminous flux: Place the three/two lights on the same horizontal surface for testing, and the tested luminous flux is the accurate luminous flux. |
| |||

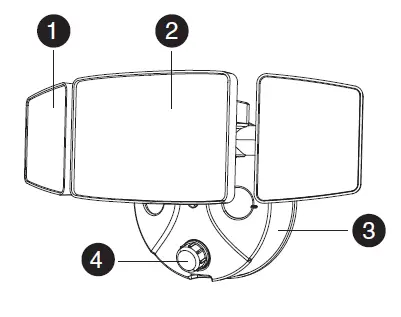

- Cover
- LED Light Source
- Lamp Bracket

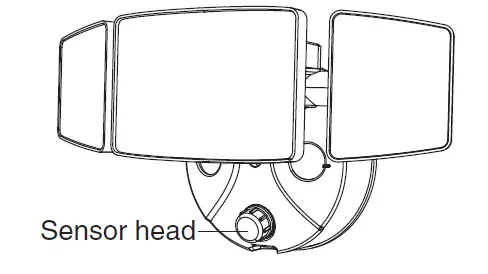

- Sensor head
PREPARATION
NOTE: Before beginning assembly of product, make sure all parts are present. Compare parts with parts list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time:30-60 minutes.

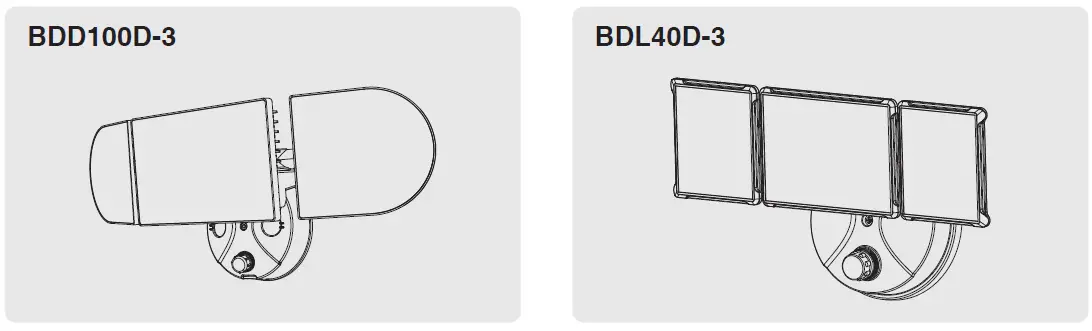

Product appearance may vary from image shown.
Recommended to be installed on the ground above 2.5m (8.2 ft.) and no higher than 5 m (16.4 ft.).
TOOLS REQUIRED

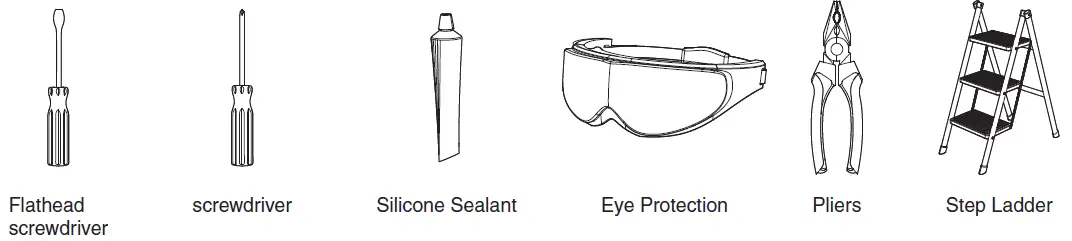

(not included）
WARNING:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
CAUTION:
PLEASE MAKE SURE YOUR WALL SWITCH AND POWER AT MAIN CIRCUIT BREAKER BOTH ARE OFF.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION, CONSULT A LICENSED ELECTRICIAN.
RISK OF SHOCK:
BEFORE BEGINNING INSTALLATION,TURN OFF ELECTRICITY AT THE CIRCUIT BREAKER BOX OR THE MAIN FUSE BOX.
NOTE:

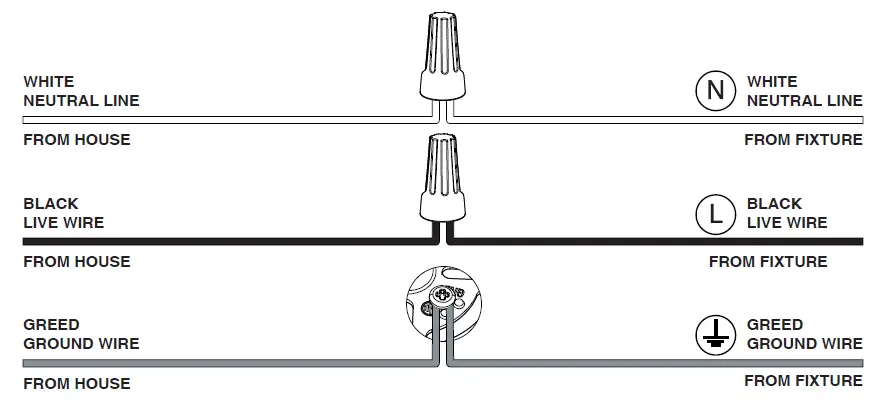

BE SURE TO USE WIRE NUTS/CONNECTORS RATED FOR THE CORRECT GAUGE AND NUMBER OF WIRES USED. MAKE SURE THERE ARE NO EXPOSED WIRE BUNDLES OUTSIDE THE WIRE NUT/CONNECTOR (IF APPLICABLE). BE CAREFUL NOT TO DAMAGE OR CUT THE WIRE INSULATION (COVERING) DURING INSTALLATION.DO NOT LET THE WIRES TOUCH ANY SHARP EDGES.
WARNING:
DO NOT CONNECT THIS LIGHT FIXTURE TO AN UNGROUNDED ELECTRICAL SYSTEM. ATTACH GROUND FIXTURE WIRE TO
EITHER GREEN GROUND SCREW ON MOUNTING PLATE OR THE GROUND WIRE IN THE OUTLET BOX.
INSTALLING THIS LIGHT IN AN UNGROUNDED ELECTRICAL SYSTEM MAY CAUSE THE METAL PARTS OF THE LIGHT TO CARRY CURRENT IF ANY WIRES OR WIRE CONNECTIONS AREDAMAGED OR LOOSE. IN THIS CASE, ANYONE WHO TOUCHES THE LIGHT WILL RECEIVE AN ELECTRIC SHOCK, RESULTING IN INJURY OR DEATH.

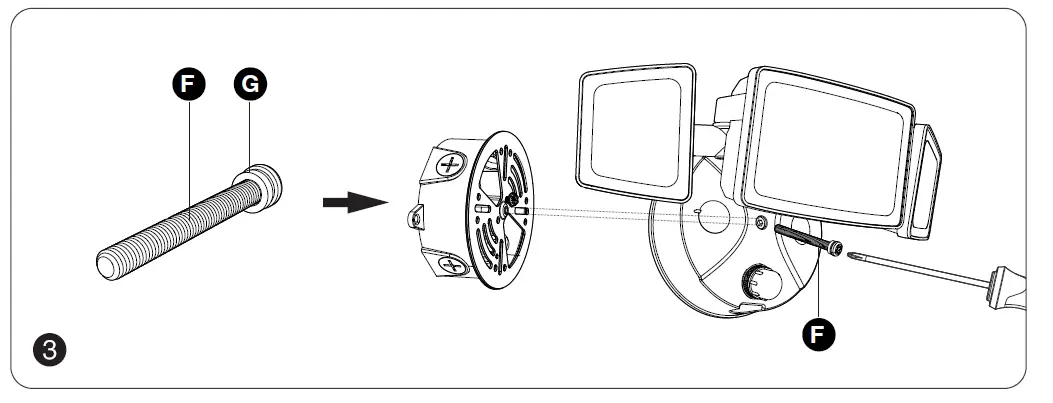

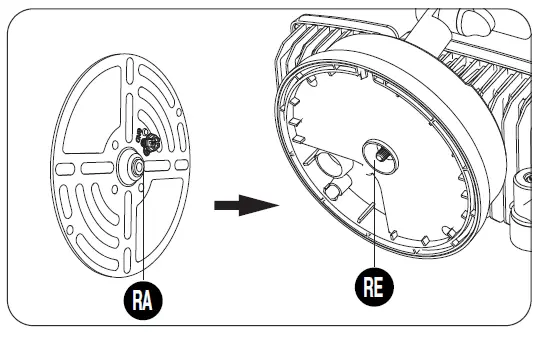

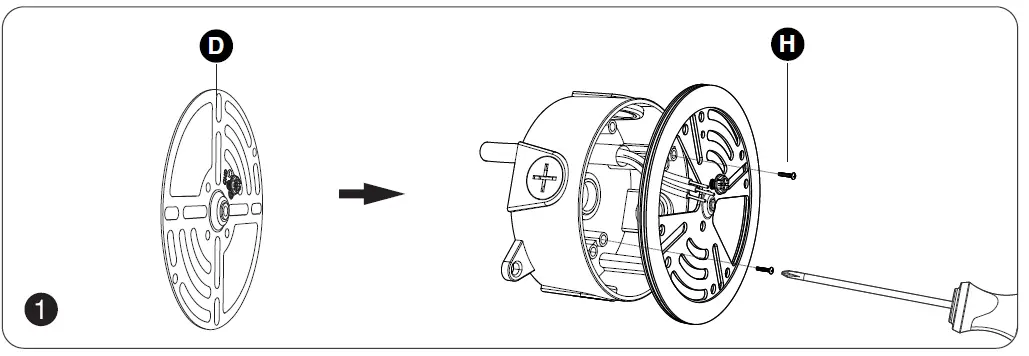

INSTALLATION STEPS
FOR WET LOCATION, MAKE SURE FILL FULL THE GAP OF EVA GASKET AND MOUNTING
SURFACE WITH SEALING COMPOUND OR SILICON GLUE.
OPERATION INSTRUCTIONS
Sensor head:
When the ambient brightness is less than 10~20LUX at night, the light will be on automatically.
When the ambient brightness is more than 30~60LUX during the day, the light will be off automatically.
NOTE: Do not cover the sensor head, otherwise it will affect the normal operation of the lamp.
TROUBLESHOOTING
| Malfunction | Cause | Remedy |
| LED senses a movement, the light does not light up |
|
|
| LED sensor light illuminates during the day | The shadows around the sensor make it mistakenly think it’s night | Do not cover the sensor head |
| LED sensor light flashing |
|
|
