CG903DTGGB1 Gas on Glass Cooktop
User Guide
Gas on Glass Cooktop
QUICK REFERENCE GUIDE > CG903DTGGB1

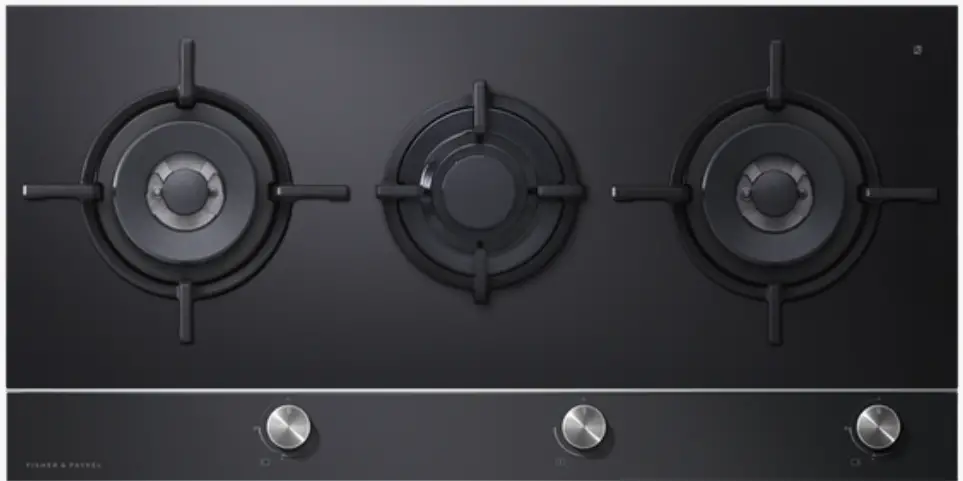

Gas on Glass Cooktop, 90cm
Series 9 | Contemporary
Black Glass | Town gasChoose this wide three burner to suit your kitchen layout, and enjoy the flexibility of two dual flame wok burners.
- A wide cooking area with three burners including two wok burners
- A flame-failure safety device; if the flame goes out, the gas turns off

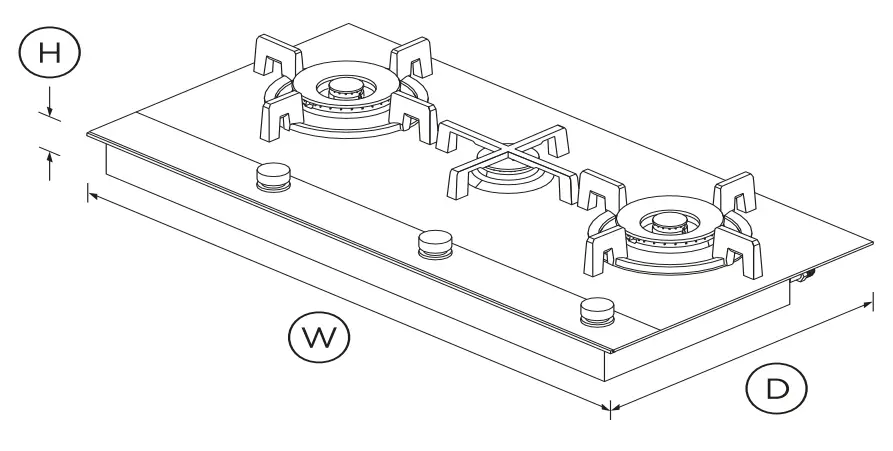

DIMENSIONS
Height…………………..64mm
Width…………………….. 900mm
Depth……………………… 450mm
FEATURES & BENEFITS
Beautiful burners
Our award-winning Gas on Glass Cooktops delivers total cooking precision with the latest burner technology. The consistent flame and heat distribution of the dual flame wok burner combined with highly responsive dials offer precise heat control.
Complementary design
The black reflective glass brushed stainless steel, and polished metal trim blend elegance with durability. Designed to match the Fisher & Paykel family of appliances.
Precise control
Simply turn the dials to ignite the flame quickly and safely. Precise heat adjustment from very high to very low heat can perfect a slow simmer for sauces or an intense heat for searing steaks.
Safe and sound
The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished. Eco-friendly ceramic glass, without arsenic or heavy metals, is used in the manufacturing process.
Easy cleaning
Life is made a little easier with this easy-to-clean glass cooktop. The design allows you to simply remove the trivets and wipe down the glass.
Handy accessories
This cooktop comes with small pot support and wok stand to complement different cooking styles.
SPECIFICATIONS
| Accessories | |
| Small pan support | • |
| Wok stand | • |
| Burner ratings | |
| Semi-rapid burner power | 2.05kW |
| Wok burner power | 4.30kW |
| Burners | |
| Number of burners | 3 |
| Cleaning | |
| Easy clean cooktop design | • |
| Quick component removal | • |
| Controls | |
| Dual wok control | • |
| Ergonomic control dials | • |
| Toughened fused glass | • |
| Performance | |
| Cast iron trivets | • |
| Electronic ignition | • |
| LPG/Town gas models | • |
| Quick connect gas valves | • |
| Power requirements | |
| Supply voltage | 230-240V |
| Product dimensions | |
| Depth | 450mm |
| Height | 64mm |
| Width | 900mm |
| Safety | |
| Flame failure system | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 81429 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide Service & Warranty Installation Guide – Joining Strip Installation Guide Data Sheet Gas on Glass Cooktop
