QUICK REFERENCE GUIDE > CG604DNGGB4

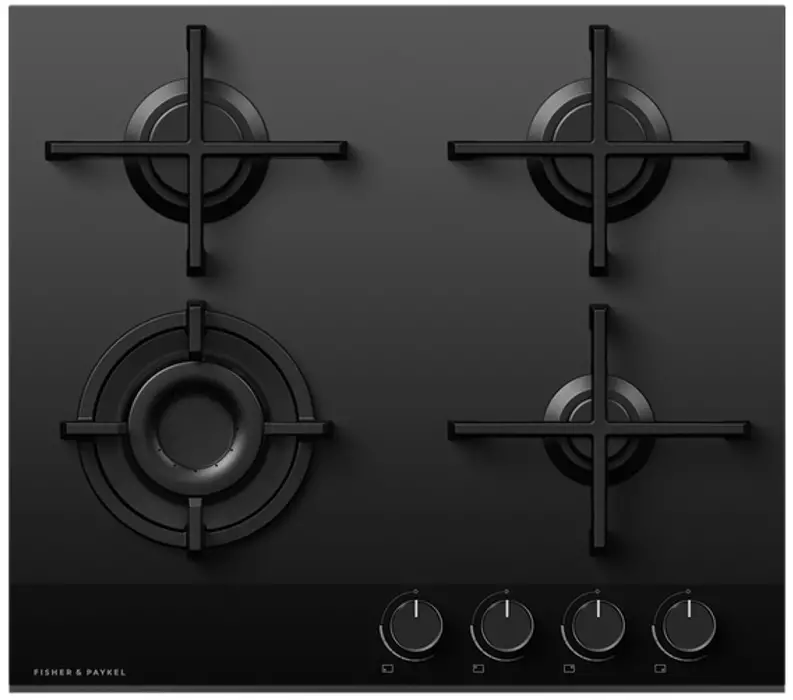

CG604DNGGB4 Gas on Glass Cooktop
Gas on Glass Cooktop, 60cm
Series 9 | Minimal
Black Glass | Natural gas
A powerful four burner with precision control and performance. Pair with any other appliance in our Minimal range.
- Four burners including a wok burner and two semi-rapid burners
- A timeless, minimal look to fit any kitchen style, with black ceramic glass cooking zones and black trim.
- A flame-failure safety device; if the flame goes out, the gas turns off
- Removable cast iron trivets and ceramic glass that can be wiped down for easy cleaning
DIMENSIONS
| Height | 58mm |
| Width | 600mm |
| Depth | 530mm |
FEATURES & BENEFITS
Complementary design
The subtle black glass, anodized trim, and black dials blend elegance with durability and are designed to match the Minimal style Series 9 ovens. With premium styling and detailing, these cooktops seamlessly blend with other appliances for a cohesive, considered kitchen design.
Precise control
Precise temperature control at both low and high temperatures. Different burner sizes fit a variety of pots to complement different cooking styles.
Easy cleaning
Cleaning and care of these cooktops are easy with sealed burners and a single-sheet cooking surface. After each use, simply remove the trivets and wipe down the glass.
Quality materials
With cast iron trivets, anodized metal dials, and tough ceramic glass that can withstand high temperatures, we use only the highest quality materials for optimal performance.
SAFE & SOUND
The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished.
Quality materials
Our cooktops are built from recyclable, eco-friendly ceramic glass – without using arsenic or heavy metals in the manufacturing process. The glass edges are chip-tested for
resistance to damage from pots and pans, ensuring lasting quality.
SPECIFICATIONS
Accessories
| High power wok cooking | • |
| Joiner kit | Part 534731 (required to join |
| Stainless steel dial kit | 82222 |
| Wok stand | • |
| Burner ratings | |
| Auxiliary burner (natural gas) | 3.6MJ/h |
| Mini Wok Burner | 11.7 MJ/h |
| Semi-rapid burner power | 8.3MJ/h x 2 |
| Wok burner power | 11.7MJ/h |
| Cleaning | |
| Easy clean cooktop design | • |
| Quick component removal | • |
| Controls | |
| Ergonomic control dials | • |
| Toughened fused glass | • |
| Performance | |
| Both LPG & NG models | • |
| Cast iron trivets | • |
| Electronic ignition | • |
| Quick connect gas valves | • |
| Power requirements | |
| Amperage | 10A |
| Product dimensions | |
| Depth | 530mm |
| Height | 58mm |
| Width | 600mm |
Safety
| Flame failure system | • |
| Warranty | |
| Parts and labour | 2 years |
| Zones | |
| Number of elements | 4 |
| SKU | 81986 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
