Fisher Paykel Cg903dlpgb1 90cm Gas On Glass Cooktop User Guide

Fisher Paykel Cg903dlpgb1 90cm Gas On Glass Cooktop User Guide

FISHER PAYKEL CG903DLPGB1 90cm Gas on Glass Cooktop LOGO

FISHER PAYKEL CG903DLPGB1 90cm Gas on Glass Cooktop

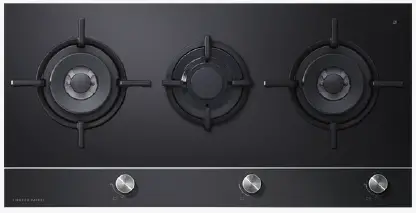

FISHER PAYKEL CG903DLPGB1 90cm Gas on Glass Cooktop PRODUCT

Choose this wide three burner to suit your kitchen layout, and enjoy the flexibility of two dual flame wok burners. A wide cooking area with three burners including two wok burners
A flame-failure safety device; if the flame goes out, the gas turns off.

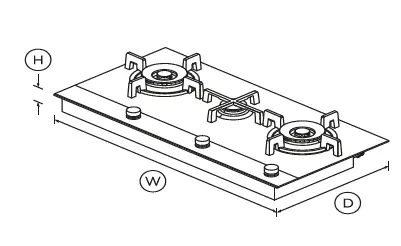

DIMENSIONS

FISHER PAYKEL CG903DLPGB1 90cm Gas on Glass Cooktop 1

Height64mm
Width900mm
Depth450mm

FEATURES & BENEFITS

Beautiful burners

Our award winning Gas on Glass Cooktops deliver total cooking precision with the latest burner technology. The consistent flame and heat distribution of the dual flame wok burner combined with highly responsive dials offer precise heat control.

Complementary design

The black reflective glass, brushed stainless steel and polished metal trim blend elegance with durability. Designed to match the Fisher & Paykel family of appliances.

Precise control

Simply turn the dials to ignite the flame quickly and safely. Precise heat adjustment from very high to very low heat can perfect a slow simmer for sauces or an intense heat for searing steaks.

Safe and sound

The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished. Eco friendly ceramic glass, without arsenic or heavy metals, is used in the manufacturing process.

Easy cleaning

Life is made a little easier with this easy-to-clean glass cooktop. The design allows you to simply remove the trivets and wipe down the glass.

Handy accessories

This cooktop comes with a small pot support and wok stand to complement different cooking styles.

SPECIFICATIONS

Accessories
Small pan support
Wok stand
Burner ratings
Semi rapid burner power2.28kW
Wok burner power5kW
Burners

Number of burners : 3

Controls
  • Dual wok control
  • Ergonomic control dials
  • Toughened fused glass
Performance
  • Cast iron trivets
  • Electronic ignition
  • LPG/Town gas models
  • Quick connect gas valves
Power requirements

Supply voltage : 230-240V

Product dimensions
Depth450mm
Height64mm
Width900mm

Safety
Flame failure system

Warranty
Parts and labour 2 YEARS

SKU:81426

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time.

Other product downloads available at fisherpaykel.com

A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support T +65 6741 0777 Wwww.fisherpaykel.com
