CG451DTGGB1 Gas on Glass Cooktop 45cm
User Guide
CG451DTGGB1 Gas on Glass Cooktop 45cm
QUICK REFERENCE GUIDE > CG451DTGGB1
Gas on Glass Cooktop, 45cm
Series 9 | Contemporary
Black Glass | Town gasPowerful gas burners perfect for compact kitchens, or matched with an induction cooktop thanks to framless black glass.
- A powerful dual wok burner with subtle black glass design
- A flame-failure safety device; if the flame goes out, the gas turns off
- Mix and match with an induction cooktop to create your perfect set-up

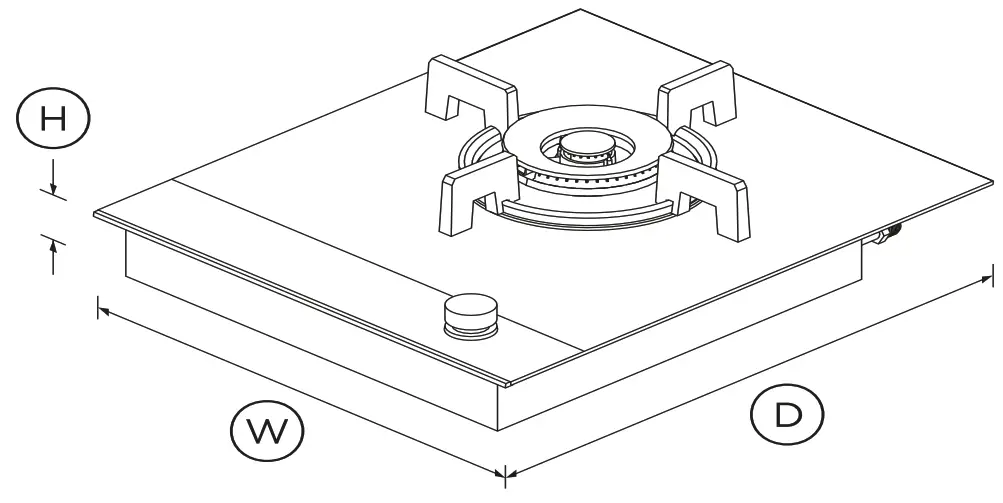

DIMENSIONS
| Height | 64mm |
| Width | 450mm |
| Depth | 530mm |
FEATURES & BENEFITS
BEAUTIFUL BURNERS
Our award-winning Gas on Glass Cooktops deliver total cooking precision with the latest burner technology. The consistent flame and heat distribution of the dual flame wok burner combined with highly responsive dials offer precise heat control.
COMPLEMENTARY DESIGN
The black reflective glass, brushed stainless steel and polished metal trim blend elegance with durability. Designed to match the Fisher & Paykel family of appliances.
PRECISE CONTROL
Simply turn the dials to ignite the flame quickly and safely. Precise heat adjustment from very high to very low heat can perfect a slow simmer for sauces or an intense heat for searing steaks.
SAFE AND SOUND
The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished. Eco-friendly ceramic glass, without arsenic or heavy metals, is used in the manufacturing process.
EASY CLEANING
Life is made a little easier with this easy-to-clean glass cooktop. The design allows you to simply remove the trivets and wipe down the glass.
HANDY ACCESSORIES
This cooktop comes with a small pot support and wok stand to complement different cooking styles.
SPECIFICATIONS
| Accessories | |
| High power wok cooking | • |
| Joiner kit | 534731 (Optional) |
| Small pan support | • |
| Wok stand | • |
| Burner ratings | |
| Wok burner power | 4.6kW |
| Burners | |
| Number of burners | 1 |
| Cleaning | |
| Easy clean cooktop design | • |
| Quick component removal | • |
| Controls | |
| Dual wok control | • |
| Toughened fused glass | • |
| Turned stainless dials | • |
| Performance | |
| Cast iron trivets | • |
| Electronic ignition | • |
| LPG/Town gas models | • |
| Quick connect gas valves | • |
| Power requirements | |
| Amperage | 10A |
| Supply voltage | 230-240V |
| Product dimensions | |
| Depth | 530mm |
| Height | 64mm |
| Width | 450mm |
| Safety | |
| Flame failure system | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 81411 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
