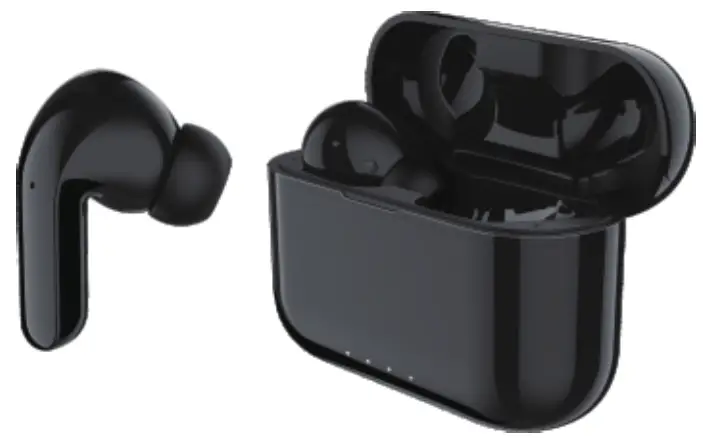

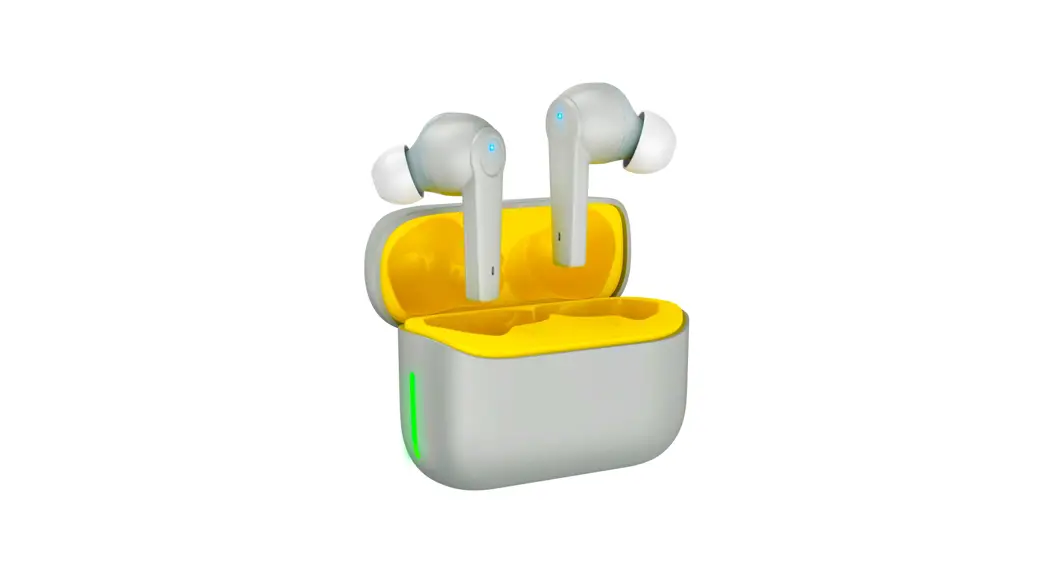

MINI TWS EARPHONE
User Quick Guide
211-200744
HOW TO POWER ON AND PAIR THE EARPHONES
- When the earphones are removed from the charging case, they will automatically turn on and pair with each other automatically.
- Bluetooth pairing name: k023W
- When using the earphones later, it will automatically connect to the phone.
- Earphones will automatically turn off if there is not connected to the phone after 5 minutes.
CHARGING STATE
- Charge with the charging dock, The white light flashing.
- The ea/phone is charging and pow off, The red

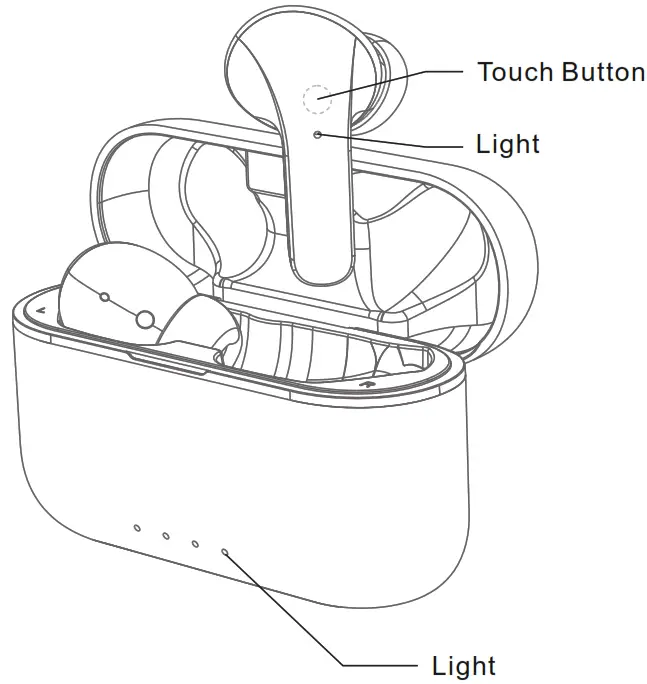

HOW TO USE (TOUCH BUTTON)
 | Touch Button(Left Earphone) |
| Power on Poweroff Play/Pause SIRI Answer the call Refuse the incoming call Cancel the dial Hang up the call Volume- Previous song | Long press the touch 2s Long press the touch 3s One-click Long press the touch 1s One-click Long press the touch 1s One-click One-click Three clicks Double clicks |
 | Touch Button(Right Earphone) |
| Power on Poweroff Play/Pause SIRI Answer the call Refuse the incoming call Cancel the dial Hang up the call Volume+ Next song | Long press the touch 2s Long press the touch 3s One-click One-click Long press the touch 1s One-click Double clicks Three clicks Double clicks |
PRODUCT PARAMETERS
Transmission distance: 10M
Earphone battery: 40mAh
Charge box capacity: 400mAh
Work time: 3-4hour
Charging time: 1-2hour
Charging case voltage: 5V
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with pan 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class 13 digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
‘Ibis equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radiorIV technician for help.
RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
FCC ID: 2A047K023
Handsfree
10M Ranges
Support Siri
