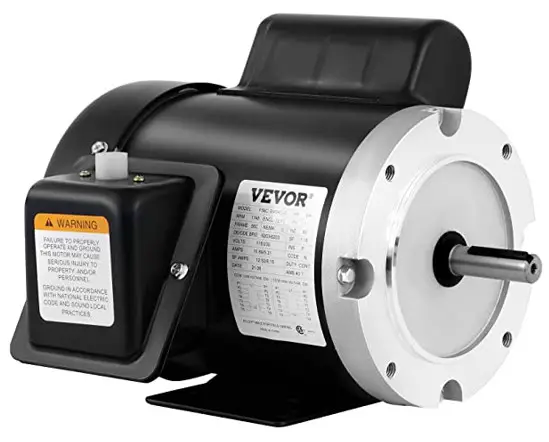

U140256C Electric Compressor
Motor Instructions
General Purpose Motors [ Model No. U140256C ]
Technical Info:
Frame: 56C
Horsepower: 2 HP
Amperage: 20.0/10.0
Frequency: 60 HZ
Shaft Length: 1.88”
Motor Reversible
Phase: One/ Single Phase
Voltage: 115V/230V
RPM: 1750 RPM
Shaft Diameter: 5/8” Keyed shaft
Rotation: CW/CCW
Overload Protection with Manual Reset

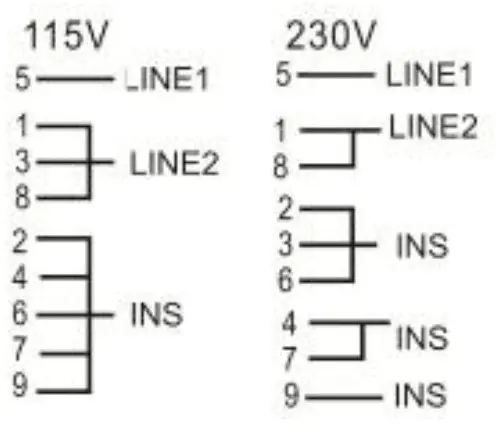

Connection Method:
a) At 115V, No.5 connect a power cable, No. 1,3 & 8, three lines together to connect another power cable. INS means keep insulated, the remaining 5 lines, all together, are isolated with non-conducting objects.
b) At 230V, the same operation as 115V.
c) Changed from CCW to CW is the exchange of 6 and 8.
