PRG486WLG-3 Dual Fuel Professional
Range Instructions
PRG486WLG-3 Dual Fuel Professional Range

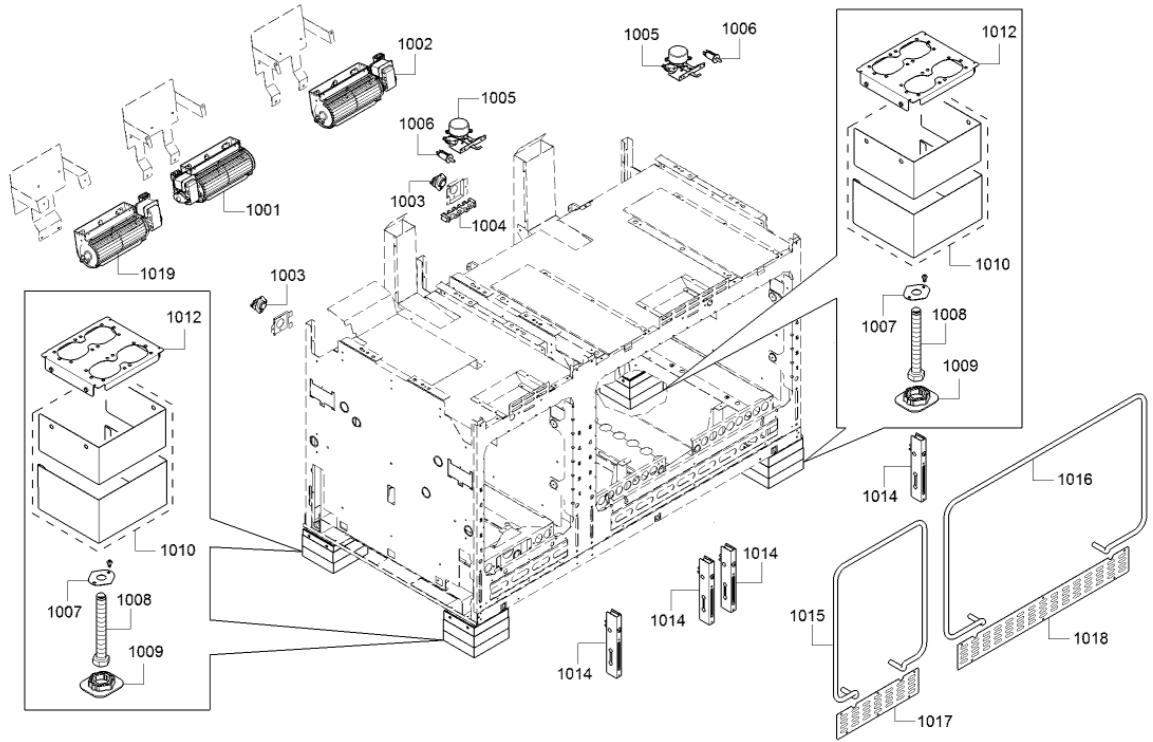

58300000223855 aet 000 b 10/13
| Position ID | Part number. | Replaces: | Description |
| 1002 | 643600 | Cooling Fan | |
| 1003 | 10011167 | Limiter-temperature | |
| 1004 | 628372 | Terminal | |
| 1005 | 651285 | Latch | |
| 1006 | 618400 | Switch-door | |
| 1007 | 10001186 | Plate | |
| 1008 | 12013593 | Bolt | |
| 1009 | 10001351 | Foot | |
| 1012 | 12028141 | Cover | |
| 1014 | 655554 | Receiver | |
| 1015 | 12028710 | Seal-door | |
| 1016 | 20000145 | Seal-door | |
| 1017 | 10012001 | Cover | |
| 1018 | 12028598 | Cover | |
| 1010 | 10014059 | Cover | |
| 1001 | 10020211 | Fan motor | |
| 1019 | 10020212 | Fan motor |
58300000223855 aet 000 b 8/13
| Position ID | Part number. | Replaces: | Description |
| 801 | 497756 | Motor | |
| 802 | 489178 | Bracket | |
| 803 | 655581 | Plate | |
| 804 | 10007424 | Lamp | |
| 805 | 11036762 | Cover | |
| 806 | 10010225 | Nut | |
| 807 | 605039 | Washer | |
| 808 | 10008183 | Socket | |
| 809 | 627375 | Temperature sensor | |
| 810 | 146179 | Heat shield | |
| 811 | 12028706 | Cover | |
| 812 | 11032546 | Support | |
| 813 | 10011396 | Bolt | |
| 815 | 492431 | Igniter | |
| 816 | 600909 | Bracket | |
| 817 | 20000383 | Burner pipe | |
| 820 | 701957 | Burner |
58300000223855 aet 000 b 7/13

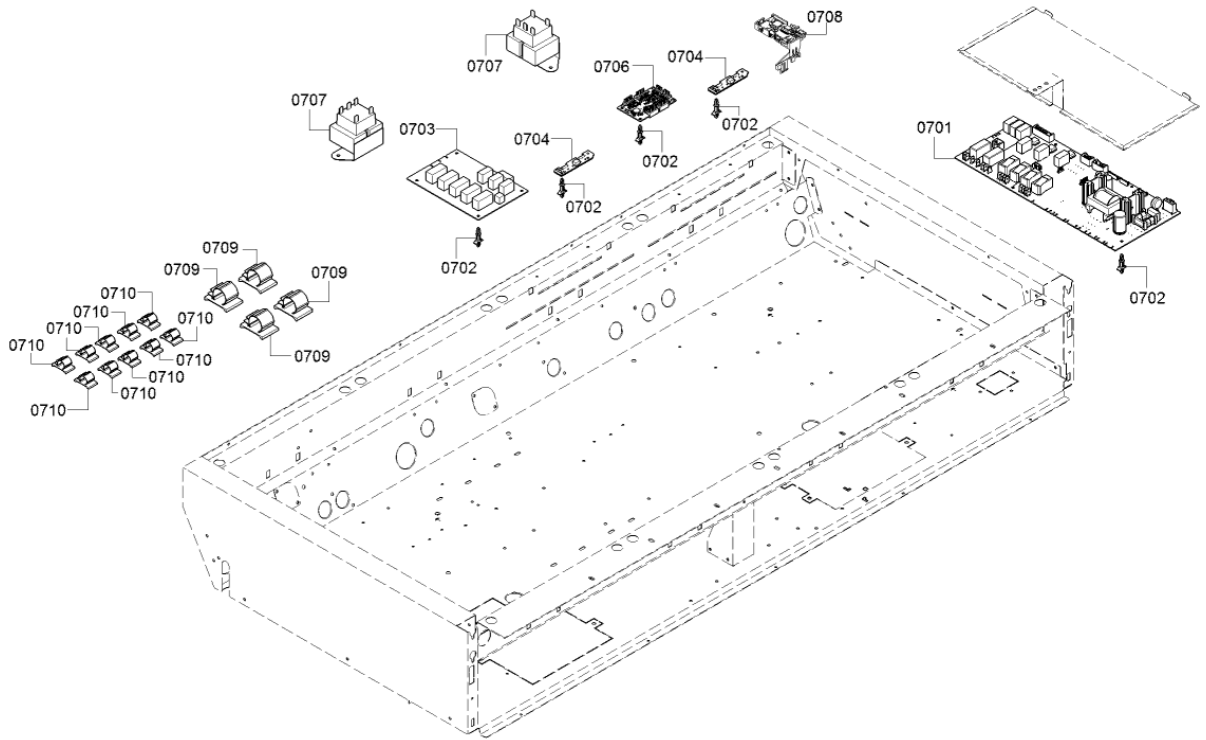

| Position ID | Part number. | Replaces: | Description |
| 701 | 11032521 | Control module programmed | |
| 701 | 12025831 | Control module not programmed | |
| 702 | 418283 | Support | |
| 703 | 12024477 | 12034882 | Control module |
| 704 | 12028138 | Limiter-temperature | |
| 706 | 10005470 | Control module | |
| 707 | 489194 | Transformer | |
| 708 | 12031987 | Connectivity module | |
| 709 | 10008933 | Clip | |
| 710 | 10010202 | Clip | |
| 711 | 10008207 | Ignition cable | |
| 712 | 12024415 | Ignition cable | |
| 713 | 12028783 | Cable harness | |
| 714 | 12024414 | Cable harness | |
| 715 | 12028039 | Cable harness | |
| 716 | 12028077 | Cable harness set | |
| 717 | 12026925 | Cable harness | |
| 720 | 12026870 | Cable harness | |
| 721 | 12028509 | Cable harness | |
| 722 | 12024436 | Cable harness | |
| 723 | 11032801 | Cable harness | |
| 724 | 12028086 | Adapter | |
| 725 | 12028683 | Cable harness | |
| 726 | 12028784 | Adapter | |
| 727 | 12028597 | Cable harness | |
| 728 | 12028087 | Cable harness | |
| 729 | 12028082 | Cable harness | |
| 730 | 12026846 | Cable harness | |
| 731 | 656309 | 752650 | Power cord |
| 733 | 423966 | Cable strap |

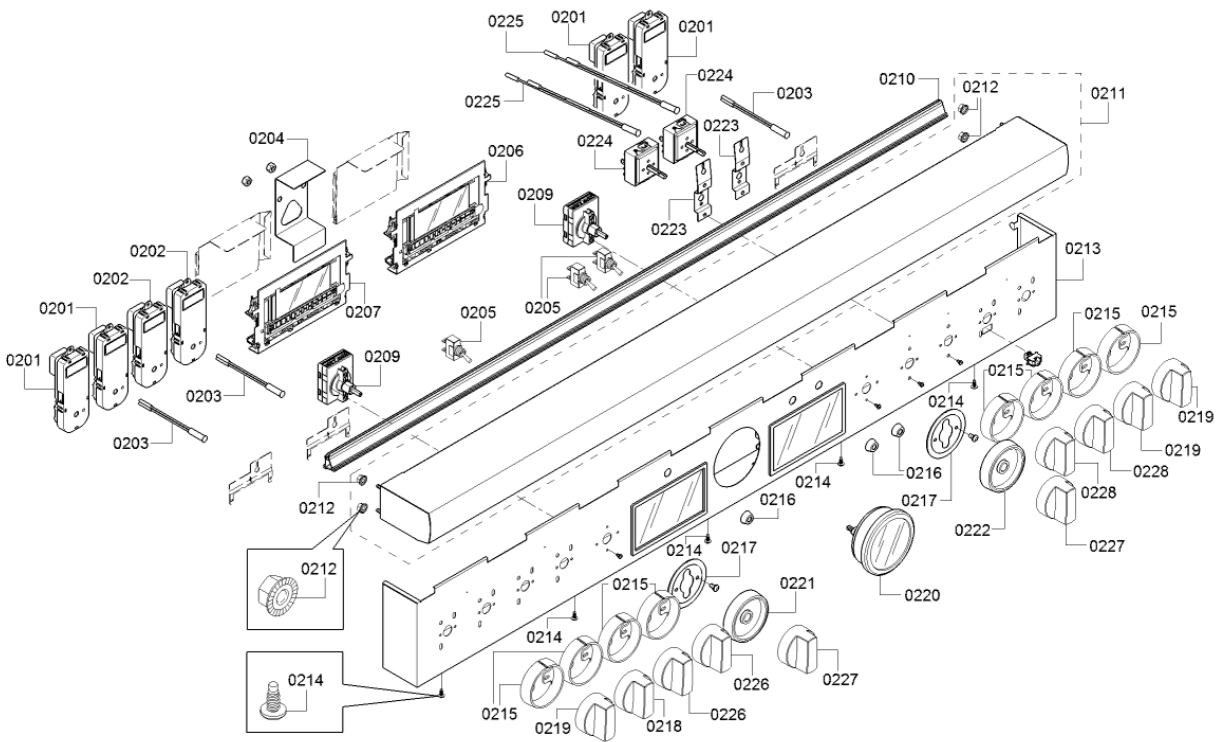

58300000223855 aet 000 b 2/13
| Position ID | Part number. | Replaces: | Description |
| 201 | 12024418 | Module-relay | |
| 202 | 12024417 | Module-relay | |
| 203 | 617931 | Display | |
| 204 | 11032519 | Bracket | |
| 205 | 609115 | Switch | |
| 206 | 11032495 | Display module not programmed | |
| 206 | 12028846 | Display module programmed | |
| 207 | 11032497 | Display module not programmed | |
| 207 | 11032514 | Display module programmed | |
| 209 | 10011872 | Switch-selector | |
| 210 | 11033021 | Light bar | |
| 211 | 23000468 | Support | |
| 212 | 623615 | Nut | |
| 213 | 20000030 | Panel-facia | |
| 214 | 10008212 | Screw | |
| 215 | 10008201 | Ring | |
| 216 | 418122 | Ring | |
| 217 | 10010231 | Encoder | |
| 218 | 10011598 | Knob | |
| 219 | 10008199 | Knob | |
| 221 | 10012000 | Ring | |
| 222 | 10011873 | Ring | |
| 223 | 10011902 | Bracket | |
| 224 | 629049 | Energy regulator | |
| 225 | 617886 | Display | |
| 226 | 10008200 | Knob | |
| 227 | 10010230 | Knob | |
| 228 | 10008225 | Knob | |
| 220 | 12034239 | Display-temperature |

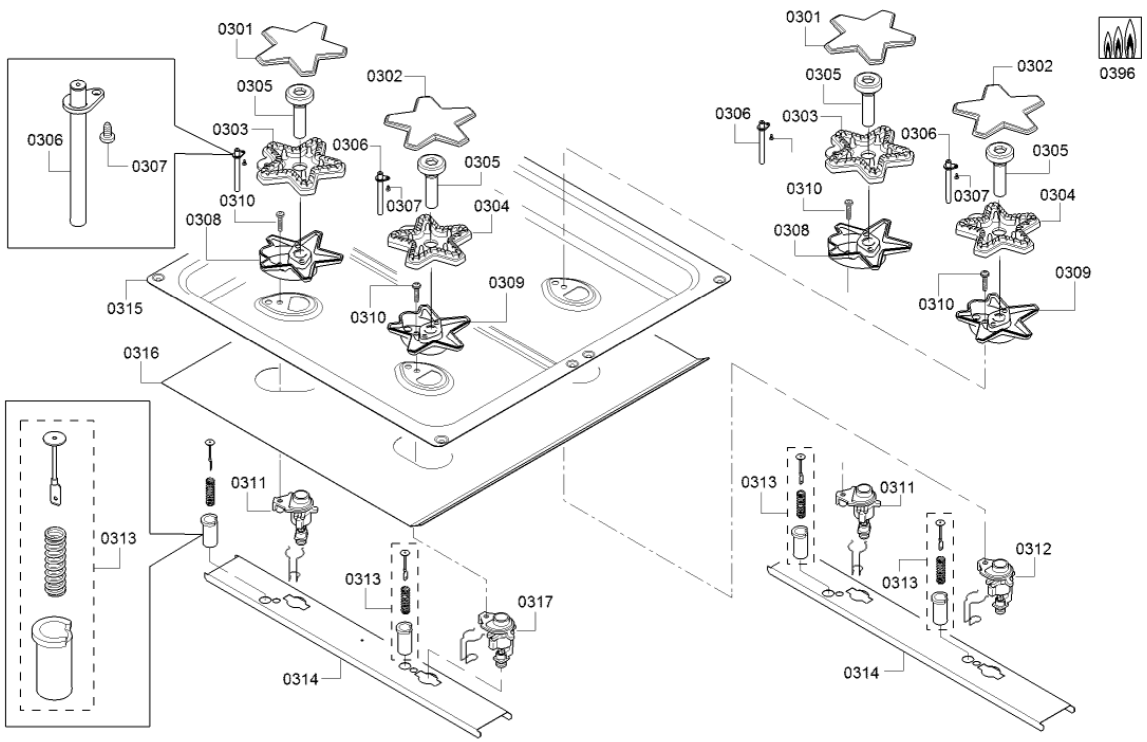

58300000223855 aet 000 b 3/13
| Position ID | Part number. | Replaces: | Description |
| 301 | 10004490 | Burner cap | |
| 302 | 10004489 | Burner cap | |
| 303 | 10004493 | Burner | |
| 304 | 10004492 | Burner | |
| 305 | 10004495 | Venturi nozzle | |
| 306 | 10006471 | Electrode | |
| 307 | 10008211 | Screw | |
| 308 | 10004498 | Burner housing | |
| 309 | 10004497 | Burner housing | |
| 310 | 10004531 | Screw | |
| 311 | 10006793 | Jet | |
| 312 | 10006797 | Jet | |
| 313 | 12007259 | Ignition device | |
| 314 | 701902 | Rail | |
| 315 | 687075 | Tray | |
| 316 | 12024446 | Heat shield | |
| 317 | 10006795 | Jet |

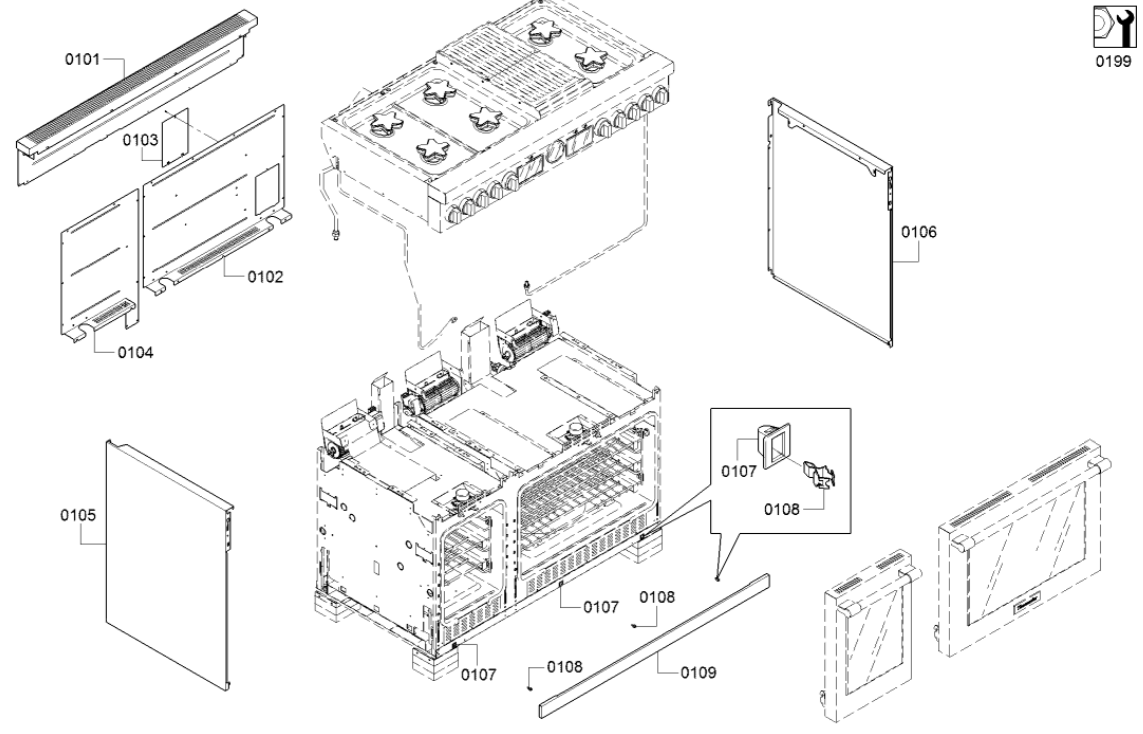

| Position ID | Part number. | Replaces: | Description |
| 101 | 146137 | Back wall panel | |
| 102 | 23000092 | Back panel | |
| 103 | 649417 | 752161 | Cover |
| 104 | 12028699 | Back panel | |
| 105 | 20000392 | Panel side | |
| 106 | 20000393 | Panel side | |
| 107 | 10013545 | Latch | |
| 108 | 619081 | Connection piece | |
| 109 | 12028700 | Plate |

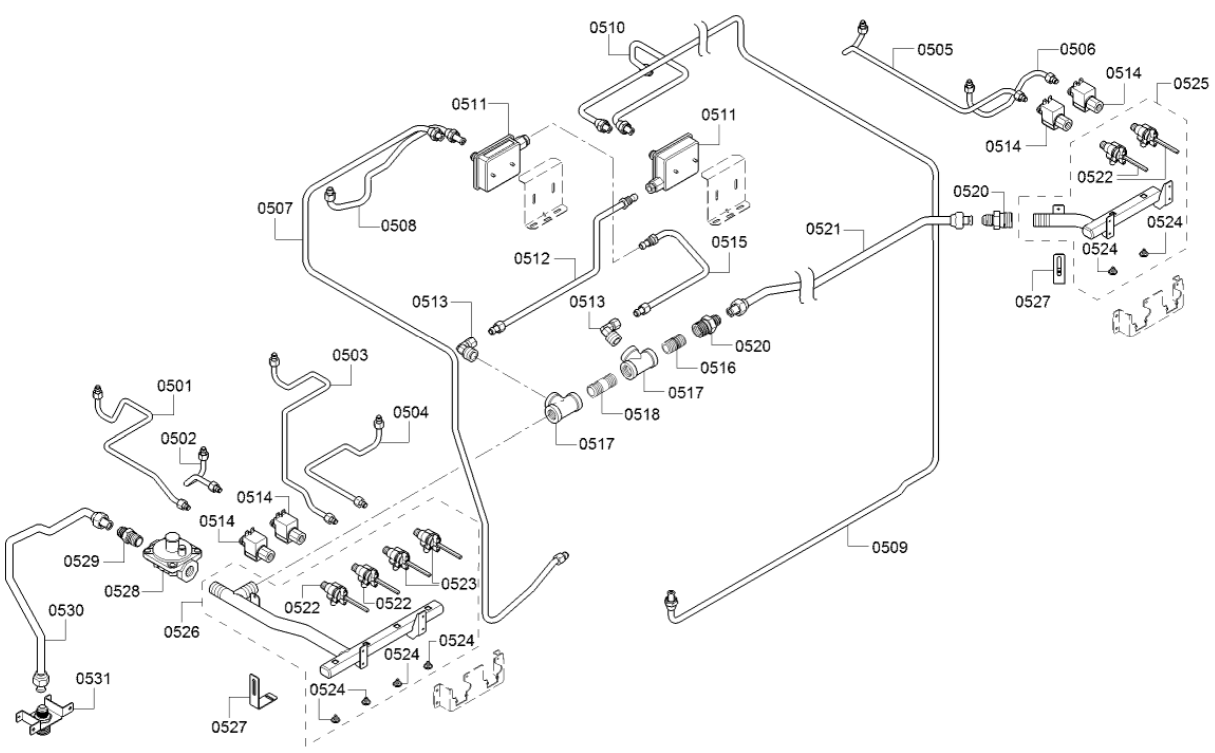

| Position ID | Part number. | Replaces: | Description |
| 501 | 11032438 | Gas tap | |
| 502 | 11032439 | Gas tap | |
| 503 | 11032863 | Gas tap | |
| 504 | 11032862 | Gas tap | |
| 505 | 11032440 | Gas tap | |
| 506 | 11032441 | Gas tap | |
| 507 | 11033158 | Gas tap | |
| 508 | 11033159 | Gas tap | |
| 509 | 11033157 | Gas tap | |
| 510 | 11033160 | Gas tap | |
| 511 | 605061 | Valve-two way | |
| 512 | 11034095 | Gas tap | |
| 513 | 607662 | Connection | |
| 514 | 423093 | Valve | |
| 515 | 11034096 | Gas tap | |
| 516 | 10011560 | Connection piece | |
| 517 | 601543 | Connection | |
| 518 | 425942 | Pipe connection piece | |
| 520 | 10010270 | Pipe connection piece | |
| 521 | 11033161 | Gas tap | |
| 522 | 10003806 | Valve | |
| 523 | 10009155 | Valve | |
| 524 | 420807 | Screw | |
| 525 | 20000140 | Manifold | |
| 526 | 20000265 | Manifold | |
| 527 | 10009569 | Bracket | |
| 527 | 20000140 | Manifold | |
| 528 | 754658 | Regulator-pressure | |
| 529 | 10010200 | Adapter | |
| 530 | 11033031 | Hose-inlet | |
| 531 | 10011592 | Extension for inlet |

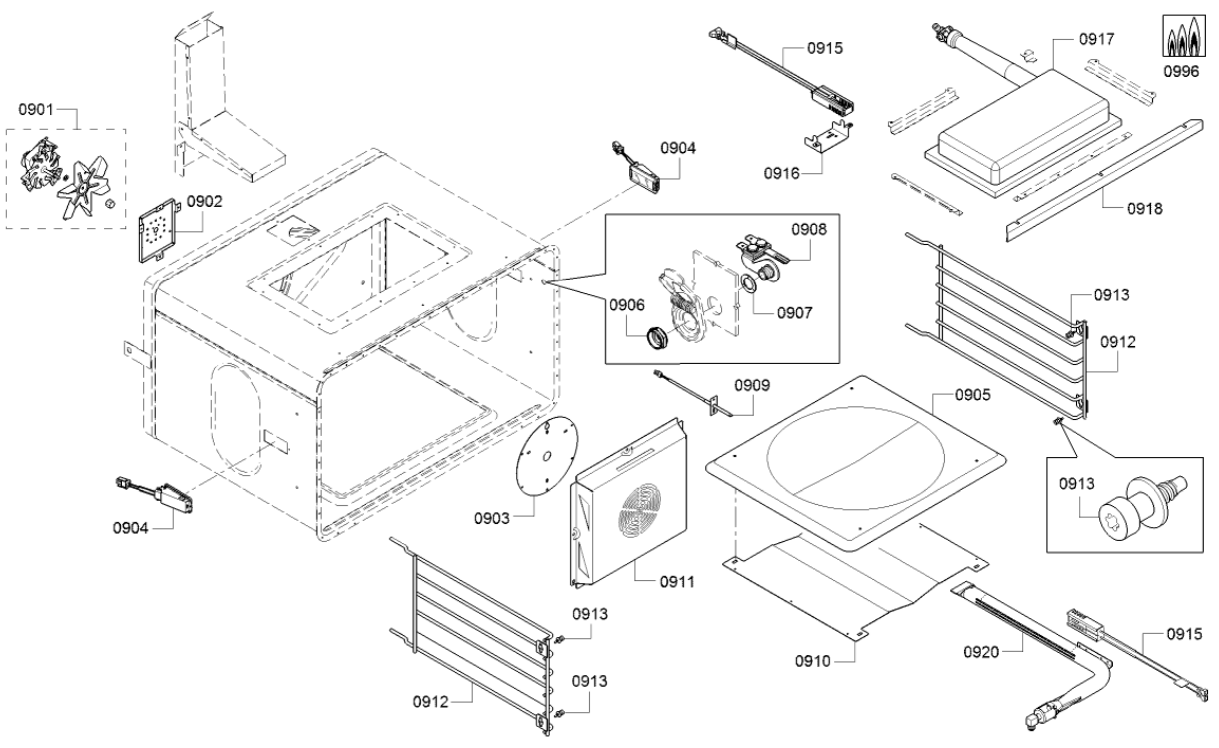

58300000223855 aet 000 b 9/13
| Position ID | Part number. | Replaces: | Description |
| 901 | 497756 | Motor | |
| 902 | 489178 | Bracket | |
| 903 | 479238 | Cover | |
| 904 | 10007424 | Lamp | |
| 905 | 23000287 | Cover | |
| 906 | 10010225 | Nut | |
| 907 | 605039 | Washer | |
| 908 | 10008183 | Socket | |
| 909 | 627375 | Temperature sensor | |
| 910 | 11030966 | Plate | |
| 911 | 20000143 | Cover | |
| 912 | 11032546 | Support | |
| 913 | 10011396 | Bolt | |
| 914 | 12028136 | Adapter | |
| 915 | 492431 | Igniter | |
| 916 | 600909 | Bracket | |
| 917 | 11032929 | Burner | |
| 918 | 445814 | Guide | |
| 920 | 11032930 | Burner |
58300000223855 aet 000 b 13/13

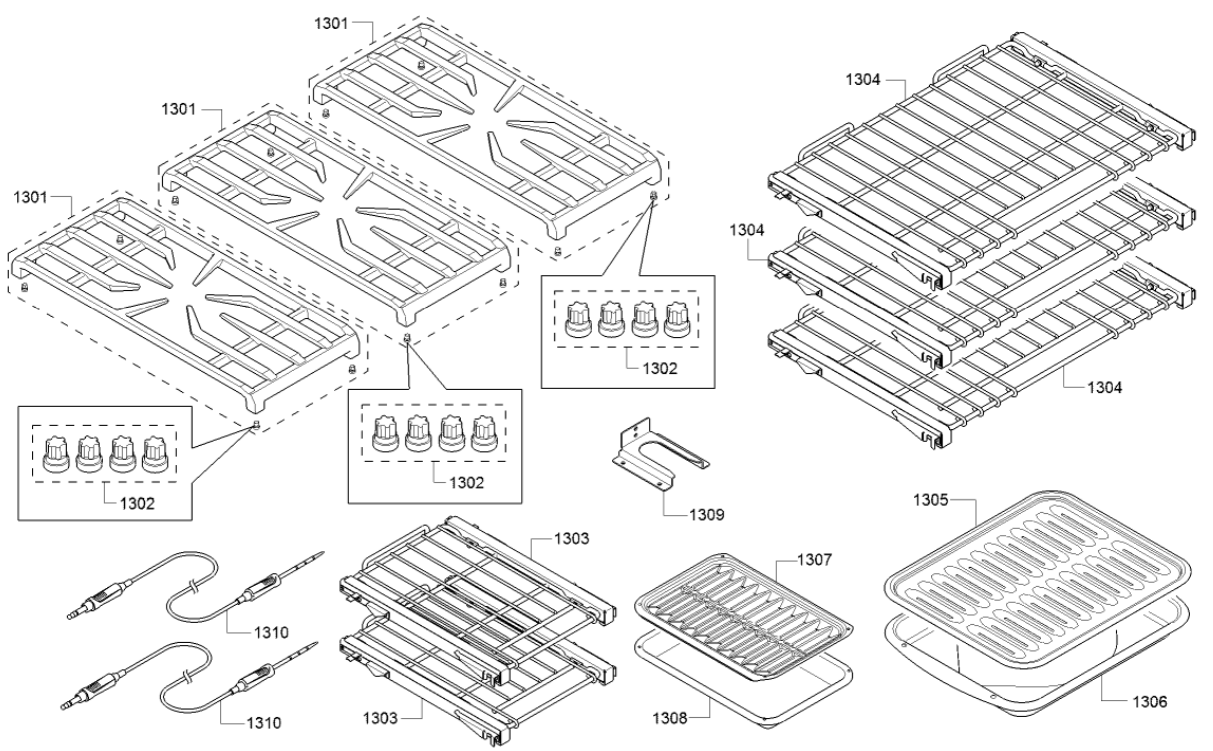

| Position ID | Part number. | Replaces: | Description |
| 1301 | 00145306 | Grill grid | |
| 1302 | 00637940 | Grate Foot Replacement Kit | |
| 1303 | 00774615 | 12” Telescopic Rack | |
| 1304 | 00774617 | 36” Telescopic Rack | |
| 1305 | 11013689 | Grill tray | |
| 1306 | 00484628 | 00449757 | Tray for Broiler Pan |
| 1307 | 00666710 | Broiler Pan | |
| 1308 | 00666709 | Tray for Broiler Pan | |
| 1309 | 10010207 | Bracket | |
| 1310 | 12022200 | Sensor |
58300000223855 aet 000 b 12/13

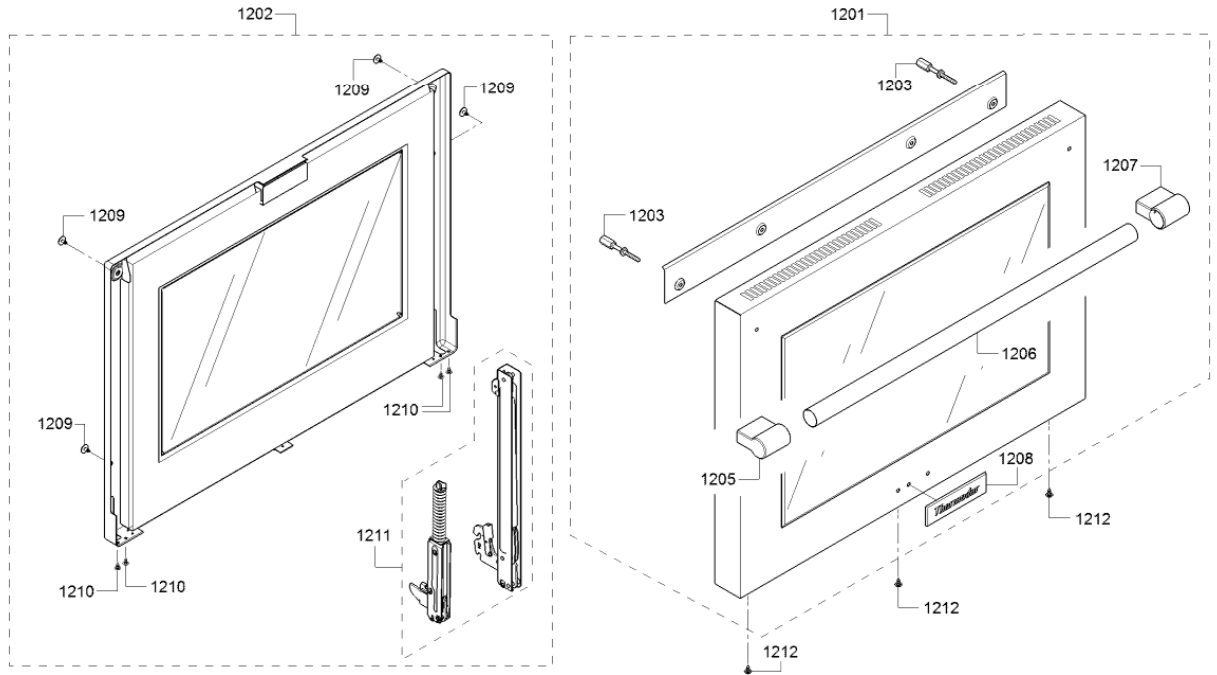

| Position ID | Part number. | Replaces: | Description |
| 1201 | 20000151 | Door-outer | |
| 1202 | 20000152 | Door-inner | |
| 1203 | 10011927 | Bolt | |
| 1205 | 10011397 | Handle-cap shaped | |
| 1206 | 11033033 | Handle-door | |
| 1207 | 10011397 | Handle-cap shaped | |
| 1208 | 10010271 | Plate | |
| 1209 | 10010274 | Screw | |
| 1210 | 10008228 | Screw | |
| 1211 | 11032543 | Hinge | |
| 1212 | 10011608 | Screw |

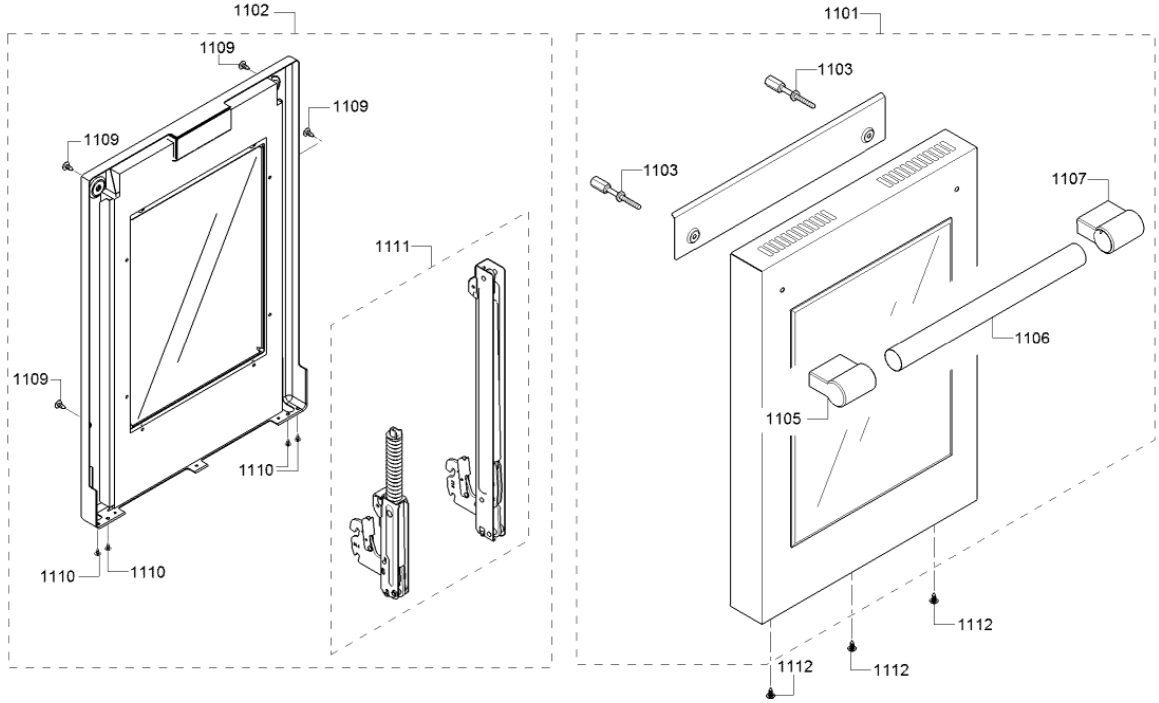

58300000223855 aet 000 b 11/13
| Position ID | Part number. | Replaces: | Description |
| 1101 | 20000149 | Door-outer | |
| 1102 | 20000150 | Door-inner | |
| 1103 | 10011927 | Bolt | |
| 1105 | 10011397 | Handle-cap shaped | |
| 1106 | 12028711 | Handle-door | |
| 1107 | 10011397 | Handle-cap shaped | |
| 1109 | 10010274 | Screw | |
| 1110 | 10008228 | Screw | |
| 1111 | 11032542 | Hinge | |
| 1112 | 10011608 | Screw |

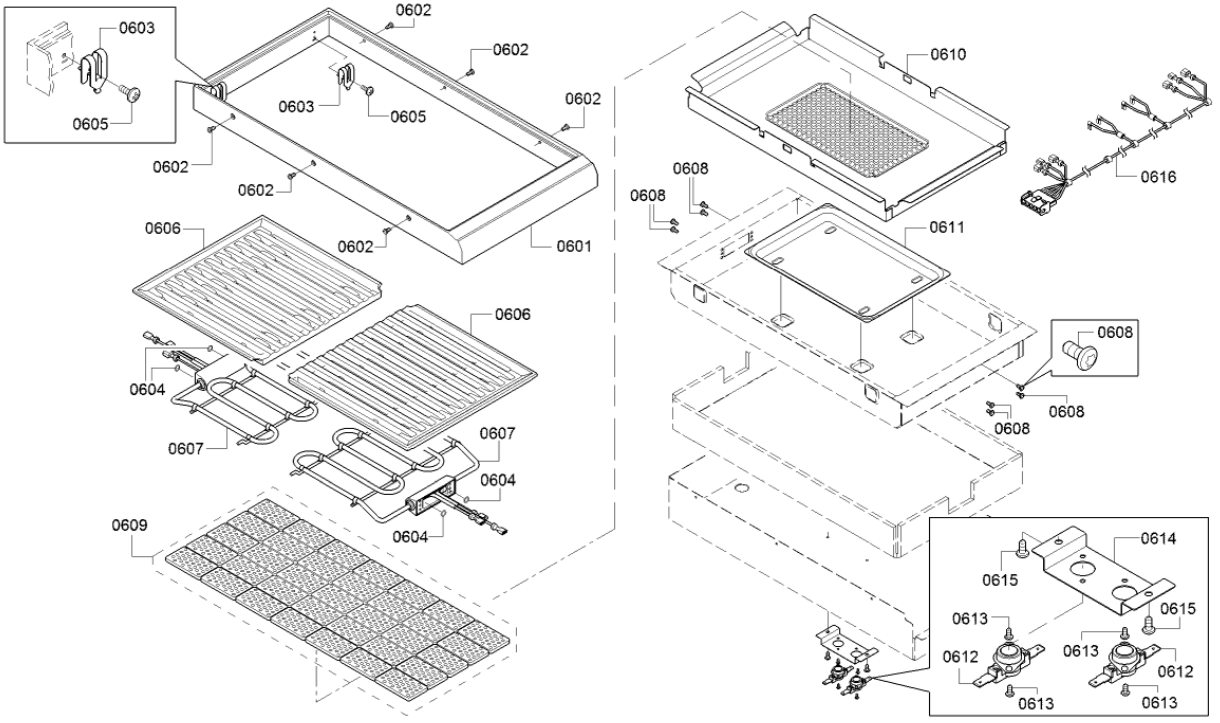

58300000223855 aet 000 b 6/13
| Position ID | Part number. | Replaces: | Description |
| 601 | 12024441 | Frame | |
| 602 | 10008226 | Bracket | |
| 603 | 634163 | Clip | |
| 604 | 321402 | Ring | |
| 605 | 10008210 | Screw | |
| 606 | 145749 | Grill grid | |
| 607 | 11030956 | Heating element | |
| 608 | 10008210 | Screw | |
| 609 | 11030067 | Grill accessories | |
| 610 | 11030015 | Tray for Ceramic Briquettes (for PABRICKBKW) | |
| 611 | 98049 | Salver | |
| 612 | 12004405 | Temperature sensor | |
| 613 | 10008210 | Screw | |
| 614 | 634165 | Bracket | |
| 615 | 10008210 | Screw | |
| 616 | 12024442 | Cable harness |
58300000223855 aet 000 b 4/13

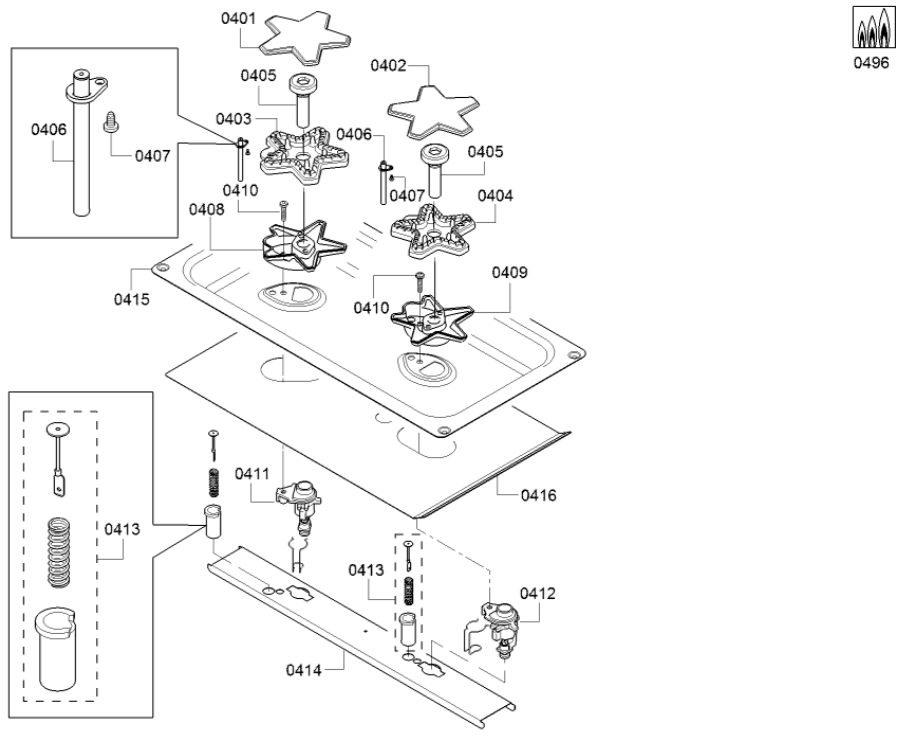

| Position ID | Part number. | Replaces: | Description |
| 401 | 10004490 | Burner cap | |
| 402 | 10004489 | Burner cap | |
| 403 | 10004493 | Burner | |
| 404 | 10004492 | Burner | |
| 405 | 10004495 | Venturi nozzle | |
| 406 | 10006471 | Electrode | |
| 407 | 10008211 | Screw | |
| 408 | 10004498 | Burner housing | |
| 409 | 10004497 | Burner housing | |
| 410 | 10004531 | Screw | |
| 411 | 10006793 | Jet | |
| 412 | 10006797 | Jet | |
| 413 | 12007259 | Ignition device | |
| 414 | 701902 | Rail | |
| 415 | 11013687 | Hob top | |
| 416 | 10008221 | Heat shield |
