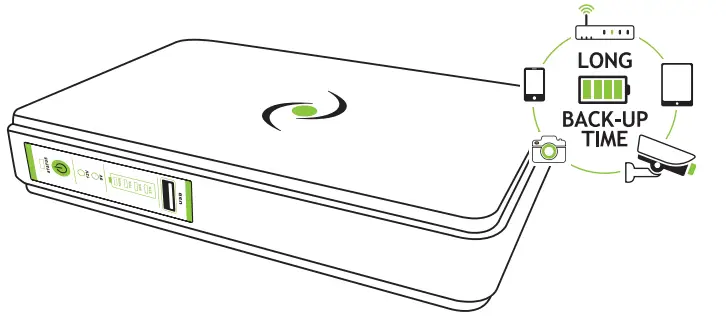

USB 5Vdc Desk Tower 18W
UPS ERA Plus DC
User Guide
Safeguard the environment with Tecnoware.
Eco-Friendly TIPS
- Separate recycling waste.
- Reduce waste.
- Avoid wasting electricity.
- Reuse plastic containers.
- Limit water consumption.
- Optimize the use of transport means.
- Prefer reusable packaging.
- Choose natural fabrics.
- Choose products at zero km.
- Disconnect the plug for inoperative appliances.
- Do a home vegetable garden
TECHNICAL SPECIFICATIONS
- AC input: 110-240Vac 50/60Hz
- Power: 18W Max
- Battery Capacity: 3.7Vdc – 8.800 mAh – 33Wh
- POE Ports: 15Vdc/24Vdc (selectable), 0.6A max, +Pin 4/5, -Pin 7/8
- USB Port: 5Vdc-1A max
- DC Output: 9Vdc/12Vdc (selectable), 1A max
- Overload and Short circuit protection
- Overvoltage protection
- Temperature control inside
Safety warnings
- No internal part of the UPS ERA PLUS DC requires maintenance by the user. Do not disassemble in any way, the UPS ERA PLUS DC unit contains internal parts, which are at a high voltage and are potentially dangerous.
- Do not expose the UPS ERA PLUS DC to a highly moist, dusty, or extreme temperature environment.
- Unplugging the UPS ERA PLUS DC from the power source before attempting any cleaning.
- If there is a liquid leak, isolate the UPS ERA PLUS DC at once, and carefully avoid any contact with skin and eyes. In case of accidental contact, rinse the affected area with plenty of water and seek medical care immediately.
- WARNING – It contains lithium batteries. Do not ever throw the UPS ERA PLUS DC on fire, do not keep liquids, flammable gases or corrosive substances near the power supply unit.
Disposal of the product
The contains maintenance-free, sealed Li-Po batteries. The Power Bank battery cannot be disposed of as household waste; it must be collected separately. Any infringements shall be punished with monetary penalties pursuant to the regulations in force. Failing to properly dispose of/ use the product and/or its components is harmful to human health and the environment.

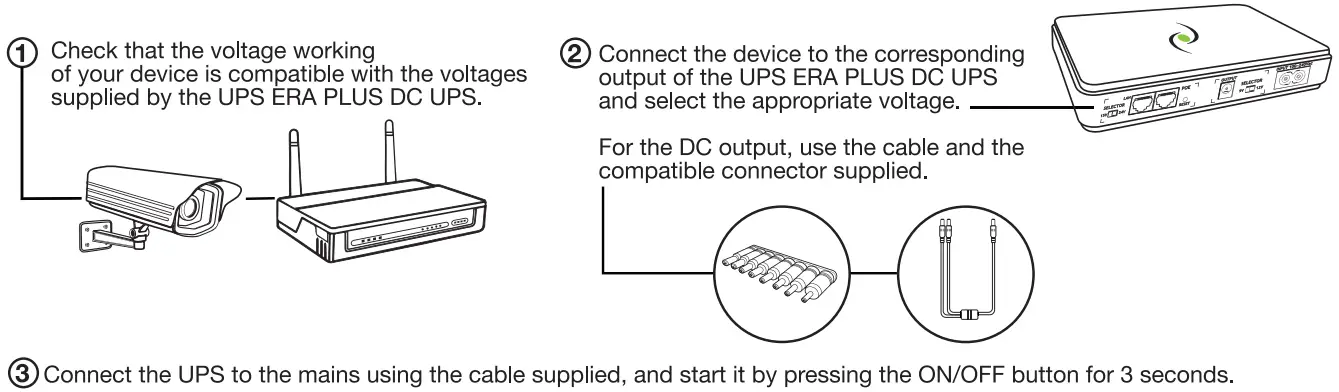

INSTRUCTION FOR USE
COMPANY WITH ENVIRONMENTAL SYSTEM CERTIFIED BY DNV GL = ISO 14001=
Via Montetrini 2/E 50065 Molino del Piano – Firenze – Italy www.tecnoware.com
COMPANY WITH DUALITY SYSTEM CERTIFIED BY DNV GL = ISO 9001 =
Thank you for choosing this Together On the product
