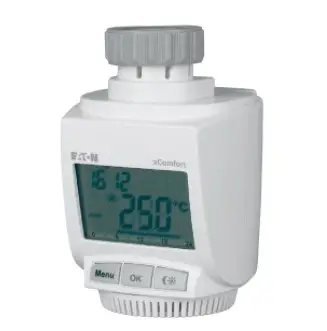

EATON CHVZ-01 RF Radiator Thermostat Instruction Manual
RF Radiator Thermostat CHVZ-01/05
RF Radiator Thermostat Thread
CHVZ-00/05 M30 x 1,5 mm

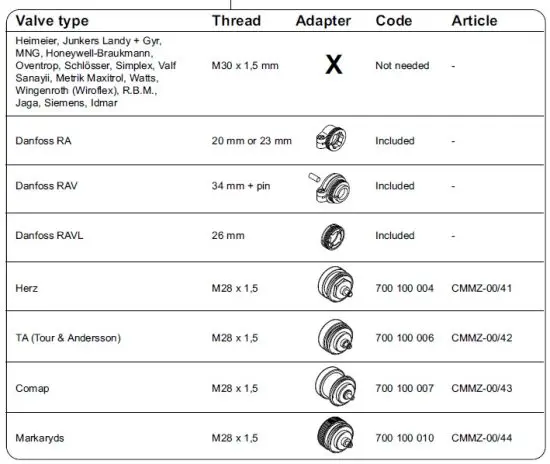

Adapters Type Thread
CMMZ-00/41 Herz M28 x 1,5 mm
CMMZ-00/42 TA M28 x 1,5 mm
CMMZ-00/43 Comap M28 x 1,5 mm
CMMZ-00/44 Markaryds M28 x 1,5 mm

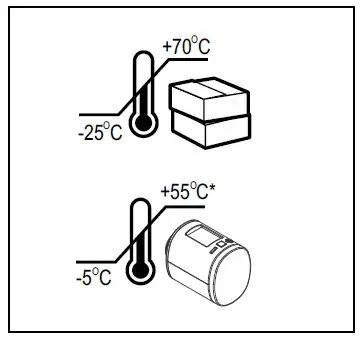

Technical Data
Power supply 3V battery (2 x 1,5 V LR6/Mignon/AA)
Battery lifetime 2 years (TYP)
Connection M30 x 1,5 mm Heimeier, Junkers Landy + Gyr, MNG, Honeywell-Braukmann, Oventrop, Schlösser, Sipmolex, Valf Sanayii, Metrik Maxitrol,

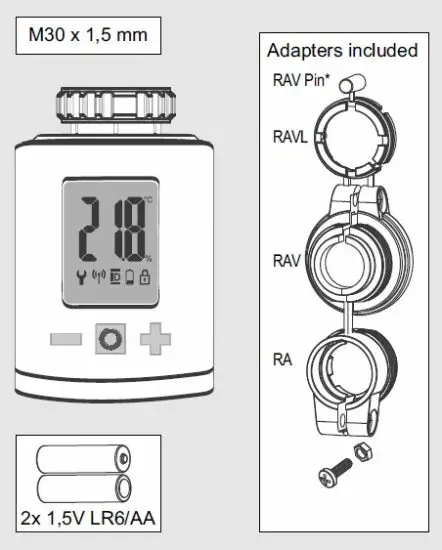

Included Adapter Danfossl RAV 34mm + pin, Danfoss RA 20mm or 23mm, Danfoss RAVL 26mm
Available Adapters Herz, Comap, markaryds, RA (Tour & Andersson)
Radio Frequency 868,3 MHz (xComfort compatible)
Weight (incl. batteries) 176g
Degree of protection IP20
Degree of pollution 2
Output Power +4dBm
Dimensions 56 x 68 x 89 mm (H x W x D)
MRF Version V2.53
RM Version V41c
SHC-RF Version 2.20
ECI-RF Version 2.10
USB-RF Version: 2.10

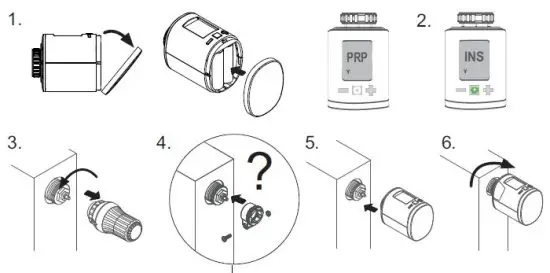

Disassemble radiator thermostat, remove batteries and reinstall from step 1
Operation

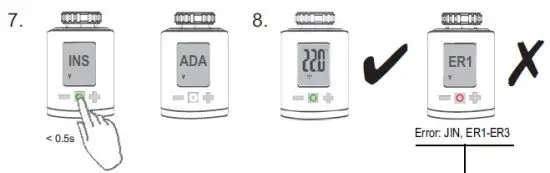

Display elements / Display-
Installation in progress xbComfort Connection OK /
Verbindung OK Off: No connection / Av: Blinking: Connection failure /
Verbindungsfehler / Local Mode /
Battery <15% / Child protected / Temperature Setpoint
Increase setpoint
Decrease setpoint
Backlight / (>2s: Send Notification /
or Controller
3s: Enable/disable child protection
Declaration of Conformity
We, EATON Industries (Austria) GmbH
3943 Schrems, Eugenia 1
Austria
declare under our sole responsibility as the manufacturer that the product (family)
Eaton – Battery Valve Drive, CHVZ-01/05 (contains RF-Modul CSCZ-03/xx)
(the declaration of conformity applies to all listed types within our actual product catalogue) provided that it is installed, maintained and used in the
application intended for, with respect to the relevant manufacturers instructions, installation standards and “good engineering practices” complies with the provisions of Council directive(s):
RED Directive 2014/53/EU
RoHS Directive 2011/65/EU
based on compliance with following standard(s):
EN 300 220-2 V3.1.1, Draft EN 300 220-2 V3.2.0, EN 301 489-3 V1.9.2,
EN 30 489-1 V2.1.0, EN 301 489-3 V1.6.1, EN 301 489 V2.1.1, EN
50491-5-1:2010, EN 50491-5-2:2010, EN 60730-1:2016 Part1, EN
60730-2-9:2010 Part 2-9, EN 62368-1:2014
EU- type examination performed by: TÜV Austria Services GmbH, Notified Body
1230 Vienna, Deutschstrasse 10, Austria
