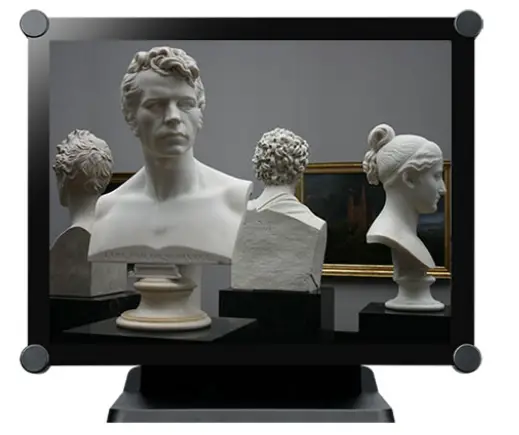

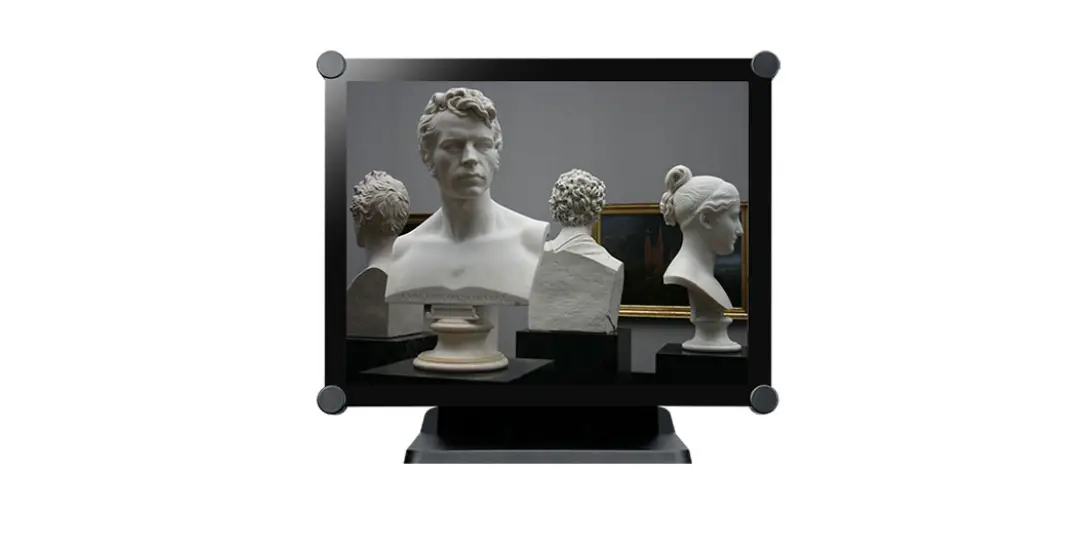

AG neovo TX-1502 15-Inch Touch Screen Monitor with Metal Casing
TX-Series Touch Screen Monitors 15”| 22”
Durable Front IP65 Touch Screen Monitors for Industrial, Interactive Signage and Kiosks
AG Neovo TX-Series touch screen monitors, available in sizes 15” to 22”, provide a smooth and responsive touch experience with 10-point PCAP touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-Series support analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. These touch screen monitors are complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.
Premium PCAP Multi Touch Screen
Based on projected capacitive (PCAP) touch screen technology, AG Neovo touch screen monitors can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch response. These seamless touch senses are identical to those used in smartphones and tablets.
Cross-Platform Touch Capability
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
IP65 Dust and Water Protection

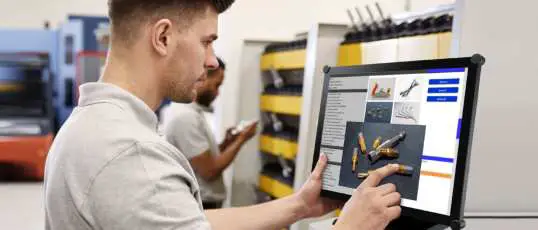

The TX-Series front IP65 touch screen monitors are designed to protect against dust and liquid spills. This makes these durable touch monitors ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
Consistent Form Factor Design
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

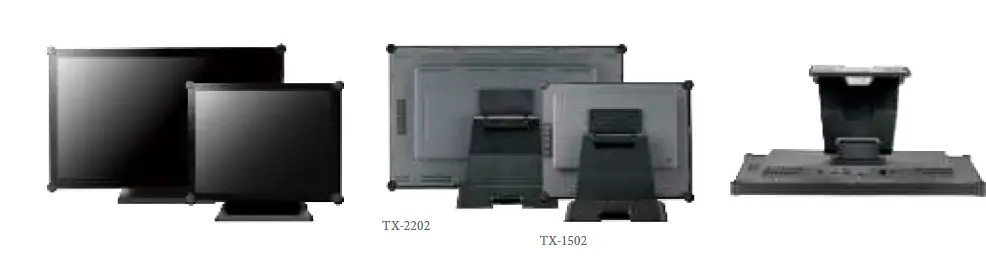

Ergonomic Monitors with Flexible Mounting
TX-Series touch monitors offer flexible mounting options, from the ergonomic monitor stands that come with the monitors to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. These ergonomic monitors feature adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.
Durable and Scratch Resistant Touch Screen
For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
Versatile Connectivity
The TX-Series provides new and legacy systems the best of both worlds since it has both analog (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
Features
- LED-backlit technology with 1024×768 and 1920×1080 resolutions
- Incorporates projected capacitive touch technology
- 10-point simultaneous multi-touch capability
- Windows 10 ready – plug and play support for Windows 7/8/10
- Multi-touch support via driver for Linux and Android OS
- Optional OSD external remote control via RJ11 interface
- Front-sided IP65 rating protects the screen from liquid and dust
- Durable metal housing
- Versatile connectivity: DisplayPort, HDMI, VGA
- Designed and developed for continuous 24/7 operation
- Ergonomic monitor stand offers tilt capacity from -5° to 90°
| Specifications | TX-1502 | TX-2202 |
| Panel | ||
| Panel Type | LED-Backlit TFT LCD (TN Technology) | LED-Backlit TFT LCD (IPS Technology) |
| Panel Size | 15.0″ | 21.5″ |
| Max. Resolution | XGA 1024 x 768 | FHD 1920 x 1080 |
| Pixel Pitch | 0.297 mm | 0.248 mm |
| Brightness | 350 cd/m² | 250 cd/m² |
| Contrast Ratio | 800:1 | 1000:1 |
| Viewing Angle (H/V) | 160°/150° | 178°/178° |
| Display Colour | 16.7M | 16.7M |
| Response Time | 5 ms | 5 ms |
| Surface Treatment | Anti-Glare Treatment (Haze 25%), 3H Hard Coating | Anti-Glare Treatment (Haze 25%), 3H Hard Coating |
| Frequency | ||
| Frequency (H) | 31 kHz-61 kHz | 30 kHz-84 kHz |
| Frequency (V) | 55 Hz-75 Hz | 50 Hz-76 Hz |
| Signal Input | ||
| DisplayPort | x 1 | x 1 |
| HDMI | 1.4 X 1 | 1.4 X 1 |
| VGA | 15-Pin D-Sub x 1 | 15-Pin D-Sub x 1 |
| External Control | ||
| RJ11 | Yes | Yes |
| Touch Screen | ||
| Technology | Projective Capacitive | Projective Capacitive |
| Positional Accuracy | ± 2.0 mm | ± 2.5 mm |
| Panel Interface | USB (Type-B) | USB (Type-B) |
| Multi-touch Plug & Play | 10-point touch Windows® 7、8、10 | 10-point touch Windows® 7、8、10 |
| Single Touch Support by Driver | Windows VISTA/XP/2000/CE/XP Embedded, Mac OS 10.10-10.14 | Windows VISTA/XP/2000/CE/XP Embedded, Mac OS 10.10-10.14 |
| Multi-touch Support by Driver | 10-point touch for Linux, Android 2.3-4.x | 10-point touch for Linux, Android 2.3-4.x |
| Power | ||
| Power Requirements | DC 12V, 2.5A | DC 12V, 4A |
| On Mode | 8W (On) | 16W (On) |
| Standby Mode | < 0.6W | <0.7W |
| Off Mode | < 0.3W | < 0.3W |
| Power Supply | External | External |
| Glass | ||
| Thickness | 3.1 mm (0.12″) | 2.05 mm (0.08″) |
| Transmission Rate | > 90% | > 90% |
| Hardness | > 7H | > 7H |
| Operating Conditions | ||
| Temperature | 0°C-40°C (32°F-104°F) | 0°C-40°C (32°F-104°F) |
| Humidity | 20%-80% (non-condensing) | 20%-80% (non-condensing) |
| Storage Conditions | ||
| Temperature | -20°C-60°C (-4°F-140°F) | -20°C-60°C (-4°F-140°F) |
| Humidity | 10%-90% (non-condensing) | 10%-90% (non-condensing) |
| Mounting | ||
| VESA FPMPMI | Yes (100 x 100 mm) | Yes (100 x 100 mm) |
| Stand | ||
| Tilt | -5° to 90° | -5° to 90° |
| Security | ||
| Kensington Security Slot | Yes | – |
| Dimensions | ||
| Product with Base (W x H x D) | 348.4 x 312.7 x 214.2 mm (13.7″ x 12.3″ x 8.4″) | 528.6 x 346.7 x 214.2 mm (20.8″ x 13.7″ x 8.4″) |
| Product w/o Base (W x H x D) | 348.4 x 276.4 x 46.6 mm (13.7″ x 10.9″ x 1.9″) | 528.6 x 324.3 x 48.5 mm (20.8″ x 12.8″ x 1.9″) |
| Packaging (W x H x D) | 415.0 x 370.0 x 290.0 mm (16.3″ x 14.6″ x 11.4″) | 610.0 x 460.0 x 320.0 mm (24.0″ x 18.1″ x 12.6″) |
| Weight | ||
| Product w/o Base | 2.7 kg (5.9 lb) | 4.8 kg (10.6 lb) |
| Product with Base | 4.6 kg (10.1 lb) | 6.1 kg (13.5 lb) |
| Packaging | 7.0 kg (15.4 lb) | 9.8 kg (21.6 lb) |
| Regulation Approval | ||
| Certifications & Compliance | CE, LVD, WEEE, RoHS, REACH,EAC | CE, LVD, WEEE, RoHS, REACH,EAC |
| Power Adaptor Certifications | SOY/SOY-1200500-327: CE, cUL/UL, PSE, RCM, WEEE, KCC, BSMI Delta /ADP-50YH BM: CE, cUL/UL, PSE, RCM, WEEE, KCC, BSMI | SOY/SOY-1200500-327: CE, cUL/UL, PSE, RCM, WEEE, KCC, BSMI Delta /ADP-50YH BM: CE, cUL/UL, PSE, RCM, WEEE, KCC, BSMI |
| Accessories | ||
| Supplied | Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Warranty Card | Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Warranty Card |
| Optional Accessories | ||
| Wall Mount (Landscape only) | WMK-01, WMK-03, PMK-01 | WMK-01, WMK-03, PMK-01 |
All specifications are subject to change without prior notice.
Copyright © 2022 AG Neovo. All rights reserved. The name AG Neovo is a trademark of AIC. All other trademarks are the property of their respective owners.
P/C: TX1520/TX2220 Version 1.3, 20220509
