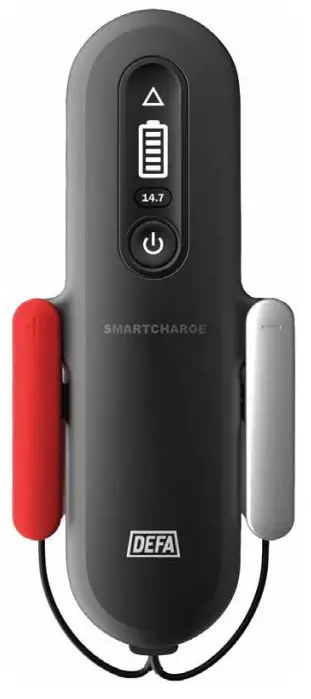

701515 Smart Charger 4A 12 V Mobile Battery Charger
Instructions
Portable battery charger
701515 Smart Charger 4A 12 V Mobile Battery Charger
A very userfriendly battery charger who is solving most of the charging jobs at home, in your caravan or your boat and for more proffesional jobs. SmartCharge represents the latest technology within battery charging which will give the battery optimum life.
Use
Take time to read the user manual and follow the instructions before using the charger!

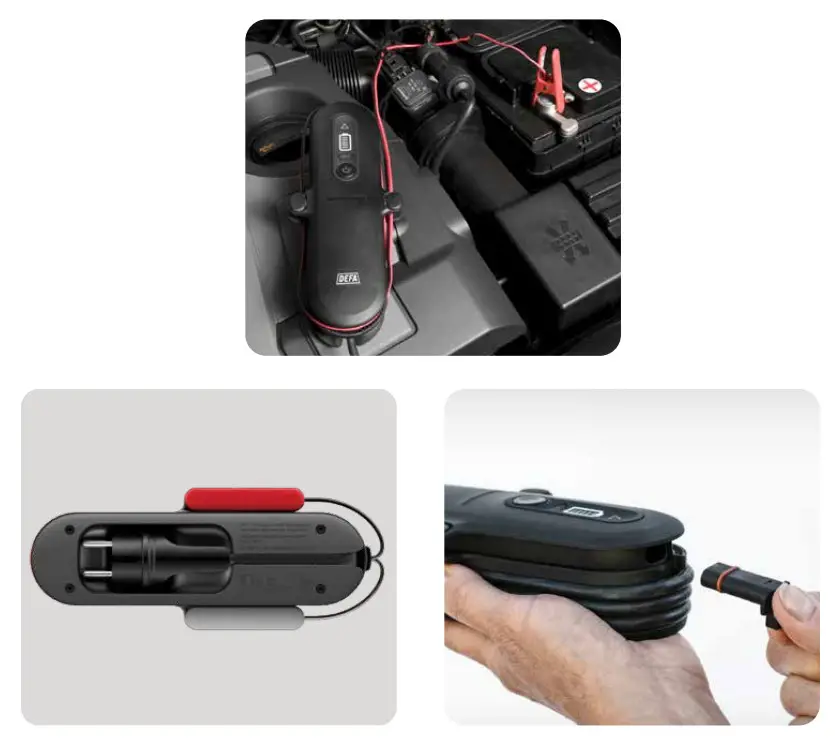

Functions
- Backlit user friendly interface and display
- Adapts automatically to the size of your battery
- A meter to easily read the actual power level of your battery
- Integrated cable management
- It will never over-charge your battery
- Temperature compensated charging cycle
Specifications
| Item number | 701515 |
| Input voltage | 230, 50-60 VAC, Hz |
| Charge power, max | 60 W |
| Inverse current | < 1 mA |
| Output voltage | 14,4/14,7 VDC |
| Operating temperature | -40 ~ +40ºC |
| Cooling | Air |
| Type of batteries | All types of lead/acid, AGM and GEL, open and closed. |
| Battery size | 12/2-110 V/Ah |
| IP rating | IP 65 |
| Isolation class | cl II |
| L/W/H | Charger: 210x90x54 mm (LxWxH) Box: 252x102x55 mm (LxBxH) Volume: 1,41 dm³ |
| Weight, brutto | 735 g |
| Certifications | EN60335-1, EN60355-2-29, EN 61204-3, EN61000-3-3, EN61000-3-2 DEFA AS is conforming to the requirements ISO 9001, ISO 14001 and ISO 45001. In addition to this, our engine heaters and cables are conforming to the requirements of IATF 16949. |
| Packaging | Single pack only. A variety of SmartCharge accessories are available. |
For more info, visit defa.com
