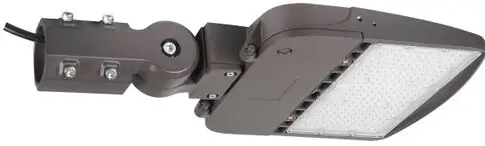

SATCO 65-877 LED Area Lights Cutoff Shields

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing fixture. Retain for future reference.

INSTALLATION

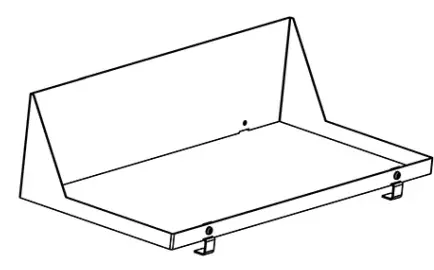

• STEP 1: Take glare shield out of box.



• STEP 2: Put the glare shield vertically on one lens of the fixture.

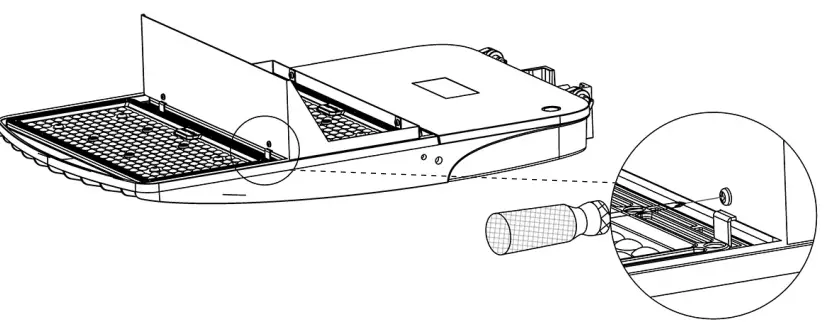

• STEP 3: Fix the shield with hook from the accessory bag as shown

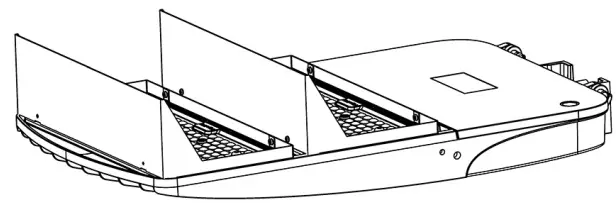

• STEP 4: Install the other glare shield on the lens of fixture (see STEP 2).

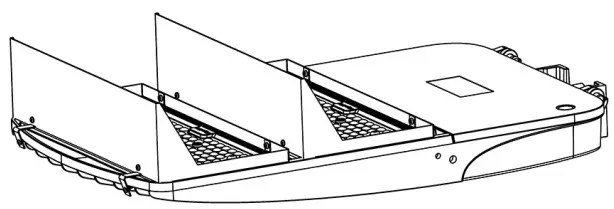

• STEP 5: Fix the glare shield with hook (see STEP 3).
