Satco Nuvo 65-571 Led Back Lit Flat Panel Fixtures Instruction Manual

aube technologies TH114-A Non-Programmable Thermostat

WARNING

• To reduce the risk of personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions
• Before installing, servicing or performing routine maintenance on this equipment.
• Commercial installation, service and maintenance of luminaries should be performed by a qualified licensed electrician.
• If you are unsure about the installation or maintenance of the luminaries, consult a qualified licensed electrician and check your local electrical.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit.
• Turn off electrical power at fuse or circuit breaker before wiring fixture to the power.
• All connections should be capped with UL approved wire.
• Keep away from any corrosive.
• Use a dry cloth when cleaning.
• Not suitable for use in wet locations.

INSTALLATION

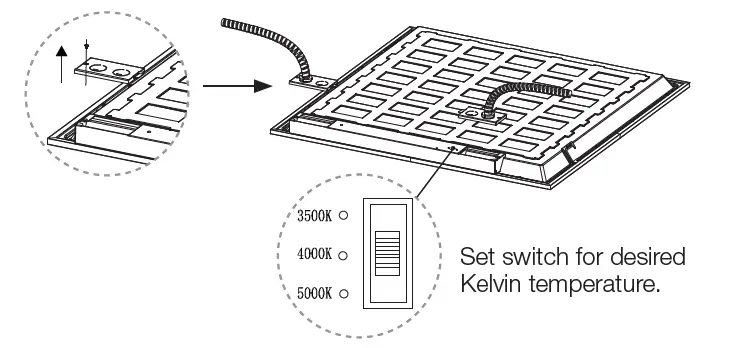

Unscrew driver covers and connect conduit to driver box.

Connect coordinating Secure driver covers to fixture.

Suitable for recessed or suspension installation.

NOTE
Suspension installation kit available separately 2ft./2 piece or (1) 4ft./3 piece, kits needed for installation

Specifications

RECESSED INSTALLATION

Confirm size of fixture to size of ceiling panel. Confirm ceiling can support weight of fixture. The fixture must be fully recessed into the channel. Space for adjustment cannot be more than 1/8 (33mm) or fixture will fall.

• Replace existing light fixture with LED Panel.

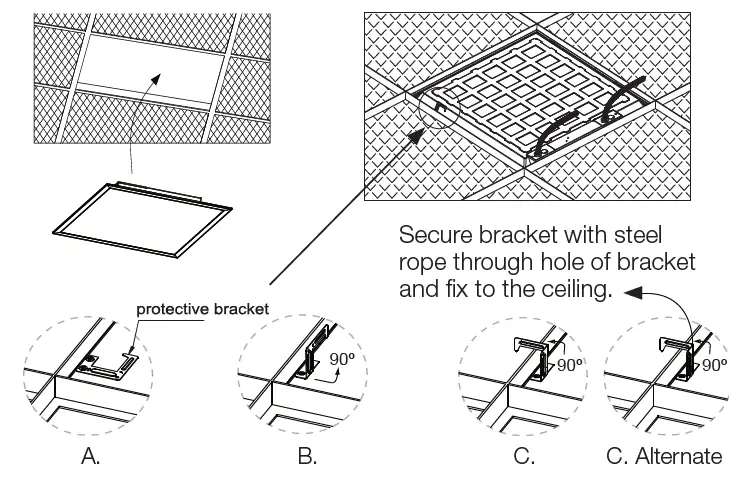

• Use protective brackets for security.

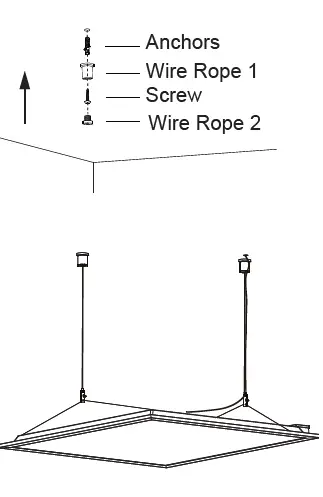

SUSPENSION KIT INSTALLATION

NOTE
Confirm ceiling can support weight of fixture.

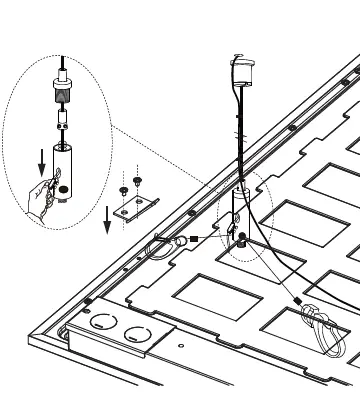

Drill two holes in ceiling and put anchors into hole, then insert the wire rope and screw.

Adjust the hanging wire rope so the panel is in a horizontal position
