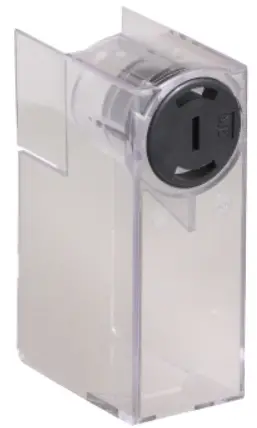

Schneider Electric LA9-F70 TeSys F Terminal Shroud for Contactor or Relay
Product Information
The LA9-F70p is a mounting kit for LC1-F contactors. It is manufactured by Schneider Electric Industries SAS and comes with six M6, eight M8, and six M10 mounting screws. The kit is compatible with various contactor models including LC1-FF, LC1-FG, LC1-FH, LC1-FJ, LC1-FK, LC1-FL, and CR1-FF, CR1-FG, CR1-FH, CR1-FJ, CR1-FK, and CR1-FL. The kit also includes LR-F 105 and LR-F 125 for contactor overload protection.
Product Usage Instructions
To use the LA9-F70p mounting kit, follow these instructions:
- Select the appropriate contactor model from the list provided in the product information section.
- Place the contactor on the mounting plate.
- Use the provided M6, M8, or M10 screws to secure the contactor onto the plate.
- For contactor overload protection, use LR-F 105 or LR-F 125.
- Refer to the user manual of the specific contactor model for wiring and installation instructions.

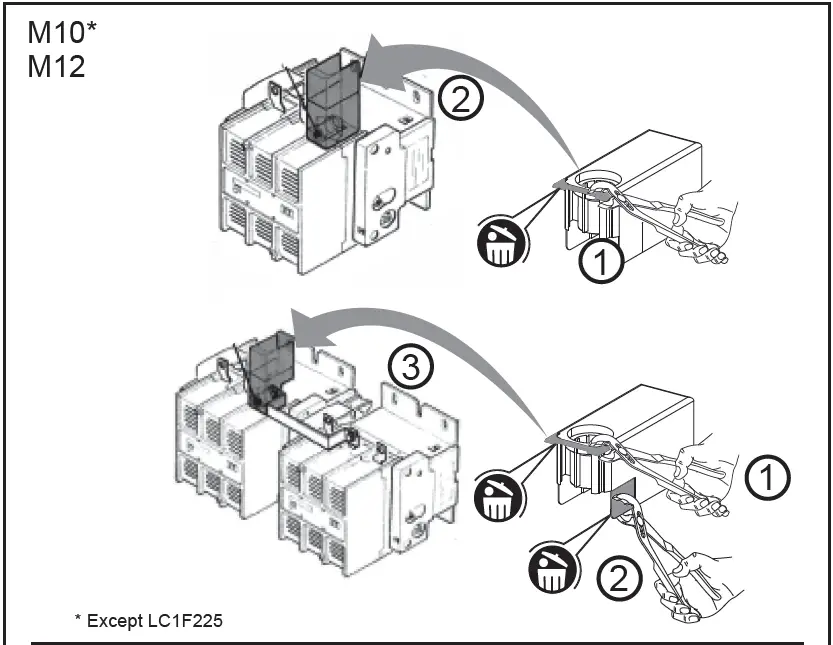

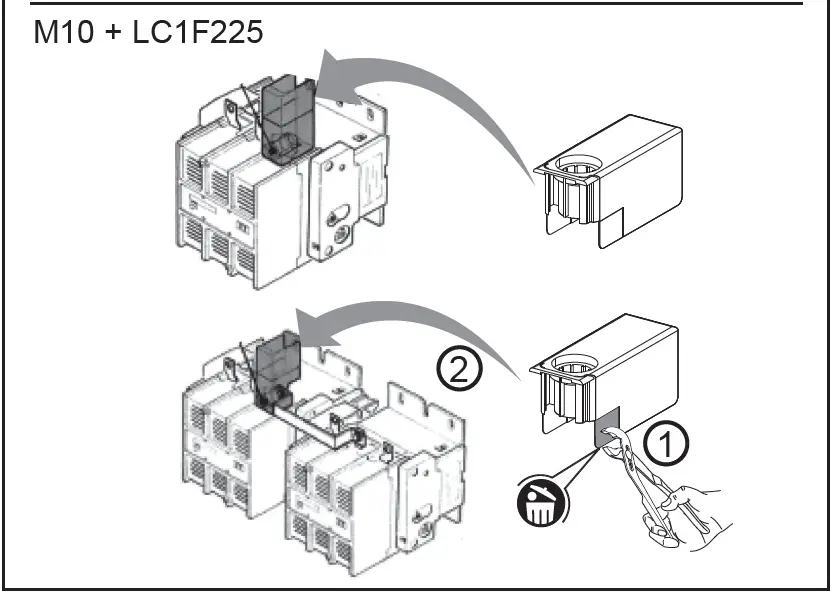

Note: Except for LC1F225, use two M10 screws for mounting. For LC1F225, use one M10 screw and one M12 screw for mounting.

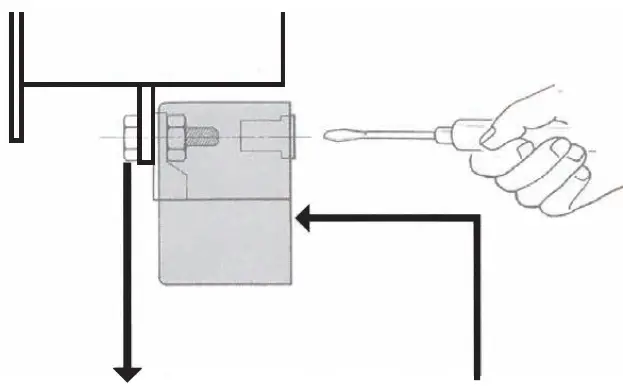

INSTALLATION
TABLE
| LA9 – F 701 | ||
| LC1 – FF 33
LC1 – FF 43 CR1 – FF 33 |
LC1 – F 115 | LR● – F 105 LR● – F 125 |
| LA9 – F 702 | ||
| LC1 – FG 43
CR1 – FG 33 |
LC1 – F 150 LC1 – F 185 | LR● – F 5 … |
| LA9 – F 703 | ||
| LC1 – FH 33 LC1 – FH 43 LC1 – FJ 33 LC1 – FJ 42 LC1 – FJ 43 LC1 – FK 42 LC1 – FK 43 CR1 – FH 33 CR1 – FJ 33 CR1 – FK 33 | LC1 – F 225 LC1 – F 265 LC1 – F 330 LC1 – F 4002 LC1 – F 400 LC1- F 5002 LC1 – F 500 | LC1 – FJ 51 LC1 – FJ 52 LC1 – FJ 53 LC1 – FK 51 LC1 – FK 52 LC1 – FK 53
LR● – F 6 … LR● – F 7 … |
| LA9 – F704 | ||
| LC1 – FL 42 LC1 – FL 43
CR1 – FL 33 |
LC1 – F 6302 LC1 – F 630 | LC1 – FL 51 LC1 – FL 52
LC1 – FL 53 LR● – F 8 … |
| LA9 – F 706 | ||
| LC1 – FF 34 LC1 – FF 44 CR1 – FF 34 | LC1 – F 1154 | |
| LA9 – F 707 | ||
| LC1 – FG 34 LC1 – FG 44 CR1 – FG 34 | LC1 – F 1504 LC1 – F 1854 | |
| LA9 – F 708 | ||
| LC1 – FH 34 LC1 – FH 44 LC1 – FJ 34 LC1 – FJ 44 LC1 – FK 34 LC1 – FK 44 CR1 – FH 34 CR1 – FJ 34 CR1 – FK 34 | LC1 – F 2254 LC1 – F 2654 LC1 – F 3304 LC1 – F 4004 LC1 – F 5004 | LC1 – FJ 54 LC1 – FK 54 |
| LA9 – F 709 | ||
| LC1 – FL 34 LC1 – FL 44 CR1 – FL 34 | LC1 – F 6304 | LC1 – FL 54 |
Schneider Electric Industries SAS
35 Rue Joseph Monier
92506 Rueil Malmaison
France
