Clarke Devil 9000PTC 400v Electric Fan Heater

INTRODUCTION

Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be  required as proof of purchaseThis guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights

SPECIFICATIONS

THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS

SAFETY ADVICE

Make sure that you read, understand and comply with the following.

ELECTRICAL SAFETY

•  Regularly inspect the power cable/plugs to be used with this heater and do not use the heater it the power cable is damaged.
•  Minimize the risk of electric shock by installing an RCCB (Residual Current Circuit Breaker) and a suitable 3-phase isolator into the main distribution board.
•  Make sure that the voltage on the rating plate is the same as the voltage of the power supply. If in doubt, consult a qualified electrician.
•  DO NOT abuse any electrical cable used with this heater. Never use the cable for pulling or unplugging the heater.
•  Keep the cable away from sources of heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

MAINTENANCE.
• Check that the heater is in good working order. Take immediate action
to repair or replace damaged parts.
• DO NOT allow the heating elements to become covered with dust
which could become a fire hazard. If used in a dusty workplace it should
be cleaned as described under Cleaning and Maintenance.
• Only recommended parts should be used. Unapproved parts may be
dangerous and will invalidate the warranty.
• DO NOT attempt to repair a damaged heater, contact the CLARKE
service department.

POSITIONING

•  This heater is designed for indoor use only.
•  DO NOT place the heater close to a bath, wash basin, shower, swimming pool or any other water-filled area or wet surface. DO NOT place the heater up against any surface such as a wall, door or furniture etc.
•  DO NOT place the heater immediately below any electrical outlet.
•  NEVER place the heater near combustible materials such as curtains, furniture etc. Allow at least 2 metre clearance.
•  DO NOT place the heater on a raised surface or anywhere where it could topple over.
•  ALWAYS ensure that the grille cannot be blocked by curtains or other fabrics.
•  DO NOT operate in explosive atmospheres such as in the presence of flammable liquids, gases or dust such as in a paint spray booth or any explosive environment. Electric motors create sparks which may ignite dust or fumes.
•  DO NOT leave the heater un-attended, for example, left on at night.

COMMON SENSE

•  DO NOT operate when you are tired or under the influence of alcohol, drugs or intoxicating medication.
•  DO NOT stand on the heater.
•  DO NOT use the heater with wet hands or when there is water on the power cable.
•  Turn the heater off when not in use and keep it in a safe, dry, childproof location.
•  The heater is designed to heat enclosed areas larger than 4m3, such as workshops and other industrial areas. Do not use the heater for any other function. It is not suitable for drying clothes or laundry.
•  Young children must be kept away unless continuously supervised.

OPERATION

•  The heater must only be used by persons who have read these instructions and have been trained in its use.
•  DO NOT obstruct the air inlet and outlet sections of the heater.
•  DO NOT cover the heater.
•  DO NOT touch the heater casing or grille when first switched off, as these will be very hot and will take time to cool.
•  DO NOT get the heater wet or use in areas of high condensation.
•  DO NOT allow the power cable to touch hot surfaces.
•  DO NOT connect other appliances to the same mains socket as the heater.
•  Only use the heater in an level position.
•  DO NOT use this heater with a programmable timer used to switch it on automatically

SERVICE & REPAIRS

•  Have your heater repaired by a qualified person using identical replacement parts. This will ensure that the safety of the heater is maintained.

ELECTRICAL CONNECTIONS
This heater MUST be connected to a 400 Volt, 3 phase 50Hz supply through a suitably rated isolator switch. It cannot be operated from a single phase supply. In addition to the cable fitted to the heater, a DCL16B extension lead can be used. This is fitted with a red 5 pin16 amp industrial plug to EN 60309 with 16A socket. (CLARKE part No 6925233). If in any doubt, consult a qualified electrician. DO NOT attempt any electrical repairs yourself.

OPERATION

1.  Put the heater in a level position on a flat surface and at a safe distance from flammable materials. Keep a minimum of 2m clearance all round.
2.  Connect the heater to a suitable power supply.

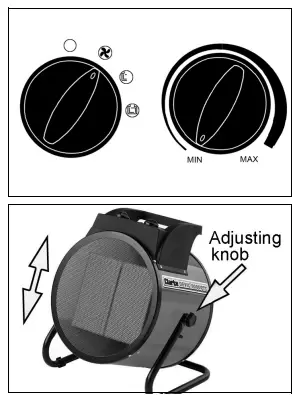

3.  Set the thermostat control to the maximum setting (fully clockwise)

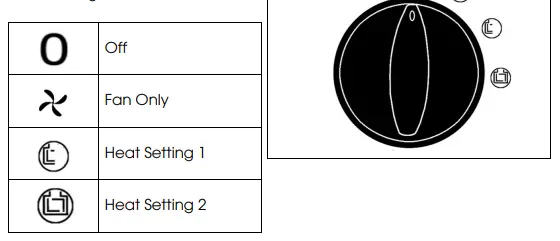

4. Set the mode selector to one of the 3 settings:
5.  Once the room reaches the required temperature, turn the thermostat control slowly counter-clockwise until the thermostat clicks, leave the control in this position. • The room temperature will be maintained in this setting. The heater will continue to operate until the power switch is turned to the OFF position.
6.
7.  For fan-only operation, turn the power switch to the fan-only setting and set the thermostat to its minimum setting.
8.  Adjust the angle by loosening both adjusting knobs and setting the required angle.
9.  Retighten the adjusting knobs.
10.  When not in use, disconnect the heater from the mains supply. Store it in a safe, dry, childproof location.

TROUBLESHOOTING

MAINTENANCE
Clean the heater with a soft damp cloth. Do not use solvents or abrasives. Make sure that the heater grill is not blocked. No other maintenance is required, should you discover any problem with the   heater, return it to the CLARKE service department for repair

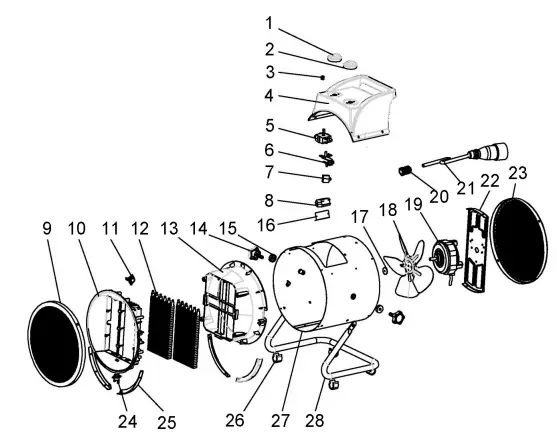

COMPONENT PARTS

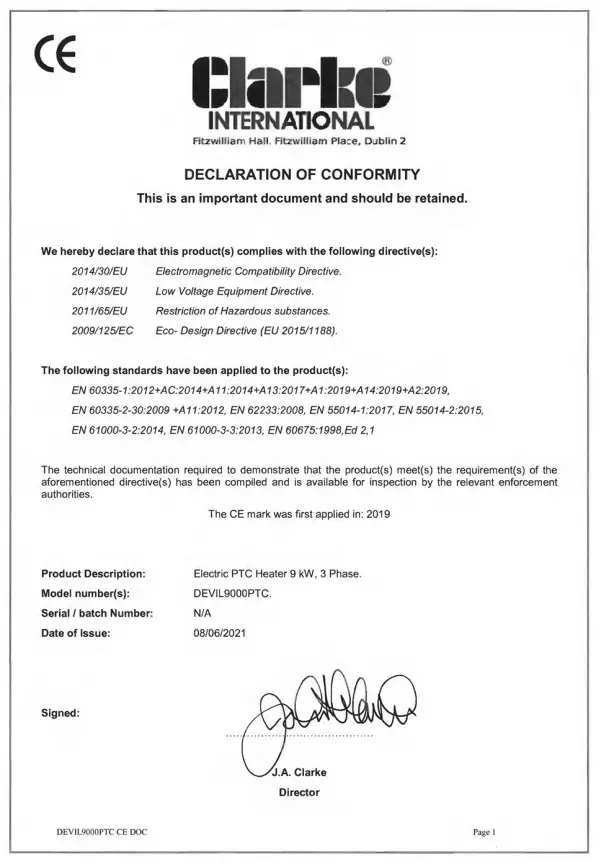

DECLARATIONS OF CONFORMITY
