Receiver HE 3 BiSecur, HE 3-MCX BiSecur
Instruction Manual

Dear Customer,
We thank you for choosing a quality product from our company.

About These Instructions

Read through all of the instructions carefully, as they contain important information about the product. Pay attention to and follow the instructions provided, particularly the safety instructions and warnings.
Further information about handling radio components can be found on the Internet.
Please keep these instructions in a safe place and make sure that they are available to all users at all times.

Safety Instructions

2 .1 Intended use
The HE 3 BiSecur / HE 3-MCX BiSecur receiver is a unidirectional receiver for the actuation of operators and controls. It has three channels and is operated via the BiSecur radio. The third channel is only active/functional in combination with special operator models.
Other types of application are prohibited. The manufacturer is not liable for damage caused by improper use or incorrect operation.
2 .2 Safety instructions for operating the receiver
CAUTION
Danger of injuries due to unintended door travel
▶ See warning in section 7
ATTENTION
Functional impairment due to environmental influences
Non-compliance with these instructions can impair function!
Protect the receiver from the following conditions:

• Direct sunlight (permissible ambient temperature: -20°C to +60°C)
• Moisture
•  Dust

NOTES:

• If there is no separate garage entrance, perform all programming changes and extensions of radio systems while standing in the garage.
•  After programming or extending the radio system, check the functions.
• Only use original components when putting the radio system into service or extending it.
• Local conditions may affect the useful range of the radio system!
•  When used at the same time, GSM 900 mobile phones can affect the range.c

Scope of delivery

• HE 3 BiSecur/HE 3-MCX BiSecur receiver
• Fixing material
• External antenna (only HE 3-MCX BiSecur)
• Operating instructions

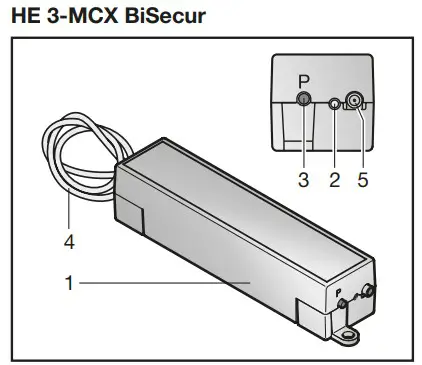

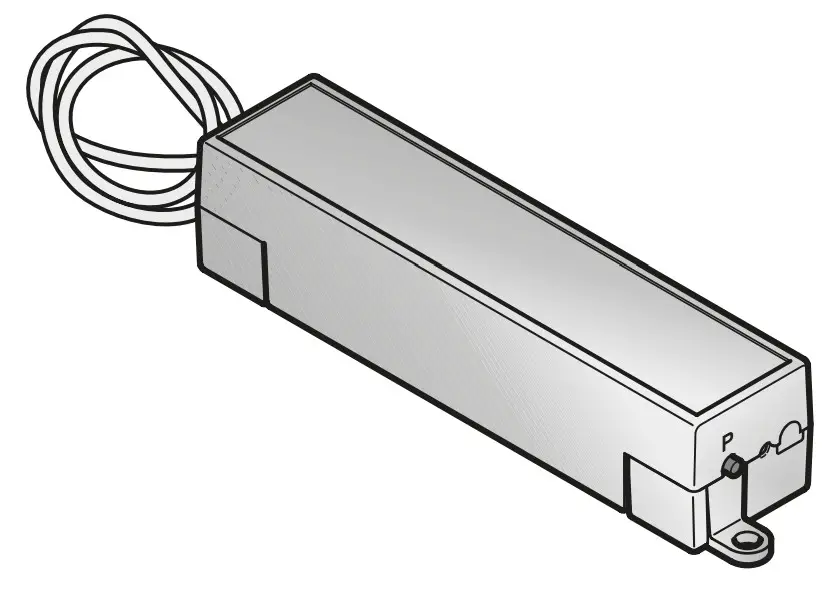

Description of the receiver

1. Receiver
2.  LED, blue
3. Programming button P (P button)
4. Connecting lead, 0.5 m

1. Receiver
2. LED, blue
3. Programming button P (P button)
4. Connecting lead, 7.0 m
5. Connecting option for an external antenna

4 .1 LED display
Blue (BU)

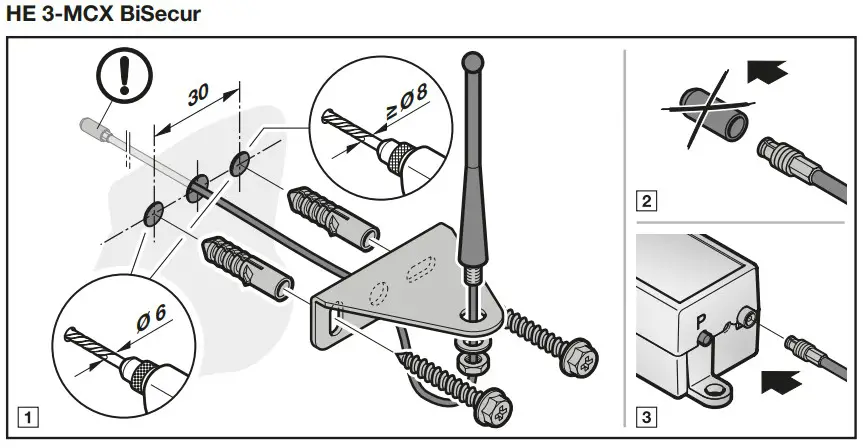

Fitting

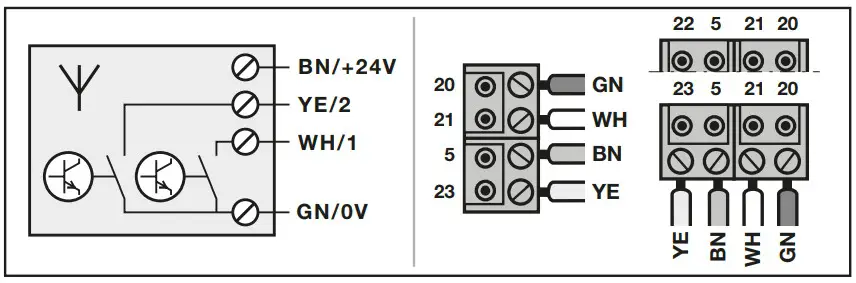

Connection

Teaching in a radio code

CAUTION
Danger of injuries due to unintended door travel
Unwanted door travel may occur while teaching in the radio system.
▶ Pay attention that no persons or objects are in the door’s area of travel when teaching in the radio system.
A maximum of 300 radio codes can be taught in the receiver. They can be distributed over the existing channels. If the same radio code is taught in on two different channels, it will be deleted on the first taught-in channel.
In learn mode, the channels of the receiver can be switched by pushing the P button, as long as no radio code has been recognised.
To activate / switch a channel:
▶ Press the P button once, to activate channel 1.
▶ Press the P button twice, to activate channel 2.
▶ Press the P button 3 times, to activate channel 3.
To abort the learn mode:
▶ Press the P button 4 times, or wait for the timeout.
Timeout
If no valid radio code is recognised within 25 seconds, the receiver automatically returns to the operation mode.

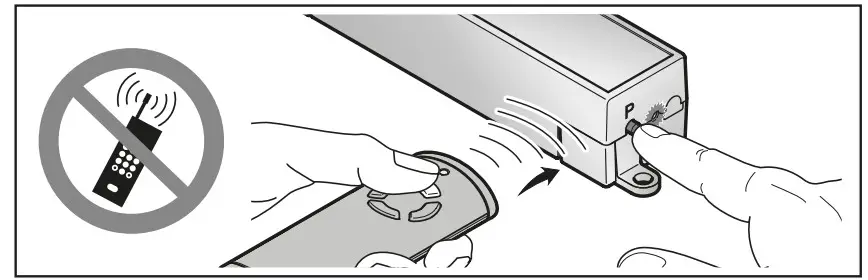

7 .1 Teaching in a radio code

1. Press the P button to activate the desired channel.
   – The LED will flash slowly in blue for channel 1.
   – The LED will flash blue twice for channel 2.
   – The LED will flash blue 3 times for channel 3
2.  Put the hand transmitter A, whose radio code is to be inherited, into the Inheriting / Transmitting mode.
   If a valid radio code is recognised, the LED flashes quickly in blue then goes out. The receiver is in the operation mode .

Operation

In the operation mode, the receiver signals the recognition of a valid radio code by illuminating the LED.
NOTE:
If the radio code for the taught-in hand transmitter was copied from another hand transmitter, the hand transmitter button must be pressed a second time during initial start-up.

Reset

All radio codes are deleted by the following steps:

1. Press and hold the P button.
   – The LED slowly flashes in blue for 5 seconds.
   – The LED flashes rapidly in blue for 2 seconds.
2. Release the P button.
   All radio codes have been deleted .

NOTE:
If the P button is released prematurely, the device reset will be aborted and the radio codes are not deleted.

Disposal

	Dispose of the packaging sorted by materials.
	Electrical and electronic devices must be returned to the appropriate recycling facilities.
	Dispose of the batteries separately. Each consumer is legally required to leave batteries with a collection point in their community, their district, or with a trader.

Technical data

HE 3 BiSecur / HE 3-MCX BiSecur receiver

EU and UK Declaration of Conformity

Hörmann KG Verkaufsgesellschaft and Hörmann UK Ltd. herewith declares that the radio equipment type HE 3 BiSecur / HE 3-MCX BiSecur receiver complies with the EU
Directive 2014/53/EU and the UK Regulations 2017 No. 1206.
The complete text of the EU Declaration of Conformity and of the UK Declaration of Conformity can be found on the following website:

www.hoermann-docs.com/279224
HE 3 BiSecur / HE 3 MCX BiSecur
Hörmann KG Verkaufsgesellschaft
Upheider Weg 94-98
33803 Steinhagen
Deutschland
4581529 B3
