Bailey Pendant Vigo 1 Light Bronze Double Frame Instruction Manual

PENDANT VIGO
MANUAL

Technical specifications

• AC 220V-240V 50/60Hz
• IP20
• CLII
• Cable length : 1.5m
• Max. wattage light source  : 60W

Warning – Caution – Safety

• Before installation please read the specifications to make sure that this product is suitable for the operating environment.
• Risk of electric shock. Disconnect power before installation, servicing and removal.
• Make sure the supply voltage is the same as the rated lamp voltage.
• All safety instruction must be followed to avoid a risk of injury or property damage.
• Not suitable for use with emergency units.
• Not suitable for outdoor use.
• Don’t overload socket maximal wattage rating.
• Do not attach other items to the product. Only use the product when it is working perfectly.
• Keep away from flammable materials.
• The cable can’t be replaced, avoid damage to insulation during installation.

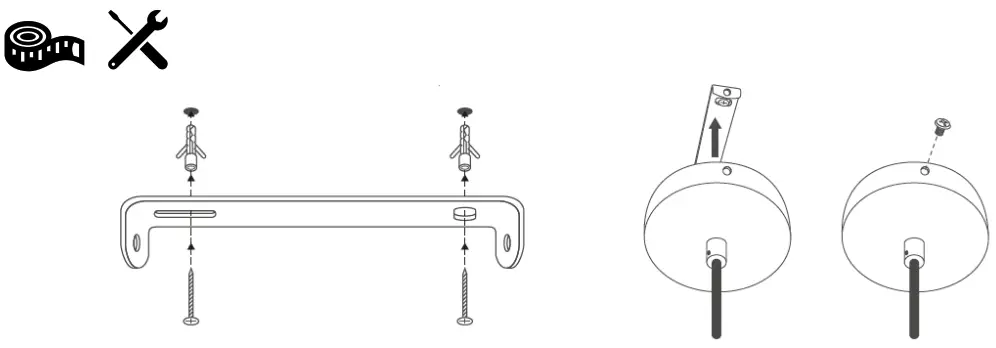

MOUNTING

1. Switch off power
2. Rewire according diagram
3. Insert lamp
4. Turn power back on

Bailey Electric & Electronics bv
Vredenburg 21 4902 TT Oosterhout Netherlands
+31 (0)162 52 2446
www.bailey.nl
