User Guide

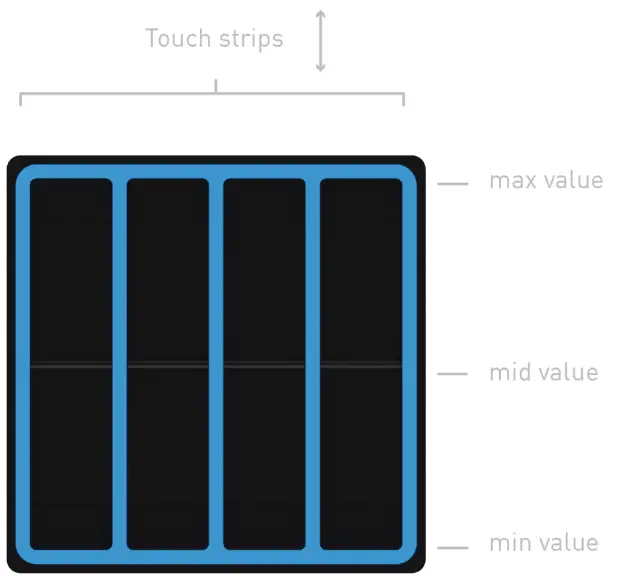

STRIPS
Slide your fingers across the 4 strips to control any parameter. There are delimited tactile areas to easily access min, mid and max values. It can be used horizontally or vertically.
Factory settings
Module properties
Orientation: Vertical
Midi Mapping
| Strip 1 : Midi Channel : 8 Control change : 1 Range : 0-127 Direction : Natural Mode : Absolute 14 Bits : off | Strip 2 : Midi Channel : 8 Control change : 2 Range : 0-127 Direction : Natural Mode : Absolute 14 Bits : off |
| Strip 3 : Midi Channel : 8 Control change : 3 Range : 0-127 Direction : Natural Mode : Absolute 14 Bits : off | Strip 4 : Midi Channel : 8 Control change : 4 Range : 0-127 Direction : Natural Mode : Absolute 14 Bits : off |

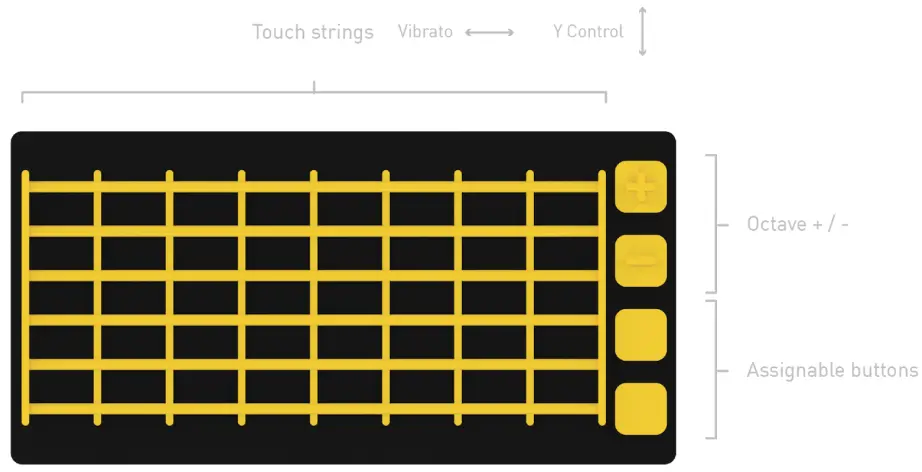

FRETBOARD
With the Fretboard, you can play guitar or any strings instrument like never. The module has 6 strings and 9 frets plus octave +/- buttons and 2 configurable buttons. The strings can be tuned all together or individually (custom mapping).
Vibrato and bending are switchable depending on the musician’s intention.
Factory settings
| Module properties Vibrato : on Bending : on Aftertouch: off MPE mode: off Custom mapping : off Pressure range : Low MPE Channels : 1-16 Aftertouch : channel Vibrato value : 1024 Bending value : 4096 Midi mapping | Strings Midi channel : 2 First note : E1 Tuning: Guitar (E-A-D-G-B-E) Velocity : 50-127 Buttons (from top to bottom) Button 1 (not configurable) : Octave + Button 2 (not configurable) : Octave – Button 3 Action : Channel selection Value : 3 Button 4 Action : Channel selection Value : 2 |

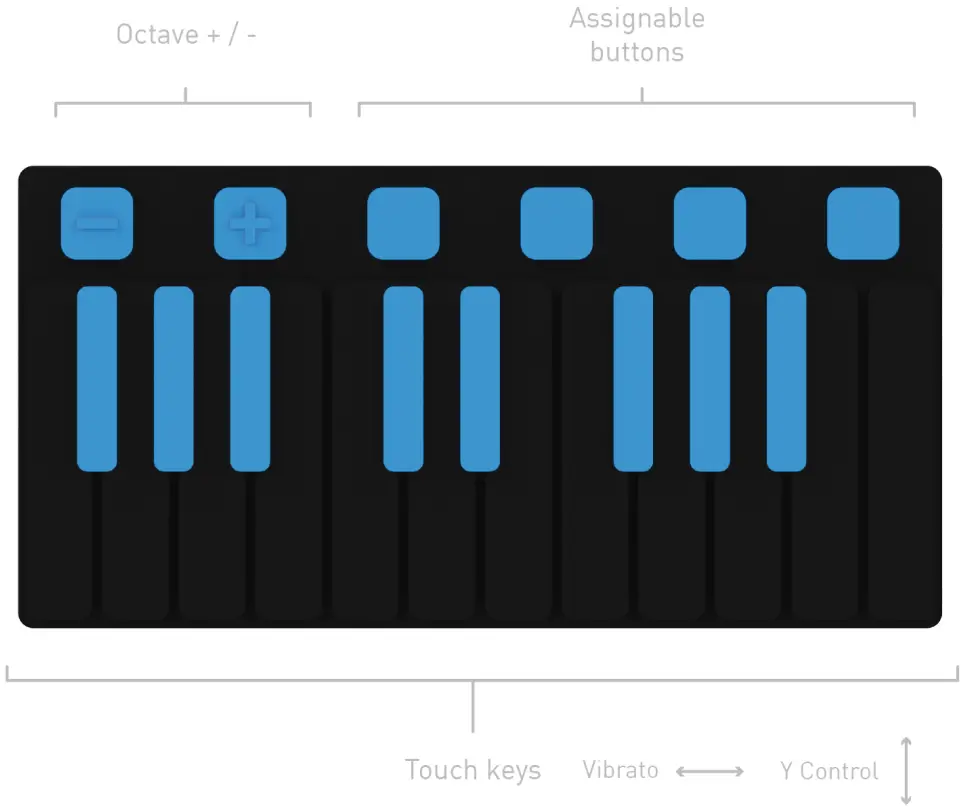

SYNTH
The Synth is a 1,5-octave keyboard with octave +/- buttons and 4 configurable buttons. Aftertouch (channel or polyphonic aftertouch), natural vibrato (adjustable in the advanced setting), and extra control on the vertical axis (y control) give it unique expressiveness.
Factory settings
| Module properties Vibrato: off Glissando : off Aftertouch : off MPE : off Pressure range : Low MPE channels : 1-16 Vibrato value : 1024 Glissando : 24 semitones After touch : Channel Midi mapping Keys Midi channel: 4 | First note : 53 – F2 Velocity : 50-127 Y control: off Buttons (from left to right): Button 1 (not configurable) : octave – Button 2 (not configurable): octave + Button 3: Action : Channel selection Value : 4 Button 4: Action : Channel selection Value : 5 Button 5: sustain on/off Button 6: vibrato on/off |

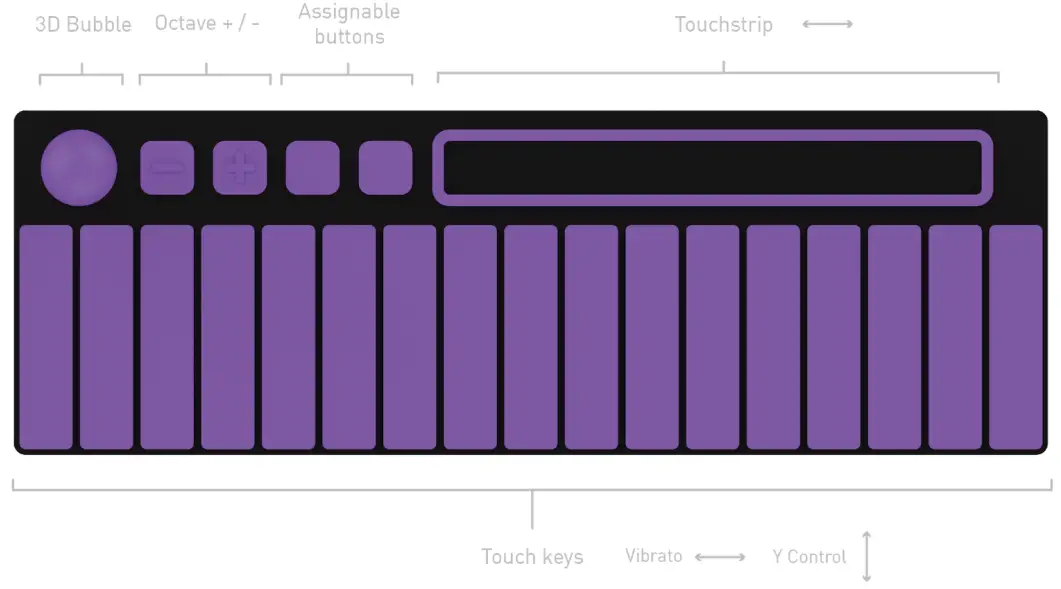

SCALER
The Scaler has 17 keys which are perfect to play the harp, vibraphone, or any crazy lead synth. Many scales are available for immediate play, you can even customize your own scale note by note with the custom mapping. A bubble and a long ribbon complete one of the most expressive modules so far.
| Module properties Vibrato: off Glissando : on Aftertouch: on MPE mode: off Custom mapping : off Pressure range : Low Vibrato : 1024 Glissando : 24 semitones Aftertouch : channel | Midi mapping Bubble : X Channel : 10 X Control change : 1 X Range : 0-127 Direction : Natural Start value : 64 Y Channel : 10 Y Control change : 2 Y Range : 0-127 Direction : Natural Start value : 64 |
| Z Channel : 10 Z Control change : 3 Z Range : 0-127 Direction : Natural Start value : 64 Buttons (From left to right) Button 1 : Octave – Button 2 : Octave + Button 3 : Action : Channel selection Channel : 10 Button 4 : Action : Channel selection Channel : 11 | Strip : Action : Control change Channel : 10 Control change : 4 Range : 0-127 Direction : Natural Mode : Absolute 14 Bits : off Keys : Channel : 10 First note : 52 – E2 Scale : Maj Penta Velocity : 50-127 Y control : on Y control change : 74 Y control range : 0-127 Direction : Natural Y control mode : Absolute 14 Bits : off |

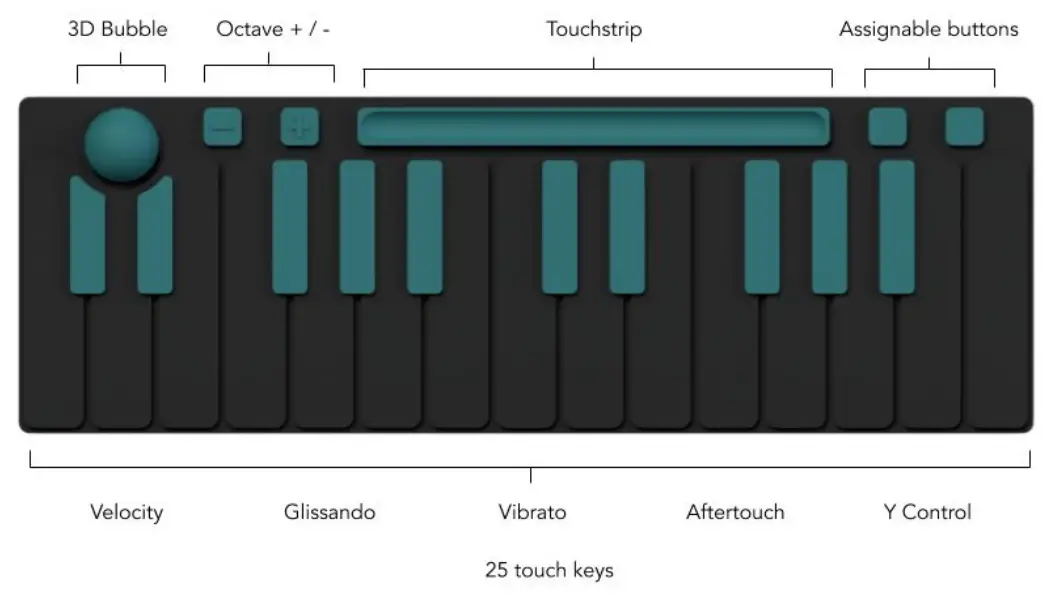

GRAND CLAVIER
The Grand Clavier has 25 expressive keys to subtly play any type of digital instrument.
The Glissando mode allows continuous pitch-bend between notes and opens the door to microtonal interpretation.
The Grand Clavier is delivered with a tailor-made UVI Sound Pack including MPE expressive presets from acoustic instruments to electronic sounds.
Factory settings
| Module properties Vibrato: off Glissando: on Aftertouch: on MPE mode: on Pressure range : Low MPE channels : 1-16 Vibrato value : 1024 Glissando value : 24 semitones Aftertouch : polyphonic | Midi mapping Bubble : Horizontal : off Vertical : off Z Channel : 12 Z Control change : 3 Z Range : 0-127 Direction : Natural |
| Strip : Action : control changeChannel : 12 Control change : 4 Range : 0-127 Direction : natural Mode : Absolute 14 bits : off | Buttons (From left to right) Button 1 : Action : Sustain on/off Button 2 : Action: Glissando on/off Keys : Channel : 12 First note : 48 – C2 Velocity : 50-127 Y control : On Y control change : 74 Start value : 64 |

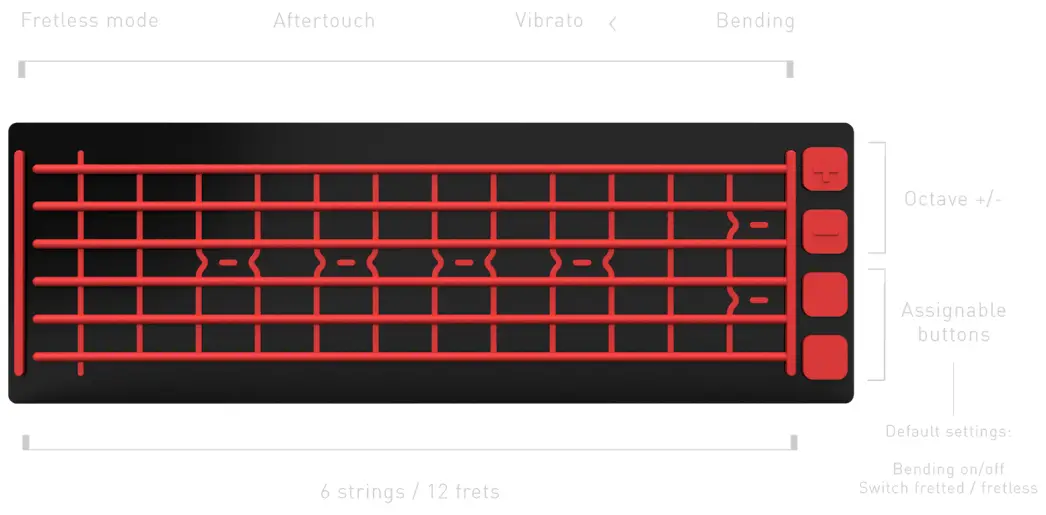

GRAND FRETBOARD
Inspired by traditional string instruments and paired with a selection of sounds from the UVI catalog, the Grand Fretboard module offers a unique playing experience in the digital world.
The silicone strings, which are responsive to velocity, vibrato, and bending, express all the musician’s playing nuances.
The optimized frets design allows fingers to slide over the strings and the introduction of the Fretless mode opens up new playing possibilities, especially for acoustic sounds.
The 2 configurable buttons allow you to quickly disengage the fretless mode in order to alternate the tonal and free play phases.
MPE Compatibility allows for unparalleled expressiveness, as several notes can evolve independently of each other.
Factory settings
| Fretless: on Vibrato: off Bending: off Aftertouch: off MPE: on Custom mapping: off Pressure range: Low MPE channels: 1-16 Aftertouch channel Vibrato: 1024 Bending: 800 Fretless pitch range: 24 semitones | Strings : Channel: NA First note: 40-E1 Tuning: Guitar Velocity: 50-127 Buttons (From top to bottom) Button “+”: Octave + Button “-”: Octave – Button 1 : Action : Channel selection Channel : 3 Button 2 : Action : Channel selection Channel : 2 |

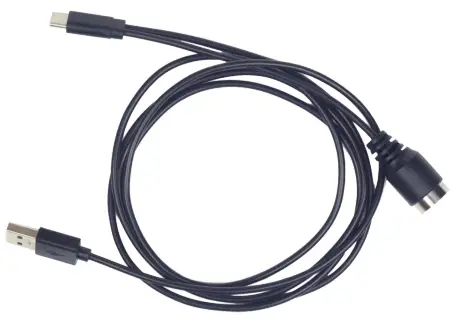

RE-CONNECT
Re-Discover your iconic machines thanks to the re-Connect MIDI cable. No computer, no external box needed. Plug the re-Connect cable to your Joué and it will send native MIDI messages without latency.
JOUE BOARD SPECIFICATION
Weight: 800g Connectivity: USB-C for data and power supply Full midi compatibility over USB NFC reader in each slot to detect parameters embedded in the soft modules
