FRESH-AIRE UV AHU Series 1 Germicidal UV Light System
THE ORIGINAL WHOLE-HOUSE AIR PURIFIER

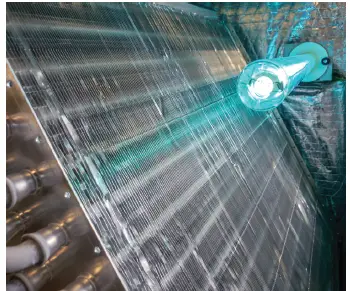

The Fresh-Aire UV AHU Series 1 germicidal UV light system is installed in the central air system where it sterilizes airborne viruses and bacteria. It also suppresses mold growth on the cooling coils and surrounding areas while generally improving indoor air quality throughout the home. It is available in single/dual or triple/quad lamp configurations for more comprehensive UV light disinfection.
FEATURES/BENEFITS
| Water-resistant shielded UVC lamp | Sterilizes airborne viruses, bacteria, mold |
| Heavy-duty Nema-rated power supply | Improves indoor air quality |
| Automatic input voltage selection | Inhibits HVAC mold growth |
| 120 – 277 VAC 50/60 Hz. | Saves energy/reduces maintenance cost |
| Lifetime Warranty for all parts except lamps | IImproves indoor air quality |
EXTENDS THE LIFE OF THE HVAC SYSTEM
A biofilm on AC coils of only 0.002” can reduce efficiency by 37%! UV AHU Series 1 keeps AC coils clean and is the most cost-effective and practical solution.

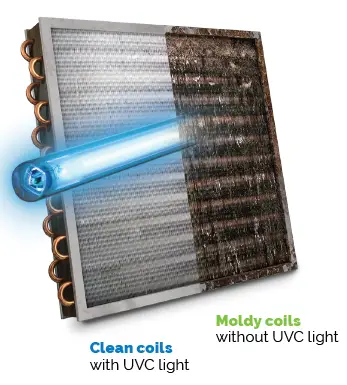

CLEANS THE COIL AND DRAIN PAN
Helps keep the HVAC system running efficiently and extend its life
Neutralizes Mold, Bacteria, Viruses, and Allergens
We are committed to developing and validating our products. AHU Series 1
Testing achieved incredible results:
Fresh-Aire UV systems are not intended to diagnose, treat, prevent, or cure any disease
- Reduction of common indoor air contaminants over 4 hours. Tested at airflow velocity of 492-fpm (0.93m3/sec)
- The SARS-CoV-2 virus test was conducted at a distance of 6” on test surfaces in a laboratory setting.
PROTECTION
Protecting our homes and families from airborne infectious diseases has become the highest priority. The unique germ-killing properties of UVC light have been know for over a century. Because UVC in sunlight is filtered by the Earth’s atmosphere, microbes (including viruses) have no defense against it. This chemical-free technology is now used for hospital disinfection,food safety, and water purification.
| AHU Series 1 Specs | |||
| UV Lamp | 254 nm germicidal UVC, quartz hot filament | ||
| Dimensions | Lamp: 15”L x 0.74” Dia. Power Supply: 8.75”L x 3.5” W x 2.5”D ST Power Supply: 5.0”W x 1.1” H x 2.4”D | ||
| Electrical | Auto switching multi-voltage 0.51A /120V Thru 0.22A /277Vs | ||
| Kit Includes | Power Supply (NEMA IP54), UV Lamp(s), 6’ Lamp Cable, 6’ Power Cord, Lamp Mounting Brackets, Mounting Hardware and Panel Indicator | ||
| Warranty | Lifetime for all parts except lamp | ||
| Part Numbers | |||
| Single Lamp Systems Replacement Lamp | |||
| TUV-100S-I TUV-200S-I | 1 Year Lamp 2 Year Lamp | TUVL-115P TUVL-215P | |
| Dual Lamp Systems | Replacement Lamps | ||
| TUV-100D-I TUV-200D-I | 1 Year Lamps 2 Year Lamps | TUVL-115P TUVL-215P | |

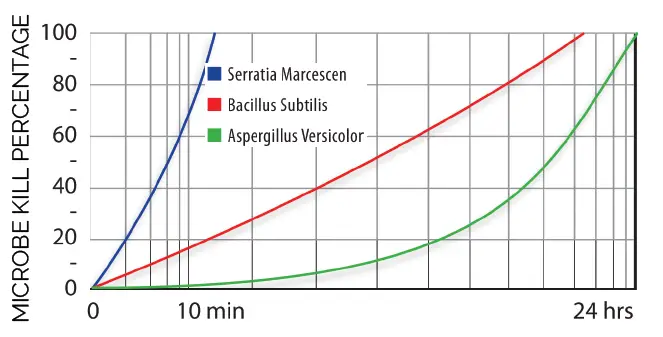

UV ANTIMICROBIAL EFFECTIVENESS
Surface Microbe Cultures Exposed to UV Light
