Ubiquiti Eth-sp-g2 Ethernet Surge Protector User Guide

ETH-SP-G2 Ethernet Surge Protector
User Guide

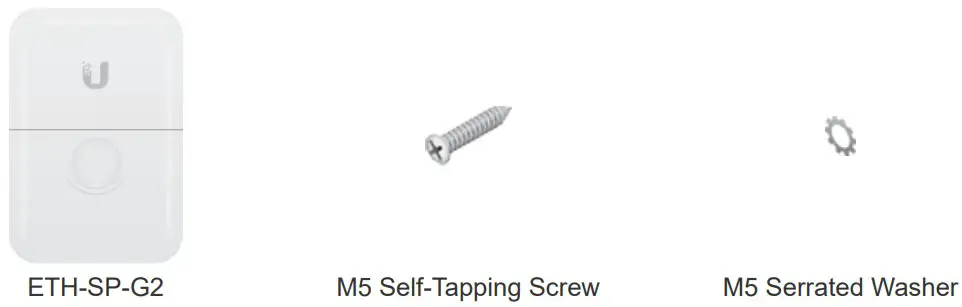

Package Contents

Hardware Overview

1. ETH IN/OUT Port
   Passive surge-protected RJ45 Ethernet ports.

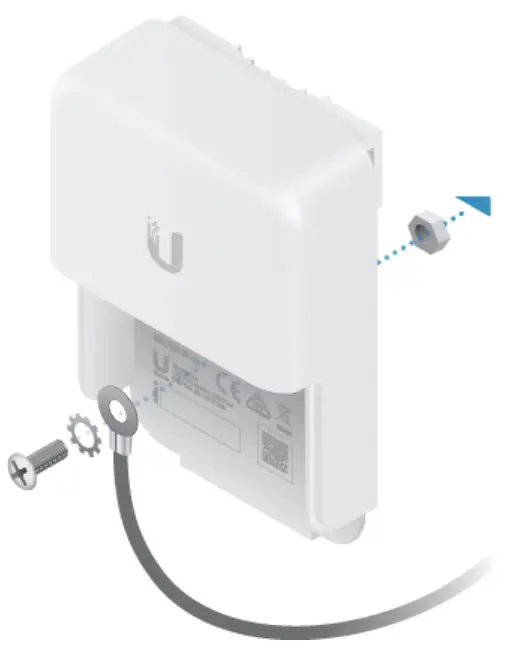

2. Grounding Point
   The ETH-SP-G2 must be grounded by one of the following methods:

• Using the included Self-Tapping Screw to ground the ETH-SP-G2 directly to a grounded metal pole or structure; or
• Using an M5 machine screw and nut (not included) to attach a drain wire that is connected to a remote grounding block or structure.

Installation Requirements

Mounting accessories and optional drain wire are not included.
Pole-Mounting:

• Drill with a 4.5 mm drill bit
  (1) Metal strap or cable tie
  Wall-Mounting:
• (2) Screws (≤ 5 mm screw head)
• (1) M5 machine screw and nut
• (1) Drain wire (≤ 16 AWG, ≤ 40 cm)
  Optional: Drain wire, M5 machine screw, and nut are not included.

Note: Place the included Serrated Washer between the screw and drain wire.

Installation

Install the ETH-SP-G2 near an Ethernet device. Follow the appropriate steps for your installation:

• “Pole Mounting”
• “Wall Mounting”

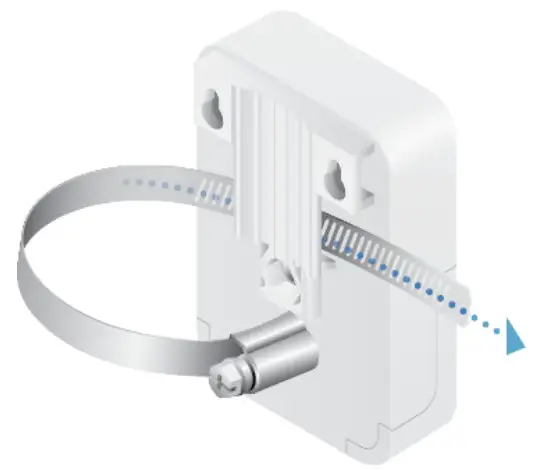

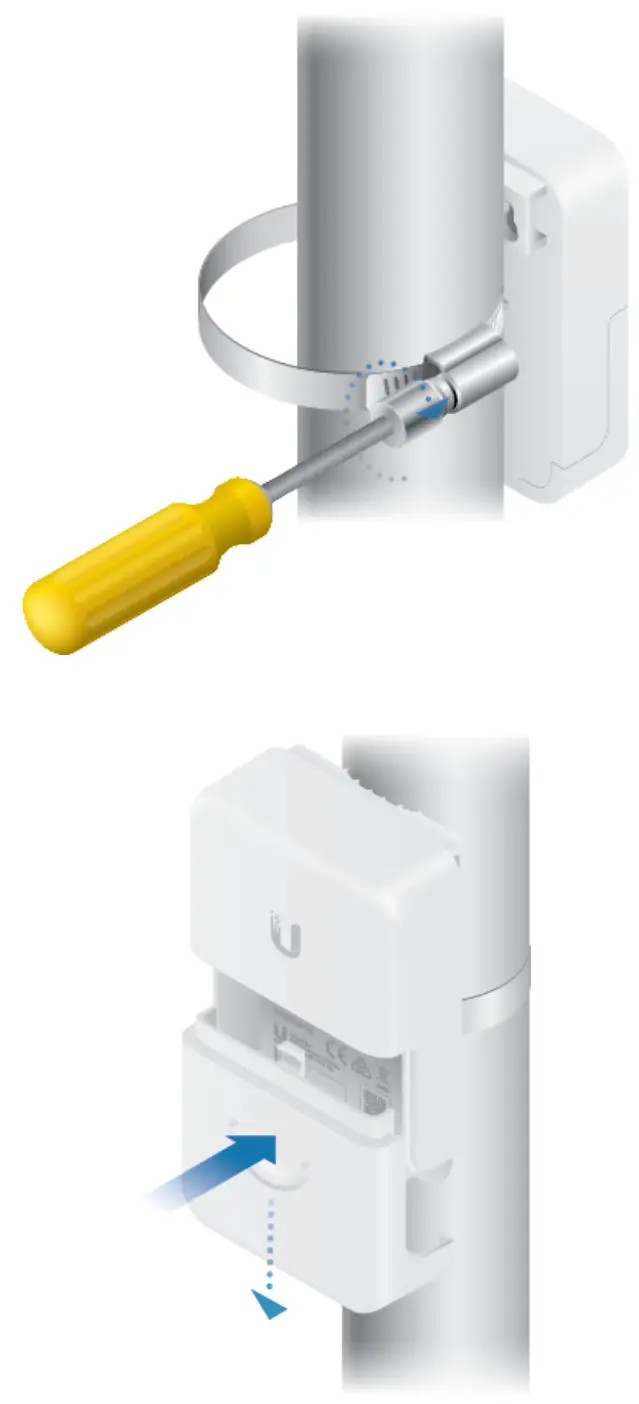

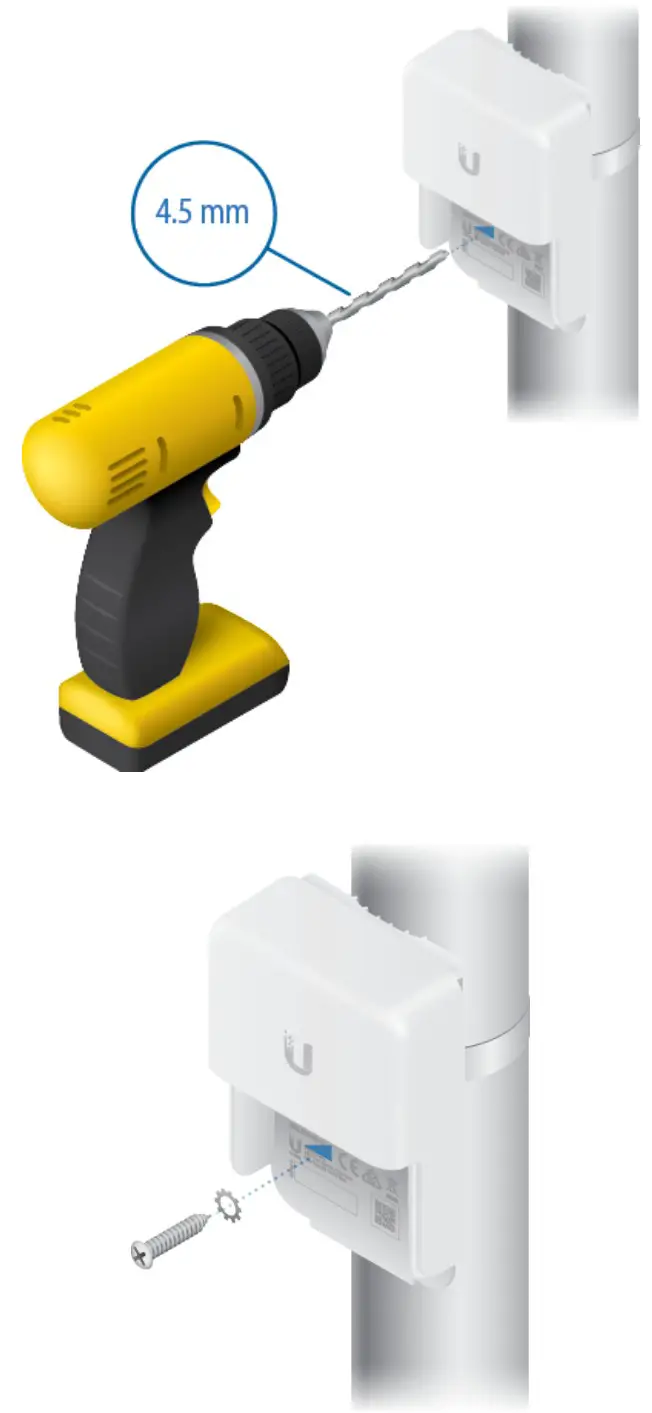

Pole Mounting

A metal strap or cable tie is not included.

Note: If the Ethernet device is mounted on the pole with a metal strap, you may use the same strap to attach the ETH-SP-G2.

Note: If you are using a drain wire for grounding, proceed to “Connecting Ethernet”.

Proceed to “Connecting Ethernet”.

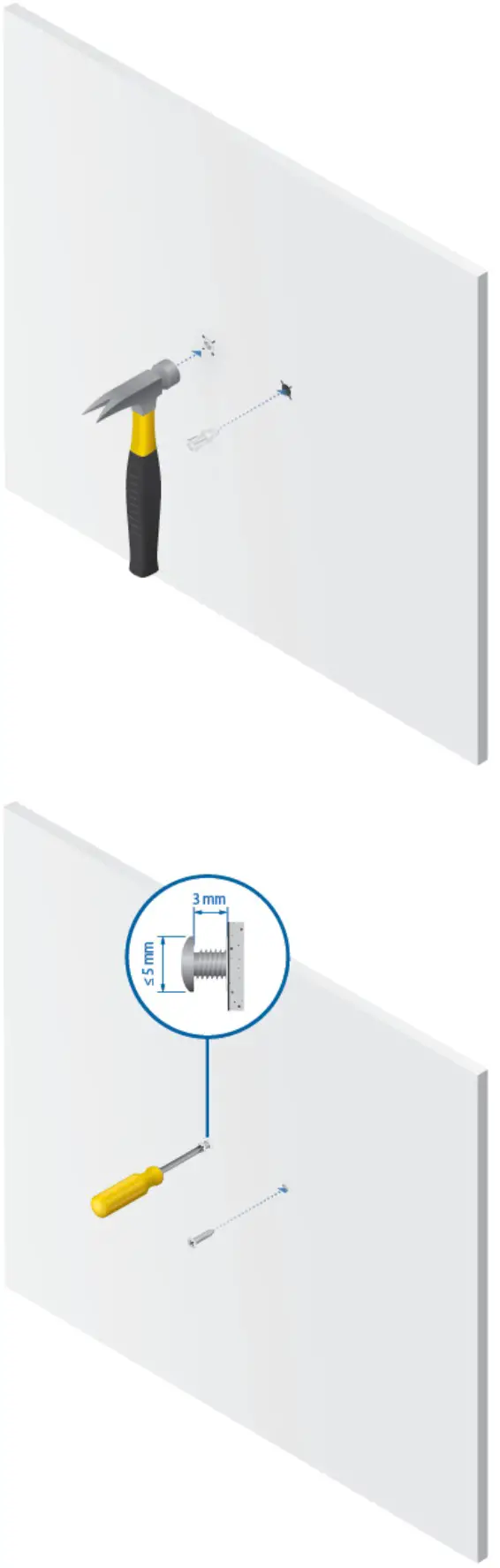

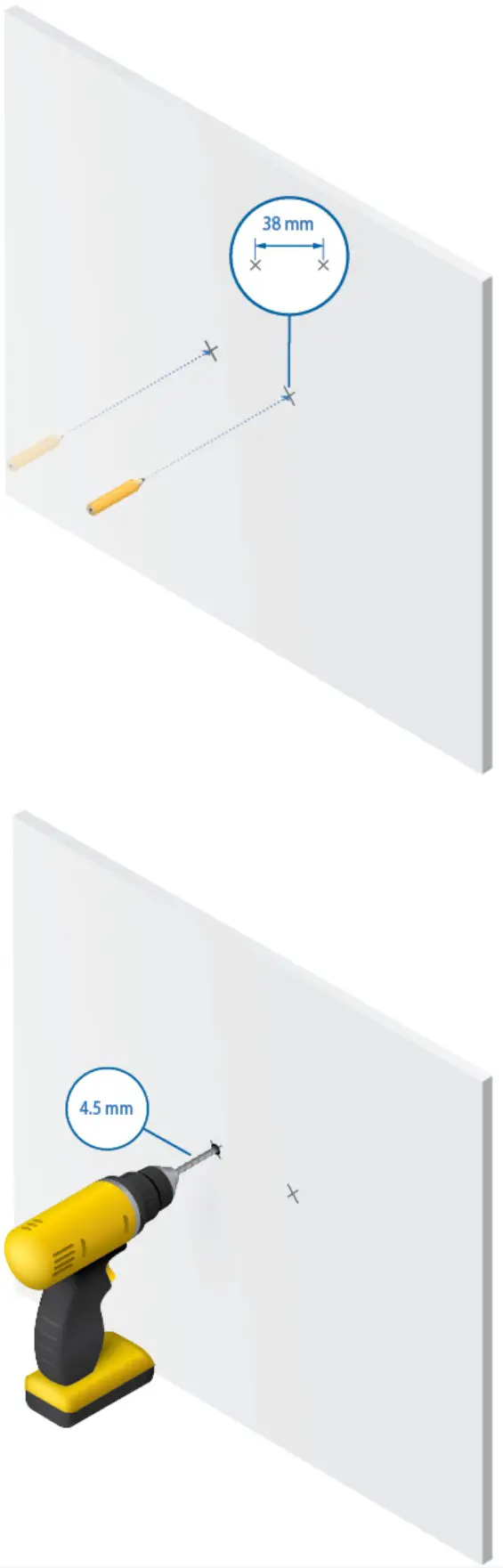

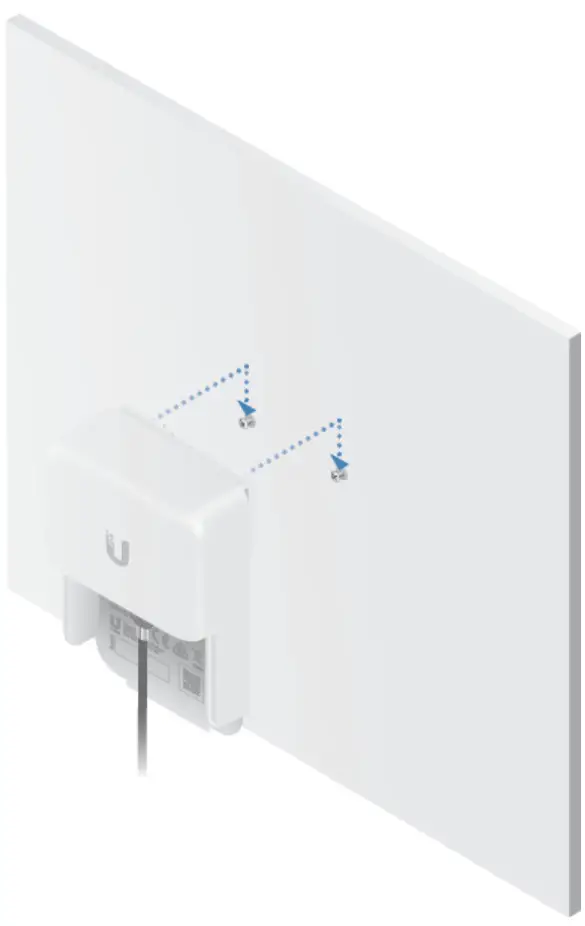

Wall Mounting

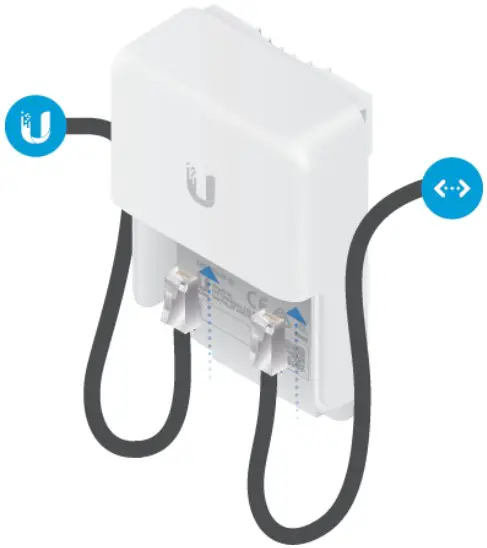

Connecting Ethernet

Specifications

ETH-SP-G2

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
   WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
   WARNING: Do not use this product in location that can be submerged by water.
   WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than  those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
3. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
4. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
5. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
