ESP8266 WiFi Module for Raspberry Pi Pico
User Manual
Raspberry Pi Pico Header Compatibility:

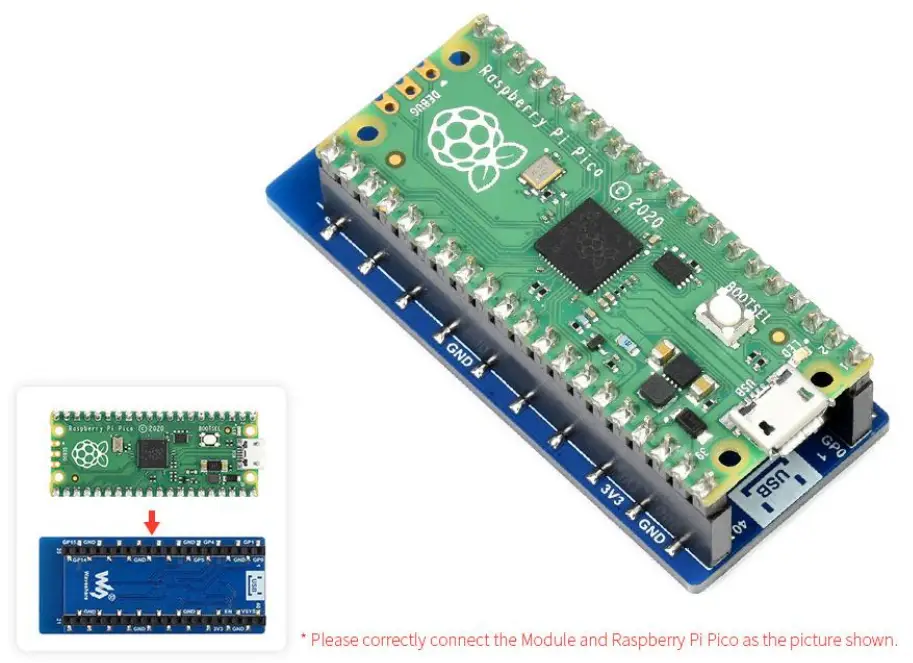

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

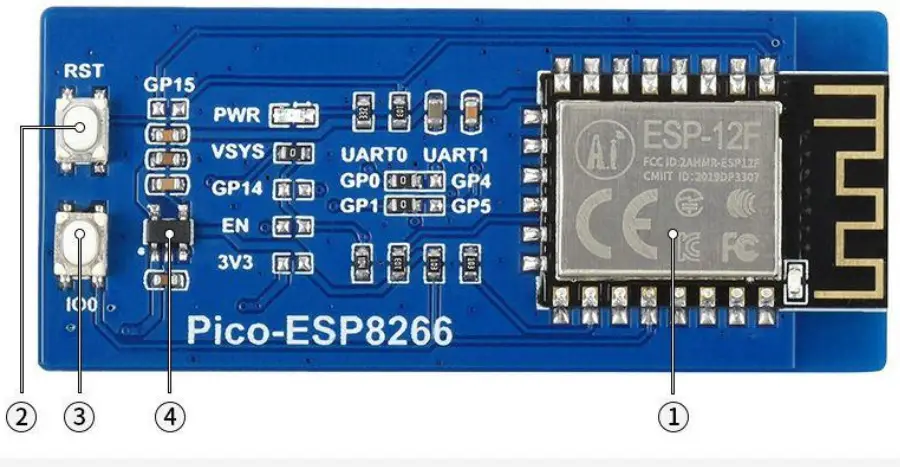

What’s on Board:
- ESP8266 module
- The ESP8266 reset button connects to the ESP8266 reset pin
- ESP8266 BOOT button
connects to ESP8266 GPIO 0, press to enter awaiting download mode while resetting - SPX3819M5
3.3V linear regulator

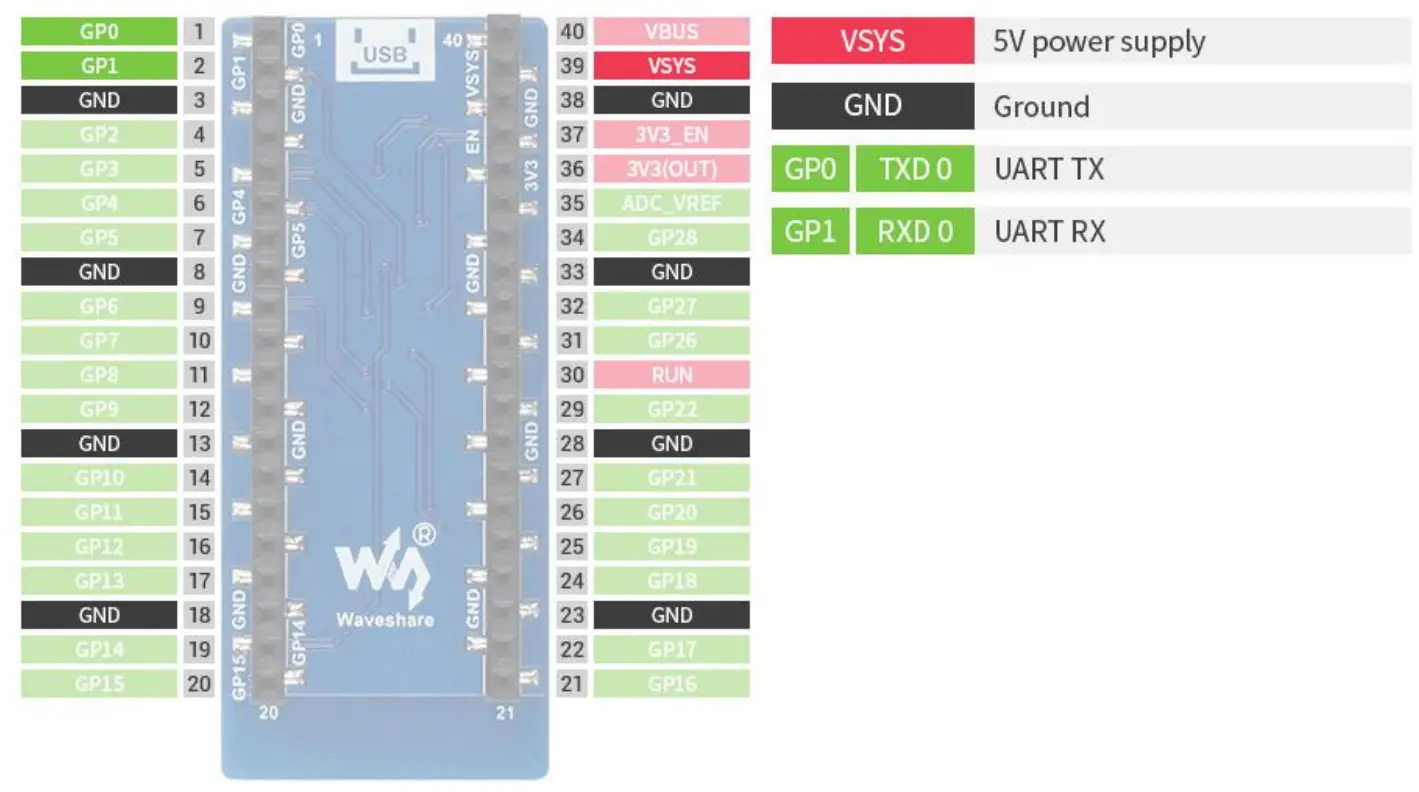

Pinout Definition:
