The Kodak trademark, logo and trade dress are used under license from Eastman Kodak Company.

Please use brand name batteries (such as Energizer® or Duracell®) for optimal performance. Do not mix new and old batteries or use different brands of batteries. When replacing batteries, please replace all 4 batteries at the same time.
The performance and life expectancy of alkaline batteries will vary depending on the brand.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc.) batteries.

The Camera User Manual is available online at the website location below:

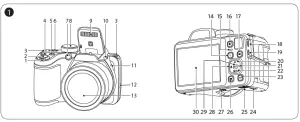

Camera Views.

1	Zoom Lever	16	Fast Video Recording Button
2	Shutter Button	17	Menu Button
3	Strap Eyelet	18	Micro USB Port
4	Exposure Compensation Button	19	Micro HDMI Port
5	Continuous Shot Button	20	AF Button/Up Button
6	Power Switch	21	Flash Button/Right Button
7	AF Assist Beam/Self-Timer Lamp	22	Delete Button/Self-Timer Button/Down Button
8	Mode Dial	23	Display Button
9	Flash Lamp	24	Battery Cover Buckle
10	Flash Button	25	Battery Cover
11	Microphone	26	Playback Button
12	Speaker	27	Tripod Socket
13	Lens	28	Macro Button/Left Button
14	“i” Button	29	SET Button
15	Indicator Lamp	30	LCD

Inserting the Batteries and the Memory Card.
1. Open the battery cover door as show in step ①, ② and ③.
2. Insert the batteries into the battery compartment.
3. Insert the memory card into the slot.
4. Close the battery cover door as shown in step ④ and ⑤.
Setting the Language/Date/Time.
1. Push the power switch to turn on the camera and the language menu will appear. Use the up/down/left/right button to select a language, and press the button to confirm the language.
2. Use the up/down/left/right button again to set the date and time, and press the button to confirm.

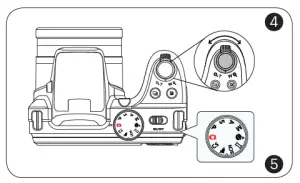

Taking a Picture.
1. Hold the camera securely.
2. Use the zoom lever to select Tele or Wide positions to zoom in or out on your subject.
3. Press the shutter button half way to focus on the subject. When the focus frame turns green, press the shutter button completely down to take the picture.
Using the Mode Dial
This camera provides a convenient mode dial that allows you to manually switch among different camera settings with ease. Available modes are listed below:
Under shooting mode, press the button to begin recording a video and press the button again to stop recording. The camera will store
the video and return to the shooting screen.
In each mode, press the button to access the “Easy Menu”. Press the buttons to move among options, then press the
button to make a selection. Choosing the within this list will provide access to the “Full Menu”:
