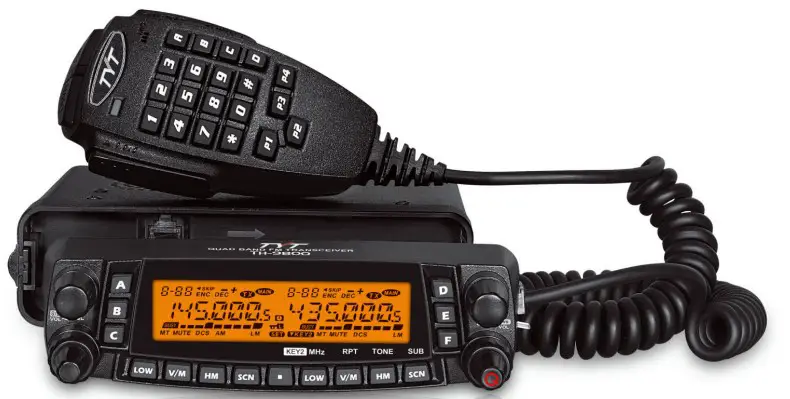

TH-9800 Quad Band 50W Cross Band Mobile Car Ham Radio Black
Owner’s Manual
TH-9800 Quad Band 50W Cross Band Mobile Car Ham Radio Black
VN, U/U, V/U simultaneous receive capability 50W of high transmit output power (UHF 40W)/Buitt-in V+U cross-band repeater capability CTCSS/DCS/DTMF/2 Tone/5 Tone signaling Noice compandor and scrambler Detachable remote panel mounting capability/Wide/Mid/Narrow bandwidth selectable Wide band AM receiving and FM receiving for 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950MHz
Main Functions
- Quad Band Operation: includes 29/50/144/430MHz four amateur bands.
- Wide band AM receiving and FM receiving for 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950MHz (except cell phone).
- Main Band A + Sub Band B independent operation design
- V+V&U+U& V+U Dual Receiver Design
- V+U Full Duplex Operation
- Cross-Band Repeater Function
- Detachable Front Panel
- Ultra-size LCD Screen Dual Display
- 50W Output Power for 29/50/144MHz, 35W for 430MHz
- More than 800 Memory Channels
- 50 CTCSS/1024 DCS/DTMF/2 Tone/5 Tone 5 kinds of signaling
- 8 groups of Voice Scrambler option
- Wide/Mid/Narrow bandwidth selectable

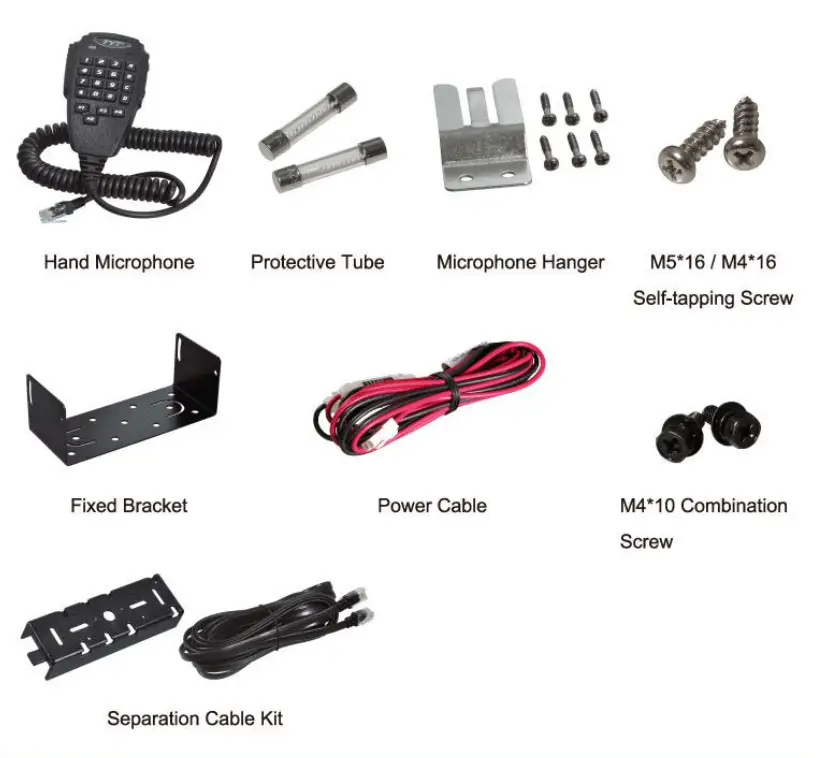

Standard Accessories
Specification
| General | |
| Frequency Range | RX (AM and FM): 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950MHz (Cellular Blocked) TX (FM): 26-33MHz, 47-54MHz, 134-174MHz (144-146MHz/144-148MHz), 400-480MHz (430-440/430-450MHz) |
| Channel Capacity | 809 channels |
| Channel Spacing | 2.5/5/6.25/10/12.5/15/20/25/50 KHz |
| Modes of Emission | F3 |
| Antenna Impendence | 50 Ohms, unbalanced (Antenna Duplexer built-in) |
| Frequency Stability | ±5 ppm@-140°F—+140°F(-10°C—+60°0) |
| Operating Voltage | -4°F—+140°F(-2090—+60`0) |
| Operating Temperature Range | 13.8VDC (± 15%), negative ground |
| Current Consumption (Approx) | 0.5A (Squelched) RX: TX: 8.0A (50/430MHz), 8.5A (29/144MHz) |
| Case size (WxHxD) | 140×41.5x168mm (w/o knobs & connectors) |
| Weight (Approx) | 1.2kg |
Transmiter
| Output power | 5012011015 W(29/50/144MHz), 40/20/10/5W(430MHz) |
| Modulation Type | Variable Reactance |
| Maximum Deviation | _.– -60dB (2 9 MHz: __– -50dB) |
| Modulation Distortion | < 3% |
| Microphone Impedance | 2ko |
Receiver
| Circuit Type | Double-conversion super-heterodyne |
| Intermediate Frequency | 49.95 MHz / 450 KHz (Left band) 38.85 MHz / 450 KHz (Right band) |
| Sensitivity (for 12dB SINAD) | __- 0.2pV |
| Squelch Sensitivity | _- 0.16pV |
| Selectivity (-6 dB/-60dB) | 12 kHz/30KHz |
| Maximum AF Output | 2W@80 for 5% THD |
| AF Output Impedance | 4-160 |
