MERLYN MIND SC Series Symphony Classroom AI Enabled Classroom Hub
What’s in the box

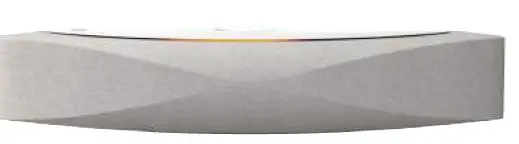

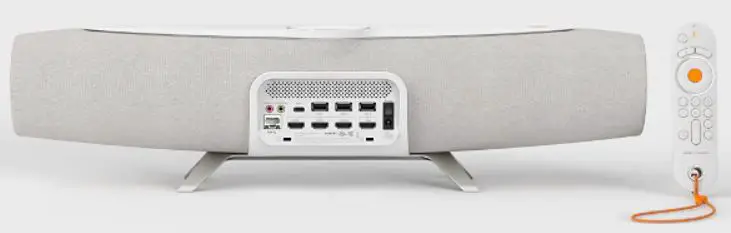

Main Unit
Base Stand

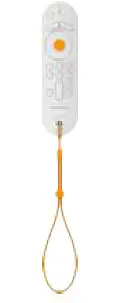

Remote Control and Remote Control Lanyard
Printed Materials

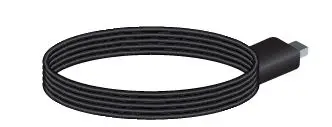

Power Supply
HDMI Cable
AC Power Cable

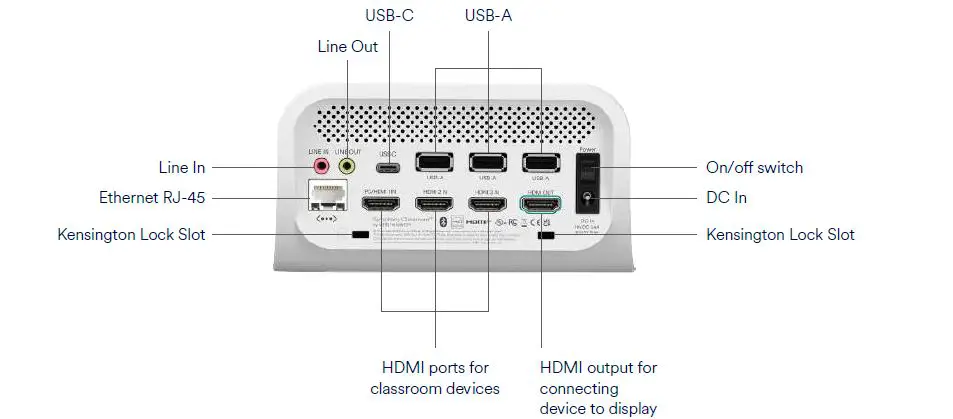

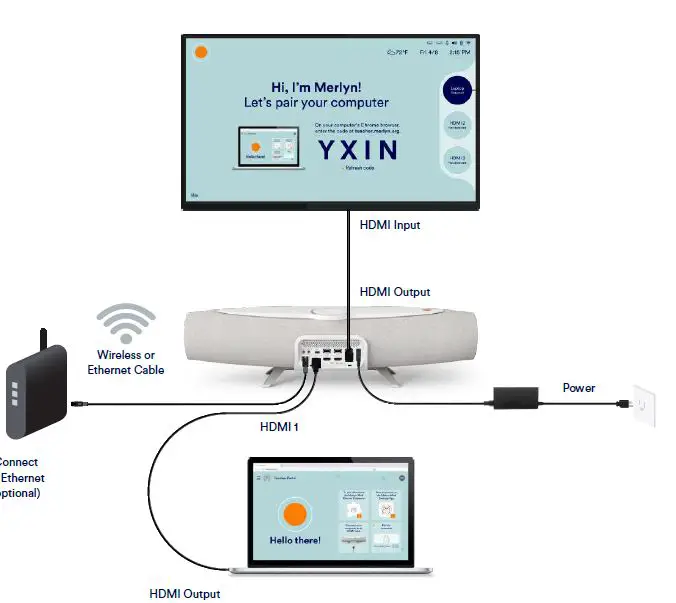

Wiring & I/O Panel Connections
Total power supply up to 5V/2A for 3x USB-A and 1x USB-C .For interoperability with other devices, please refer to merlyn.org/support.
Where to place your Symphony Classroom & Mounting Options
- Ensure you are able to see the top panel from places in classroom where you are most likely to talk to the device.
- Place your device within 6 ft of the display.

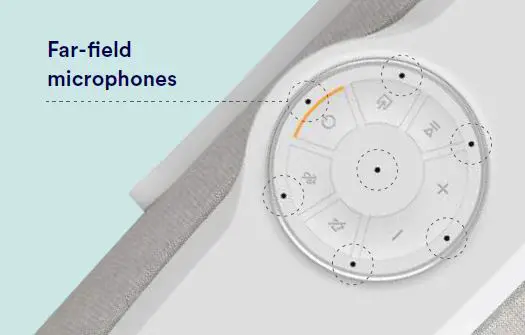

- Make sure nothing is blocking the Far field microphones and it is at least 5 ft from other noise sources.
Mount on a wall
Unit mounts upside down when attached to a wall, large format display or interactive white board.
Mount on a display cart
Place on a tabletop
Stand Mount
Set up

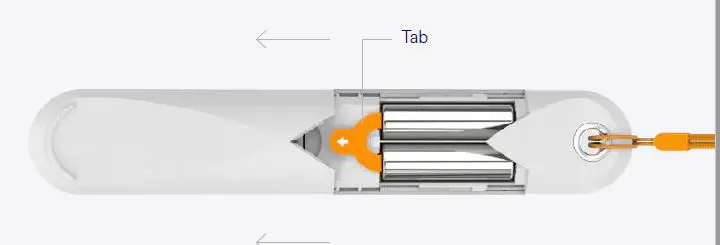

Before using the remote control, remove the tab inside the battery compartment to activate.
Onboarding
Register teachers to use Symphony Classroom devices on the IT Admin Portal at admin.merlyn.org
Whitelist the following domains in your school or district’s network/firewall configuration:
- https://merlyn.org
- https://business.updatefactory.io
- https://www.loggly.com/ ngrok io for enabling support mode global stun twilio.com on port 3478 ice.xioresearch.com on port 3478
- Turn the Symphony Classroom device on and follow the instructions on screen
- To learn how to install a wireless certificate on your unit, or to troubleshoot go to merlyn.org/support.
Get started
Download and install the following software on each teacher’s computer.
Chrome Browser
You must use Google Chrome. Make sure it is set as your default browser.
Merlyn Mind Chrome Extension
This allows control of your browser functions via remote and voice.
Merlyn Mind Desktop App
The app always runs in the background to give your remote control accurate point, click and drag functions. The desktop app is not currently compatible with Chromebooks. The desktop app is not currently compatible with Chromebooks.
