Vicoustic Vmt Xxl Mega Bass Trap Instruction Manual

VICOUSTIC VMT XXL Mega Bass Trap

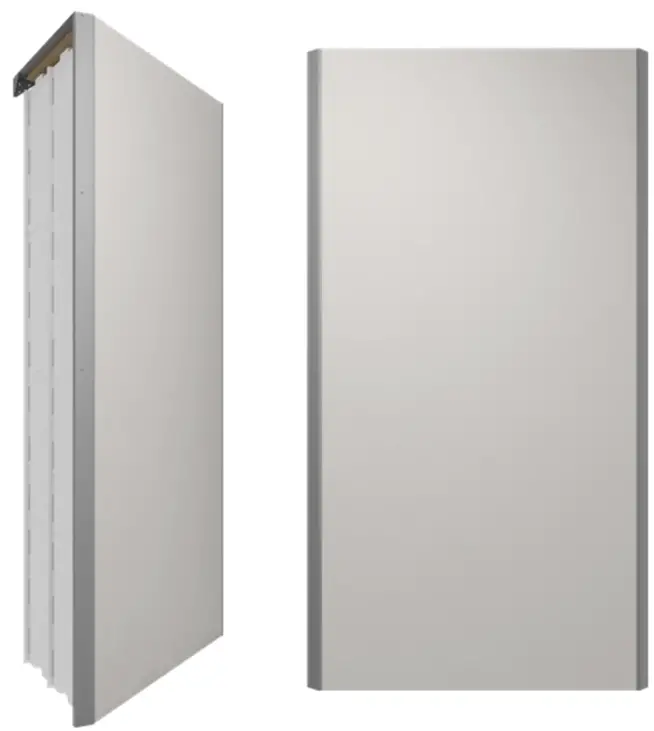

The Mega Bass Trap VMT XXL is a high-quality acoustic panel designed to improve the sound quality in your space. It effectively absorbs low-frequency bass reflections, reducing echo andreverberation for a clearer and more balanced audio experience.

Product Contents:

• FlatPanel VMT x2
• Profile x4
• Finishing Profile x4
• Cover x2
• Protection Bar x10
• Screws x20
• Cover Bracket x2
• Gauge x1
• PET Filling x32

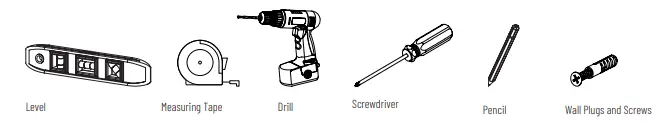

Materials Needed (Not Included):

• Level
• Measuring Tape
• Drill
• Screwdriver
• Pencil
• Wall Plugs and Screws

Installation Instructions

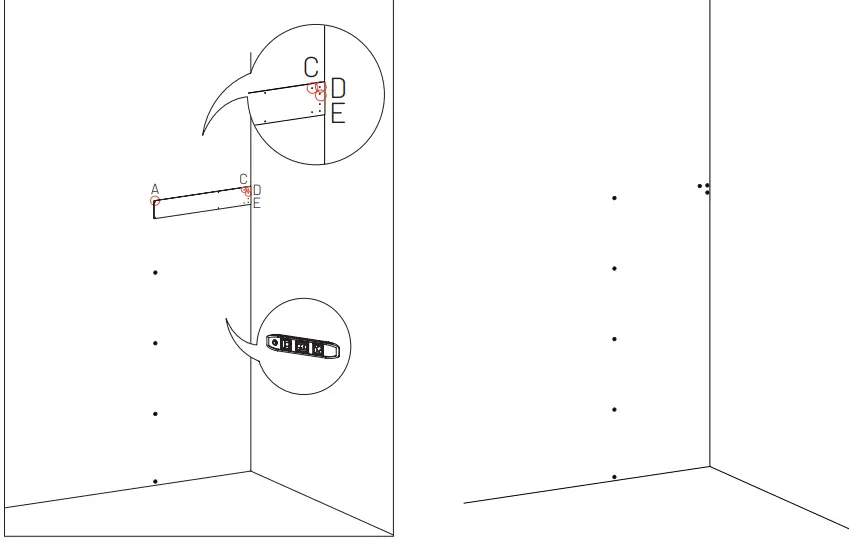

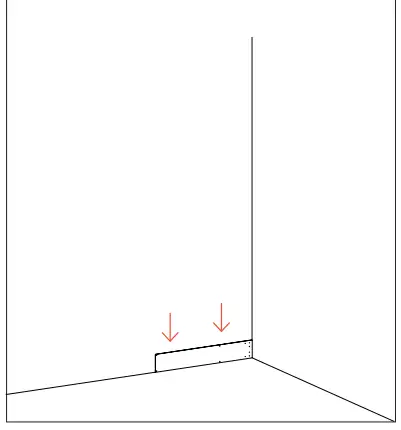

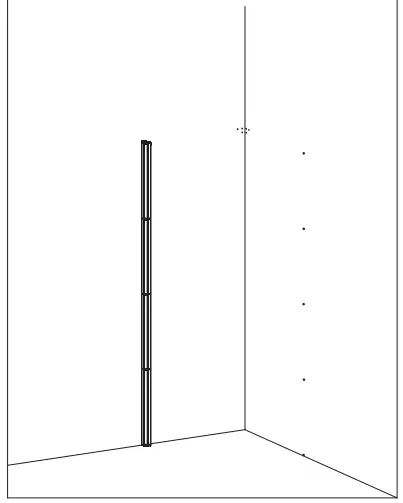

1. Use the gauge provided to mark the holes for fixing the Mega Bass Trap VMT XXL profiles, according to the diagrams.

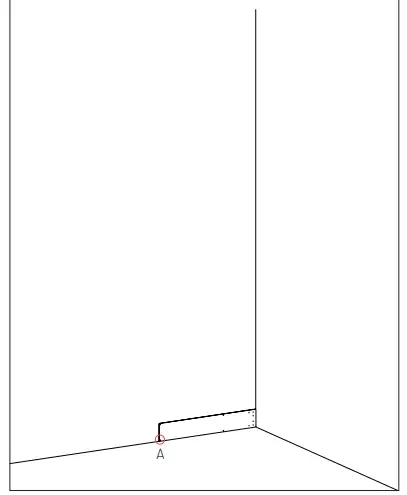

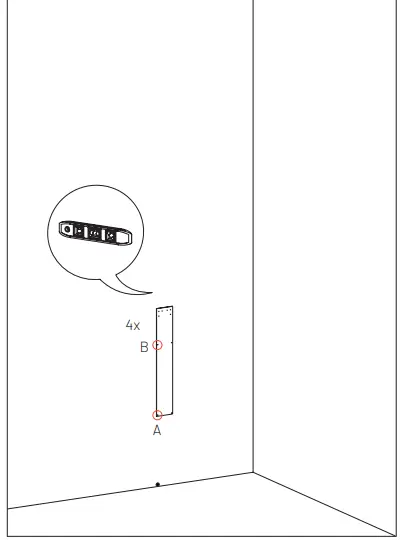

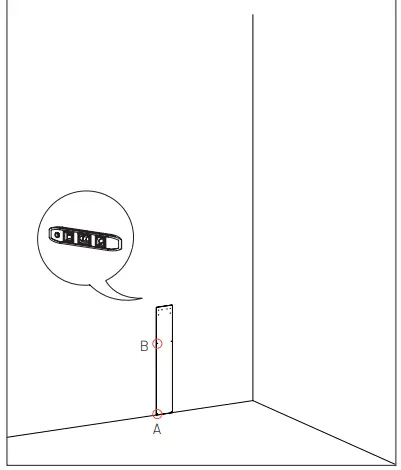

2. Mark the starting point A and use it as a reference to mark point B. Repeat this step 4 times.

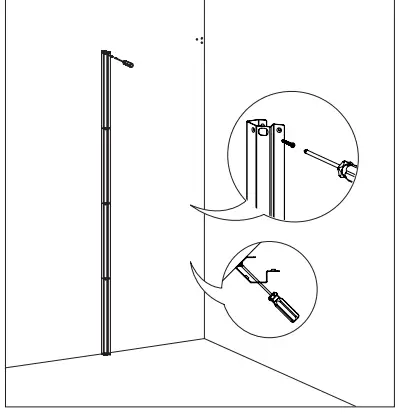

3. If necessary, open the holes in the marked places and apply thewall plugs. Fix the profile indicated with screws suitable for the  wall where you are making the installation.
4. Repeat the same steps to make the markings on the another wall.

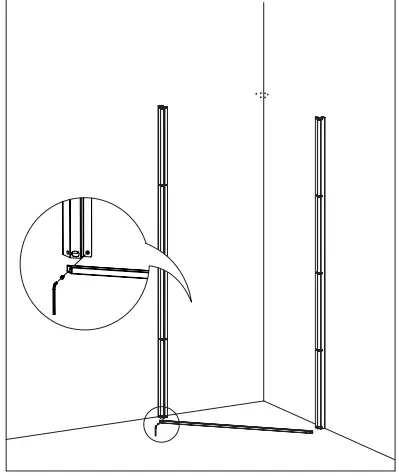

5. After installing the second profile, fix the protection bars with the metallic screws provided.
6. Fix the top plate bracket with screws suitable for the wall where you are making the installation.

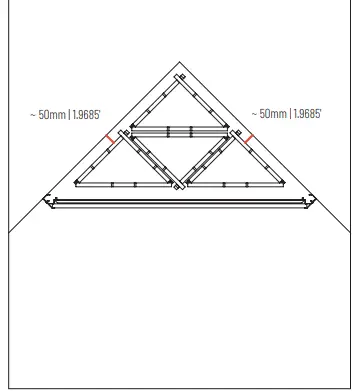

7. Install the prisms in PET, trying to leave a uniform distancearound them in relation to the walls and front of the panel. The recommended distance is approximately 50mm (1.9685 inches).
8. Install the VMT Panel.

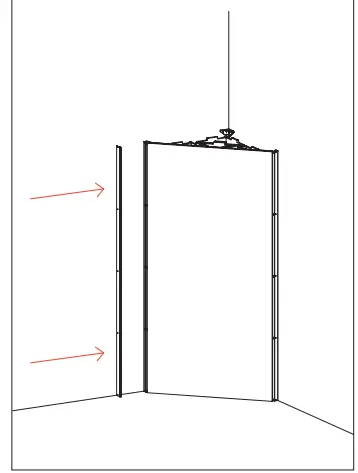

9. Fix the finishing profile with the painted screws supplied.

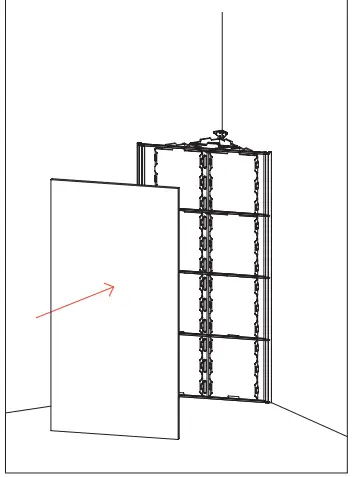

10. Install the Bass Trap cover.

By following these instructions, you will be able to properly install and set up the Mega Bass Trap VMT XXL for optimal acoustic performance in your space.

What in box

Included

Not Included

Assembly Instruction

1. Use the gauge provided to mark the holes for fixing the Mega Bass Trap VMT XXL profiles, according to the diagrams.
2. Mark the starting point “A” and use it as a reference so that you can mark point “B”. Repeat this step 4x.
3. If necessary, open the holes in the marked places, and apply the wall plugs. Fix the profile indicated, with screws suitable for the wall where you are making the installation.
4. Repeat the same steps to make the markings on the in the another wall.
5. After installing the second profile, fix the protection bars with the metallic screws provided.

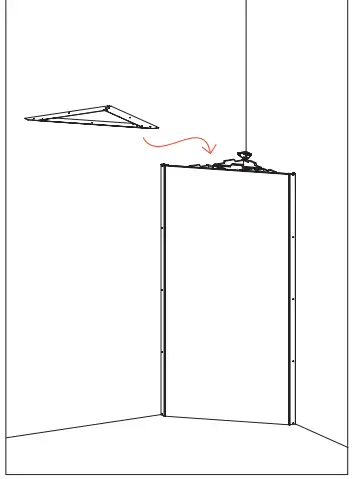

6. Fix the top plate bracket, with screws suitable for the wall where you are making the installation.

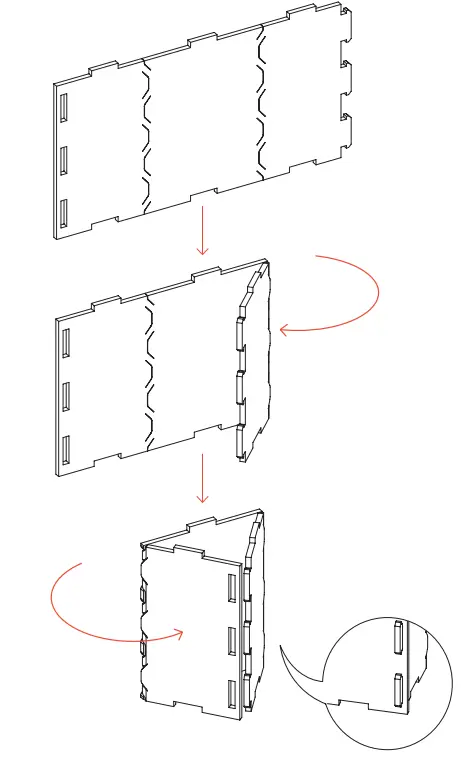

7. Pet Filling

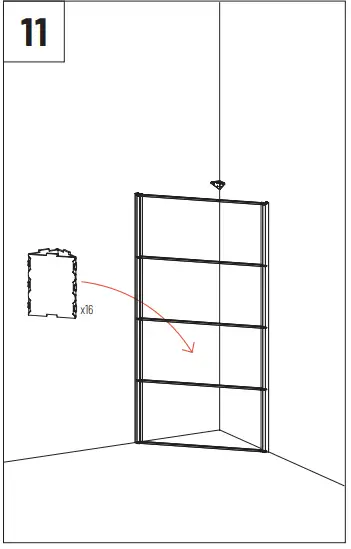

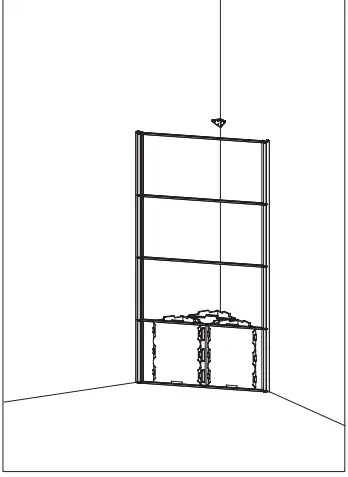

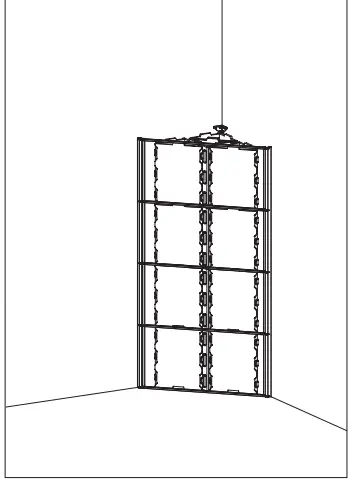

8. Install the prisms in PET, trying to leave a uniform distance around them, in relation to the walls and front of the panel.
9. Install the VMT Panel.

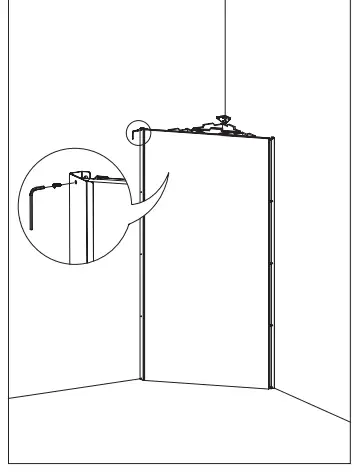

10. Fix the finishing profile with the paintend screws supplied.
11. Install the Bass Trap cover.
