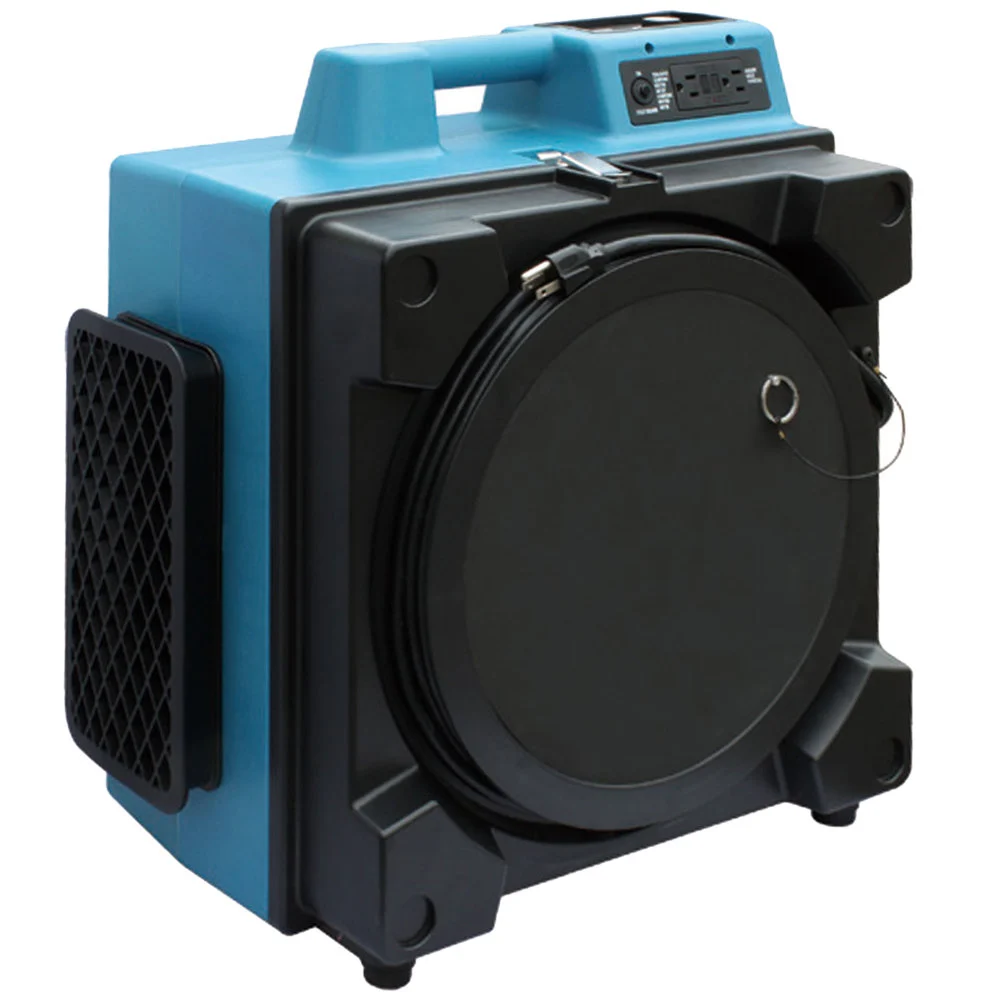

XPOWER X-3400A Professional 3-Stage Filtration HEPA Purifier System

Introduction

Introducing XPOWER’s unique and highly innovative air scrubbers: X-3400A, X-3500 & X-3700. Using the advanced technology 4-stage filtration system that includes a washable outer round nylon mesh, an inner nylon mesh, pleated media filter, HEPA and activated carbon filters – you can be sure the XPOWER Air Scrubbers can contain ground-water contaminants that lead to environmental and human toxicity. The 4-stage air filtration system captures a wide range of compounds and prevents organism migration from location to location.

Features:

• Advanced filtration technology: X-3400A with 3-stage filter system; X-3500 & X-3700 with 4- stage filter system
• HEPA filter captures 99.9% of smaller particles down to 0.3-microns
• Low amp usage with high airflow capacity from 600 to 750 CFM
• Easy cord wrap design
• Filter change light illuminates when insufficient air passes through the HEPA filter
• Stackable, compact and lightweight design
• X-3400A with GFCI daisy chain capability – connects up to 3 units using one power circuit
• 2 airflow positions – upright (vertical) or horizontal
• Durable and rugged ABS housing with 1 year warranty

Operation

In order to remove airborne particles from the surrounding environment, XPOWER Air Scrubbers are designed to draw air through a series of filters and deliver the purest air. Each filter stage operates with progressively higher efficiency. The unit removes airborne particles like hair, skin flakes, visible dust, mold spores, pollen, pet dander and miscellaneous debris.

1. XPOWER Air Scrubbers are shipped ready-to-use. Prior to plugging the unit into the power source, inspect completely for any shipping damage.
2. Carefully place the Air Scrubbers upright on a stable, flat dry surface.
3. Plug the electrical cord into the power outlet.
4. The unit is capable to be used at 2 different angle positions: vertical and horizontal.
5. Turn the switch control knob to desired speed and make sure the unit operates normally.
6. To reduce the risk of injury, close supervision is necessary when the machine is used near children. Do not allow children to play with or around the Air Scrubber at any time.

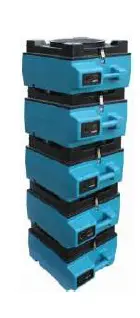

Air Scrubbers Storage
Air Scrubbers can be stacked (up to 5) on their sides for storage. Stacking feature is not secure for transportation

Safety Instructions

1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug the unit with wet hands or while standing in water.
2. To avoid risk of injury, do not direct air flow at face or body.
3. Use only with GFCI protected receptacles. Please contact a qualified electrician for verificaton and / or installaton of a GFCI receptacle if necessary.
4. Do not operate any unit with a damaged cord or plug. Discard Air Scrubbers or return to an authorized service facility for examinaton and/or repair.
5. Air Scrubber is automatically operated device. To reduce the risk of injury, disconnect from power supply before servicing.
6. Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
7. Do not allow children to play with or around the Air Scrubbers at any time.
8. Do not move or carry the Air Scrubbers while unit is operating.
9. Keep air intakes and exhausts clean at all times. Avoid clogging or blocking to prevent the machine from overheating. Blocking the air intake could result in a fire or electrical hazards.
10. Always place the Air Scrubbers on a smooth and level surface for safe operaton.
11. Unplug the unit before performing any maintenance, cleaning, or servicing.
12. Any misuse or abuse of this product will void the warranty.

Maintenance Instructions

1. To keep the Air Scrubber clean, use a damp cloth to wipe the surface of the housing.
2. Never clean the Air Scrubber with water.
3. When not in use, unplug and store the Air Scrubber in a dry indoor place out of reach of children.
4. Always disconnect the Air Scrubber from its power source before performing any maintenance or cleaning.

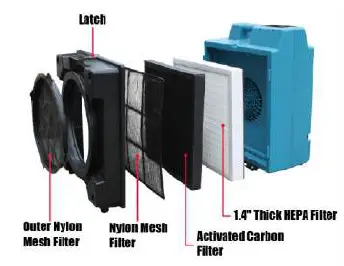

Filter Replacement
Always wear a respirator and personal protective gadgets when removing or replacing filters. Lay the Air Scrubber flat, unlock top latch of the housing, open the inlet panel and remove filters.

Specifications

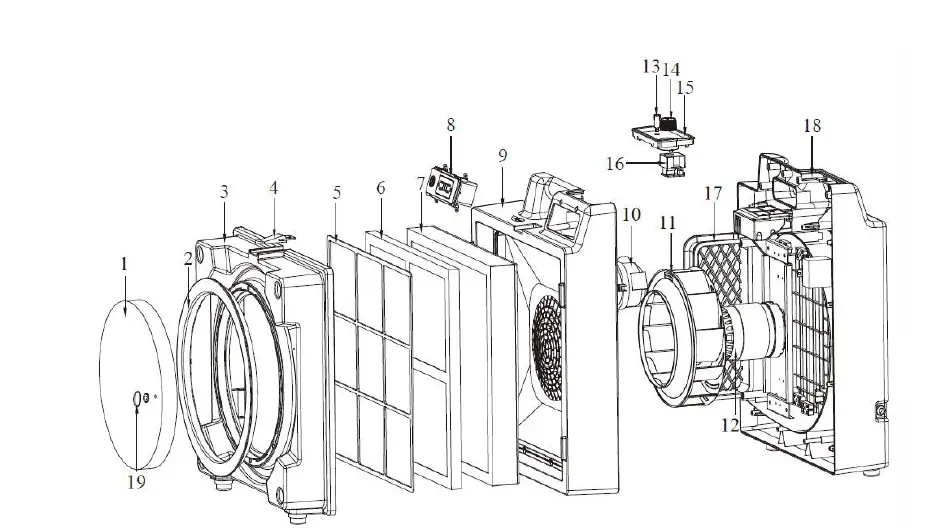

X-3400A Parts list

Accessories

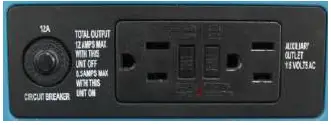

X-3400A GFCI Daisy Chain

XPOWER X-3400A Air Scrubber is GFCI daisy chainable with a low 2.8 amp draw. The 12-amp on-board circuit breaker will allow three (3) additional X-3400A units to run on one circuit at the same time.
X-3400A Air Scrubber has an on-board Circuit Breaker. If the Auxiliary Outlet overloads, the Circuit Breaker will trip. If the Breaker does trip, unplug the units and press the Circuit Breaker Reset button. Plug the units back into the power source and turn on the switch.

Filter Change Light
The Red Filter Change Light will illuminate when accumulated debris is over-saturated, filter needs to be changed

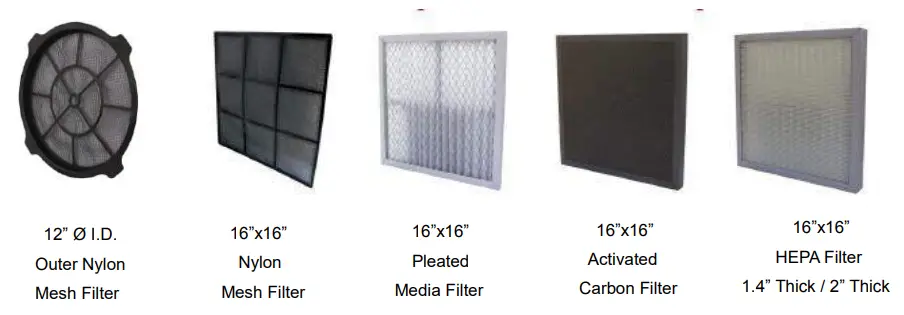

Filter Description

X-3400A

3 -STAGE FILTER SYSTEM

• 1st stage – Nylon Mesh Filter
• 2 nd stage -Pleated Media Filter
• 3nd stage -2″ Thick HEPA Filter

X-3500

4-STAGE FILTER SYSTEM

• 1st stage – Outer Nylon Mesh Filter
• 2nd stage – Nylon Mesh Filter
• 3nd stage – Activated Carbon Filter
• 4th stage -1.4″ Thick HEPA Filter

X-3700

4-STAGE FILTER SYSTEM

• 1st stage – Nylon Mesh Filter
• 2nd stage – Pleated Media Filter
• 3nd stage – Activated Carbon Filter
• 4th stage -2″ Thick HEPA Filter

XPOWER Limited Warranty (USA)

XPOWER’s Limited Warranty covers the unit (excludes POWER CORD) from defects in material and craftsmanship. The Warranty covers normal use for a term of one year from the original date of purchase including parts, labor and one way shipping. Non-contiguous states must pay for roundtrip freight. A purchase receipt must be provided.
Important!
This warranty does not cover or apply to defects due directly or indirectly to misuse, abuse, disassembly, alteration, corrosive chemicals, improper voltage, fire, flood, negligence, accident, improperly or incorrectly performed maintenance or repair, or failure to perform necessary maintenance or repair, or if the use of this product is not in compliance with the instructions and specifications for its use.

Service
For Warranty service and parts replacement (US customers only), you must:

A. Call 1-855-855-8868 for a RMA (Return-Merchandise-Authorization) number.
B. Have original proof of purchase.
C. Use the original undamaged packaging or an industrial certified packaging method.
End user will be responsible to ship the unit (with RMA Number showing on the shipping label) to the XPOWER Service Department. XPOWER to inspect, assess and advise the repairs needed and the applicable cost, if any.
For customers outside the US, please contact XPOWER Distributor in your country or region for Warranty service and parts replacement.

WARRANTY REGISTRATION (for US customers only)
For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC.
Address: 220 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301; Fax: 626-285-3302

• Company Name / Contact Person / Title _______________________________________
• Address _________________________________________ City ____________________
• State / Province ___________________ Zip ____________ Country _________________
• Phone __________________ Fax _________________ E-mail ______________________
• Model # _______________________ Serial # ___________________________________
• Date of Purchase _____/_____/_____ Purchased From ___________________________

TO:
XPOWER MANUFACTURE, INC. 220 Clary Avenue
San Gabriel, CA 91776, USA
Tel: 626-285-3301; Fax: 626-285-3302
