Owner’s Manual
fresh Air Purifier
QFAP-210

Intertek

SAFETY

This safety alert symbol is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
Danger indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
DANGER Warning indicates a potentially hazardous situation, which,
WARNING if not avoided, could result in death or serious injury.

 SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF  FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Caution indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION
Used to indicate an electrical shock or electrocution hazard.
ELECTRICAL SHOCK

Safety Precautions

In order to avoid possible injury or financial loss to you or others, please pay attention to the following safety precautions.
If the power cord is damaged, in order to avoid danger, it must be repaired by the professional personnel of the manufacturer, its maintenance department, or similar departments.

Warning

ELECTRICAL SHOCK
Do not touch the power plug with wet hands. Electric shock may be caused.
Before cleaning the air purifier, make sure that the power supply has been disconnected.

CAUTION Please plug the plug into the power socket before starting the air purifier.
If the plug is not fully inserted into the socket, it may cause electric shock and overheating, and possibly fire.

• Do not use damaged plugs or loose power outlets.

Warning  Do not damage the power cord and socket.
When using the machine, do not bind the wires. Using the damaged wires may lead to electric shock, short circuit or fire.

CAUTION  Do not disassemble or refit the air purifier.
ELECTRICAL SHOCK Disassembly or modification of electrical appliances may lead to electric shock, failure, or fire.
Do not place rods or other metal objects at the air outlet opening.
Otherwise, it may touch the internal parts and cause electric shock or damage.

Warning

•  If you need to move the product, please disconnect the power of the product first.
• Be sure to move the product slowly.
• Do not move the product by pulling the power cord.
• Do not move the machine while the product is in operation. If you need to move the machine, please turn off the power.

In case of any of the following conditions, please turn off the power of the machine immediately.

• If a switch does not work.
• If the circuit breaker works or the fuse burns out.
• If the power cord or plug is abnormally hot.
• If you find a burnt odor or abnormal sound or vibration.
• If there is any other abnormal phenomenon or fault.

CAUTION  Do not use solvents to clean the air purifier.
ELECTRICAL SHOCK Do not use solvents to clean the air purifier.
Warning  Not recommended for use in a kitchen.

• The air purifier should not be used as ventilation or air extraction equipment.

ELECTRICAL SHOCK The air purifier may cause electric shock or fire if it gets wet.

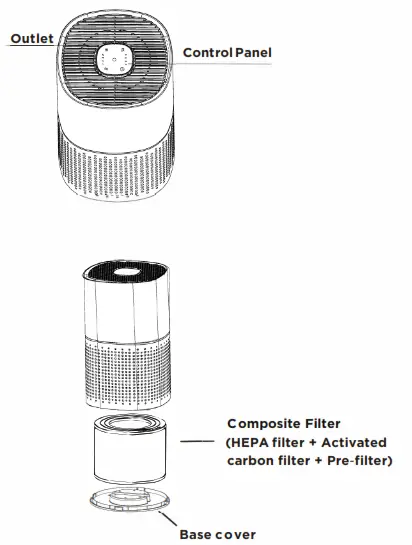

Product Introduction

If there is any difference between the product picture and the real object, the real object shall prevail.

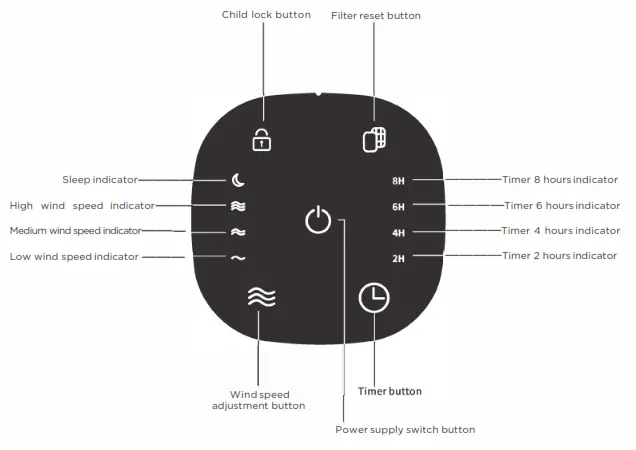

Function description of the control panel

Removal and installation method of the rear cover plate

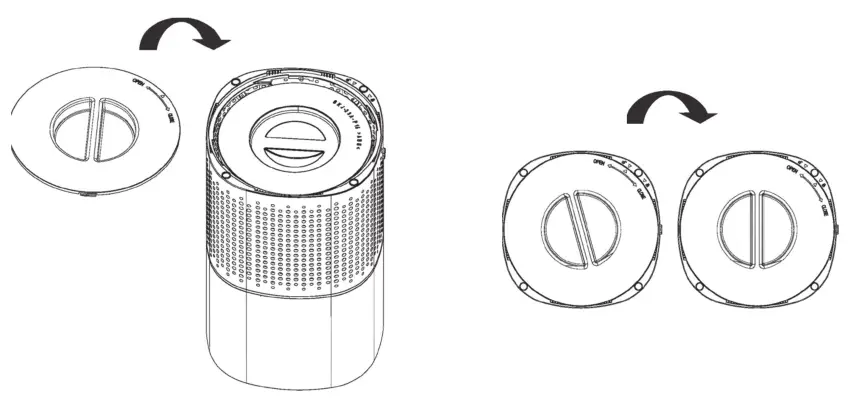

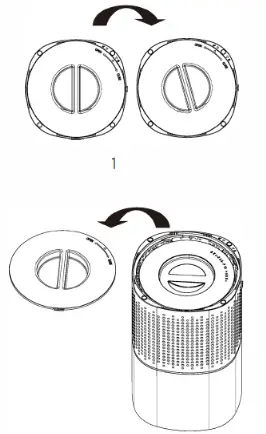

Disassembly method of base

Press the indicator key to screw out the base

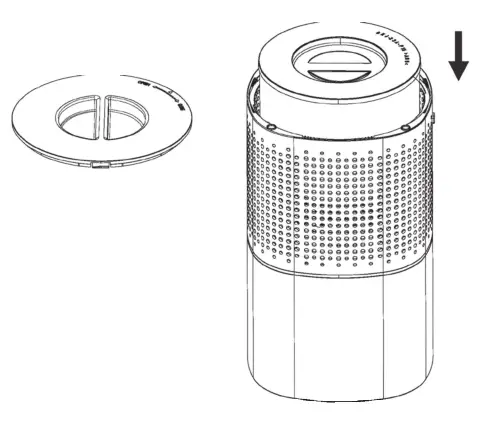

Installation method of the base.

Re-install the base, press the unlock key to align, and screw it in the locking direction.

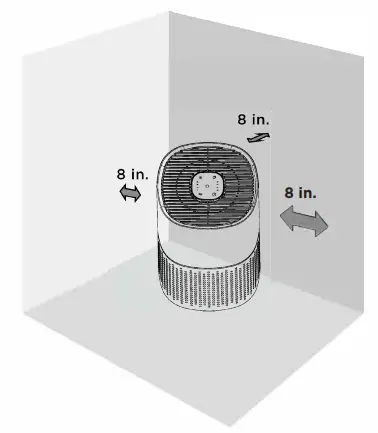

Place of air purifier

In order to achieve a good air circulation effect in your room, make sure that the air inlet and outlet of the machine arenot less than 8 in. away from the obstacles.
Please use at least 3 ft. away from TV, radio and other electrical appliances. Please do not plug the power plug into the same socket as the power plug of TV, radio, and other electrical appliances.

• If you use it in the same place for a long time, it will contaminate the wall around the host.
• Do not obstruct the air inlet and outlet to ensure adequate ventilation and maximum efficiency of the machine.

Install the filter

Information
This air purifier is equipped with a filter screen inside, but before using the product, be sure to remove the packaging of the filter screen. Please follow the instructions below to remove the filter and its package, and then put it back into the purifier.

Warning

• Ensure that the power plug is installed, repaired and transported when the power supply is disconnected.
• Do not operate the machine without filter.
• Remove the plastic packaging of the filter screen before use.

Operation Steps

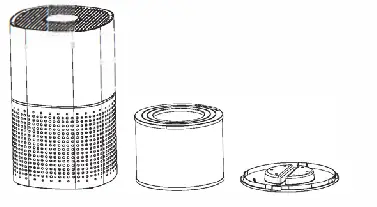

When using the air purifier for the first time, please follow the steps below to install the filter correctly.

1.  Remove all packaging materials and place the machine on a dry, stable, level surface

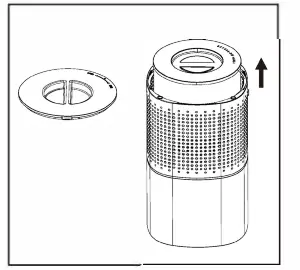

2. Press the bottom cover with your fingers, screw it our according to the unlocking direction, and take out the base upward at the same time.

3. Remove the filter screen inside the purifier.

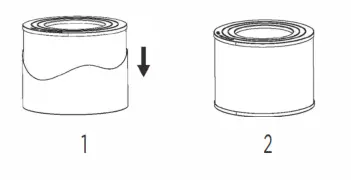

4. Remove the packing material from the filter screen.

5. Put the filter back into the purifier.

6. Press the indicator key to put in the bottom cover and tighten it.


Tips
When installing the bottom cover, please install it carefully to prevent hand clamping.

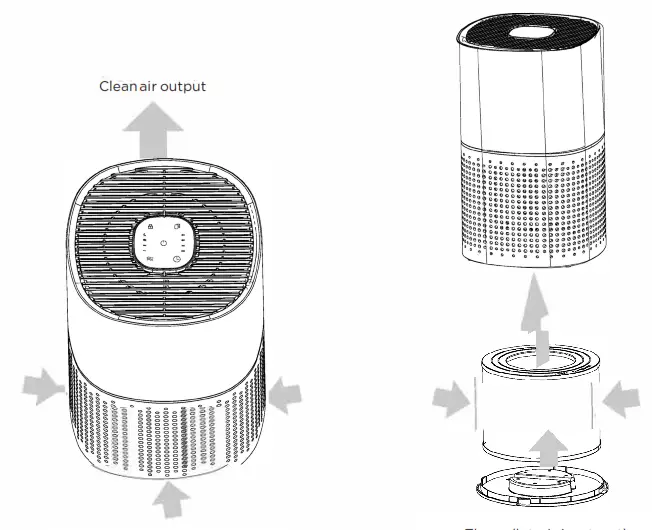

Understand the role of filters

Polluted air entering	The polluted air enters the filter screen through the outside e and outputs clean air from the middle up

The picture is for reference only. If there is any difference between the real object and the picture, the real object shall prevail.

Integrating multiple functions into one

• 4-speed switch
• Timer setting
• Prompt to replace the filter screen
• It is equipped with manual, sleep, and child lock operation modes

Unique triple purification technology

Note: High-efficiency HEPA and high-efficiency activated carbon are combined in the same filter screen.

Usage method

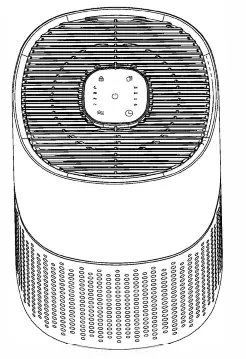

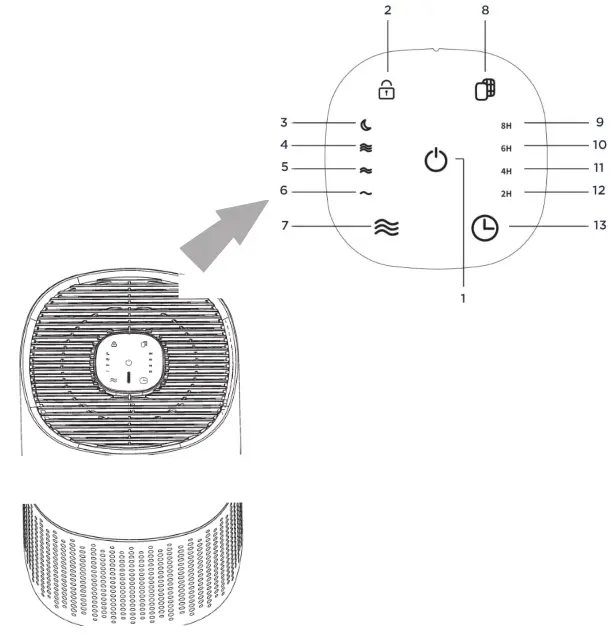

Function description of the control panel

1. Power Supply Switch Button
2. Child Lock Button
3. Sleep Indicator
4. High Wind Speed Indicator
5. Medium Wind Speed Indicator
6. Low Wind Speed Indicator
7. Wind Speed Adjustment Button
8. Filter Reset Button
9. Timer 8 Hours Indicator
10. Timer 6 Hours Indicator
11. Timer 4 Hours Indicator
12. Timer 2 Hours Indicator
13. Timer Button

Turn on the purifier

Press the power button, the machine will sound a long beep. The machine will enter the automatic operation mode, the automatic gear light will be on, and the fan will work in gear2 (preheating for 10 seconds, and the indicator light of the air quality in time and space will be displayed orange). After the sensor is preheated, the color is displayed according to the current detected value. The machine is operated in automatic mode by default. When the machine is running in automatic mode, the running wind speed will be selected automatically according to the air quality status.

Manual Mode

After power on, the air purifier is in standby mode. Press the on/ off button to start the air purifier. To enter the automatic mode, press the fan speed adjustment button to prompt the sound to start. The fan speed is in the low, medium, high fan and sleep. After adjusting the fan speed, the product runs according to the chosen speed.

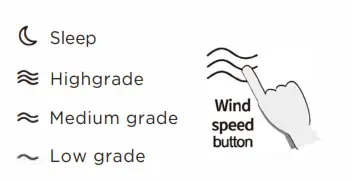

Air Volume Setting

Air volume regulation, air volume can be weak, medium, and strong automatic cycle selection.

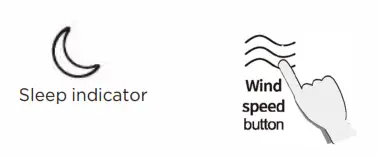

Sleep function

When the product is running, press the “wind speed” key until the sleep indicator is on. When the sound is on, enter the sleep mode, and the sleep indicator ill be on (the sleep indicator will be off after 10 seconds). When in the sleep mode, the fan sleep gear will run, and other indicators will e off. Press  ny key to exit the sleep mode.
Child lock function

Long press the child lock button for 3 seconds, the sound will be prompted, the child lock indicator will be on, and the operation panel will enter the child ock state. Press any key (except long-press the child lock key), the child lock indicator will flash for 3 times, and other button functions will be invalid,  indicating the child lock status of the current operation panel. Long press the child lock button for 3 seconds to prompt the sound to start, exit the child lock state, and all button functions return to normal.
Timer Setting

Timer: The machine can be selected in 2 hours, 4 hours, 6 hours, 8 hours according to the needs of users.
Reset function

When the filter screen is replaced, the user can press the “reset” key for 3 seconds after the filter screen is replaced. The filter screen is reset and the filter screen replacement indicator is off.

Maintenance and cleaning methods

Be sure to unplug the power plug before cleaning the product.
Do not immerse the product in water or any other liquid.
Do not use abrasives. Use corrosive or flammable cleaning gents (such as bleach or alcohol) to clean any parts of the product.
The composite filter is not washable.

Clean air purifier
Clean the inside and outside of the purifier body regularly to prevent dust accumulation.

1. Use a soft dry cloth to wipe the dust off the purifier.
2. Clean the air inlet and outlet with a soft dry cloth.

Replace the filter screen

Information

When the reset button light flashes, remind the user to replace the filter

Attention
When the product is working, the indicator light for replacing the filter will flash, and the buzzer will sound “Ding, Ding” alarm to remind the user to replace the filter, but the purifier can still work normally.

Attention
Please shut down and unplug the power plug before replacing the filter. After replacing the filter, if the replacement indicator still flickers after starting the  machine, please press the reset key for 3 seconds to reset the filter. The replacement indicator turns off and the filter reset is completed.

Tips
Put the plastic filter into the machine before disassembly

Operation steps

1. The machine reminds us that the filter needs to be replaced

2. Turn off the power, stop the purifier, and then unplug the power plug.

3. Press the bottom cover with your fingers, screw it out according to the unlocking direction, and take out the bottom cover upward at the same time.

4. Remove the filter inside the purifier and replace it.

5. Remove the packing material from the new filter screen.

6. Put the filter back into the purifier.

7. Put in the filter screen again, press the indicator key to put in the bottom cover, and tighten it.

8. After replacing the filter, plug in the power plug and press the reset key for 3 seconds to reset the machine.


When idle for a long time
Pull off the power plug. (because standby mode also consumes power.) Dry the interior thoroughly.
Store the machine in a dry and ventilated place. (keeping the product flat or upside-down may lead to product failure)

The reference time for replacing the filter screen
The filter screen of this product is primary filter+ HEPA+ activated carbon filter. The filter screen cannot be washed and is damaged. Please do not press it hard. The general service life is six months
The above time is only a reference time, users can change it in advance according to the actual use environment.

 Attention
Please shut down and cut off the power plug before replacing the filter.

Troubleshooting

This chapter lists the common problems that may be encountered when using this product. If you are unable to solve the problem according to the information below, please contact the customer service center or the dealer.

Warranty and Service
If you need information or have any questions, you can contact our customer service team, toll-free at(800) 433-1626.

Other Information

Recycling
When discarding products, please do not stack them with general domestic waste. Please understand the local regulations on classifying mobile phones as electronic or electrical products Proper disposal of the product help to avoid potential negative effects on the environment and human health.

Ordering parts or accessories
If you need to replace parts or purchase additional parts, please contact our customer service team, toll-free at (800) 433-1626.

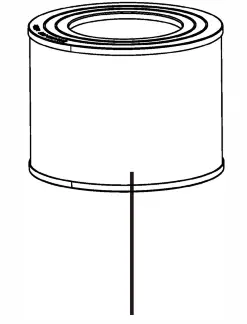

Choose Parts

Pre-filter + HEPA+ activated carbon composite filter screen

VENTAMATIC, Ltd.
LIMITED WARRANTY STATEMENT
This warranty is underwritten by Falco Insurance Company and is extended to the original retail purchaser of this model or, if this unit is purchased and requires installation by a building contractor, to the original owner of the home. No subsequent purchaser of the unit or of a home in which it is installed is  ntitled to any of the benefi ts of this warranty.
This product is warranted against defects in materials and workmanship for a period of one (1) year from the date of original retail purchase. No other parts r components are warranted.  There is no warranty for defects caused by abuse, faulty installation, or the like.
Repairs or replacement parts supplied under this warranty are warranted only for the period of his warranty; that is, one (1) year from the date of the original retail purchaser of the unit. In the event of a defect or malfunction, we will replace or repair the defective part or component only and return the new or repaired part to you freight prepaid.
You must bear all other expenses incurred in obtaining repairs, including labor required for fi eld repair or replacement, and the cost of shipping the effective part to us. You must also bear the cost of repair to or replacement of any part or component and the shipping charges incurred for the repair or replacement and return to you of any part or component not covered by this warranty, including parts or components damaged by you.
The company reserves the right to demand and receive written evidence of the date of purchase before undertaking its obligations under this warranty. The ight to demand and receive written evidence of the date of purchase extends to all licensed dealers of Ventamatic, Ltd. products. You should, therefore, retain your sales slip and attach a copy of it to the warranty claim.

To start a warranty claim you must:
Contact Ventamatic, Ltd.
An RGA (Returned Goods Authorization) form is required for returns to the factory to ensure your return can be processed effi ciently and quickly. Please contact Ventamatic, Ltd. toll-free at 800-433-1626 or via web at www.bvc.com to obtain an RGA and follow the instructions given.

There is no informal dispute settling mechanism available in the event of a controversy involving this warranty.
Any and all implied warranties which may exist terminate upon the expiration of this warranty ne (1) year from the date of the original retail purchase. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.
Ventamatic, Ltd. is not liable to you for incidental or consequential damages arising out of defect or malfunction of a unit or its installation or out of any alleged breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. This warranty gives you specifi c legal rights and you may also have other rights which may vary from state to state.

Ventamatic, Ltd.
P.O. Box 728,
Mineral Wells,
TX 76068-0728 1-800-433-1626
Fax: 940.325.9311
www.BVC.com
©2022 VENTAMATIC, LTD. 2022 MAXX AIR QFAP210 INsMAN 0122/#1249
