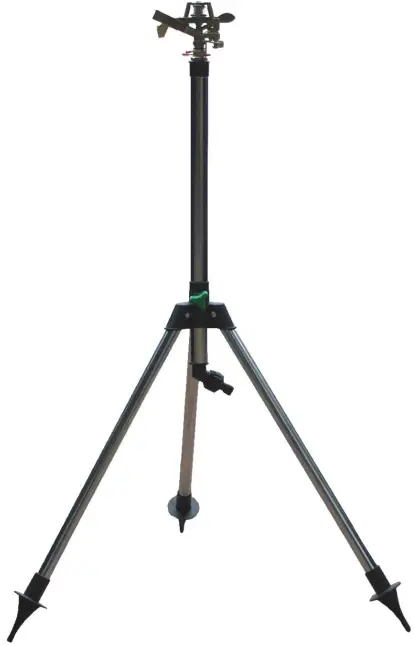

81 70 33 Tripod Impulse Sprinkler
Instruction Manual
81 70 33 Tripod Impulse Sprinkler
Dear Customers,
Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.
If you pass the device on to third parties, enclose these instructions.
Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury:
Please read this manual carefully and use the device only according to this manual.- Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
- Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.
- The tripod impulse sprinkler is not a toy. Keep it out of reach of children.
- Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.
Intended Use

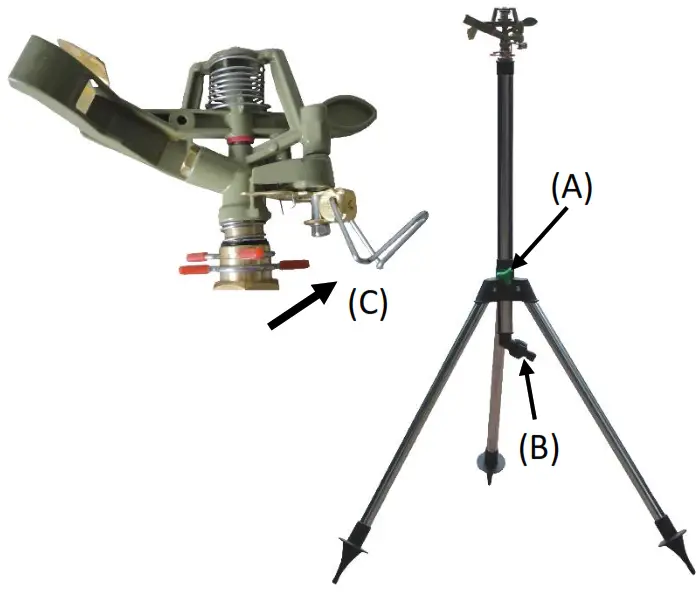

- Fold out the tripod.
- Pull the centre tube upwards and fix the desired height with the wing nut (A).
- Connect the water hose with the quick coupling (B).
- For circle watering of 360° lift up the spring (C), as shown in the picture below.

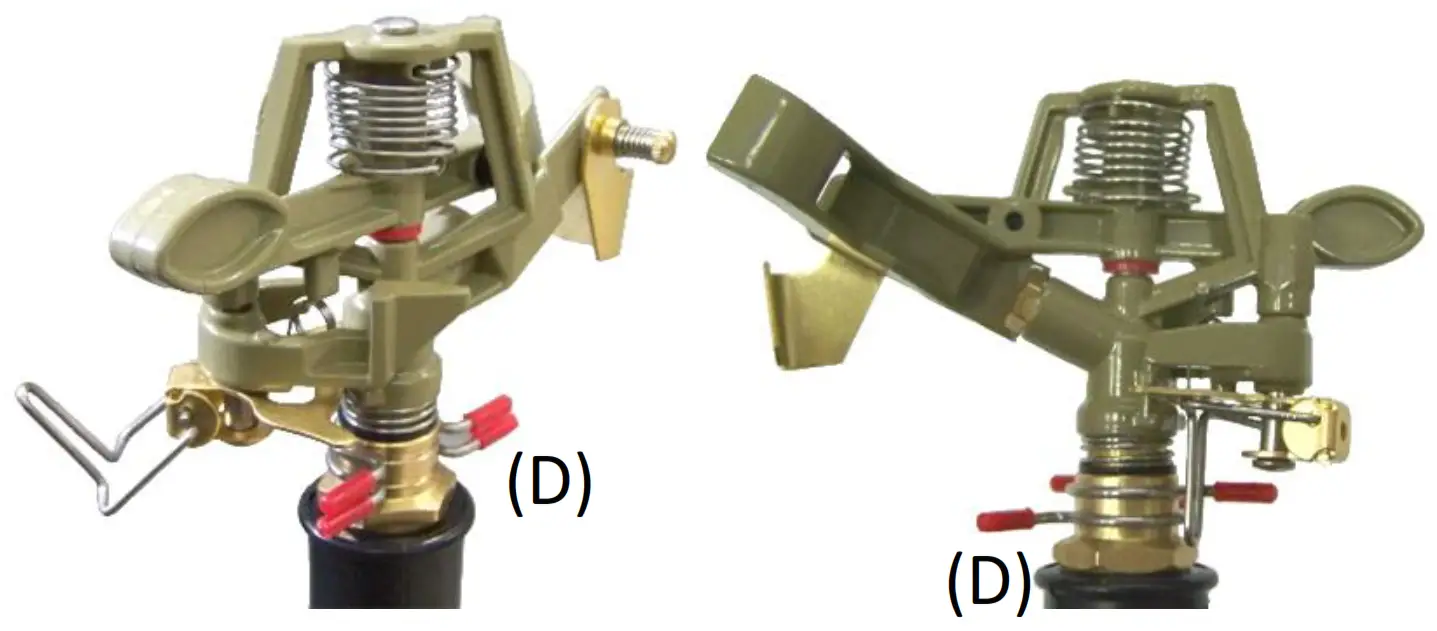

- For sectional watering turn the collars with the red end caps (D) in the desired position. The radius of the section can be determined by positioning the spring (C) between two collars.
- Insert the tripod into the ground. Do not beat with a hammer or similar on the impulse sprinkler in order to push in the ground.
Adjusting the Distance
For adjusting the distance, you have to turn on the water tap completely or only partly. The more you turn on the water tap, the higher the water pressure will be and thus the wider the water jet will be thrown.
Breaking the Water Jet

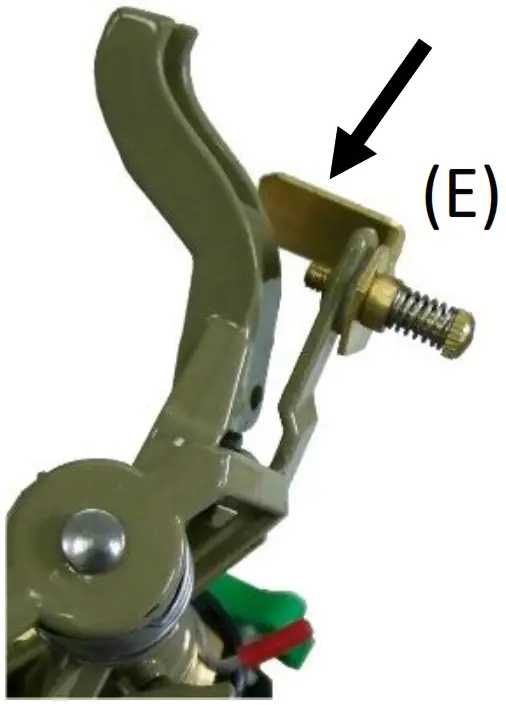

For breaking the water jet, adjust the plate (E) as shown in the picture. With the spring-loaded screw you can fix the plate in the desired position.
Technical Data
| Height: | 60 cm, extendable to 90 cm |
| Weight: | approx. 1.1 kg |
| Section Watering: | 30 – 270° |
| Circle Watering: | 360° |
| Sprinkled Zone: | up to 24 m in Diameter |
| Distance Adjustment: | infinitely (depending on the water pressure) |
CUSTOMER SERVICES
| DEUTSCHLAND Westfalia Werkzeugstraße 1 D-58093 Hagen Telefon: (0180) 5 30 31 32 Telefax: (0180) 5 30 31 30 Internet: www.westfalia.de | SCHWEIZ Westfalia Wydenhof 3a CH-3422 Kirchberg (BE) Telefon: (034) 4 13 80 00 Telefax: (034) 4 13 80 01 Internet: www.westfalia-versand.ch | ÖSTERREICH Westfalia Moosham 31 A-4943 Geinberg OÖ Telefon: (07723) 4 27 59 54 Telefax: (07723) 4 27 59 23 Internet: www.westfalia-versand.at |
DISPOSAL
Dear Customer,
Please help avoid waste materials.
If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
©Westfalia 10/22
