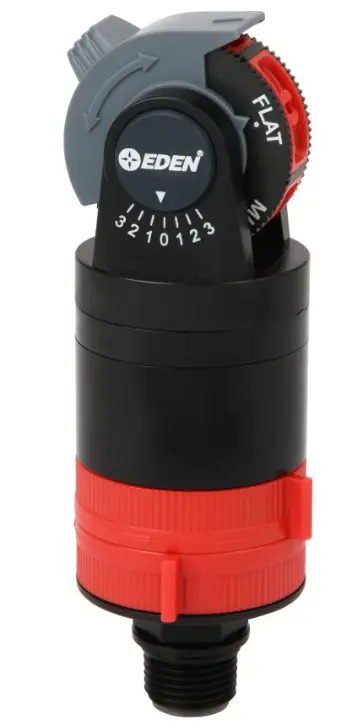

eden 16030EDAMZ 5 Pattern Rotary Sprinkler Head

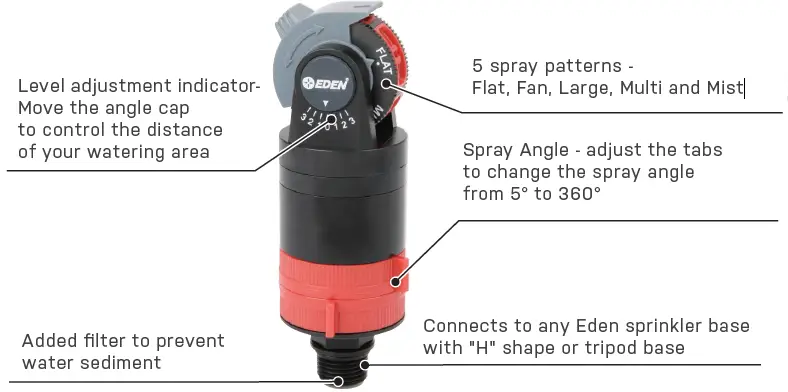

OVERVIEW

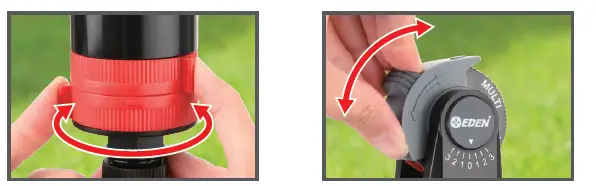

Spray Coverage and Distance Adjustment
Adjust the range tabs and angle cap to change the spray coverage (from 5° up to 360°) and spraying angle to water just where you need without wasting water

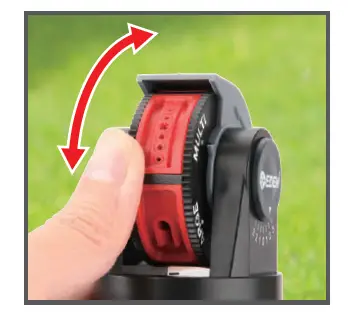

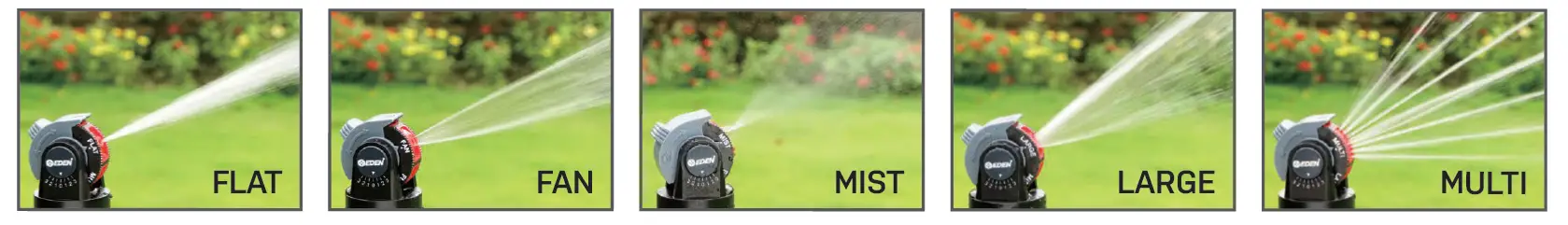

Spray Pattern Adjustments
Depending on your watering needs, you can manually select from the various pattern settings:
- FLAT – The flat pattern will provide a flat wave of water.
- FAN – The fan pattern disperses water in a wide fan shape.
- MIST – This pattern is useful to cool down a small area.
- LARGE – This pattern covers the maximum area.
- MULTI – This is a combination of the Flat, Fan and Large pat

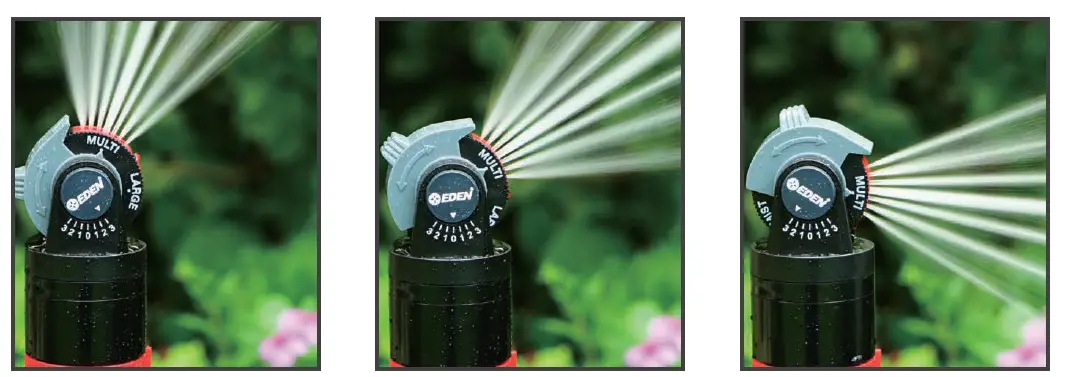

Level Adjustment Indicator
Move the angle cap to control the distanceof your watering area. The higher level will create a higher arc for greater water coverage. The lower level will reduce the watering area. Convenient indicators help you remember your settings for next time
- HIGHER LEVEL (1-3): Adjust the spray upwards for maximum distance.
- LEVEL (0) Adjust the spray in between a dispersed and concentrated watering area.
- LOWER LEVEL (3-1) Adjust the spray downwards to reduce the watering area.
| 40 PSI | Large | Multi | Flat | Fan |
| Radius of Spray | 39 ft (12 m ) | 37 ft (11.5 m) | 29 ft (9 m) | 27 ft (8.5 m) |
| Coverage Area up to | 4860 sq ft (452 m²) | 4470 sq ft (415 m²) | 2730 sq ft (250 m²) | 2440 sq ft (226 m²) |
CAUTION
- For outdoor use with cold water only
- Do not spray near electrical connections
- When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors
WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Made in Taiwan www.edengarden.com
